This Kit Includes:

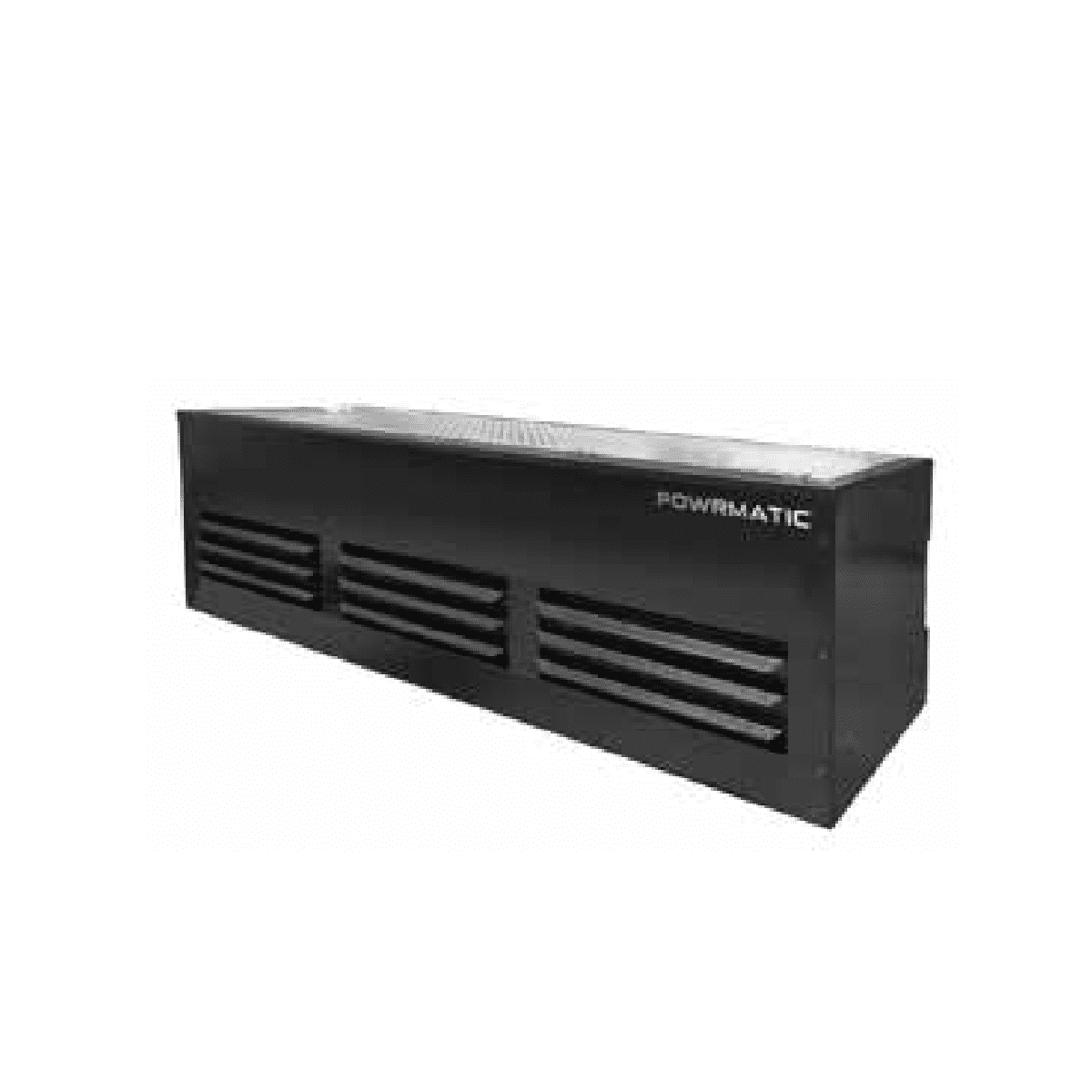

1 × Powrmatic BAR4/22A Baratherm Ambient Door Curtain
1 × Integrated 4-fan high velocity air assembly
1 × Factory-mounted industrial casing for horizontal installation

High Capacity Ambient Air Barrier for Wide Industrial Door Openings

The Powrmatic BAR4/22A Baratherm Ambient Industrial Door Curtain is a high-capacity air barrier system engineered for large commercial and industrial doorways. Designed to create a powerful unheated air stream, the unit prevents uncontrolled air movement between internal and external environments, reducing heat loss and improving overall energy efficiency.

With an average outlet velocity of 15.3 m/s and high-speed airflow of 10,800m³/h, the BAR4/22A delivers strong environmental separation across wider openings. The system is optimised for mounting heights between 2.5m and 5.0m, making it particularly suitable for loading bays, distribution centres and high-traffic warehouse entrances.

The unit operates on a 230V~50Hz single-phase supply and incorporates four internal fans to ensure balanced airflow distribution across the full 2,250mm module length. By limiting cold air ingress, dust, fumes and insect penetration, the BAR4/22A supports improved comfort levels while helping reduce heating energy consumption when used alongside warm air systems.

Key Product Features:

• High velocity ambient industrial door curtain
• Average outlet velocity: 15.3 m/s
• Three-speed airflow control
• High speed airflow: 10,800 m³/h
• Medium speed airflow: 6,000 m³/h
• Low speed airflow: 4,000 m³/h
• Suitable mounting height: 2.5 – 5.0 metres
• 230V~50Hz single-phase supply
• 4 internal fans for uniform air distribution
• Designed for wide industrial door openings (2,250mm)
• Reduces heat loss and improves energy efficiency
• Minimises ingress of dust and airborne contaminants

Technical Specifications:

Model: BAR4/22A
Product Type: Ambient industrial door curtain
Average Outlet Velocity: 15.3 m/s

Airflow Volume:
High Speed: 10,800 m³/h
Medium Speed: 6,000 m³/h
Low Speed: 4,000 m³/h

Electrical Supply: 230V~50Hz 1Ph
Starting Current: 40.0A
Running Current: 16.0A

Recommended Mounting Height: 2.5 – 5.0 m

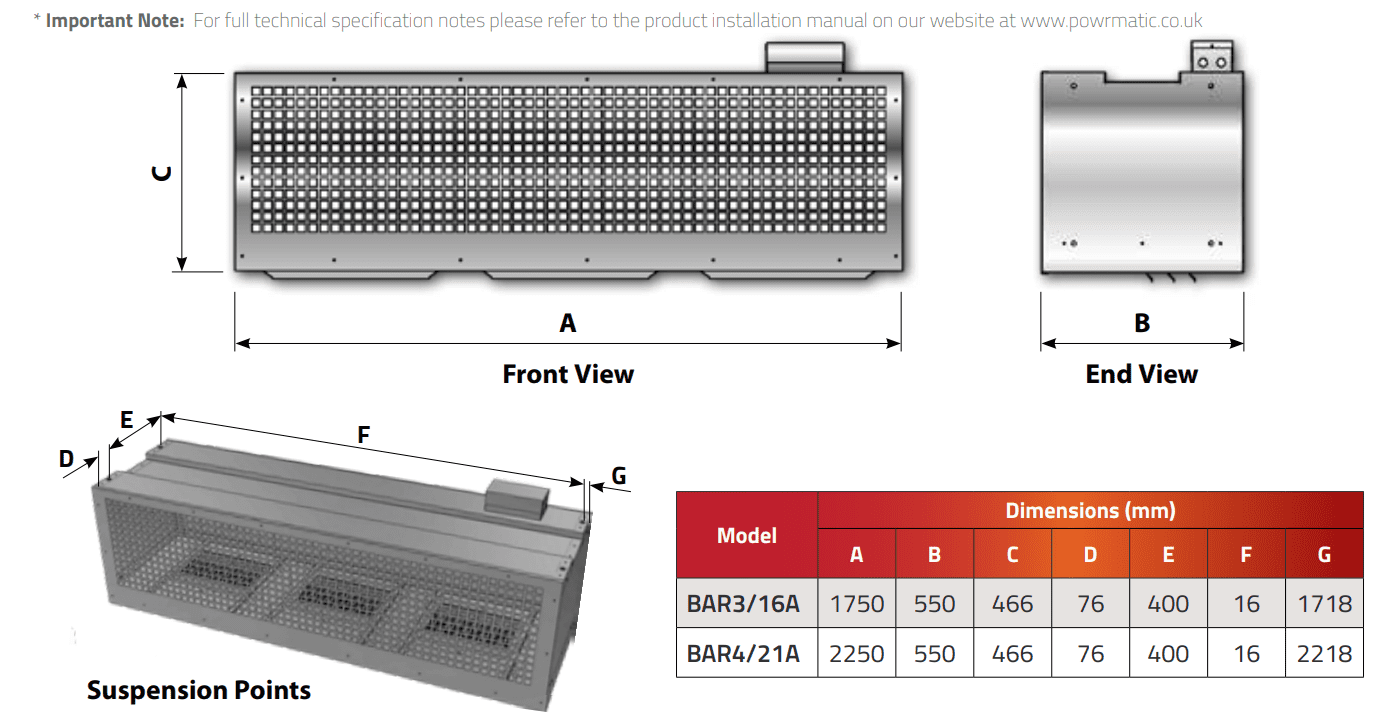

Overall Dimensions:
Height: 470 mm
Width: 2,250 mm
Depth: 470 mm

Install Clearance:
Top: 200 mm

Quantity of Fans: 4
Net Weight: 103 kg

Applications:

• Warehouses
• Distribution centres
• Large loading bays
• Manufacturing facilities
• Industrial logistics hubs
• Commercial premises with wide door openings
