This Kit Includes:

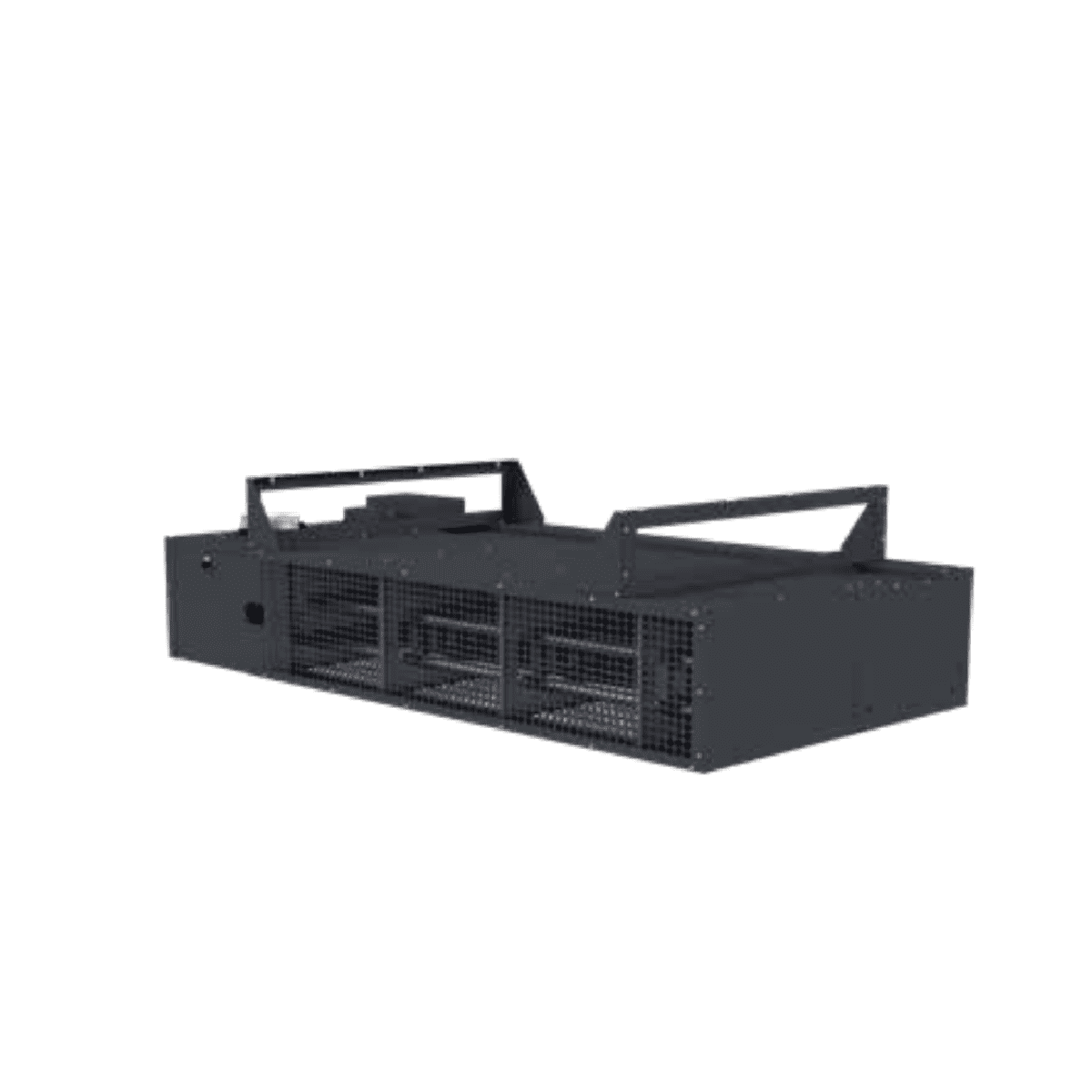

1 × Powrmatic BAR3/GFAC Gas Fired Heated Door Curtain
1 × Integrated centrifugal fan assembly (3 fans)
1 × Downward discharge slot with adjustable directional louvres
1 × Factory-fitted gas burner system
1 × Flue connection spigot (100mm)

High Output Gas Fired Heated Door Curtain for Industrial Loading Bays

The Powrmatic BAR3/GFAC is a high-performance 40kW gas fired heated industrial door curtain engineered to provide active environmental control across large commercial and warehouse door openings.

Designed for high-level horizontal installation, the BAR3/GFAC delivers a powerful heated air stream downward across the doorway. This simultaneously prevents cold air ingress and breaks up cold air pooling at floor level, a common issue in high-traffic loading bays and logistics facilities. With a maximum nominal output of 36.5kW and input (net CV) of 40.0kW, the unit provides substantial heating performance while maintaining controlled airflow via centrifugal fan technology. The average outlet velocity of 15.3 m/s ensures consistent environmental separation even in exposed doorways.

The three-speed fan configuration allows airflow adjustment to suit mounting height and operational conditions, with high speed airflow reaching 8,100 m³/h.

Key Product Features:

• Gas fired heated industrial door curtain
• Nominal heat output (high fire): 36.5kW
• Nominal heat output (low fire): 24.2kW
• Gas input (net CV): 40.0kW (high fire)
• Three-speed airflow control
• High speed airflow: 8,100 m³/h
• Medium speed airflow: 4,500 m³/h
• Low speed airflow: 3,000 m³/h
• Average outlet velocity: 15.3 m/s
• High-level horizontal mounting configuration
• Centrifugal fan system (3 internal fans)
• Directional discharge louvres fitted
• Helps prevent heat loss and cold air pooling
• Designed for industrial warehouse environments

Technical Specifications:

Model: BAR3/GFAC
Product Type: Gas fired heated door curtain

Heat Output (Nominal):
High Fire (max): 36.5kW
Low Fire (min): 24.2kW

Gas Input (Net CV):
High Fire (max): 40.0kW
Low Fire (min): 27.2kW

Airflow Volume:
High Speed: 8,100 m³/h
Medium Speed: 4,500 m³/h
Low Speed: 3,000 m³/h

Electrical Supply: 230V~50Hz 1Ph
Starting Current: 21.0A
Running Current: 12.0A

Fuel Connection: ¾" BSP Rc
Nominal Inlet Pressure: 20.0 mbar
Gas Consumption: 4.23 m³/h

Recommended Mounting Height (Min): 2.0 m

Overall Dimensions:
Height: 466 mm
Width: 1,750 mm
Depth: 1,150 mm

Install Clearance:
Top: 200 mm
Front (air inlet): 1,000 mm
Sides: 25 mm

Flue Diameter: 100 mm
Maximum Flue Length: 7m + 2 × 90° elbows (flue only or room sealed)
Combustion Air Spigot: 100 mm

Quantity of Fans: 3
Noise Level: 72 dB(A)
Net Weight: 80 kg

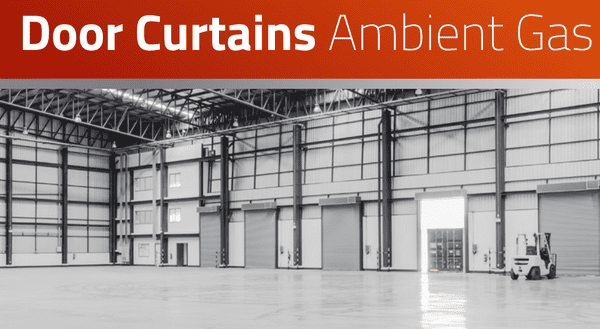

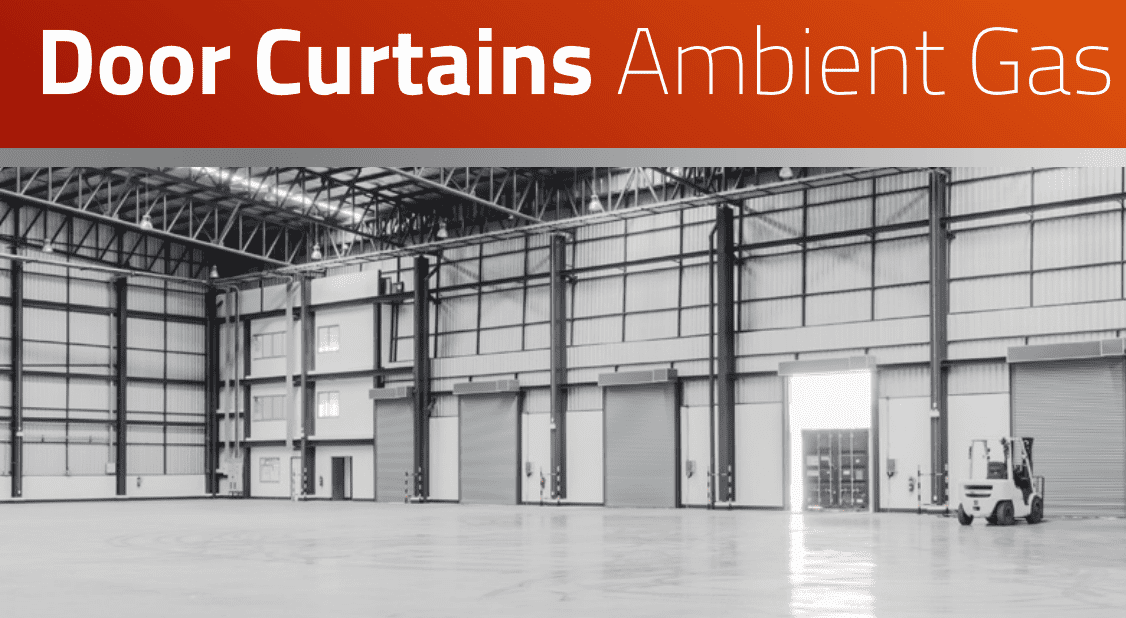

Applications:

• Industrial warehouses
• Distribution centres
• High traffic loading bays
• Manufacturing facilities
• Logistics hubs
• Large commercial door openings requiring heated air separation
