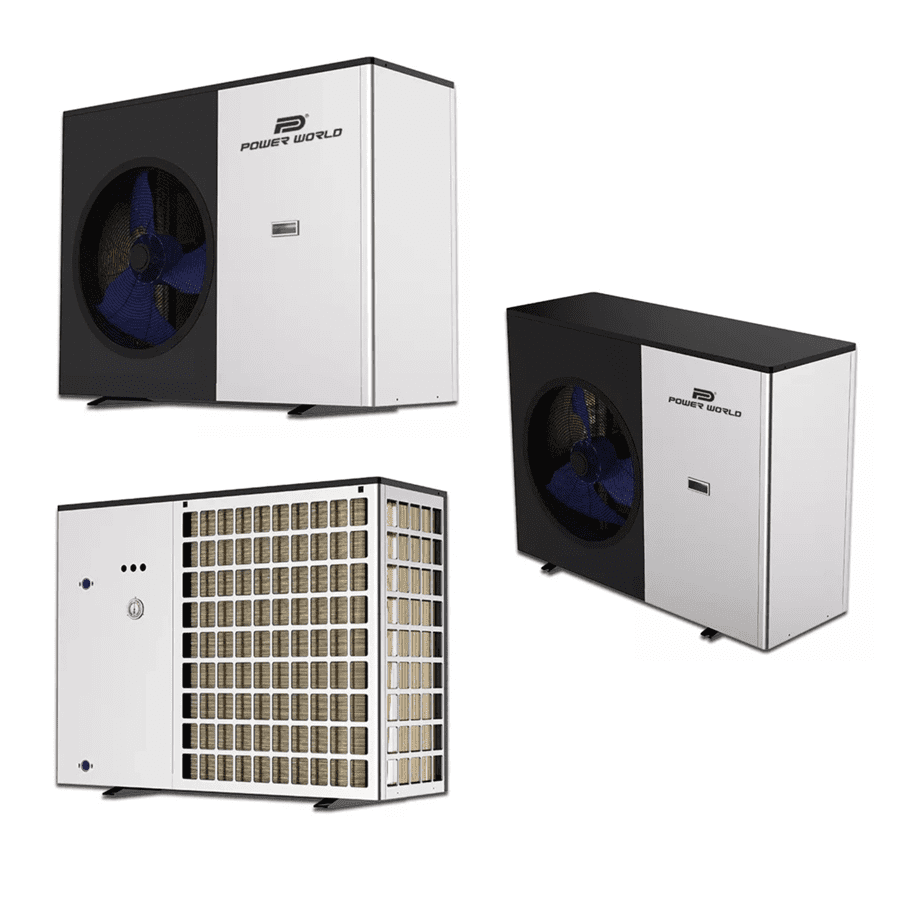

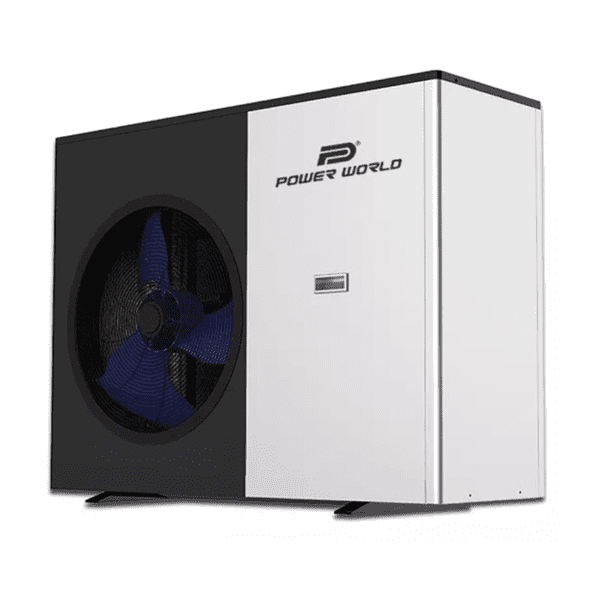

PowerWorld PW030-DKZLRS-B/S EasyPlus EVi Air Heat-pump Cooling R32 8.40kW 230V/1Ph/50Hz/60Hz for DHW, under floor and many more applications
The new range of PowerWorld EasyPlus home heat pumps feature high efficiency, low noise, DC inverter technology, low GWP refrigerant gas R32, and easy-to-use controllers, making them the perfect choice for any home or commercial user. PowerWorld offers a range of stylish and efficient home heat pumps designed to keep you comfortable all year round. Powerword EasyPlus heat pumps feature the latest EVI (Enhanced Vapor Injection) via an electronic expansion valve, inverter heat pump technology and quality materials to ensure high efficiency, low noise, and eco-friendly operation, making them the perfect choice for eco heating.
PowerWorld heat pumps come in various sizes and capacities to suit your needs, whether you have a small apartment or a large house. With powerful heating and cooling capabilities, you can rest easy knowing that your home will be comfortable no matter what the weather is like outside. One of the most important considerations when choosing a home heat pump is power consumption. That's why Power World heat pumps are designed for low power consumption, so you can run them all day and night without worrying about your energy bills.
PowerWorld heat pumps feature DC inverter technology, which allows for more precise temperature control and further reduces power consumption by eliminating inductive electrical current. And with the easy-to-use controller, you can adjust the temperature and settings to suit your needs with just a few taps. Power World is committed to eco-friendly operation, which is why all of the heat pumps manufactured use low GWP refrigerant gas R32 (Operation Ambient Temp. (℃) -30~43℃). This reduces your carbon footprint while still providing powerful heating and cooling capabilities. And with low noise levels, you won't even notice when your heat pump is running. The units have a high COP of up to 5.36, and the energy efficiency rating of A+++. Other functions include smart grid function allowing for solar integration, a cascade function for multiple unit compilation for capacity matching and a BMS function that makes it easy for energy-saving and smart tech integration.
Key Product Features:
- Steel Casing
- DC Inverter Compressor
- Intelligent Control System
- Precision Electronic Expansion Valve
- Super Quiet DC Inverter Fans
- Built in Pump with Smart PWM control
- BMS control functions available
- Cascade any number of units
- Heating & Cooling functions
- SAP / PCBD Listed
- 3 Year Warranty
Specifications:
| EVI DC Inverter Heat Pump for cooling heating and DHW （R32） |
| BOM code |
CP-RW0300102 |
| Model |
PW030-DKZLRS-D/S |
| Heating Condition - Ambient Temp. （DB/WB）: 7/6℃， Water Temp. （In/Out）：30/35℃ |
| Heating Capacity Range (kW) |
3.2~8.0 |
| Heating Power Input Range(kW) |
0.61~1.88 |
| COP Range |
4.26~5.23 |
| DHW Condition-Ambient Temp. （DB/WB）: 7/6℃， Water Temp. （In/Out）：15/55℃ |
| Heating Capacity Range (kW) |
2.9~7.2 |
| Heating Power Input Range(kW) |
0.64~1.97 |
| COP Range |
3.65~4.54 |
| cooling Condition - Ambient Temp. （DB/WB）:35/24℃，Water Temp.（In/Out）：12/7℃ |
| Cooling Capacity Range (kW) |
2.5~6.2 |
| Cooling Power Input Range(kW) |
0.79~2.27 |
| EER Range |
2.73~3.15 |
| ERP Level (35°C) |
A+++ |
| ERP Level (55°C) |
A++ |
| Power supply |
230V/1Ph/50Hz/60Hz |
| Diameter of pipe (mm) |
DN25 |
| Water Flow(m3/h) |
1.2 |
| Water Pressure Drop (max) kPa |
30 |
| Water pump type |
Adjustable DC inverter |
| Max water head(m) |
9 |
| Auxiliary electric heater(kW) |
3 |
| Expansion vessel(L) |
2 |
| Safety valve(MPa) |
0.3 |
| Noise dB(A) |
≤45 |
| Net Weight (kg) |
105 |
| Net Dimension (L/W/H) mm |
1150×460×820 |
| Operation Ambient Temp. (℃) |
-30~43℃ |
| Operating water temperature (℃) |
20~55℃（DHW ） |
| Operating water temperature (℃) |
20~50℃（Heating） |
| Operating water temperature (℃) |
7~35℃（Cooling） |
