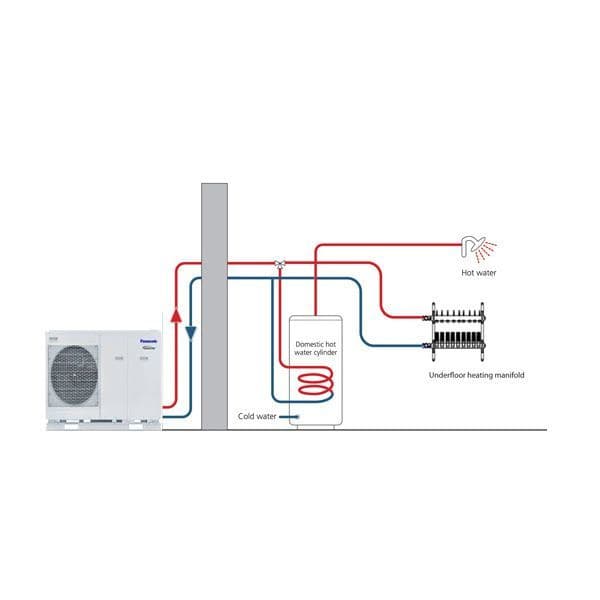

The Aquarea MXC is the new Aquarea product from Panasonic for heating and cooling. T-CAP stands for Total capacity. This new line-up is able to maintain the same nominal capacity even at -15 ºC without the help of an electrical booster heater. T-CAP is also able to provide extremely high efficiency, whatever the outside temperature or the water temperature. The new MXC is ideal for residential properties which don't have an external boiler and require a maintained capacity level. The MXC adapts well in an existing install with a boiler backup, and in a new application with underfloor heating, low temperature radiators or even fan-coil heaters. This range can also be connected to a solar kit in order to increase efficiency and minimize the impact on the ecosystem. Finally, it is possible to connect a thermostat for even better heating or cooling control and management. A++ RATED ENERGY PRODUCT
Panasonic's Aquarea Mono-bloc heat pump is an extremely compact, plug and play heating system, capable of supplying any home's heating and hot water demands, even down to temperatures of -20DegC Independent tests have shown Panasonic Aquarea heat pumps to have a COP (coefficient of performance) of 4.7 at 7DegC.

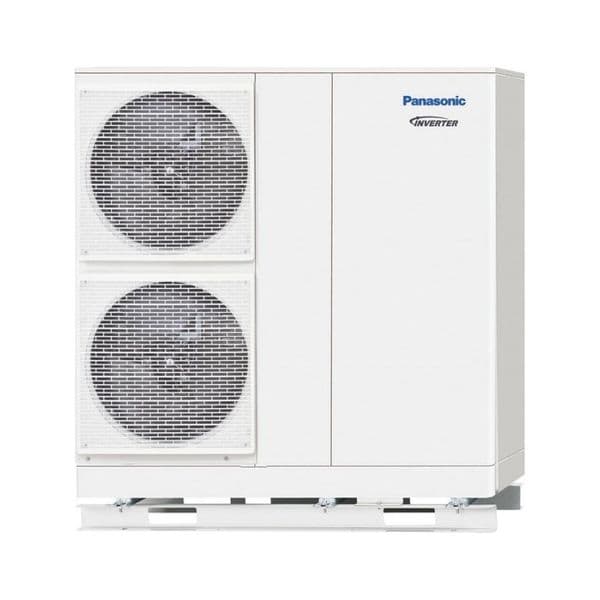

Ideal for new or existing houses that have high performance requirements but limited space. There is no separate indoor unit needed and Panasonic's Mono-bloc enclosure contains all components within a single unit: heat exchanger; three-speed hot water circulator, 6 litre expansion vessel; safety valve; pressure gauge and a 3 kW electrical heater to provide back-up heat in extreme cold weather. The units are exceptionally easy to install, saving time and cost.
Panasonic’s Aquarea heat pump provides savings of up to 78% on heating expenses compared with electrical heaters. For example, Aquarea’s 7 kW system has a COP of 4.70 which means that for every kW of electricity consumed, it returns 4.70 kW of energy, i.e. 3.70 kW more than a conventional electrical heating system which has a maximum COP of 1. This is equivalent to savings of 78%. This range can also be connected to a solar kit in order to increase efficiency and minimize the impact on the ecosystem. Finally, it is possible to connect a thermostat for even better heating and cooling control and management.
Key Product Features:

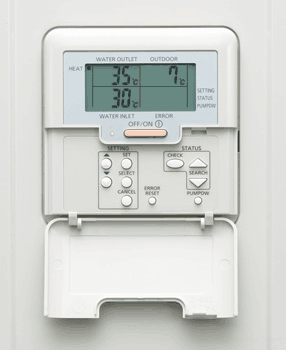

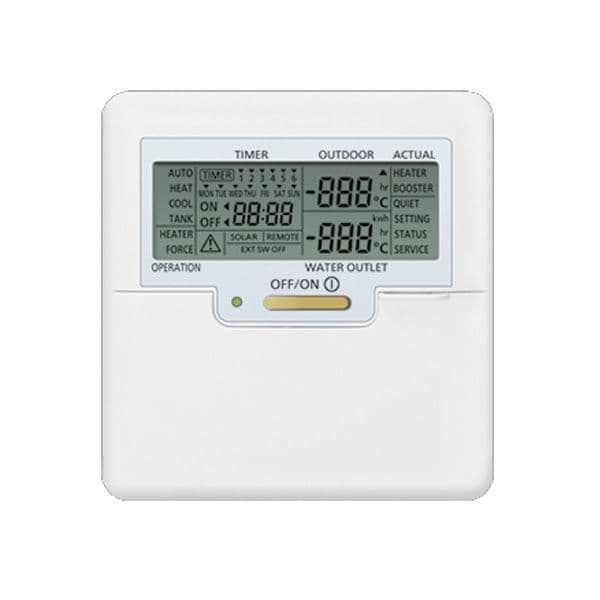

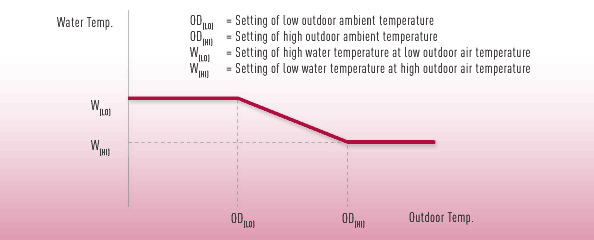

- Efficient control of room temperature based on the outdoor temperature, indoor temperature using the Aquarea Manager.
- Optional Smart-phone control
- Range from 5 to 16 kW, Single Phase
- Maximum hydraulic module output temperature: 55 °C
- Works down to -20 °C IN HEATING
- Cooling temperature range 5–20 °C (MXC)
- Plug and play system (WH-MDC05F3E5)
Video Data:
Heating Models:
AQUAREA G GENERATION T-CAP MONO-BLOC SINGLE PHASE / THREE PHASE HEATING AND COOLING - MXC
Heating Capacity at +7 °C |
|
kW |
9,00 |
12,00 |
9,00 |
12,00 |
16,00 |
Model: |
|
|
WH-MXC09G3E5
240V~50Hz |
WH-MXC12G6E5
240V~50Hz |
WH-MXC09G3E8
415V~50Hz |
WH-MXC12G9E8
415V~50Hz |
WH-MXC16G9E8
415V~50Hz |
COP at +7 °C with heating water at 35 °C |
|
|
4,84 A++ |
4,74 A++ |
4,84 A++ |
4,74 A++ |
4,28 A++ |
Heating Capacity at +2 °C with heating water at 35 °C |
|
kW |
9,00 |
12,00 |
9,00 |
12,00 |
16,00 |
COP at +2 °C with heating water at 35 °C |
|
|
3,59 |
3,44 |
3,59 |
3,44 |
3,10 |
Heating Capacity at -7 °C |
|
kW |
9,00 |
12,00 |
9,00 |
12,00 |
16,00 |
COP at -7 °C |
|
|
2,85 |
2,72 |
2,85 |
2,72 |
2,49 |
Cooling capacity at 35 °C |
|
kW |
7,00 |
10,00 |
7,00 |
10,00 |
12,20 |
EER at 35 °C with cooling water at 7/12 °C |
|
|
3,17 |
2,81 |
3,17 |
2,81 |
2,56 |
Energy Efficiency Class at 35 °C |
|
|
A++ |
A++ |
A++ |
A++ |
A++ |
Energy Efficiency Class at 55 °C |
|
|
A++ |
A++ |
A++ |
A++ |
A++ |
Outdoor Sound pressure level |
|
dB(A) |
51 / 49 |
52 / 50 |
51 / 49 |
52 / 50 |
55 / 54 |
Outdoor Dimensions |
H x W x D |
mm |
1.410 x 1.283 x 320 |
1.410 x 1.283 x 320 |
1.410 x 1.283 x 320 |
1.410 x 1.283 x 320 |
1.410 x 1.283 x 320 |
Outdoor Weight |
|
kg |
148 |
148 |
155 |
155 |
168 |
Refrigerant (R410A) |
|
kg / TCO2Eq. |
2,30 / 4,802 |
2,30 / 4,802 |
2,30 / 4,802 |
2,30 / 4,802 |
2,35 / 4,907 |
Operation range |
Outdoor ambient |
°C |
-20 ~ +35 |
-20 ~ +35 |
-20 ~ +35 |
-20 ~ +35 |
-20 ~ +35 |
