Panasonic Aquarea cylinders are designed to maximise the efficiency of the Aquarea heat pump range. Supplied in 300 liters and complete with both heat pump and solar coils, they are extremely versatile and will ensure they fit within almost any installation. Heat pump systems typically supply hot water at approximately 50°C. This is hotter than is required for bathing and showering (39 ~ 44°C), but much lower than for a conventional boiler (70°C), providing even greater efficiency and ultimately greater cost savings.

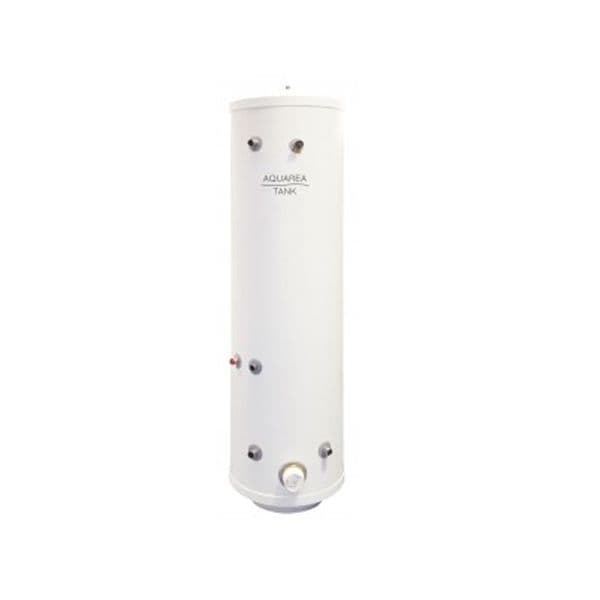

PAW-TD30C1E5UK-1 300L Stainless Steel Tank
PAW-G3KIT-1 "G3 compliant kit consisting of: 18l expansion vessel, tundish, Multibloc valve"
Key Product Features:
|
|
Standard Heat Pump Tank (Twin Coil)
|
|
Model
|
PAW-TD30C1E5UK-1 |
|
Water volume
|
300
|
|
Maximum water temperature
|
95
|
|
Dimensions
|
Height
|
1990
|
|
Diameter
|
550
|
|
Weight
|
49
|
|
Electric heater
|
3
|
|
Power supply
|
230
|
|
Material inside tank
|
Stainless steel
|
|
Exchange surface
|
2.04
|
|
Secondary Coil Exchange surface
|
0.97
|
|
Energy loss
|
85
|
|
3 Way valve included
|
Yes
|
|
20 m temperature sensor cable included
|
Yes
|
|
Heat up time
|
★★★★
|
|
Energy losses
|
★★★★
|
|
Efficiency of the tank
|
★★★★
|
|
Energy Efficiency Class
|
c
|
|
Warranty
|
25 years
|
PDF Data Sheet:
