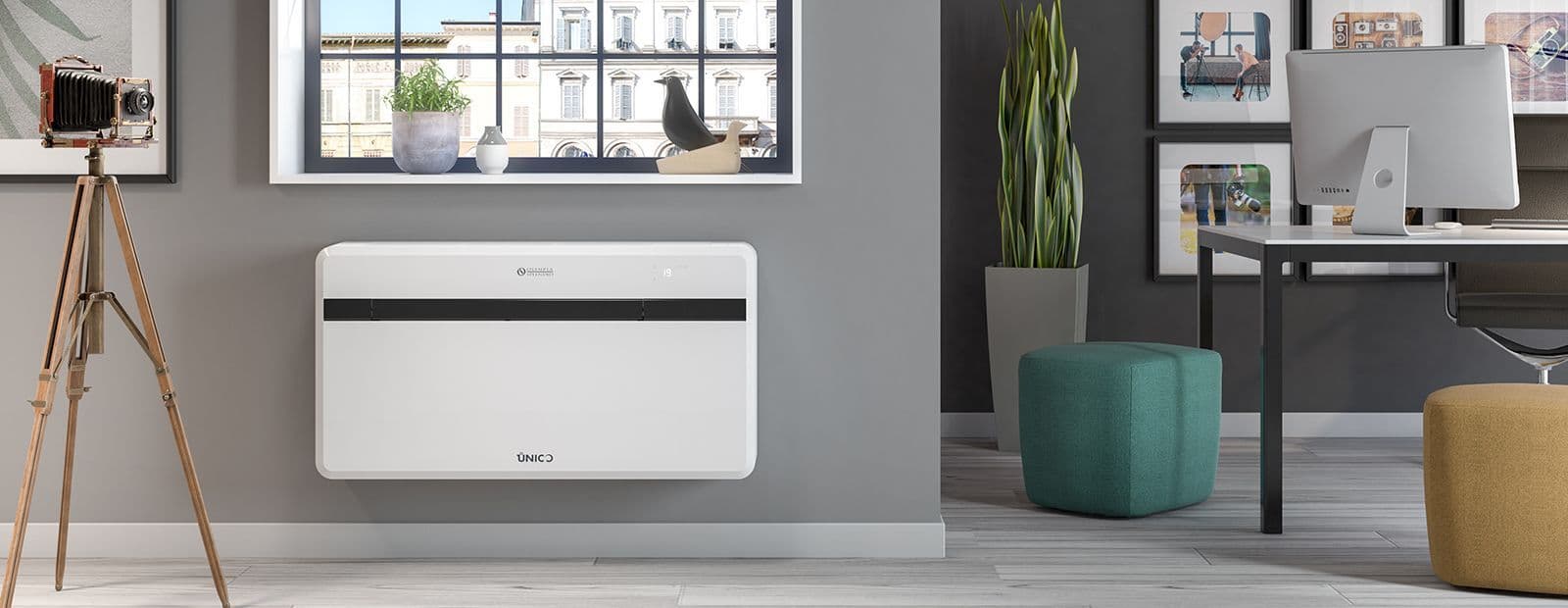

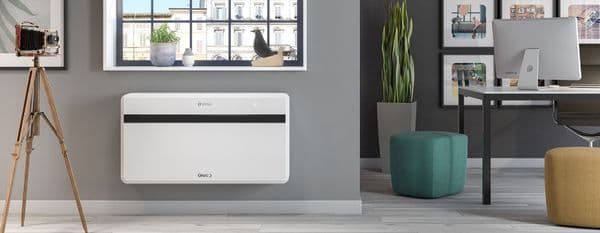

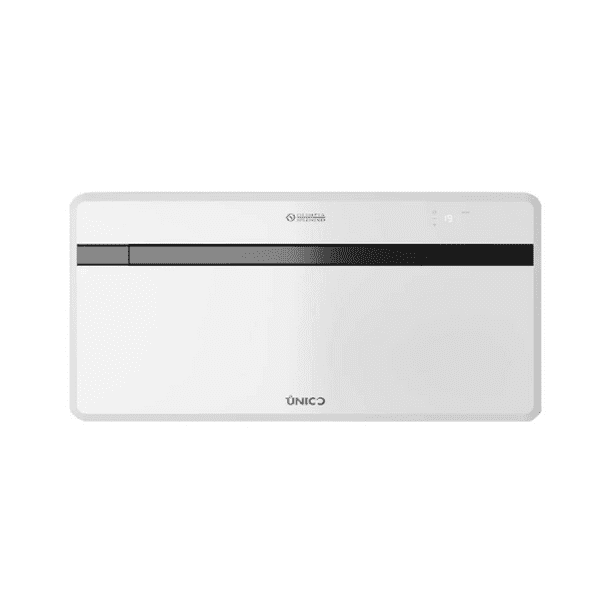

The Unico Evo-F 16 HP PVA is an advanced heat pump air conditioner designed to provide efficient cooling and heating without the need for an external unit. Featuring a Twin Rotary Compressor and next-generation electronics, this unit ensures optimal comfort with reduced noise levels. Built with sustainability in mind, its front panel is made from 100% recycled plastic, aligning with environmentally friendly practices. With a high energy efficiency rating (A-class) and R290 natural refrigerant, the Unico Evo-F 16 HP PVA delivers eco-conscious climate control for residential and commercial applications.
Why Choose the Unico Evo-F 16 HP PVA?
The Unico Evo-F 16 HP PVA offers a compact and innovative solution for environments where traditional external condenser units are not feasible. Its high-performance cooling and heating, combined with an optimised air distribution system, ensures year-round comfort. The unit’s durable construction, machine-mounted backlit display, and simplified remote control make it an ideal choice for modern, energy-efficient climate control.
Key Product Features:
-
Heat Pump Function: Provides both cooling and heating for year-round use.
-
Voltage Compatibility: Operates at 230V~50Hz, ensuring standard electrical compatibility.
-
Cooling & Heating Capacity: 1.0 - 2.1kW for effective climate control.
-
High Efficiency: Rated A-class for both cooling and heating.
-
Refrigerant: Uses R290 (GWP = 3) for environmentally friendly operation.
-
Smart Airflow: Wide flap ensures even air distribution throughout the space.
-
Integrated RS485 Port: Allows seamless integration with external BMS systems via Modbus RTU protocol.
-
Optimised Internal Design: Simplified maintenance and component access.
-
User-Friendly Control: Features an intuitive backlit machine display and remote control.
-
Compact & Lightweight: Designed for easy installation without an external condenser unit.
-
Sustainable Materials: 100% recyclable packaging and 98% plastic-free design.
Technical Specifications:
| Specification |
Details |
| Model Name |
Unico Evo-F 16 HP PVA |
| Cooling Power (Min/Max) |
1.0 / 2.1 kW |
| Heating Power (Min/Max) |
1.0 / 2.1 kW |
| Nominal Cooling Capacity (Prated) |
1.95 kW |
| Nominal Heating Capacity (Prated) |
3.5 kW |
| Nominal Efficiency (Cooling) |
PEER 6.1 |
| Nominal Efficiency (Heating) |
PCOP 3.5 |
| Energy Efficiency Class |
A |
| Power Supply |
230V~50Hz |
| Power Consumption in Cooling Mode (Min/Max) |
0.3 / 1.4 kW |
| Power Consumption in Heating Mode (Min/Max) |
0.3 / 1.6 kW |
| Dehumidification Capacity |
0.7 l/h |
| Airflow Rate (Cooling & Heating Mode - Max/Med/Min) |
380 / 270 / 195 m³/h |
| External Airflow Rate (Max/Min) |
650 / 350 m³/h |
| Product Dimensions (W x H x D) |
1015mm x 540mm x 180mm |
| Product Weight |
41kg |
| Noise Levels (Min/Max) |
42 - 42 dB(A) |
| Global Warming Potential |
GWP = 3 |
| Refrigerant Gas Load |
0.15kg |
| Maximum Operating Pressure |
3.10 MPa |
| Protection Rating |
IP20 |
| Power Cable |
3 x 1.5mm² |
