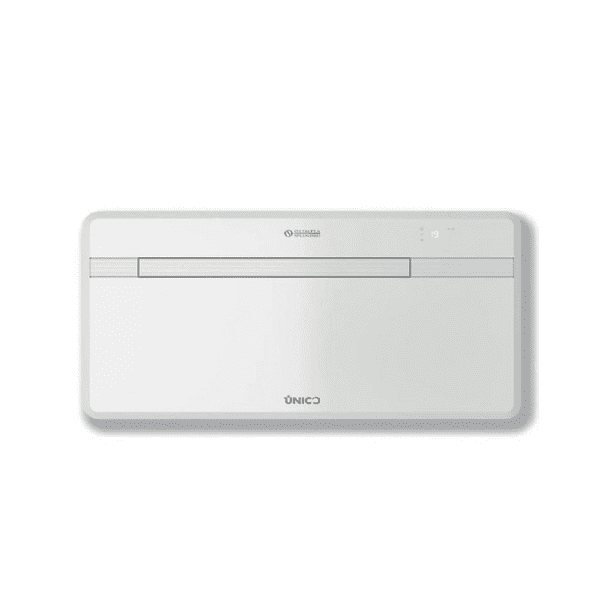

The Unico Evo 25HP PVAN is a high-efficiency all-in-one heat pump air conditioner designed to provide both cooling and heating without requiring an external condenser unit. With inverter motor technology, a Twin Rotary Compressor, and advanced electronics, it delivers optimal performance and silent mode operation at just 30 dB(A). The use of R290 refrigerant and a multi-filtration system ensures an environmentally friendly and clean air solution, ideal for both residential and commercial spaces.
Why Choose the Unico Evo 25HP PVAN?
The Unico Evo 25HP PVAN is an advanced climate control solution for locations where external condensers are not an option. Offering highly efficient cooling and heating, it features an optimised air diffusion system and an A+ energy efficiency rating, ensuring excellent year-round performance. The backlit display, WiFi integration, and compatibility with Modbus RTU systems make it a modern, smart, and sustainable climate control option.
Key Product Features:
-
Heat pump function for cooling and heating throughout the year.
-
Voltage compatibility: 220-240V~50Hz for standard electrical configurations.
-
Cooling & heating capacity: 1.0 - 2.5kW for precise temperature management.
-
High energy efficiency with an A+ energy class rating in cooling mode.
-
R290 refrigerant (GWP = 3) for reduced environmental impact.
-
Inverter motor technology for improved energy efficiency and noise reduction.
-
Silent mode with ultra-quiet operation at just 30 dB(A).
-
Multi-filtration system with electrostatic and activated carbon filters for superior air quality.
-
Smart controls with WiFi connectivity, remote control, and RS485 port for BMS integration.
-
User-friendly backlit display with intuitive touch controls.
-
Compact and stylish design, eliminating the need for an outdoor condenser unit.
Technical Specifications:
| Specification |
Details |
| Model Name |
Unico Evo 25 HP PVAN |
| EAN Code |
8021183024555 |
| Cooling Power (Min/Max) |
1.0 / 2.5 kW |
| Heating Power (Min/Max) |
1.0 / 2.3 kW |
| Nominal Cooling Capacity (Prated) |
2.3 kW |
| Nominal Heating Capacity (Prated) |
3.7 kW |
| Nominal Efficiency (Cooling) |
PEER 6.3 |
| Nominal Efficiency (Heating) |
PCOP 3.7 |
| Energy Efficiency Class |
A+ (Cooling) |
| Power Supply |
220-240V~50Hz |
| Power Consumption in Cooling Mode (Min/Max) |
0.3 / 1.4 kW |
| Power Consumption in Heating Mode (Min/Max) |
0.3 / 1.6 kW |
| Dehumidification Capacity |
0.7 l/h |
| Airflow Rate (Cooling & Heating Mode - Max/Med/Min) |
380 / 270 / 195 m³/h |
| External Airflow Rate (Max/Min) |
650 / 350 m³/h |
| Product Dimensions (W x H x D) |
1015mm x 540mm x 180mm |
| Product Weight |
43kg |
| Noise Levels (Min/Max) |
30 - 42 dB(A) |
| Global Warming Potential |
GWP = 3 |
| Refrigerant Gas Load |
0.145kg |
| Maximum Operating Pressure |
3.10 MPa |
| Protection Rating |
IP20 |
| Power Cable |
3 x 1.5mm² |
