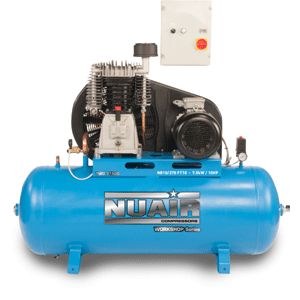

NuAir S-N1NN905FPS019 Belt Driven Lubricated Workshop Series NB10/270 FT10 Stationary Air Compressor 7.5HP 5.5kw 415V~50Hz

The "Workshop Series" NB10/270/FT10 is a high performance workshop compressor suitable for demanding applications. The machine is supplied with electrical starter and controls ready to work. The two stage compressor pump coupled to the power full 5.5 kW electric motor provides plenty of capacity for medium size workshops and smaller industrial applications. The economic stop start controls and low Maintenance keeps operating costs lower. This range provides a robust stationary air compressor with either single or two stage compressor pump units that have been proven over millions of installations and countless applications all over the world. The range includes 230 V up to 2.2 kW and 400 V versions up to 7.5 kW. The range feature two low speed versions which are particularly quiet in operation and at the same time they offer durability and long life.


Key Features:

• High quality two stage lubricated air compressor pump unit, provides top performance and superb reliability.
• Top grade components including stainless steel valves for efficient operation.
• Large 270 Litre air receiver fitted with anti vibration mountings.
• Advanced cooling system that enables cooling flow to be directed to the head and after-cooler for lower temperatures.
• Automatic star delta starter and automatic stop/start control for economical operation.
• High quality electric motor with overload protection 5.5 kW (10hp) 400/3/50hz supply.
• Capacity 1080 L/min displacement, maximum pressure 10 bar (145 psi).
• 2 year warranty

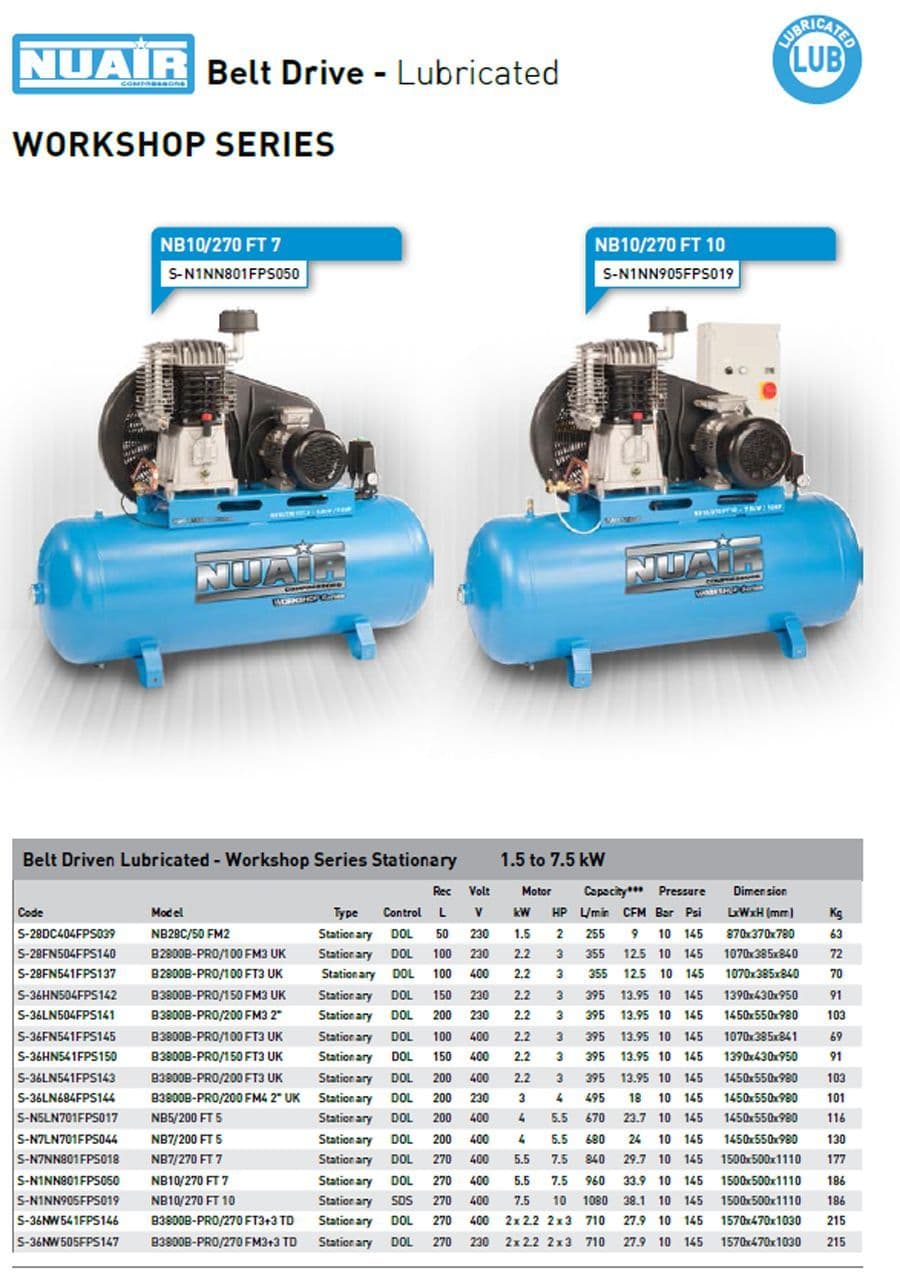

Technical Data:
