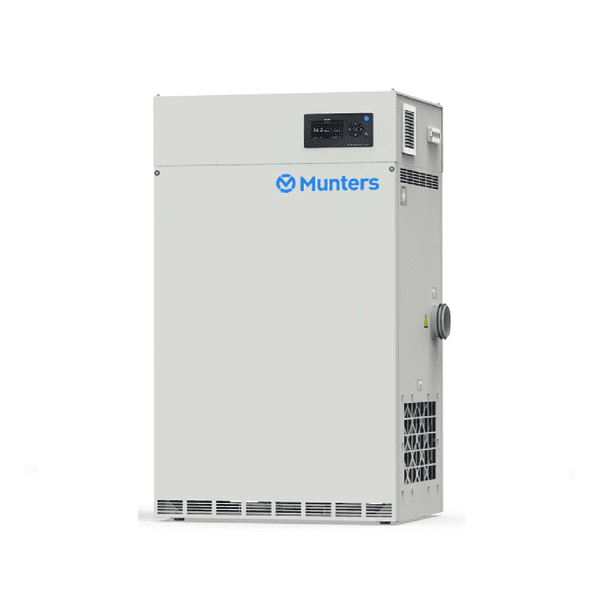

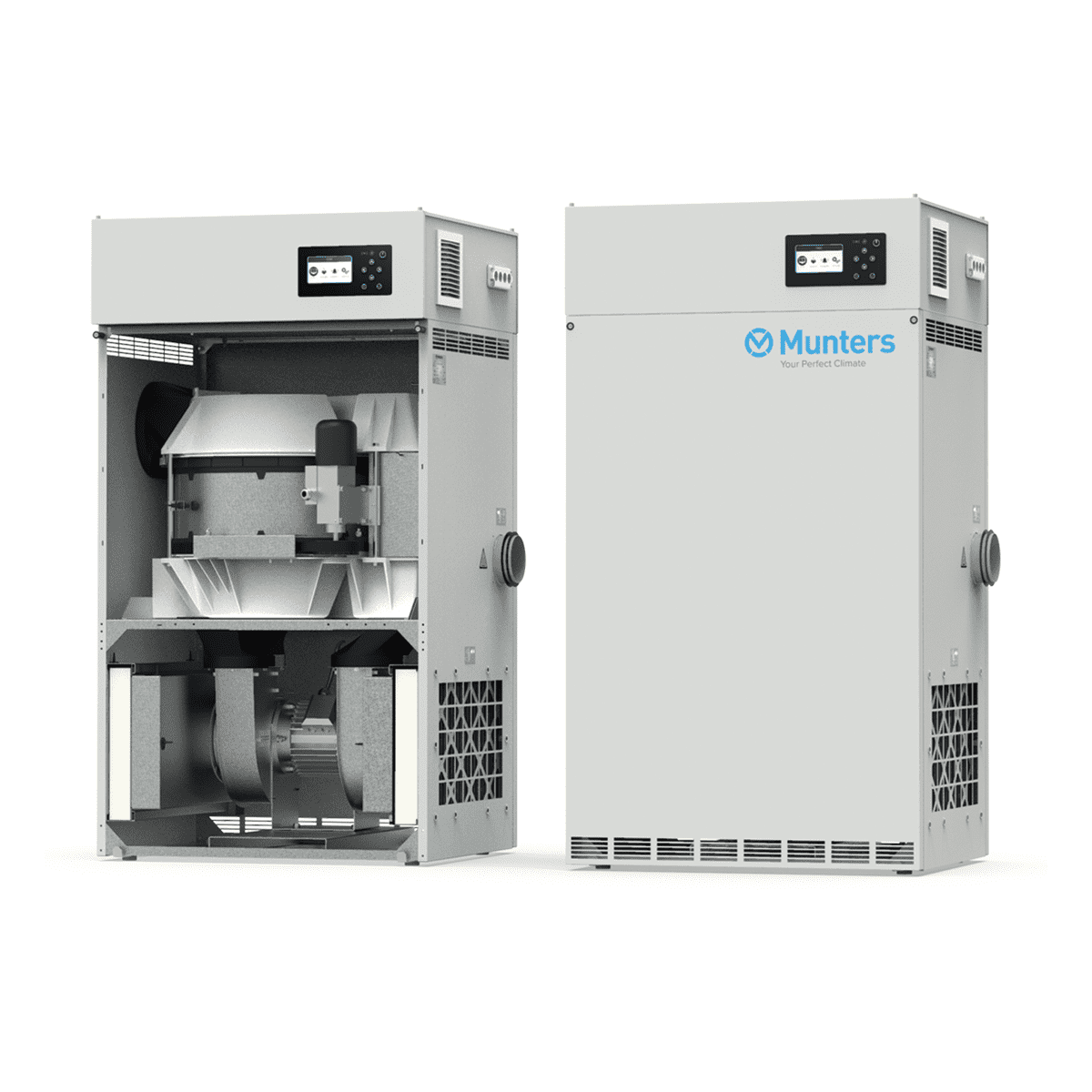

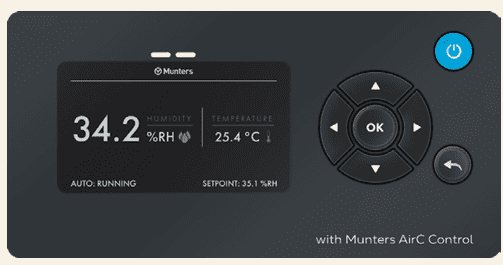

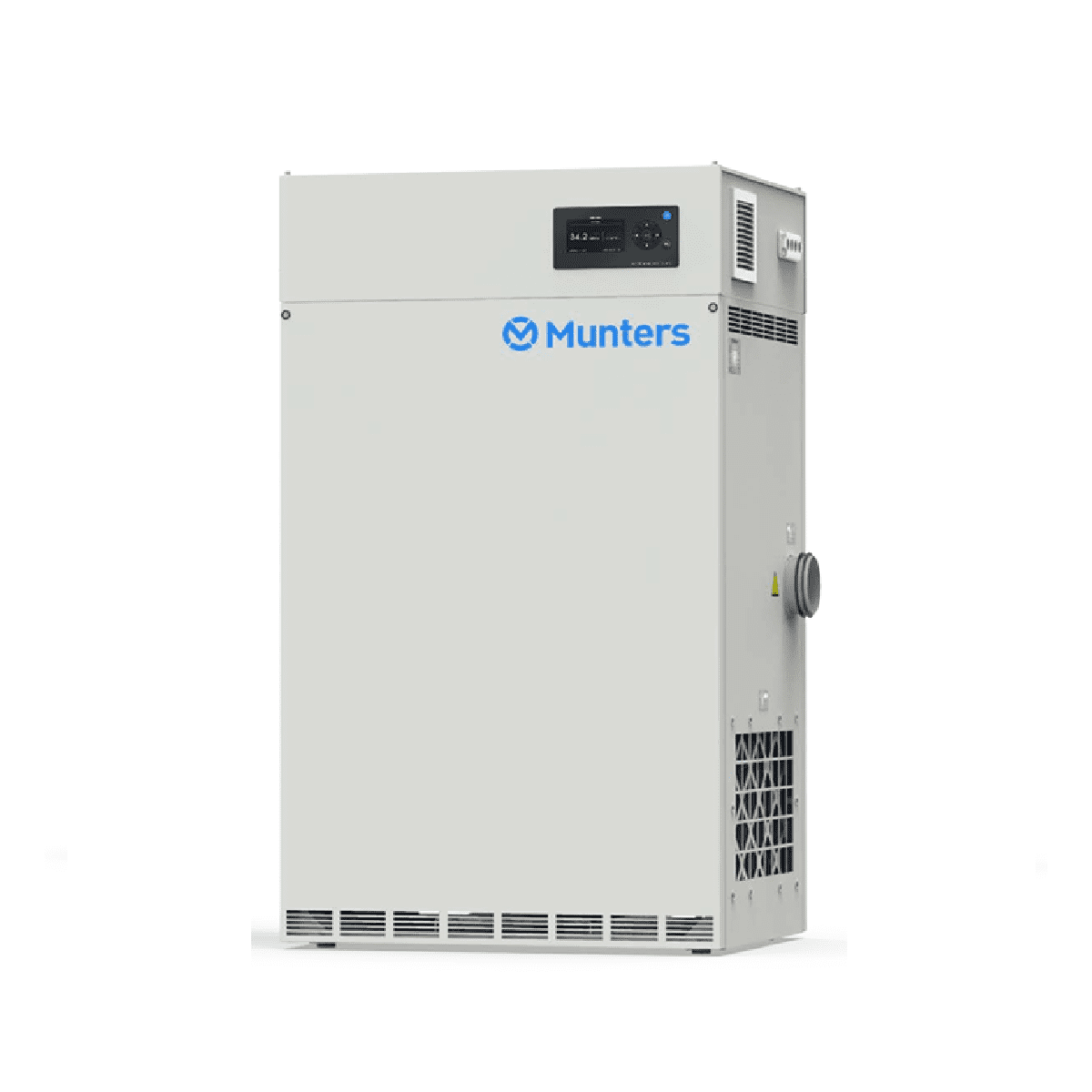

The Munters ML270 Series Desiccant Dehumidifier is a high-performance solution designed for precise and efficient moisture control in low-humidity environments. With a rated airflow of 270 m³/h and static pressure of 200 Pa, it is engineered to deliver optimal dehumidification across various industrial and commercial applications. Its advanced design includes an internally sealed rotor unit within a durable thermoset plastic casing, featuring isolated sections for dehumidification, reactivation, and heat recovery airflows. Built for reliability, the rugged frame and corrosion-resistant Aluzink® access panels ensure long-lasting performance even in demanding environments. Equipped with the modern Climatix control system, the ML270 offers seamless operation, conforming to EN 60204 (IEC204) standards and incorporating alarm functions for total process control.
With an operating temperature range of -20°C to +40°C, sound power levels of just 64 dB (with all inlets and outlets ducted), and protection classes of IP33 for the unit and IP54 for electrical components, it is versatile and robust. Common applications include pharmaceutical manufacturing, food processing, electronics production, archival storage, and any setting requiring stringent humidity control. This CE-marked dehumidifier is energy-efficient, with optimised reactivation airflows and heat recovery, making it a reliable choice for industries that demand precision, durability, and cost-effective operation.
Technical Data:
| Parameter |
Value |
| Width (A) |
575 mm |
| Depth (B) |
420 mm |
| Height (C) |
1065 mm |
| Diameter (D) |
160 mm |
| Diameter (E) |
100 mm |
| Weight |
68 kg |
| Category |
Parameter |
Value |
| Process Air |
Rated airflow (m³/h) |
270 |
|
Available static pressure (pa) |
200 |
| Reactivation Air |
Rated airflow (m³/h) |
99 |
|
Available static pressure (pa) |
200 |
| Total Power Voltage & Current (amps & phase) |
Total power (kW) Electrical |
3.06 |
|
380V 3-50Hz (A) |
5 |
|
380V 3-60Hz (A) |
5 |
|
400V 3-50Hz (A) |
4.7 |
|
415V 3-50Hz (A) |
4.6 |
|
440V 3-60Hz (A) |
4.3 |
|
460V 3-60Hz (A) |
4.1 |
|
480V 3-60Hz (A) |
4 |
| Miscellaneous Data |
Operating temperature (°C) |
-0.5 |
|
Sound power level to room Lw(A) dB, all inlets and outlets ducted |
64 |
|
Air filter standard |
G4 |
|
IEC protective class (unit) |
IP33 |
|
IEC protective class (electrical) |
IP54 |
| Category |
Parameter |
Value |
| System Settings |
Dehumidifier |
Yes |
|
Control system |
ML Base |
|
React heater type |
Electric |
|
Insulated process inlet |
No |
| Main Selections |
Range type |
Released |
|
System arrangement |
ML / MLT Standalone |
|
System voltage |
220/1/50 |
| Operating Conditions |
Operating temperature, minimum |
-20 °C |
|
Operating temperature, maximum |
40 °C |
|
Installation altitude, maximum |
2000 m |
| Transport and Storage |
Minimum temperature for transport and storage |
-20 °C |
|
Maximum temperature for transport and storage |
70 °C |
| Packaging |
Packaging |
Standard Pallet |
| Weight |
System weight |
56 kg |
