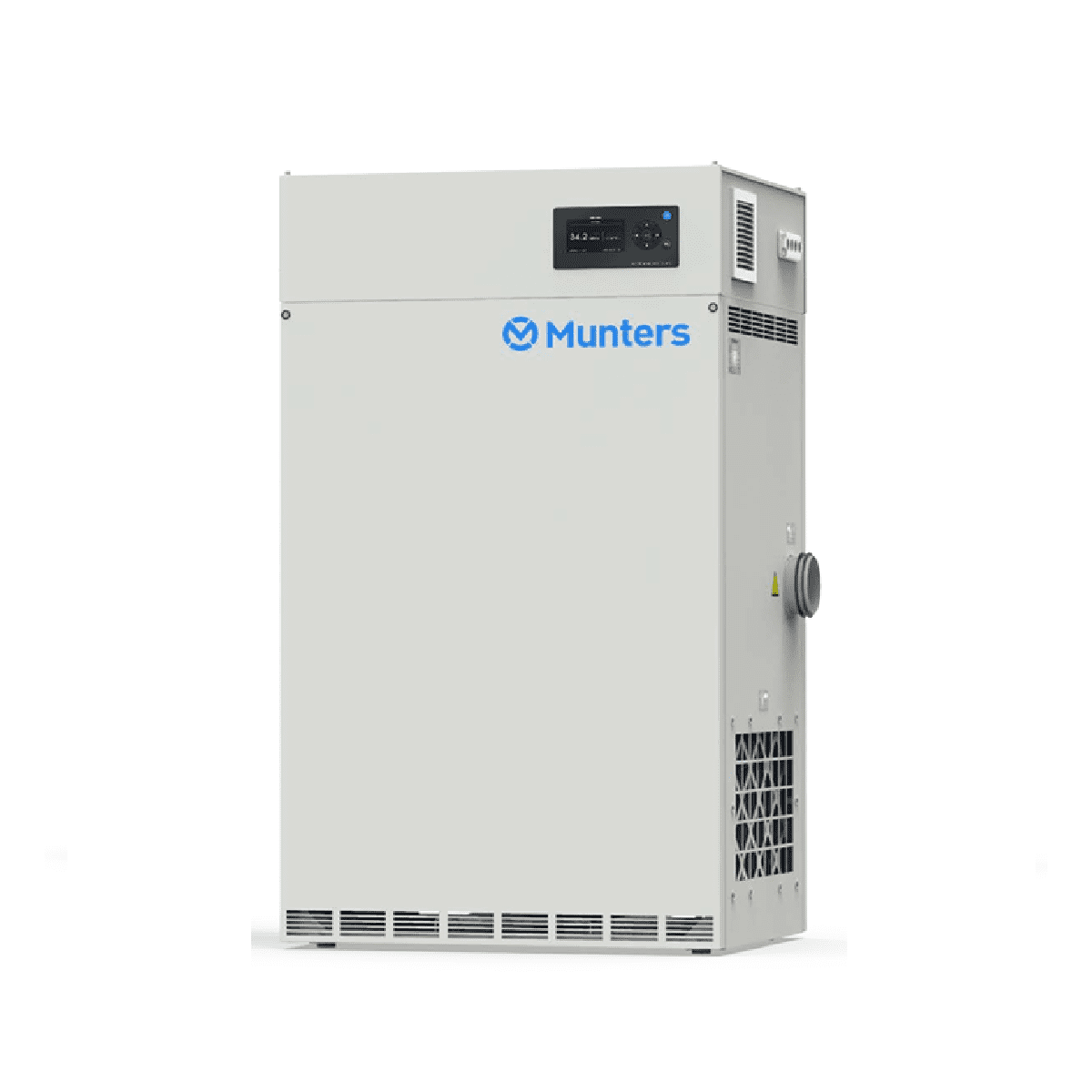

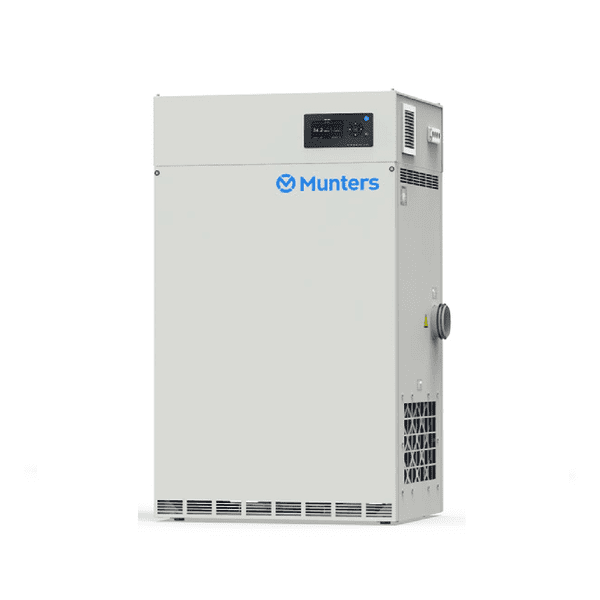

The Munters ML1350 Series Desiccant Dehumidifier is a powerful and efficient solution for humidity control in low-moisture environments. With a process air rated airflow of 1350 m³/h, it is specifically engineered for demanding applications requiring precision and energy efficiency. The ML1350 combines Munters’ 60+ years of innovation with cutting-edge features that ensure reliable performance and easy integration into industrial and commercial systems.
At the heart of this dehumidifier is the Munters AirC control system, a future-proof solution offering unparalleled flexibility, functionality, and efficiency. This advanced system includes features such as diagnostic fault displays, alarm handling, multiple communication options, and support for advanced sensors, ensuring seamless operation and monitoring. The internally sealed rotor unit, housed in a durable thermoset plastic casing, offers precise dehumidification and effective internal heat recovery. The casing, which is 100% corrosion-resistant, includes isolated sections for optimal performance across dehumidification, reactivation, and heat recovery airflows. The robust metal frame and access panels, made from corrosion-resistant Aluzink®, provide additional durability in challenging environments.
Designed for versatility, the ML1350 features interchangeable front and back panels for easy installation and minimal disruption. It efficiently dehumidifies down to -20°C and delivers low dewpoints, making it ideal for applications where maintaining controlled environments is critical. Its compact footprint, combined with advanced design, makes it suitable for space-conscious installations without sacrificing performance.
Key Product Features:
-
High Performance:
- Rated airflow of 1350 m³/h ensures effective dehumidification in low-moisture applications.

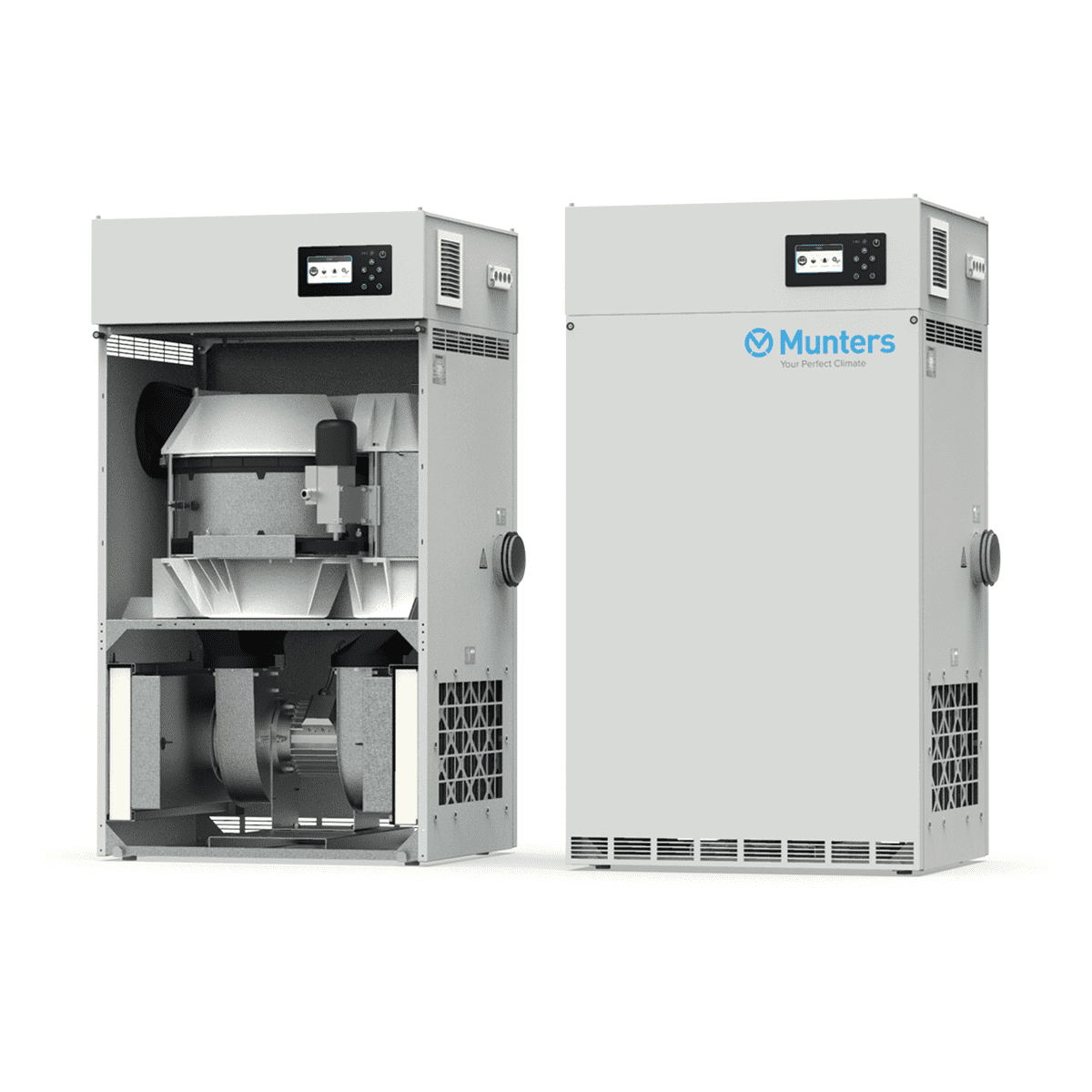

- Internally sealed rotor unit for precision in dehumidification, reactivation, and heat recovery.
-
Durable and Corrosion-Resistant Design:
- Unique thermoset plastic rotor casing and Aluzink® frame ensure long-lasting performance in demanding conditions.
- Interchangeable front and back panels for flexible installation.
-
Advanced Control Technology:

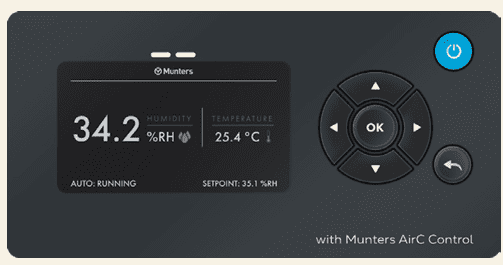

- Equipped with Munters AirC, providing advanced sensing, multiple communication options, and alarm handling.
- Diagnostic fault display for easy troubleshooting and maintenance.
-
Wide Operational Range:
- Dehumidifies efficiently at temperatures as low as -20°C.
- Capable of achieving low dewpoints for precise environmental control.
-
Compact and Space-Saving:
- Small footprint ideal for installations with limited space.
Technical Data:
| Parameter |
Value |
| Width (A) |
715 mm |
| Depth (B) |
590 mm |
| Height (C) |
1510 mm |
| Diameter (D) |
250 mm |
| Diameter (E) |
160 mm |
| Weight |
160 kg |
:
| Category |
Parameter |
Value |
| Process Air |
Rated airflow (m³/h) |
1350 |
|
Available static pressure (pa) |
300 |
| Reactivation Air |
Rated airflow (m³/h) |
490 |
|
Available static pressure (pa) |
300 |
| Miscellaneous Data |
Operating temperature (°C) |
-20 / +40 |
|
Sound power level to room Lw(A) dB, all inlets and outlets ducted |
75 |
|
Air filter standard |
G3 |
|
IEC protective class (unit) |
IP33 |
|
IEC protective class (electrical) |
IP54 |
| Total Power Voltage & Current |
Total power, electrical (kW) |
15.16 |
|
380V 3-50Hz (A) |
24.4 |
|
380V 3-60Hz (A) |
24.9 |
|
400V 3-50Hz (A) |
23.6 |
|
415V 3-50Hz (A) |
23.1 |
|
440V 3-60Hz (A) |
22.3 |
|
460V 3-60Hz (A) |
21.7 |
|
480V 3-60Hz (A) |
21.1 |
|
500V 3-50Hz (A) |
18.7 |
| Category |
Parameter |
Value |
| System Settings |
Dehumidifier |
Yes |
|
Control system |
ML Base |
|
React heater type |
Electric |
|
Insulated process inlet |
No |
| Main Selections |
Range type |
Released |
|
System arrangement |
ML / MLT Standalone |
|
System voltage |
220/1/50 |
| Operating Conditions |
Operating temperature, minimum |
-20 °C |
|
Operating temperature, maximum |
40 °C |
|
Installation altitude, maximum |
2000 m |
| Transport and Storage |
Minimum temperature for transport and storage |
-20 °C |
|
Maximum temperature for transport and storage |
70 °C |
| Packaging |
Packaging |
Standard Pallet |
| Weight |
System weight |
56 kg |
