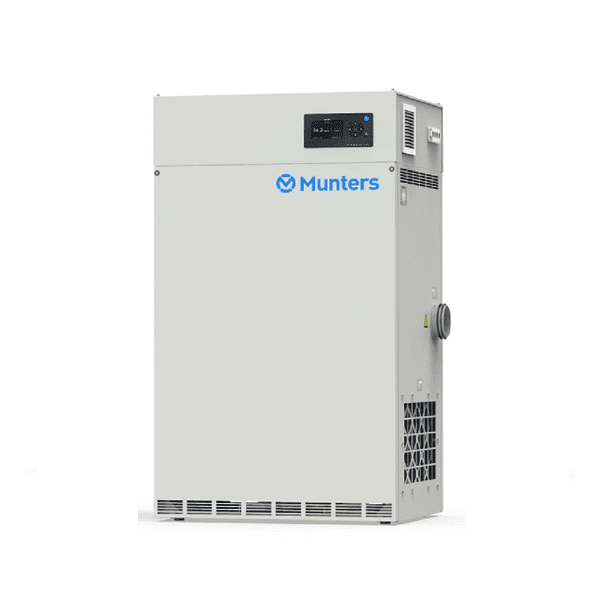

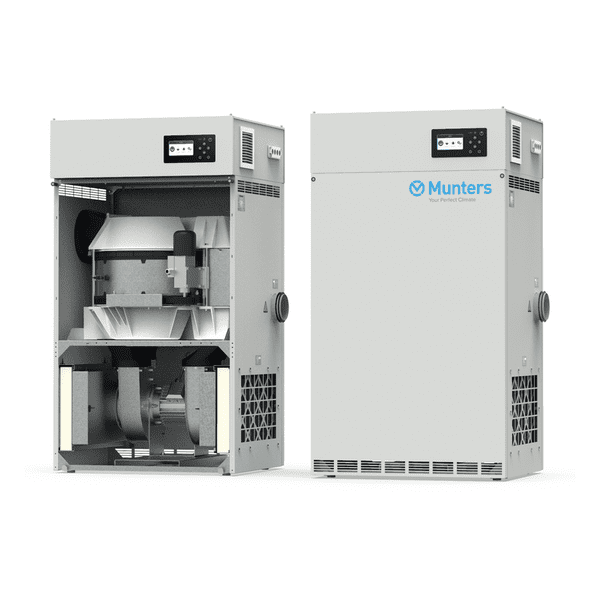

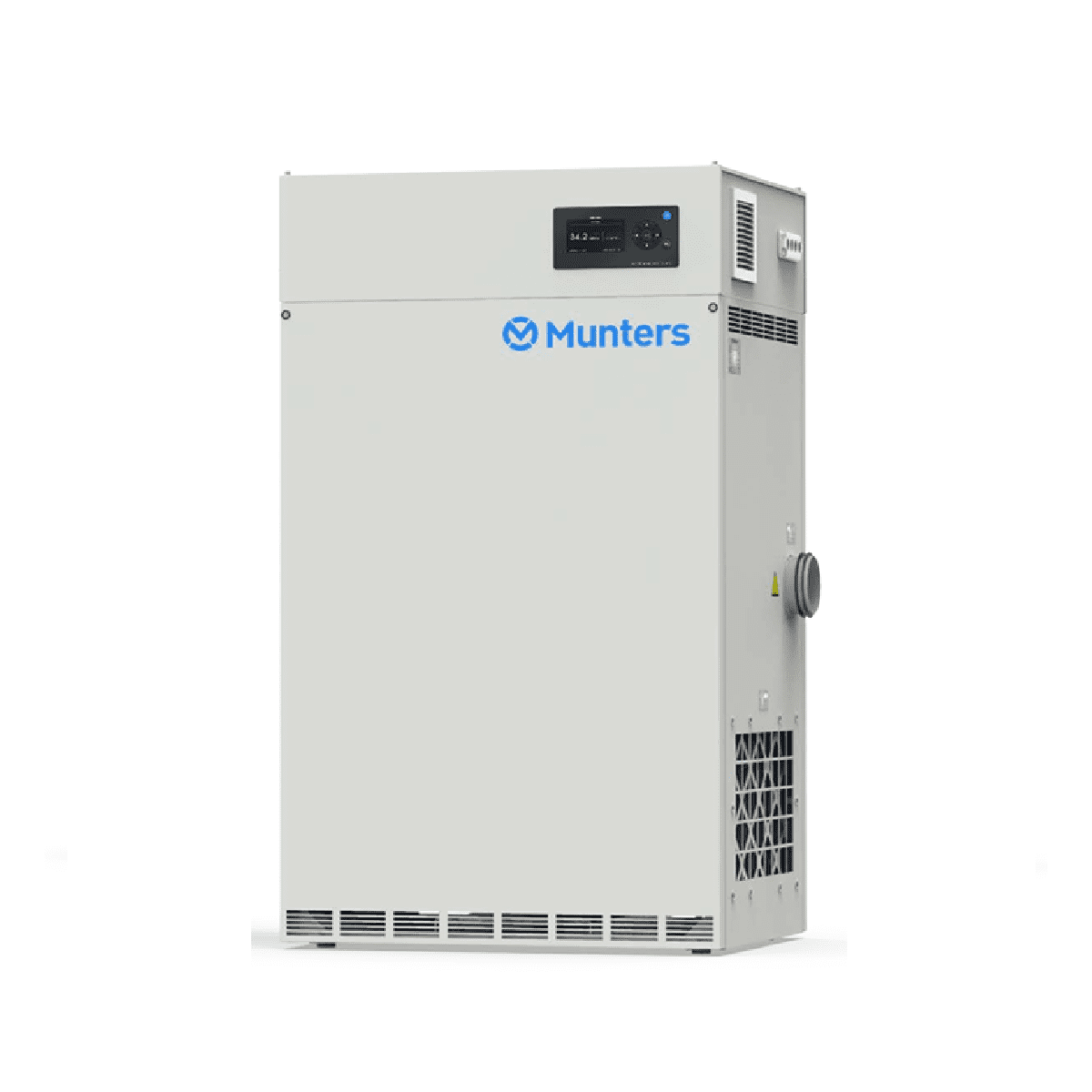

The Munters ML1100 Series Desiccant Dehumidifier is a state-of-the-art solution engineered to meet the demands of low-moisture environments with exceptional energy efficiency and precision. With a process air rated airflow of 1100 m³/h, this powerful unit ensures effective humidity control for a variety of industrial and commercial applications. Built on over half a century of Munters' expertise in humidity control, the ML1100 is designed with advanced features and cutting-edge technology for reliable performance.

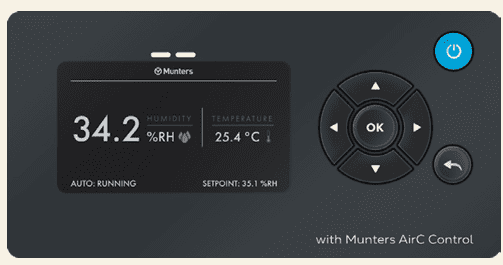

At its core is the innovative Munters AirC control system, a future-proof solution offering unparalleled flexibility and functionality. The AirC system ensures the dehumidifier operates at peak efficiency with advanced sensoring, multiple communication options, and robust alarm handling. The Solid State heater control modulates power consumption for optimal energy efficiency, while the durable rotor casing, made of thermoset plastic, provides a precise balance for dehumidification and internal heat recovery within the airflows.
The ML1100 Series is perfect for applications where precision humidity control is critical, such as pharmaceuticals, food processing, electronics manufacturing, and archival preservation. Its advanced design, small footprint, and robust construction make it suitable for space-conscious installations and challenging environments. The combination of durability, innovative control technology, and energy-efficient performance ensures the ML1100 Series remains a reliable and effective solution for managing humidity in demanding applications.
Key Product Features:
- High Performance: 1100 m³/h process air rated airflow for efficient dehumidification.
- Energy Efficient Operation: Solid State heater control for minimal energy consumption and internal heat recovery.
- Future-Proof Control System: Munters AirC technology with advanced sensoring, multiple communication options, and alarm handling.
- Robust Design: Durable thermoset plastic rotor casing ensures reliability and long-lasting performance.
- Versatile Applications: Ideal for industries requiring stringent humidity control, including pharmaceuticals, food processing, electronics, and archives.
- Compact and Space-Saving: Small footprint for installations with limited space.
Technical Data:
| Parameter |
Value |
| Width (A) |
720 mm |
| Depth (B) |
600 mm |
| Height (C) |
1510 mm |
| Diameter (D) |
250 mm |
| Diameter (E) |
160 mm |
| Weight |
169 kg |
| Category |
Parameter |
Value |
| Process Air |
Rated airflow (m³/h) |
1100 |
|
Available static pressure (pa) |
300 |
| Reactivation Air |
Rated airflow (m³/h) |
408 |
|
Available static pressure (pa) |
300 |
| Total Power Voltage & Current |
Total power, electrical (kW) |
12.75 |
|
380V 3-50Hz (A) |
20.8 |
|
380V 3-60Hz (A) |
21.0 |
|
400V 3-50Hz (A) |
20.2 |
|
415V 3-50Hz (A) |
19.8 |
|
440V 3-60Hz (A) |
18.6 |
|
460V 3-60Hz (A) |
18.0 |
|
480V 3-60Hz (A) |
17.6 |
| Miscellaneous Data |
Operating temperature (°C) |
-20 / +40 |
|
Sound power level to room Lw(A) dB, all inlets and outlets ducted |
72 |
|
Air filter standard |
G4 |
|
IEC protective class (unit) |
IP33 |
|
IEC protective class (electrical) |
IP54 |
| Category |
Parameter |
Value |
| System Settings |
Dehumidifier |
Yes |
|
Control system |
ML Base |
|
React heater type |
Electric |
|
Insulated process inlet |
No |
| Main Selections |
Range type |
Released |
|
System arrangement |
ML / MLT Standalone |
|
System voltage |
220/1/50 |
| Operating Conditions |
Operating temperature, minimum |
-20 °C |
|
Operating temperature, maximum |
40 °C |
|
Installation altitude, maximum |
2000 m |
| Transport and Storage |
Minimum temperature for transport and storage |
-20 °C |
|
Maximum temperature for transport and storage |
70 °C |
| Packaging |
Packaging |
Standard Pallet |
| Weight |
System weight |
56 kg |
