The Munters MH270 Desiccant Dehumidifier is a compact and highly efficient solution designed for continuous operation in low-moisture environments. Equipped with innovative rotor technology and a robust construction, it delivers reliable and precise humidity control for a wide range of applications. Its three-hole design integrates a single fan for both process and reactivation airflows, optimising energy usage and ensuring dependable performance.
The Munters MH270 Desiccant Dehumidifier is meticulously engineered to deliver operational effectiveness and long-term viability through its advanced features. Its optimised airflow design incorporates a distribution chamber with isolated sections that balance dehumidification, purge, reactivation, and heat recovery airflows, ensuring maximum efficiency across all functions. This thoughtful design guarantees predictable performance, even in demanding applications.
To meet diverse operational needs, the MH270 offers flexible control options, allowing users to choose between a standard or advanced control panel. This adaptability makes it a practical choice for industries requiring tailored dehumidification solutions. The durable construction, featuring a rugged metal frame and corrosion-resistant ALUZINK® access panels, ensures long-term reliability and resilience in challenging environments, showcasing its robust fabrication and meticulous design.
The MH270's advanced rotor technology is a standout feature. Its rotor, manufactured from a corrugated composite material, effectively attracts and holds water vapour, providing superior dehumidification. Additionally, the inclusion of two extra rotor sectors enhances capacity while simultaneously recovering heat, significantly reducing energy consumption. The rotor's rotation speed and airflow conditions are optimised for specific applications, demonstrating the unit's capability and practicality.
Energy efficiency is another fundamental aspect of the MH270. An innovative control system minimises power usage, making it an eco-conscious choice for businesses prioritising sustainability and corporate social responsibility goals. Its compliance and certifications further solidify its reliability, conforming to EN 60204 (IEC204) standards and harmonised European Standards with CE marking specifications, ensuring safety and adherence to industry regulations.
Together, these features make the MH270 an indispensable tool for precise humidity control, integrating seamlessly into your operational infrastructure while maintaining the highest standards of performance and efficiency.

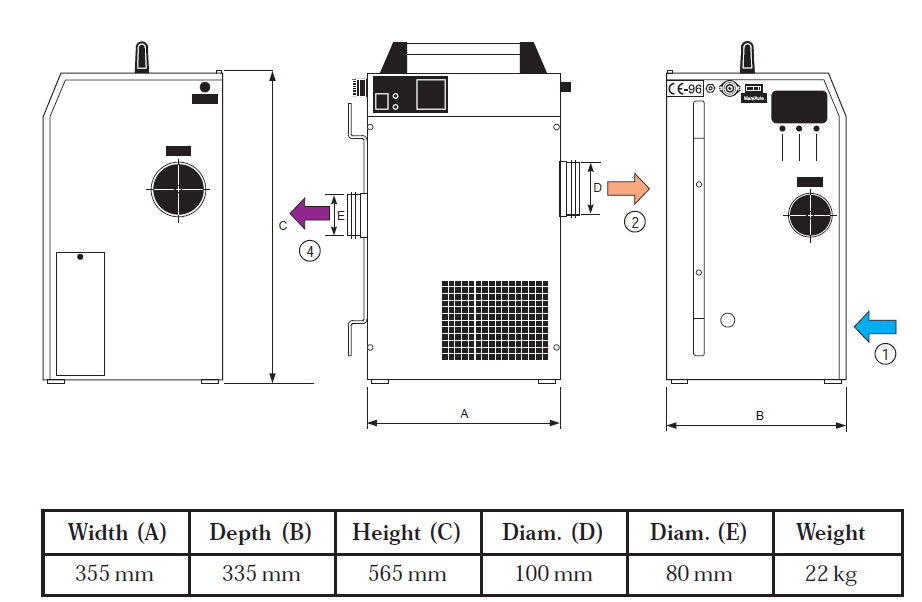

Technical Specifications:
| Dimension |
Value |
| Width (A) |
355 mm |
| Depth (B) |
335 mm |
| Height (C) |
565 mm |
| Diameter (D) |
100 mm |
| Diameter (E) |
80 mm |
| Weight |
22 kg |
Performance Data:
| Parameter |
Value |
| Process Air Rated Airflow |
270 m³/h |
| Reduced Process Airflow |
185 m³/h |
| Available Static Pressure (Process) |
190 Pa |
| Reactivation Air Rated Airflow |
80 m³/h |
| Available Static Pressure (Reactivation) |
175 Pa |
Electrical Specifications:
| Parameter |
Value |
| Total Power (kW) |
1.96 kW |
| Voltage/Current (230V 1-50Hz) |
8.5 A |
| Voltage/Current (240V 1-50Hz) |
8.5 A |
Miscellaneous Data:
| Parameter |
Value |
| Operating Temperature |
-20°C to +40°C |
| Maximum Noise Level (Unducted) |
53.5 dBA |
| Air Filter Standard |
G3 |
| IEC Protective Class (Unit) |
IP44 |
| IEC Protective Class (Electrical Panel) |
IP54 |
Performance Chart:
The MH270 showcases its superior dehumidification capability across various relative humidity levels, as seen in the chart below. It delivers high performance at 80%, 60%, and 40% RH, making it ideal for diverse industrial needs.
| Process Air Temperature (°C) |
Dehumidification Capacity (kg/h) |
| -10 |
0.4 |
| 0 |
0.8 |
| 10 |
1.2 |
| 20 |
1.6 |
| 30 |
2.0 |
Applications:
The Munters MH270 is a fundamental asset for industries that require precise humidity control, including:
- Pharmaceuticals: Protect sensitive materials from moisture-induced degradation.
- Food Processing: Prevent contamination and extend shelf life in controlled environments.
- Electronics Manufacturing: Maintain stable conditions to ensure the reliability of delicate components.
- Archival Preservation: Safeguard historical documents and artefacts from the damaging effects of humidity.
Why Choose the Munters MH270?
The Munters MH270 is an unconditionally reliable, eco-conscious solution designed to integrate seamlessly into your overarching infrastructure. Its robust build, energy efficiency, and advanced technology ensure long-term viability, while its practical size and flexible control options make it suitable for both industrial and administrative settings. Demonstrate your commitment to operational effectiveness and corporate social responsibility goals by investing in a dehumidifier that delivers predictable and insurmountable results.
For businesses seeking significant improvements in environmental control, the Munters MH270 provides unmatched capability, mobility, and practicality. Explore the advantages of this model today and take the first step towards optimising your operations with precision humidity management.
