The Munters IceDry® 30 dehumidifier is purpose-built to thrive in the harsh, cold conditions of -25ºC freezers and cold storage facilities. With its robust stainless steel construction and innovative design, it prevents frost, ice, and fog build-up, ensuring a safer and more efficient working environment. By addressing moisture at the source, the IceDry® 30 helps maintain a consistent temperature, protects stored products and reduces energy consumption.
The Munters IceDry® 30 is designed to remove moisture from the air before it enters the cold evaporators, effectively preventing frost and ice formation. Frost build-up in cold storage not only increases energy costs but also poses safety risks. Slippery floors, fogged-up areas, and ice accumulation are all challenges that the IceDry® 30 eliminates, making it an indispensable tool for businesses reliant on cold storage solutions.

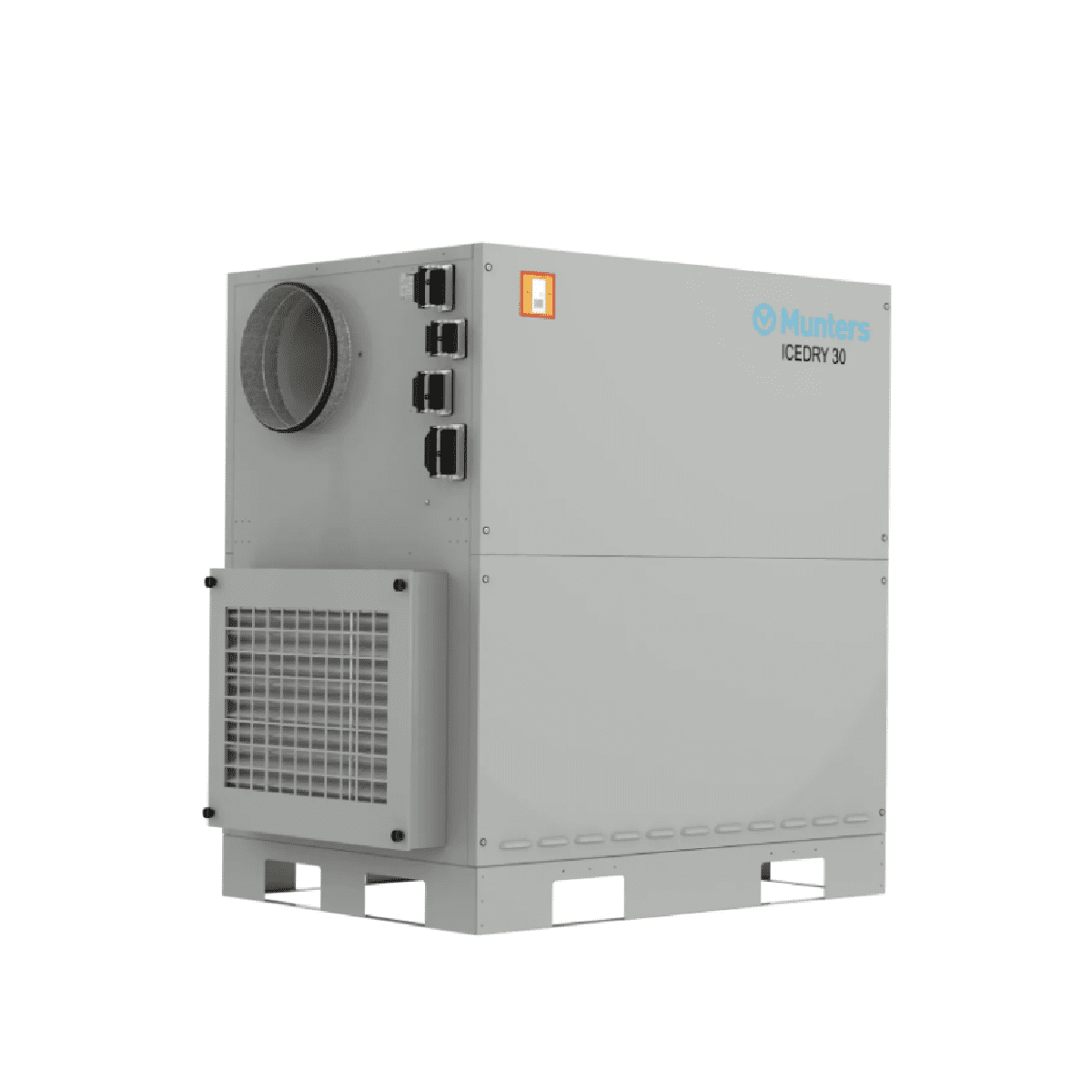

Equipped with an internal sealed rotor assembly made of durable thermosetting plastic, the IceDry® 30 features insulated sections that ensure precise air flow balance for dehumidification, reactivation and heat recovery. Its stainless steel casing adds durability, while its advanced technology ensures consistent performance even in extreme conditions.
The IceDry® 30 offers several benefits, including safer loading dock areas, reduced maintenance costs, and improved energy efficiency. By eliminating ice build-up, it enhances visibility, prevents slippery surfaces, and ensures that stock is stored at the optimal temperature.

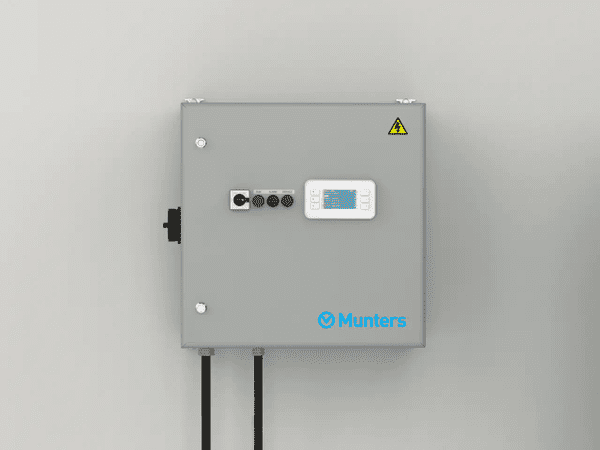

The control panel is conveniently placed outside the cold store, making operation simple and user-friendly. Once connected to power, the unit immediately begins to reduce ice and snow. Its automatic defrosting function ensures reliable performance and prevents ice build-up on coils, further reducing maintenance efforts.
Specifications:
| Removal Capacity |
Approx. 56kg/day at -25ºC and 80% RH |
| Air Volume |
3,000 m³/h |
| Available Static Pressure |
300 Pa |
| Normal Working Range |
-25ºC to +40ºC |
| Reactivation Air Heater Power |
18 kW |
| Total Power |
22.6 kW |
| Connection Power |
3 × 230/400V / 50Hz |

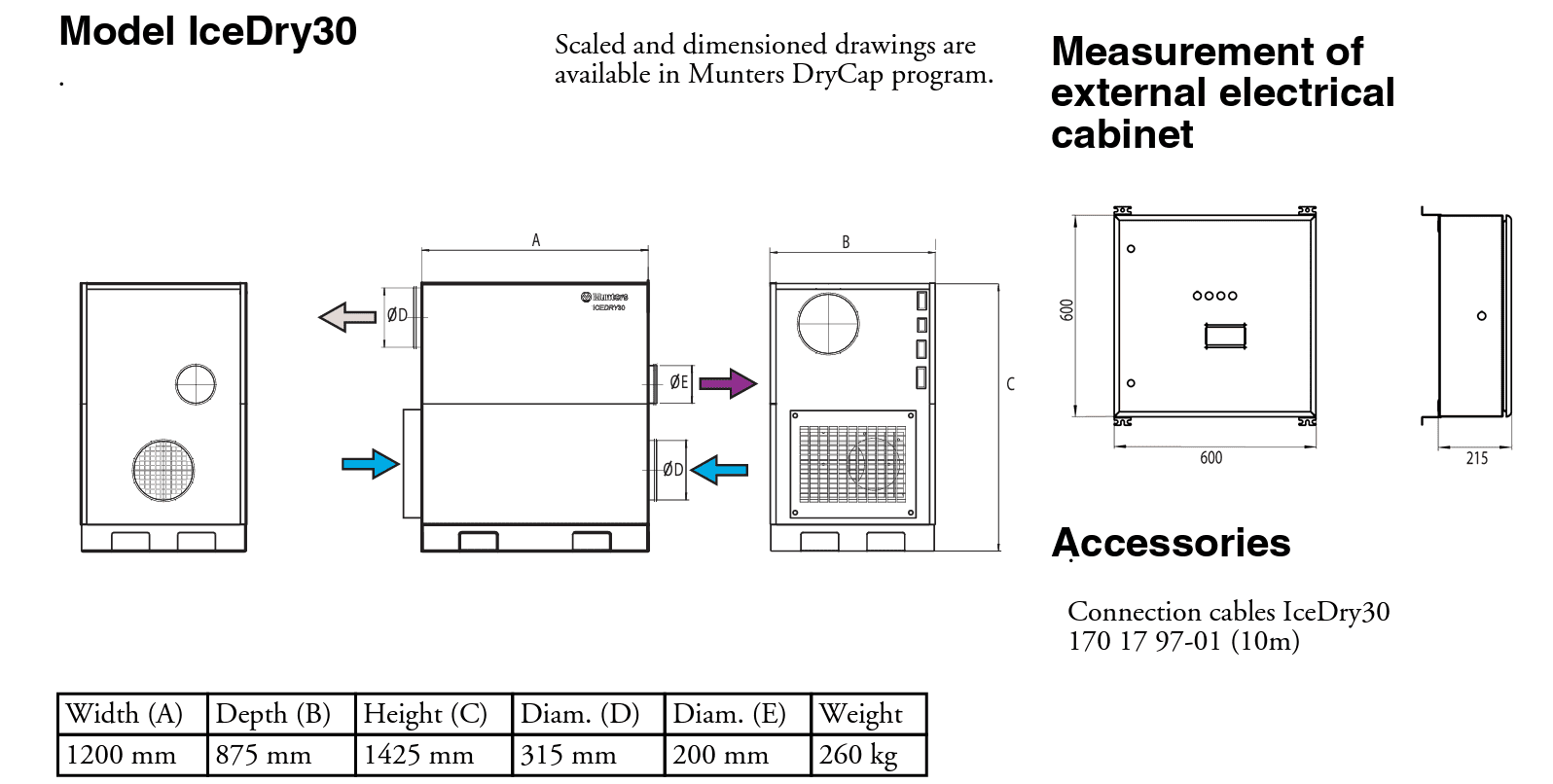

| Dimensions (W x L x H) |
1200 x 875 x 1425 mm |
| Weight |
260 kg |
| Process Air |
|
| Rated Airflow (m³/h) |
3000 |
| Available Static Pressure (Pa) |
300 |
| Reactivation Air |
|
| Rated Airflow (m³/h) |
630 |
| Available Static Pressure (Pa) |
300 |
| Total Power, Voltage, and Current (amps/phase) |
|
| Total Power (kW) |
22.6 |
| 200V 3-50Hz (A) |
79.2 |
| 200V 3-60Hz (A) |
79.2 |
| 230V 3-50Hz (A) |
65.2 |
| 380V 3-50Hz (A) |
39.4 |
| 400V 3-50Hz (A) |
38.0 |
| 415V 3-50Hz (A) |
36.8 |
| 440V 3-60Hz (A) |
36.2 |
| 460V 3-60Hz (A) |
35.1 |
| 480V 3-60Hz (A) |
33.8 |
| Reactivation Air Heater Power (kW) |
18 |
| Miscellaneous Data |
|
| Max Noise Level Unducted (dBA) |
75 |
| Air Filter Standard |
G3 |
| IEC Protective Class |
|
| Unit |
IP33 |
| External Electrical Cabinet |
IP54 |
| Permitted Ambient Temp (°C) |
|
| Unit |
-25 to 0 |
| External Electrical Cabinet |
-25 to +10 |
| External Electrical Cabinet (Configured) |
10 to 25 |
Why Choose the Munters IceDry® 30?
The Munters IceDry® 30 is a powerful, reliable, and energy-efficient solution for managing moisture in cold storage environments. Its ability to maintain consistent temperatures without ice build-up enhances operational safety, reduces energy costs, and protects valuable stock. Designed with durability, precision, and practicality in mind, the IceDry® 30 sets the standard for cold storage dehumidification solutions.
