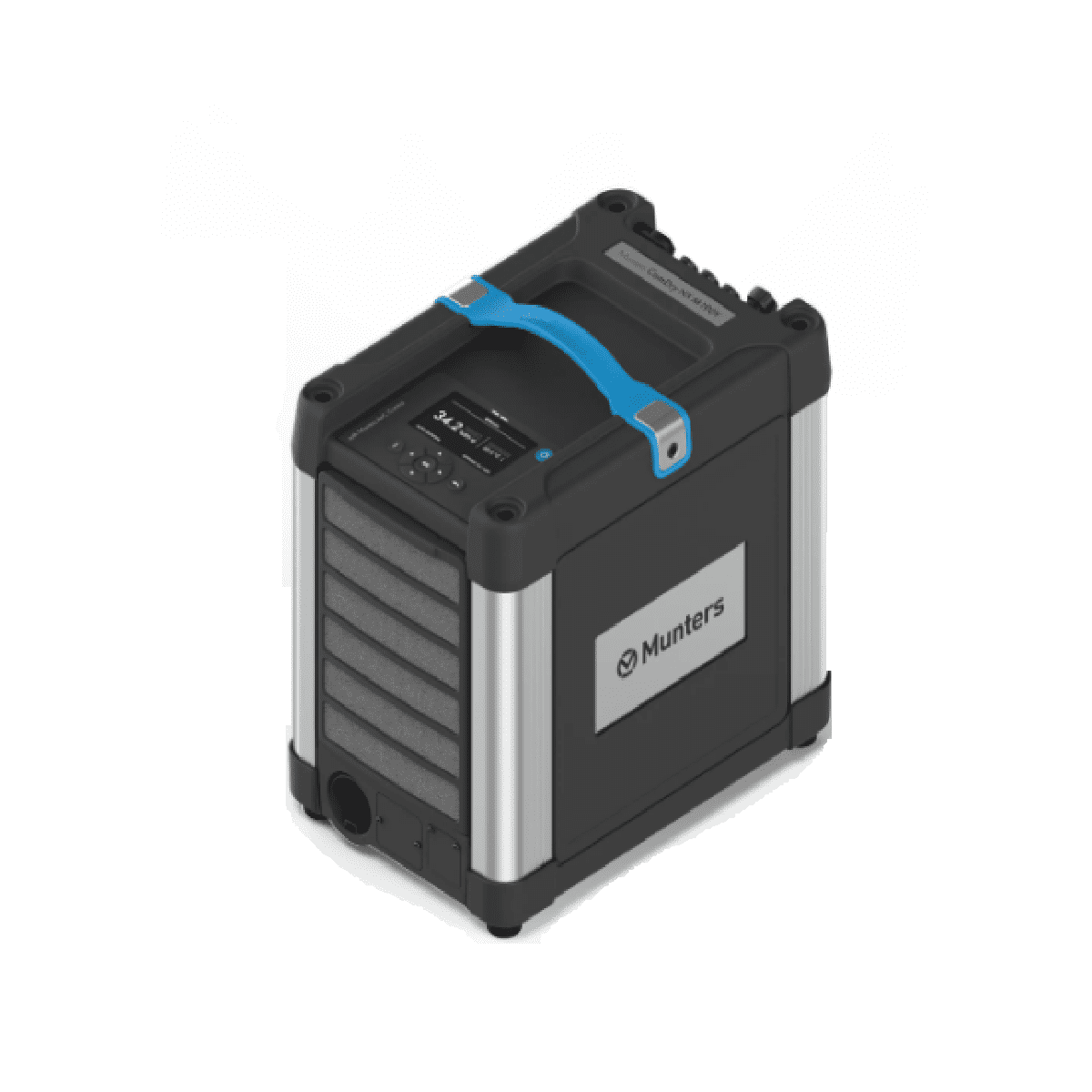

The Munters ComDry NX M170L is a low-energy, high-performance desiccant dehumidifier engineered to meet the challenges of humidity control in industrial, commercial, and preservation environments. Designed for both efficiency and versatility, this unit features a robust aluminium and plastic casing, advanced air-cooled condenser technology, and compact portability. Ideal for managing moisture in confined spaces, the M170L offers reliable performance with reduced operational costs.
Equipped with Munters' innovative desiccant rotor technology, the M170L delivers consistent and effective humidity control. Its lightweight design (15.7 kg) and built-in condensate pump with horizontal and vertical pumping capabilities make it suitable for mobile or fixed installations. The unit is available in two configurations: Base and Pro. The Base model includes Modbus TCP communication for seamless system integration, while the Pro model offers additional AirC Wireless connectivity, enabling remote operation and monitoring.
Key Product Features:
- Energy-Efficient Operation: Integrated air-cooled condenser and low energy consumption deliver cost-effective performance.
- Compact and Lightweight: Weighing only 15.7 kg, the M170L is easy to transport and install in various applications.
- Robust Construction: Aluminium and plastic casing ensures durability in challenging environments.

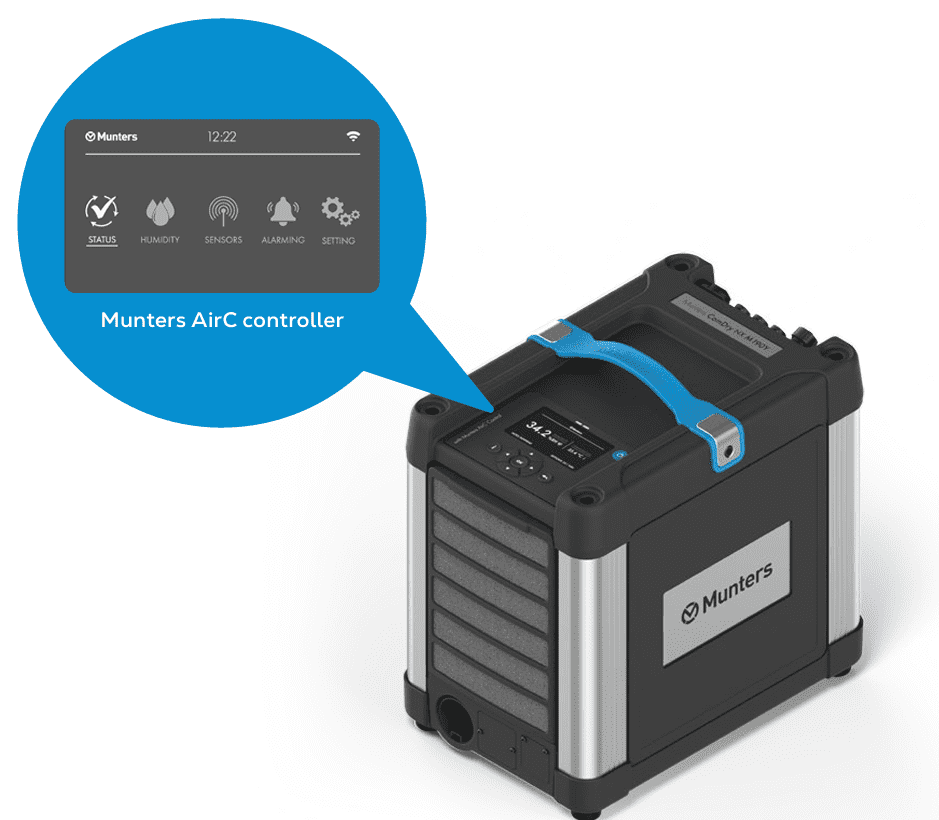

- Advanced Communication: Modbus TCP in the Base model; AirC Wireless connectivity and remote control in the Pro model.
- Integrated Condensate Pump: Handles up to 12 m horizontal and 3 m vertical pumping distances, improving flexibility.
- User-Friendly Controls: Multifunctional interface with real-time data for humidity, energy use, and system performance.
- High-Performance Rotor Technology: Provides efficient and consistent moisture removal in a wide range of conditions.
Technical Specifications:
| Dimensions |
445mm (W) x 270mm (D) x 571mm (H) |
| Weight |
15.7 kg |
| Dry Air Capacity |
0.52 kg/h (20°C, 60% RH) |
| Free-Blowing Airflow |
185 m³/h |
| Rated Airflow |
150 m³/h |
| Maximum Static Pressure |
225 Pa |
| Heater Power |
0.84 kW |
| Operating Temperature |
0°C to +30°C |
| Noise Level |
58 dBA |
| Ingress Protection |
IP44 (unit), IP54 (control panel) |
| Condensate Pump |
Horizontal: 12 m
Vertical: 3 m |
| Filter Class |
Coarse 50%/G3 |
Applications:
The Munters ComDry NX M170L is designed for a wide variety of applications, including:
- Industrial Use: Ensures optimal conditions for machinery and sensitive materials.
- Preservation and Archives: Protects documents, artefacts, and other sensitive items from humidity damage.
- Construction Sites: Provides reliable drying solutions for crawl spaces and enclosed areas.
- Storage Rooms and Cellars: Prevents mould, mildew, and corrosion in confined spaces.
Base vs. Pro Models:
| Feature |
Base Model |
Pro Model |
| Modbus TCP Communication |
Yes |
Yes |
| AirC Wireless Connectivity |
No |
Yes |
| Remote Control Panel |
No |
Yes |
| Additional Sensors |
No |
Yes |
Why Choose the Munters ComDry NX M170L?:
The Munters ComDry NX M170L delivers exceptional performance with its combination of energy efficiency, advanced technology, and flexible functionality. Its lightweight construction and integrated condensate pump make it ideal for mobile applications, while its durable casing ensures long-term reliability in demanding environments. With user-friendly controls and the option for advanced remote operation, the M170L is a practical and effective solution for diverse humidity control needs.
