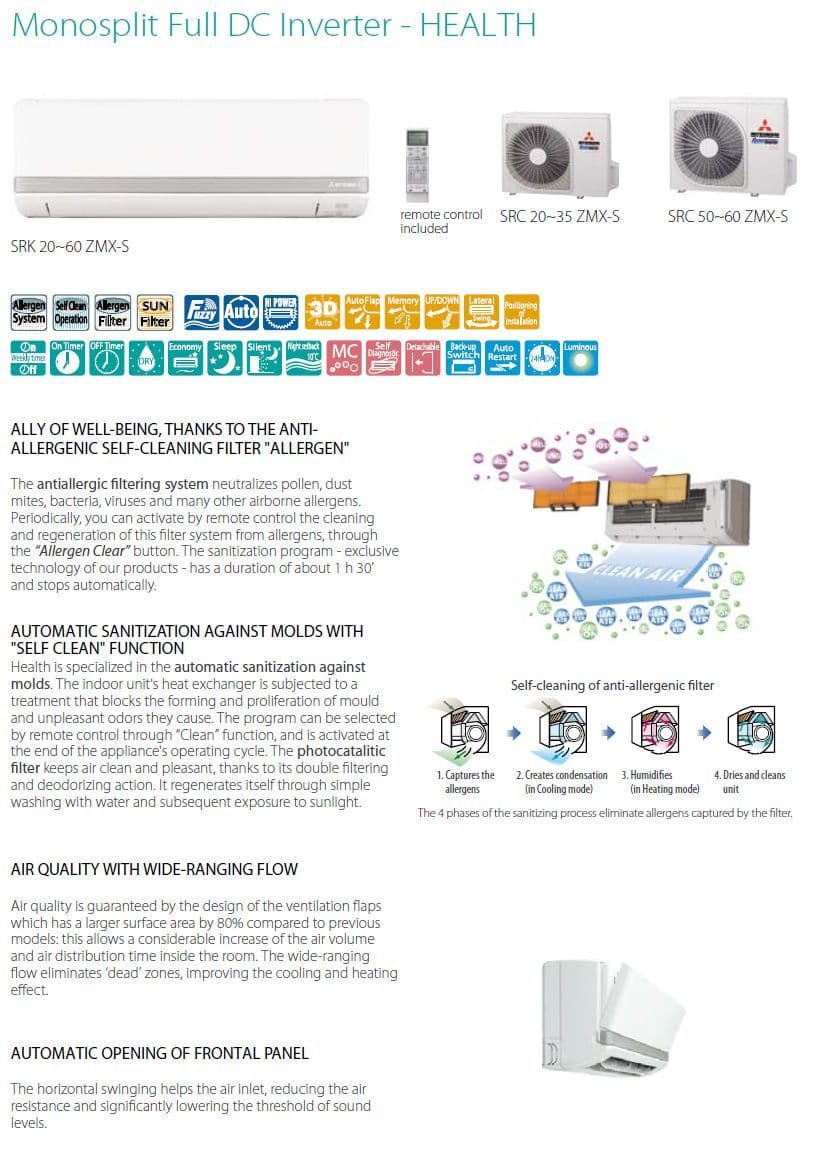

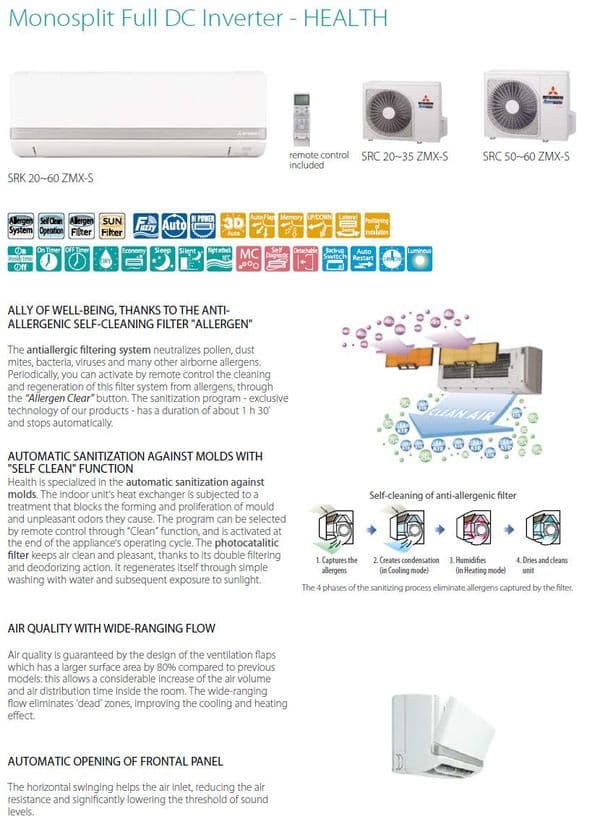

ALLY OF WELL-BEING, THANKS TO THE ANTI-ALLERGENIC SELF-CLEANING FILTER "ALLERGEN"
MITSUBISHI HEAVY INDUSTRIES has made a giant leap forward in air conditioning and heat pump technology, with the latest introduction of high performance SRK-ZMX Health series wall mounted air conditioning systems. The NEW ADVANCED SRK wall mounted indoor Units have a new ‘smooth line’ design of fascia, which has a lower profile flatter appearance, and is far more easy to keep clean. The SRK now includes the Mitsubishi innovative NATURAL ENZYME FILTER which destroys funghi, bacteria and viruses. This, combined with the main Photocatalytic Washable Deodorizing Filter, provides healthy clean air for the occupants. The anti-allergic filtering system neutralizes pollen, dust mites, bacteria, viruses and many other airborne allergens. Periodically, you can activate by remote control the cleaning and regeneration of this filter system from allergens, through the “Allergen Clear” button. The sanitization program - exclusive technology of our products - has a duration of about 1 h 30’ and stops automatically.
MITSUBISHI has used its innovative technology of compressor design, and the ozone friendly R410A refrigerant, and combined this with their new “jet-flow” low noise air movement fan arrangement. The result is a quiet, high performance cooling and heating system, with advanced electronic controls for maximum comfort, controllable and energy efficient.
ZMX Series
The new slim profile indoor unit has a reduced height of 309mm. The new multiple stage heat exchanger is folded to form a surround to the upper section of the fan enclosure. This ensures low air velocity, and reduced sound levels, whilst delivering high performance and efficiency.
Applying aerodynamic analysis technologies used
in developing jet engines to air conditioners.
CFD (computational fluid dynamics), used in blade shape design of jet engines, has been applied to the design of air channels in air conditioners to develop the ideal air channel system (air circulation). The airflow of the jets created in this system enable a large volume of air to be blown with minimum power consumption, yet the air flow is uniform, quiet and reaches points a long distance from the blower.
Key Product Feature's:
• High SCOP, up to record 4.60
• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Pipe runs up to 25 metres
• Low noise – 26dBA
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for
up to 15 metres pipe length
UNIT Data:
|
Indoor Unit Model
|
SRK 50 ZMX-S
|
SRK 60 ZMX-S
|
|
Outdoor Unit Model
|
SRC 50 ZMX-S
|
SRC 60 ZMX-S
|
|
Type
|
DC Inverter
|
DC Inverter
|
|
Capacity (T=35°C)
|
Cooling
|
kW
|
5.00 (1.10~5.80)
|
6.10 (1.10~6.80)
|
|
Power Input (T=+35° C)
|
Cooling
|
kW
|
1.30 (0.20~1.80)
|
1.87 (0.20~2.50)
|
|
Annual Consumption
|
Cooling
|
kWh/a
|
262
|
356
|
|
Energy Efficiency Class Seasonal
|
Cooling
|
626/20111
|
A++
|
A+
|
|
Energy Efficiency Class Seasonal Index
|
Cooling
|
SEER2
|
6.70
|
6.00
|
|
Energy Efficiency Rated
|
Cooling
|
EER3
|
3.85
|
3.26
|
|
Design load (Pdesignc)
|
Cooling
|
kW
|
5.00
|
6.10
|
|
Capacity (T=+7° C)
|
Heating
|
kW
|
6.00 (0.60~7.70)
|
6.80 (0.60~8.20)
|
|
Power Input (T=7° C)
|
Heating
|
kW
|
1.36 (0.20~2.43)
|
1.67 (0.20~2.70)
|
|
Annual Consumption
|
Heating
|
kWh/a
|
1614
|
1960
|
|
Energy Efficiency Class Seasonal
|
Heating
|
626/20111
|
A++
|
A+
|
|
Energy Efficiency Class Seasonal Index
|
Heating
|
SCOP2
|
4.60
|
4.36
|
|
Energy Efficiency Rated
|
Heating
|
COP3
|
4.41
|
4.07
|
|
Design load (Pdesignh) @-10°C
|
Heating
|
kW
|
5.30
|
6.10
|
|
T° operational limit (Tol)
|
Heating
|
°C
|
-15
|
-15
|
|
Power supply
|
Ph-V-Hz
|
1-220~240V-50HZ
|
1-220~240V-50HZ
|
|
I.U. ~ O.U.
|
O.U.
|
O.U.
|
|
Input Rated Current (Cooling - Heating)
|
A
|
6.0 - 6.2
|
8.6 - 7.7
|
|
Wiring cables i.u./o.u. (without ground)
|
nb.
|
3
|
3
|
|
Refrigerant Pipe Liquid/Gas side
|
mm (inch.)
|
6.35 (1/4”) - 12.7 (1/2”)
|
6.35 (1/4”) - 12.7 (1/2”)
|
|
Max splitting distance I.U./O.U.
|
m
|
30
|
30
|
|
Max splitting level difference (O.U./I.U.-I.U./O.U.)
|
m
|
20/20
|
20/20
|
|
Refrigerant Precharge
|
Kg
|
1.50
|
1.50
|
|
MAX Splitting without Refrigerant Precharge
|
m
|
15
|
15
|
|
Refrigerant Precharge
|
g/m
|
20
|
20
|
|
Temperature range cooling
|
°C
|
-15°C~+43°C
|
-15°C~+43°C
|
|
Temperature range heating
|
°C
|
-15°C~+21°C
|
-15°C~+21°C
|
|
Indoor unit
|
Dimensions (HxWxD)
|
mm
|
309x890x220
|
309x890x220
|
|
Net weight
|
Kg
|
13.5
|
13.5
|
|
Indoor Noise level 1 m (Hi/Mi/Lo)
|
dB(A)
|
47
|
40
|
25
|
51
|
41
|
|
Power sound level
|
dB(A)
|
60
|
64
|
|
Indoor air flow (Hi/Mi/Lo)
|
m3/h
|
810
|
660
|
480
|
870
|
750
|
|
Drain hose diameter
|
mm
|
16
|
16
|
|
Remote control (st. equipment)
|
type
|
Infrared remote control
|
Infrared remote control
|
|
Filter (st. equipment)
|
1x
|
Allergen Clear
|
Allergen Clear
|
|
Filter (st. equipment)
|
1x
|
Photocatalytic
|
Photocatalytic
|
|
Outdoor Unit
|
Dimensions (HxWxD)
|
mm
|
640x800(+71)x290
|
640x800(+71)x290
|
|
Net weight
|
Kg
|
45
|
45
|
|
Max noise level 1 m
|
dB(A)
|
54
|
54
|
|
Power sound level
|
dB(A)
|
63
|
65
|
|
Max air flow
|
m3/h
|
2160
|
2400
|
|
Interface for wired remote control &/or SC-ADNA-E (optional)
|
SC-BIKN-E
|
SC-BIKN-E
|
|
Wired remote control (optional)
|
RC-E5 / RC-EX1A
|
RC-E5 / RC-EX1A
|
|
SUPERLINK II Interface (optional)
|
SC-ADNA-E
|
SC-ADNA-E
|
