Mitsubishi Heavy Industries Air Conditioning SRC50ZSX-W2 SRF50ZSX-W Floor Heat Pump 5kW/18000Btu R32 A+ 220-240V~50Hz
Constant temperature and uniform air distribution
Includes:

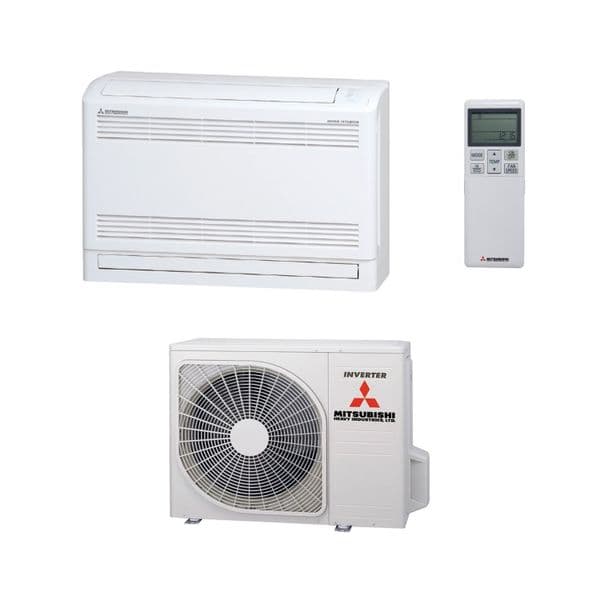

1 x Mitsubishi Heavy Industries Air Conditioning SRF50ZSX-W Floor Console Heat Pump 5Kw / 18000Btu R32
1 x Mitsubishi Heavy Industries Air Conditioning SRC50ZSX-W2 R32 Outdoor Unit 5Kw/18000Btu R32 A+ 220-240V~50Hz
1 x Mitsubishi Heavy Industries Air Conditioning Ir Remote Controller
About the SRF floor console:
Mitsubishi Heavy Industries air conditioning has made a giant leap forward in air conditioning and R32 heat pump inverter technology, with the latest introduction of high performance SRF Floor Mounted air conditioning systems. The NEW ADVANCED SRF Floor Mounted Indoor Units are a new design with a flat/low profile flat appearance, and is very easy to keep clean. The SRF includes the Mitsubishi innovative NATURAL ENZYME FILTER which destroys fungi, bacteria and viruses. This, combined with the main Photo-catalytic Washable Deodorising Filter, provides healthy clean air for the occupants. The recently introduced SRF slim indoor unit has a reduced depth of 238mm and a 600mm height for conservatory low wall mounting. The new multiple stage heat exchanger ensures low air velocity, and reduced sound levels, whilst delivering high performance and efficiency.
How the air flow works:
In heating mode: Both lower and upper outlets operate with Auto fan speed mode, the lower outlet will be kept for twenty minutes after the start or until room temperature is close to reaching the setting point. And then the air outlet will change to both outlets. That state will be maintained until the switch is turned off. Automatic adjustment of lower air outlet direction prevents stirring up of warm air and keeps optimum comfort at floor level.
In cooling mode: In case both lower and upper outlets operation is selected in Cooling or Dry operation, both outlets will be kept for sixty minutes after the start or until room temperature is below the setting point. And then the air outlet will change to the upper outlet. That state will be maintained until switch is turned off. In case both outlets operation with Auto fan speed mode is selected, the upper outlet will be kept for ten minutes after the start or until room temperature is close to reaching the setting point. And then the air outlet will change to both outlets in order to spread comfort air to every corner.
Product Key Feature's:
• High sCoP
• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Only 238mm deep
• Pipe runs up to 15 metres
• Low noise – 26dBA
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 15 metres pipe length
• Auto air direction with high and low air outlets for cooling/heating operations
Unit Data:
|
Indoor unit
|
|
SRF50ZSX-W
|
|
Outdoor unit
|
|
SRC50ZSX-W2
|
|
Power source
|
|
1 Phase, 220 - 240V, 50Hz
|
|
Nominal cooling capacity (Min~Max)
|
kW
|
5.0 (1.1~5.6)
|
|
Nominal heating capacity (Min~Max)
|
kW
|
6.0 (0.8~7.4)
|
|
Power consumption
|
Cooling/Heating
|
kW
|
1.32 / 1.58
|
|
EER/COP
|
Cooling/Heating
|
|
3.79 / 3.80
|
|
Max. running current
|
|
A
|
15
|
|
Sound power level
|
Indoor
|
Cooling/Heating
|
dB(A)
|
58 / 58
|
|
Outdoor
|
Cooling/Heating
|
63 / 62
|
|
Sound pressure level
|
Indoor
|
Cooling (Hi/Me/Lo/Ulo)
|
46 / 38 / 33 / 28
|
|
Heating (Hi/Me/Lo/Ulo)
|
46 / 41 / 38 / 32
|
|
Outdoor
|
Cooling/Heating
|
51 / 51
|
|
Air flow
|
Indoor
|
Cooling (Hi/Me/Lo/Ulo)
|
m3/min
|
11.5 / 9.6 / 7.4 / 6.6
|
|
Heating (Hi/Me/Lo/Ulo)
|
12.0 / 10.0 / 9.4 / 7.6
|
|
Outdoor
|
Cooling/Heating
|
39.0 / 33.0
|
|
Exterior dimensions
|
Indoor
|
HeightxWidthxDepth
|
mm
|

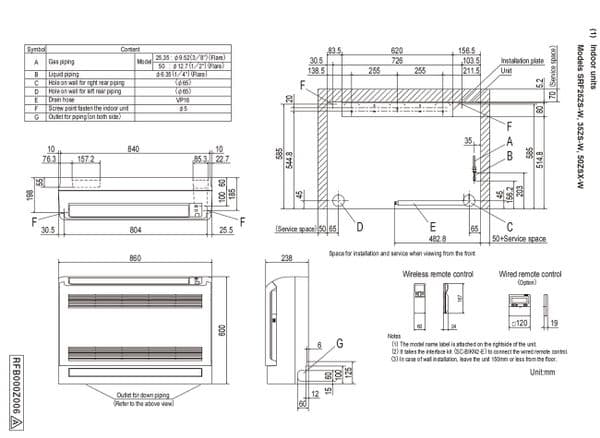

600 x 860 x 238
|
|
Outdoor
|

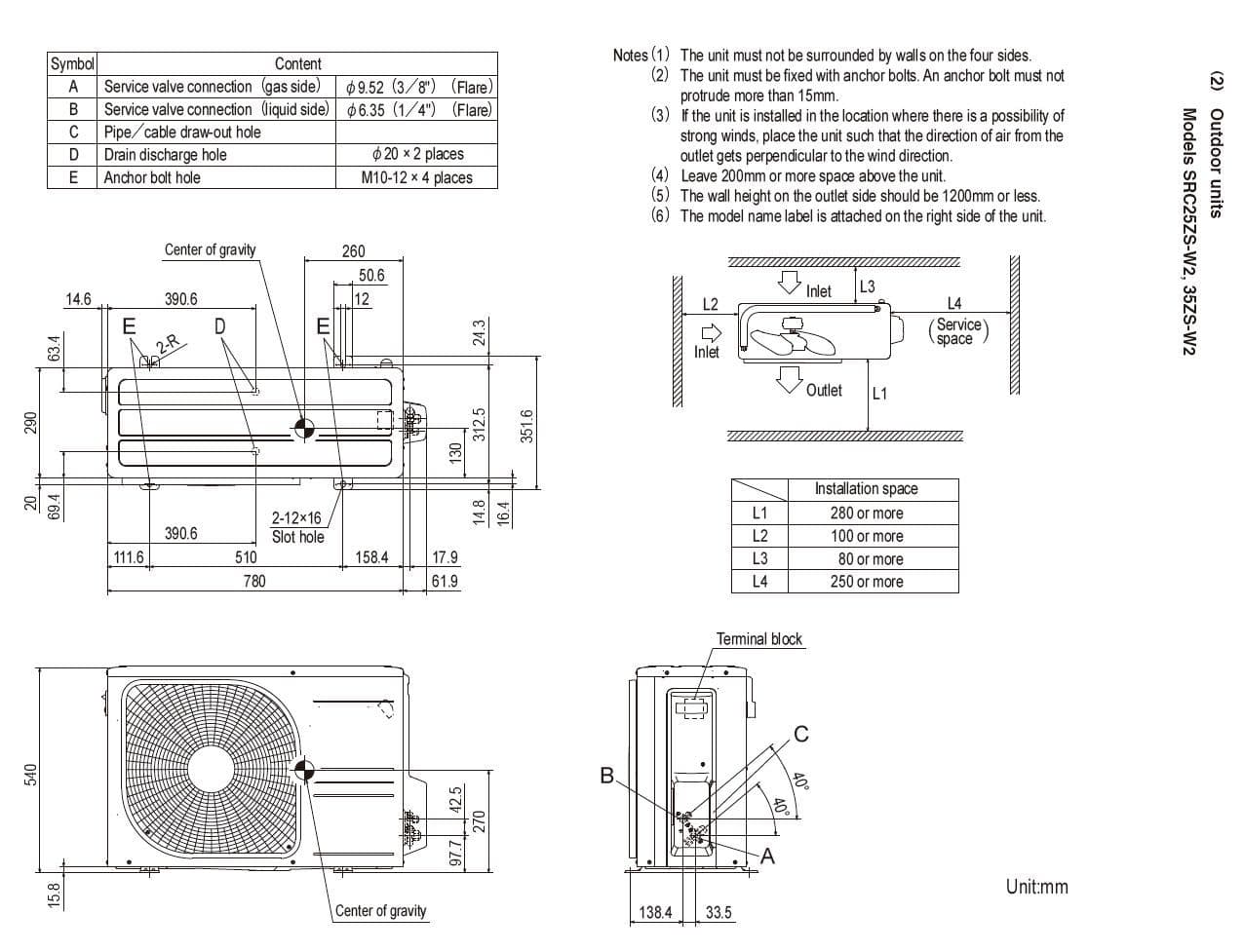

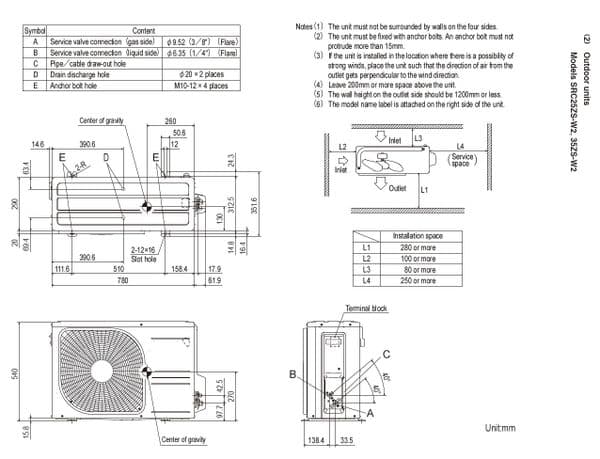

640 x 800(+71) x 290
|
|
Net weight
|
Indoor / Outdoor
|
kg
|
19.0 / 45.0
|
|
Refrigerant
|
Type/GWP
|
|
R32 / 675
|
|
Charge
|
kg/TCO2Eq
|
1.30 / 0.878
|
|
Refrigerant piping size
|
Liquid/Gas
|
ø mm
|
6.35(1/4") / 12.7(1/2")
|
|
Refrigerant line (one way) length[chargeless length]
|
m
|
Max. 30 [15]
|
|
Vertical height differences
|
Outdoor is higher/lower
|
m
|
Max. 20 / Max. 20
|
|
Outdoor operating temperature range
|
Cooling
|
˚C
|
-15~46
|
|
Heating
|
-20~24
|
|
Clean filter
|
|
|
Allergen Clear Filter x 1 Photocatalytic Washable Deodorising Filter x 1
|
PDF Data:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
