Mitsubishi Heavy Industries Air Conditioning SRC50ZSX-W2 - FDE50VH Under Ceiling 5Kw/17000Btu R32 A++ 240V~50Hz
A++ Energy Rated Product
Includes:
1 x Mitsubishi Heavy Industries Air Conditioning FDE50VH Under Ceiling 5Kw R32
1 x Mitsubishi Heavy Industries Air Conditioning SRC50ZSX-W2 Outdoor Unit 5Kw R32 A++
1 x Mitsubishi Heavy Industries Air Conditioning Eco Touch RC-EX3A Wired Remote Controller 2 wire
The new Mitsubishi Heavy Industries Air Conditioning FDE R32 ceiling suspended indoor series now comes with stylish rounded side panels and a slimmer profile. The Mitsubishi Heavy Industries FDE is suitable for areas which do not have suspended ceilings, and can be installed adjacent to a side wall, allowing the pipe connections and electrical wiring are concealed. This system comes with the RC-EX3A Eco-touch is a touch screen wired controller providing full function control and more than 90 function settings.Using the wired remote control system, users can run and stop the unit, switch operations, adjust the temperature, fan speed and air flow direction (up or down), and control timer operation.
Mitsubishi Heavy Industries Air Conditioning has made a giant leap forward in air conditioning and heat pump technology, with the development of high performance R32 charged FDE series split systems ideally suited for commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The heat exchangers have again been improved, now using slit-fins and inner grooved tubing for maximum efficiency in heating and cooling, whilst maintaining lower sound levels. The 7-Day Programmable timer is now included in the standard controls specification.
Product Key Feature's:
• 7-Day 24 HR Programmable Timer
• Two on/off settings each day
• Different temperature for each set period
• External timer/BMS switching for Group control
• Wall Controller - hard wired
• Integral temperature sensor
• Slim Construction
• Infra-red wireless controller optional
• INVERTER technology
• Low profile attractive grey/white fascia panel
• Improved anti-smudge air discharge
• Low ambient control included
• Auto re-start after power interruption
• Reduced sound levels
• Long pipe-runs
• High C.O.P
Technical Data:
|
Indoor unit
|
|
FDE50VH
|
|
Outdoor unit
|
|
SRC50ZSX-W2
|
|
Power source
|
|
1 Phase 220-240V, 50Hz / 220V, 60Hz
|
|
Nominal cooling capacity (Min~Max)
|
kW
|
5.0 ( 1.1 ~ 5.6 )
|
|
Nominal heating capacity (Min~Max)
|
kW
|
5.4 ( 0.6 ~ 6.3 )
|
|
Power consumption
|
Cooling/Heating
|
kW
|
1.43 / 1.46
|
|
EER/COP
|
Cooling/Heating
|
|
3.49 / 3.70
|
|
Inrush current
|
|
A
|
5
|
|
Max. current
|
|
15
|
|
Sound power level*1
|
Indoor
|
Cooling/Heating
|
dB(A)
|
60 / 60
|
|
Outdoor
|
Cooling/Heating
|
63 / 62
|
|
Sound pressure level*1
|
Indoor
|
Cooling (P-Hi/Hi/Me/Lo)
|
46 / 38 / 36 / 31
|
|
Heating (P-Hi/Hi/Me/Lo)
|
46 / 38 / 36 / 31
|
|
Outdoor
|
Cooling/Heating
|
52 / 50
|
|
Air flow
|
Indoor
|
Cooling (P-Hi/Hi/Me/Lo)
|
m3/min
|
13 / 10 / 9 / 7
|
|
Heating (P-Hi/Hi/Me/Lo)
|
13 / 10 / 9 / 7
|
|
Outdoor
|
Cooling/Heating
|
39 / 33
|
|

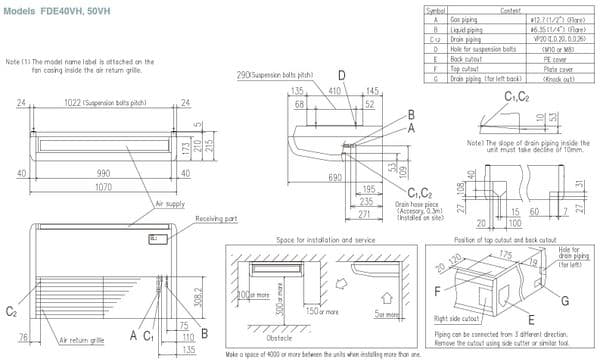

Exterior dimensions
|
Indoor
|
HeightxWidthxDepth
|
mm
|
210 x 1,070 x 690
|
|
Outdoor
|
640 x 800(+71) x 290
|
|
Net weight
|
Indoor
|
|
kg
|
28
|
|
Outdoor
|
|
45
|
|
Ref.piping size
|
Liquid/Gas
|
ømm
|
6.35(1/4") / 12.7(1/2")
|
|
Refrigerant line (one way) length
|
m
|
Max.30
|
|
Vertical height differences
|
Outdoor is higher/lower
|
m
|
Max.20 / Max.20
|
|
Outdoor operating temperature range
|
Cooling
|
°C
|
-15~46*2
|
|
Heating
|
-20~24
|
|
Air filter, Q'ty
|
|
Pocket Plastic net x2(Washable)
|
|
Remote control (option)
|
|
wired:RC-EX3A, RC-E5, RCH-E3 wireless:RCN-E-E3
|
PDF Data Sheet:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
