Mitsubishi Heavy Industries Air Conditioning 1 x SCM40ZS-S Multi Outdoor Inverter Heat Pump 1-2 Port R32 A++ 4Kw with 2 x SRK20ZSP-W Wall Mount 2Kw/7000Btu 230V/1ph/50Hz

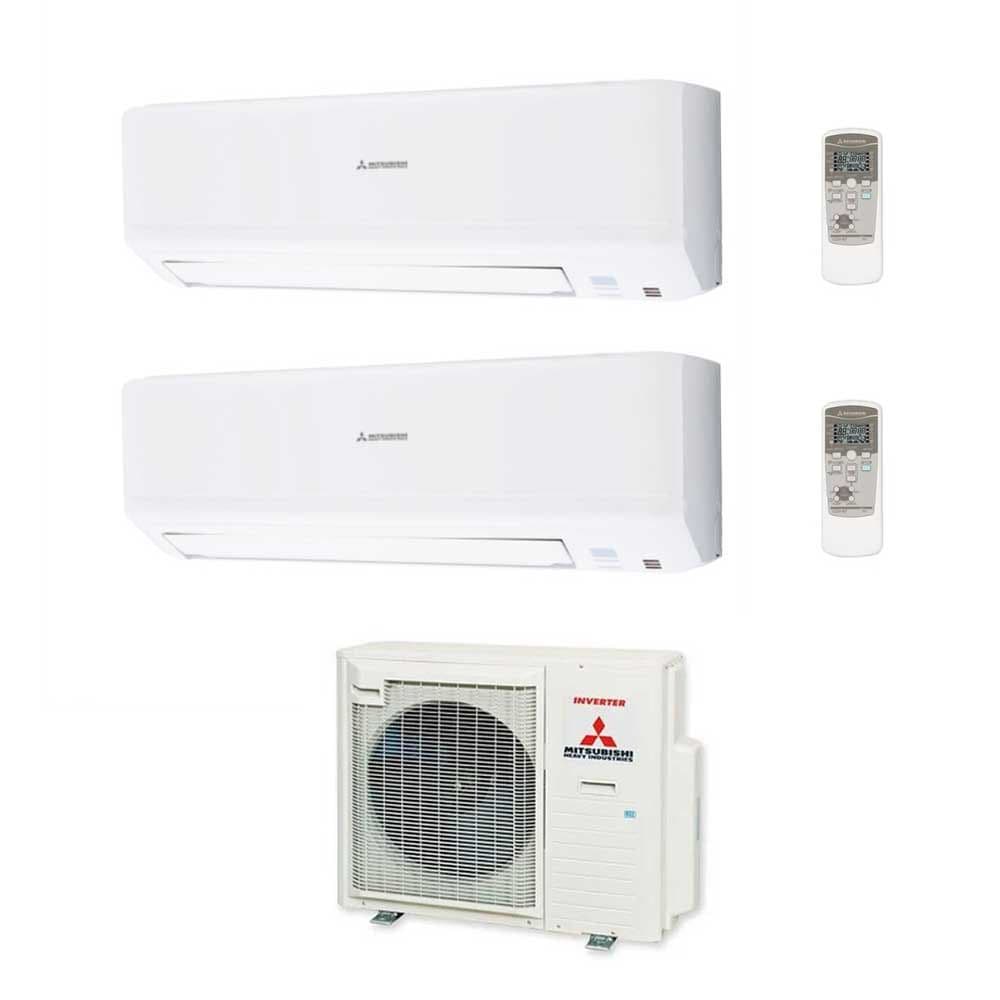

Includes:
1 x Mitsubishi Heavy Industries Air Conditioning SCM40ZS-S Multi Outdoor Inverter Heat Pump 1-2 Port R32 A++ 4Kw
2 x Mitsubishi Heavy Industries Air Conditioning SRK20ZSP-W Wall Heat pump 2Kw/7000Btu R32
2 x Mitsubishi Heavy Industries Air Conditioning Infrared Remote Control
Efficiency Elevated: A++ Seasonal Rating
Mitsubishi Heavy Industries Air Conditioning revolutionizes the air conditioning and heat pump domain with their ground breaking "standard inverter" ZSP wall-mounted system. Experience the sleek aesthetics of the standard white wall mounted units with their streamlined indoor unit design that’s not just appealing but also simpler to maintain for filter cleaning.
Prioritizing health, MITSUBISHI integrates the pioneering NATURAL ENZYME FILTER, adept at neutralizing fungi, bacteria, and viruses. This, when paired with the principal Photocatalytic Washable Deodorizing Filter, guarantees a breath of fresh, sanitized air for users.
Harnessing the power of inventive inverter compressor technology and eco-friendly R32 refrigerant, Mitsubishi Heavy Industries also introduces the “jet-flow” fan technology. This ensures minimal noise and powerful, wide spread air circulation. The result? A superior cooling and heating system replete with cutting-edge electronic controls, striking a balance between unparalleled comfort and energy efficiency.
Design meets functionality. The slimmed-down profile of the indoor unit, now only 275mm in height, provides versatility, allowing installations above doors and windows. The ingeniously designed multi-stage heat exchanger wraps around the top section of the fan casing. This ensures a muted airflow and noise reduction, all while delivering peak performance and efficiency.
Product Key Feature's:
• High CoP, up to 3.82
• New advanced technology control
• Infra-red controller with wall mounting bracket
• Reduced height slim construction
• Low noise – 23dBA on smaller models
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
Technical Specification:
|
INDOOR UNIT c/w Controller
|
|
SKM20ZSP-W
|
|
Nominal Cooling
|
Kw
|
2.0
|
|
Nominal Heating
|
Kw
|
3.0
|
|

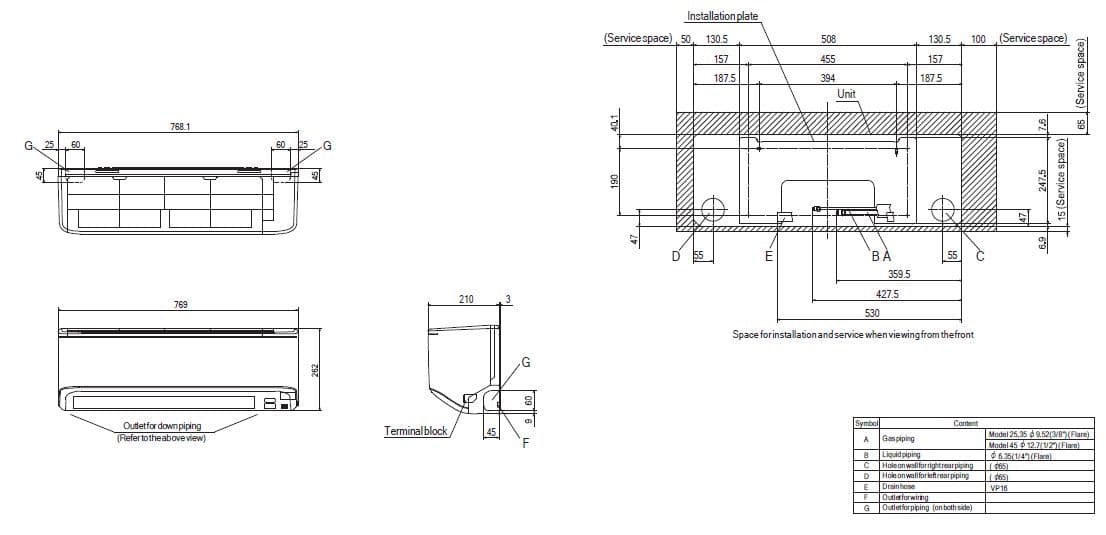

Exterior Dimensions (H x W x D)
|
mm
|
267 x 783 x 210
|
|
Net Weight
|
kg
|
7.5
|
|
Air Flow (H/M/L) Cooling
|
m3/m
|
8.5 / 7.0 / 5.0
|
|
Air Flow (H/M/L) Heating
|
m3/m
|
8.0 / 7.0 / 5.5
|
|
Sound Pressure Level (H/M/L) Cooling
|
db(A)
|
42 / 35 / 22
|
|
Sound Pressure Level (H/M/L) Heating
|
db(A)
|
8.0 / 7.0 / 5.5
|
|
Ref. Piping Size o.d.ins (mm)
|
Liquid
|
1/4 (6.35)
|
|
Suction
|
3/8 (9.52
|
|
OUTDOOR UNIT
|
|
SCM40ZS-W
|
|
Number of Connectable Indoor Units (Min-Max)
|
|
1 - 2
|
|
Max I/U Connected Capacity
|
kW
|
4.0 - 6.0
|
|
Nominal Cooling
|
kW
|
4.00
|
|
Nominal Heating
|
kW
|
4.50
|
|
EER
|
|
5.00
|
|
COP
|
|
5.42
|
|
OUTDOOR UNIT
|
|
Exterior Dimensions (H x W x D)
|
mm
|
595x780(+90)x290
|
|
Net Weight
|
kg
|
40
|
|
Sound Pressure Level Cooling/Heating
|
db(A)
|
49/51
|
|
ELECTRICAL DATA
|
|
Power Source Rating MCB
|
A
|
25
|
|
Mains Power To
|
Out- door
|
230V/1ph/50Hz
|
|
Interconnecting Wires (Dia)
|
(mm2)
|
3+E (1.5)
|
|
Start Current / Max Running Current
|
A
|
3.7 / 14
|
|
INSTALLATION/REFRIGERANT
|
|
Ref. Piping Size o.d.ins (mm)
|
Liquid
|
1/4 (6.35)
|
|
Suction
|
3/8 (9.52)
|
|
Max Length for one indoor
|
m
|
25
|
|
Max Piping Length for all rooms
|
m
|
30
|
|
Vertical Height Difference (Max)
*Outdoor Unit Above/Below Indoor Unit
|
m
|
15 / 15
|
|
Refrigerant Type / GWP
|
|
R32 / 675
|
|
Refrigerant Amount Pre-charged
|
kg/ TCO-
2Eq
|
1.4/0.945
|
|
* For Pipe Length Up To
|
m
|
20
|
|
Additional Refrigerant
|
g/m
|
20
|
PDF Data:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
