Mitsubishi Heavy Industries Air Conditioning FDC280VSA-W + FDU280VH Ducted 208Kw/95000Btu Inverter Heat Pump Unit 415V~50Hz

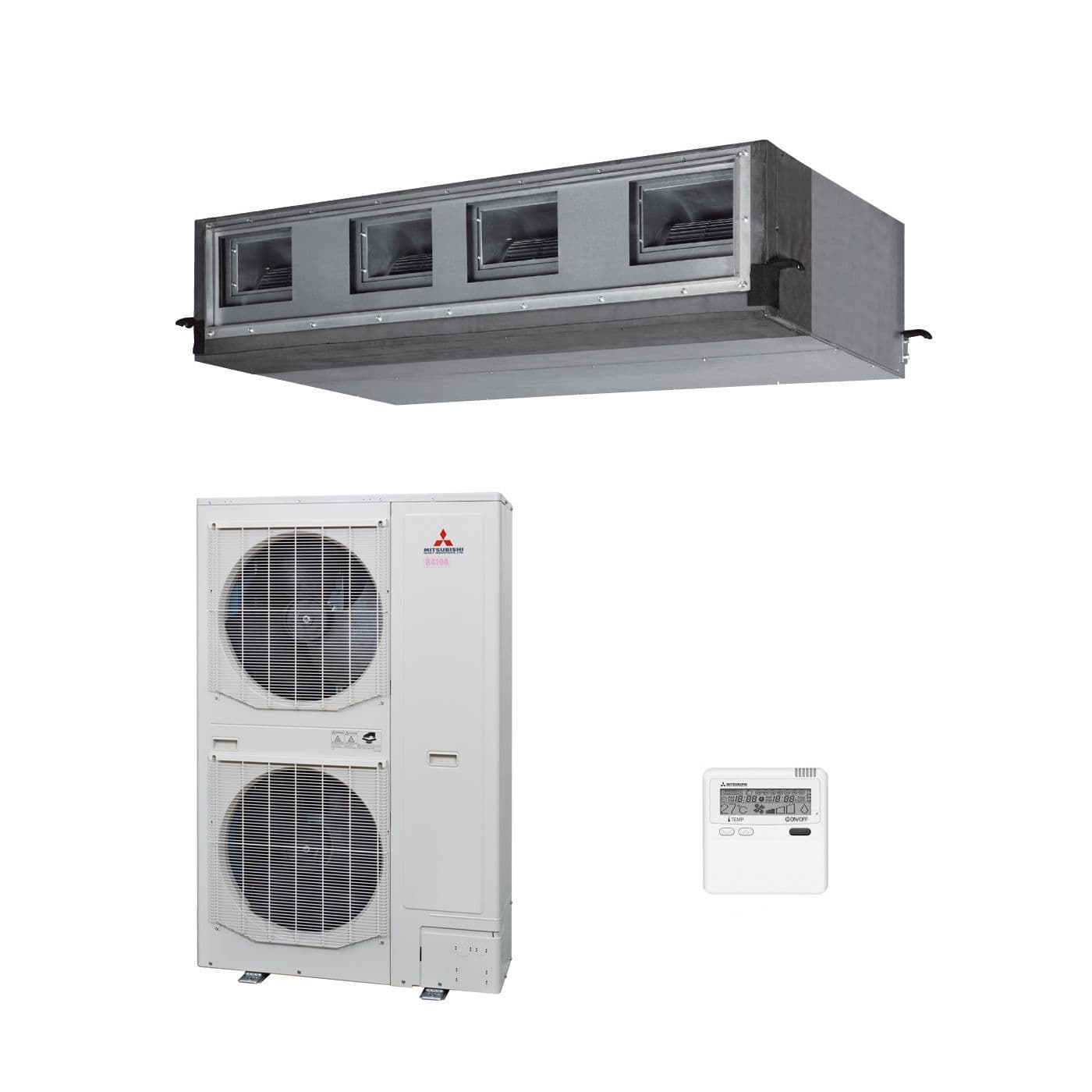

This Kit Includes:
1 x Mitsubishi Heavy Industries Air Conditioning FDU280VH Ducted Indoor Unit 28Kw/95000Btu Heat Pump
1 x Mitsubishi Heavy Industries Air Conditioning FDC280VSA-W 28Kw/95000Btu Inverter Condensing Heat Pump Unit 415V~50Hz
1 x Mitsubishi Heavy Industries Air Conditioning RC-EX3A Wired Remote Controller
Ducted Heat Pumps for Commercial & Residential Applications. Ideal for concealed cooling, multiple area applications or irregular shaped rooms.

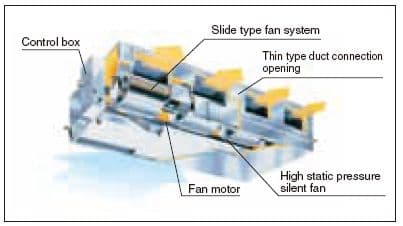

Ducted Heat Pumps for Commercial & Residential Applications. Ideal for concealed cooling, multiple area applications or irregular shaped rooms. FDU Ducted units are of robust construction, and are fitted with large diameter fans for optimum air volume, whilst maintaining low sound levels. Condensate Pump included. Return plenums with filters available as a option for easy installation. Plenum outlets and inlets 200mm. Duct design was simplified. Using DC motor, the most optimum air flow volume can be achieved by this automatic control. Indoor unit will recognise external static pressure by itself automatically and keep rated air flow volume.
FDU Technical Specification:
7-Day Programmable Timer
• Two on/off settings each day
• Different temperature for each set period
• External timer/8MS switching for Group (up to 16 units)
• Wall Controller - hard wired
• Integral temperature sensor
• Condensate Lift Pump included
• Low ambient control included
• Auto re-start after power interruption
• Compatible with Multi Systems
Mitsubishi Heavy Industrial Data:
| INDOOR UNIT |
FDU280VH |
| HARD WIRED CONTROLLER |
RC-EX3A |
| OUTDOOR UNIT |
FDC280VSA-W |
| UK Cooling |
kW |
25.74 |
| UK Sensible Cooling |
kW |
21.33 |
| Cooling Range (Nominal) |
kW |
6.9 - 31.5 |
| S.E.E.R, EER, Energy Label |
|
N/A, 2.95, N/A |
| Heating Range (Nominal) |
kW |
6.9 - 33.5 |
| S.C.O.P, COP, Energy Label |
|
N/A, 3,45,N/A |
| INDOOR UNIT |
|
| Exterior Dimensions (H x W x D)* |
mm |
379 x1600 x 893 |
| Net Weight |
kg |
88 |
| Air Flow (H/M/L) Cooling |
m3/m |
80 / 72 / 64 |
| Air Flow (H/M/L) Heating |
m3/m |
80 / 72 / 64 |
| Sound Pressure Level (H/M/L) Cooling |
db(A) |
50 / 52 / 47 |
| Sound Pressure Level (H/M/L) Heating |
db(A) |
50 / 52 / 47 |
| OUTDOOR UNIT |
|
| Exterior Dimensions (H x W x D) |
mm |
1505 x 970 x 370 |
| Net Weight |
kg |
155 |
| Sound Pressure Level Cooling/Heating |
db(A) |
61 / 63 |
| ELECTRICAL DATA |
|
| Power Source Rating MCB |
A |
25A per phase |
| Mains Power To |
Outdoor |
3 Phase 380- 415V, 50Hz |
| Interconnecting Wires (Dia) |
(mm2) |
3+E (1.5) |
| Start Current / Max Running Current |
A |
5 / 25 |
| INSTALLATION/REFRIGERANT |
|
| Ref. Piping Size o.d.ins (mm) |
Liquid |
1/2 |
| Suction |
7/8** |
| Ref. Min Piping Length |
m |
- |
| Ref. Max Piping Length |
m |
60 |
Vertical Height Difference (Max)
*Outdoor Unit Above/Below Indoor Unit |
m |
50 / 15 |
| Refrigerant Amount Pre-charged (kg/TCO2Eq) |
5.6 |
| * For Pipe Length Up To |
m |
30 |
| Additional Refrigerant |
g/m |
44 |
PDF Data:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
