Mitsubishi Heavy Industries SRK-ZSP Wall Air Conditioning Standard Inverter Heat Pump A++

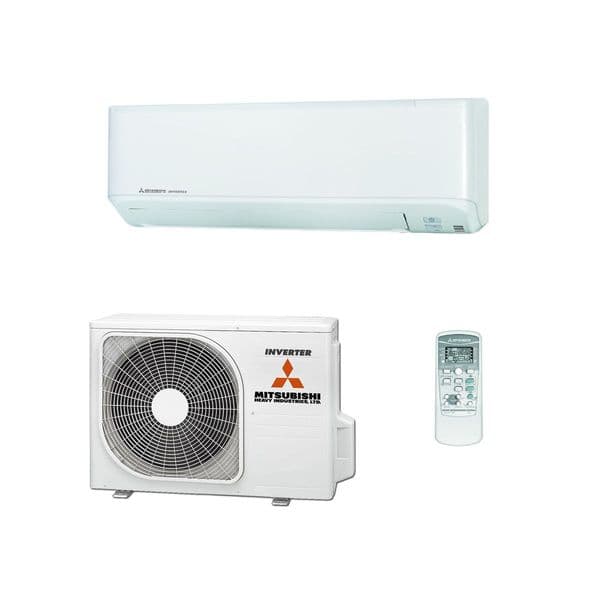

Mitsubishi Heavy Industrial Air Conditioning SRK35ZSP-W Wall 3.5Kw/12000Btu R32 Install Pack

Mitsubishi Heavy Industrial Air Conditioning SRK35ZSP-W Wall 3.5Kw/12000Btu R32 Install Pack

£751.76 £626.47 (ex. VAT)
Stock Status: In Stock
Blog

INSTALLATION PACK

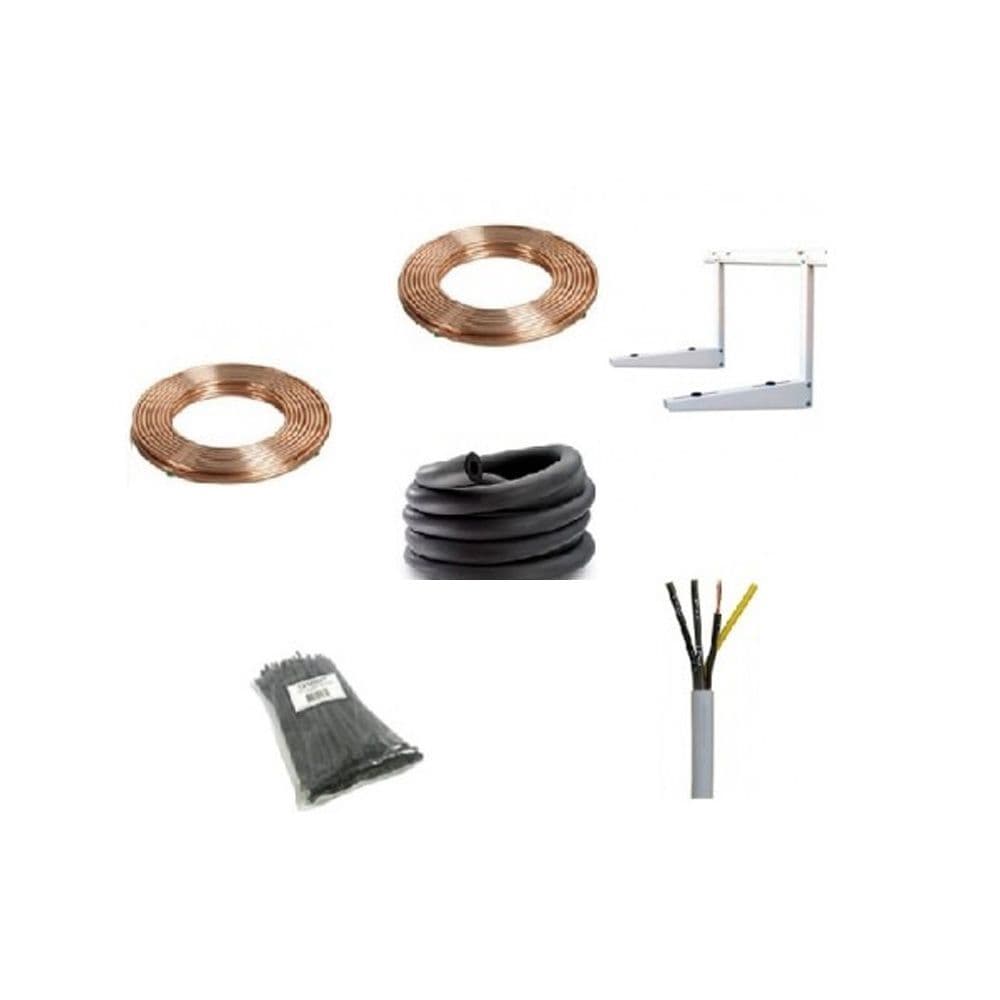

Includes:




1 x Indoor SRK-ZSP-W - R32 unit
1 x Outdoor SRC R32 Unit
1 x Controller
15 Meters x 1/4 inch coil pipe.
15 Meters x 3/8 inch coil pipe.
8 x Isoline (1/4 x 3/8) insulation 2 meter lengths Black
8 x Isoline (3/8 x 3/8) insulation 2 meter lengths Black
Wall Bracket: BJ TYPE 2 BRACKETS




Now Available (R32:The next generation refrigerant)

R32 is the next generation refrigerant that boasts nearly 70% lower Global Warming Potential Rate than R410A. Due to its superior qualities R32 offers amazing energy efficiency benefits. It has a potential refrigerating effect 1.5 times that of R410A meaning it needs less energy to achieve the desired temperature and requires less refrigerant volume to operate





Efficiency Elevated: A+ Seasonal Rating

MITSUBISHI HEAVY INDUSTRIES revolutionizes the air conditioning and heat pump domain with their groundbreaking standard inverter range "ZSP" wall-mounted system. Experience the sleek aesthetics of the NEW ADVANCED SRK Wall Mounted Units with their streamlined design that’s not just appealing but also simpler to maintain.

Prioritizing health, MITSUBISHI integrates the pioneering NATURAL ENZYME FILTER, adept at neutralizing fungi, bacteria, and viruses. This, when paired with the principal Photocatalytic Washable Deodorizing Filter, guarantees a breath of fresh, sanitized air for users.

Harnessing the power of inventive compressor technology and the eco-friendly R32 refrigerant, MITSUBISHI introduces the “jet-flow” technology. This ensures minimal noise with powerful air circulation. The result? A superior cooling and heating system replete with cutting-edge electronic controls, striking a balance between unparalleled comfort and energy efficiency.

ZSP Series:

Design meets functionality. The slimmed-down profile of the indoor unit, now only 275mm in height, provides versatility, allowing installations above doors and windows. The ingeniously designed multi-stage heat exchanger wraps around the top section of the fan casing. This ensures a muted airflow and noise reduction, all while delivering peak performance and efficiency.



Product Key Feature's:

• High CoP, up to 3.82
• New advanced technology control
• Infra-red controller with wall mounting
bracket
• Reduced height slim construction
• Pipe runs up to 15 metres
• Low noise – 23dBA on smaller models
• Back-up switch for loss of controller
• Cold draft prevention on heat pump
start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for
up to 10 metres pipe length

 Low power requirements 13A fuse.
• Horizontal and vertical vane swoop





Technical Specification:



Indoor unit   SRK35ZSP-W
Outdoor unit   SRC35ZSP-W
Power source   1 Phase, 220 - 240V, 50Hz
Nominal cooling capacity (Min~Max) kW 3.2(0.9~3.5)
Nominal heating capacity (Min~Max) kW 3.6(0.9~4.3)
Power consumption Cooling/Heating kW 0.995 / 0.995
EER/COP Cooling/Heating   3.22 / 3.62
Inrush current 220/230/240 V A 4.9 / 4.7 / 4.5
Max. running current   9
*Sound power level Indoor Cooling/Heating

dB(A)
60 / 58
Outdoor Cooling/Heating 60 / 60
*Sound pressure level
Indoor
Cooling (Hi/Me/Lo) 45 / 36 / 23
Heating (Hi/Me/Lo) 44 / 36 / 28
Outdoor Cooling/Heating 47 / 48

Air flow

Indoor
Cooling (Hi/Me/Lo)
m3/min
9.5 / 6.8 / 4.2
Heating (Hi/Me/Lo) 9.6 / 7.4 / 5.5
Outdoor Cooling/Heating 25.4 / 20.5

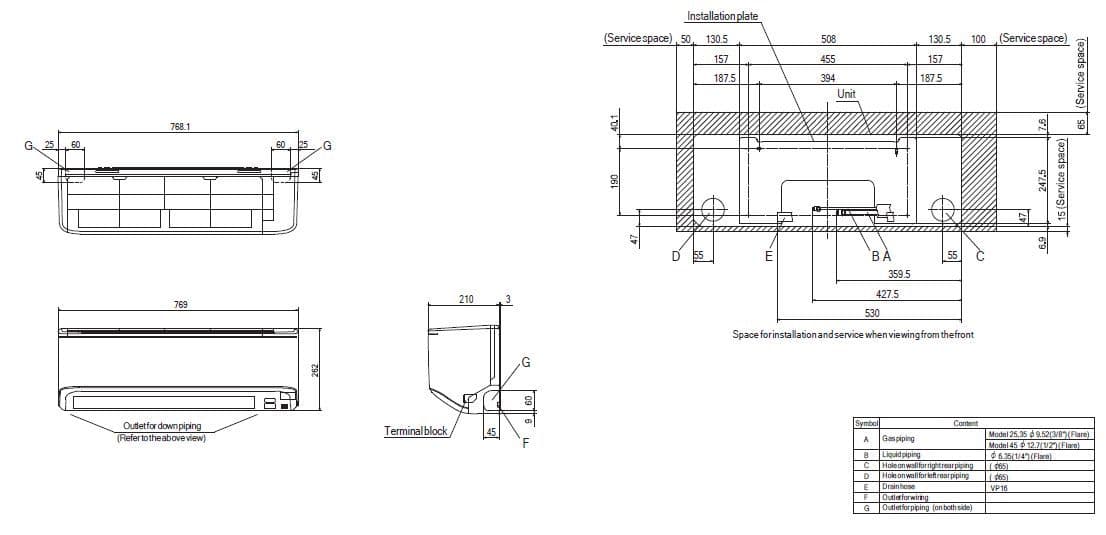

Exterior dimensions Indoor HeightxWidthxDepth mm 267 x 783 x 210

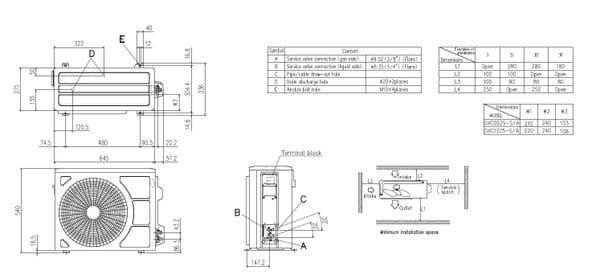

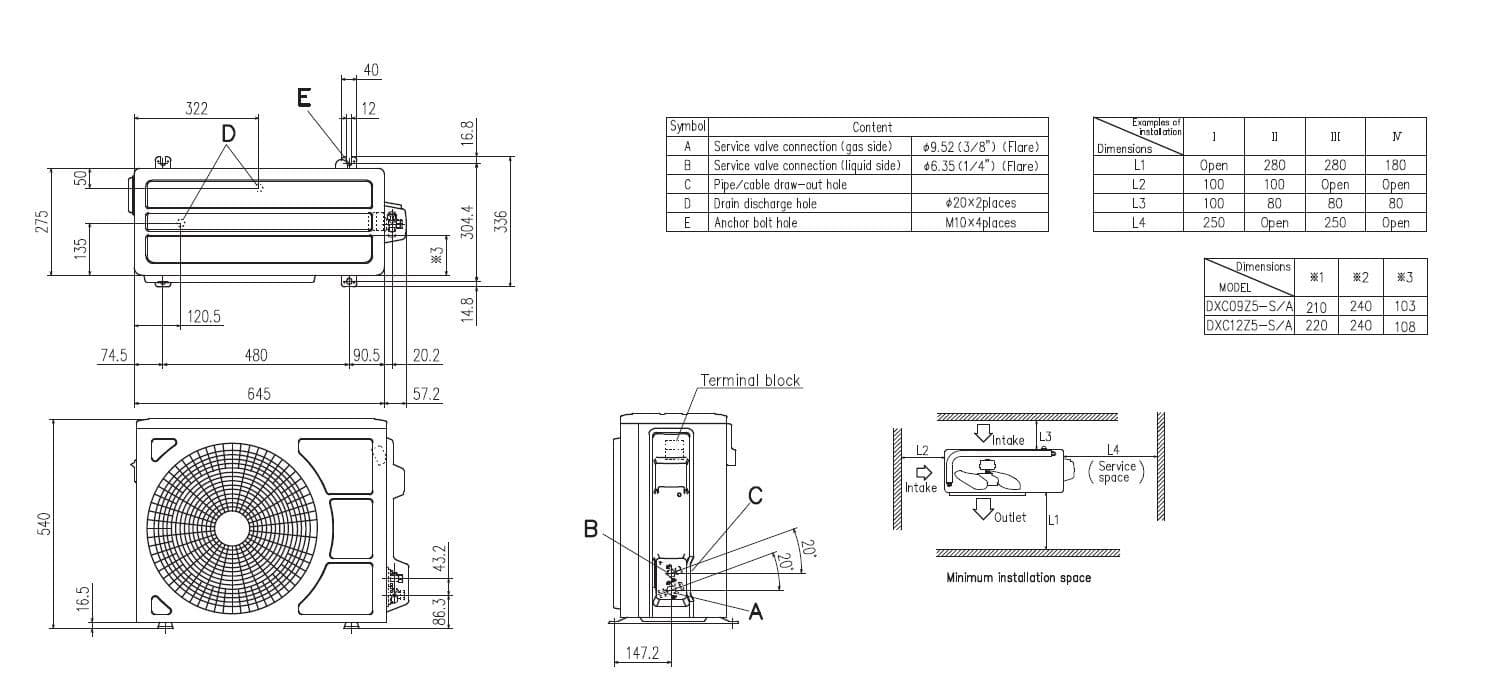

Outdoor 540 x 645(+57) x 275
Net weight Indoor / Outdoor kg 7.2 / 27
Ref.piping size Liquid/Gas ø mm 6.35(1/4") / 9.52(3/8")
Refrigerant line (one way) length m Max. 15
Vertical height differences Outdoor is higher/lower m Max. 10 / Max. 10
Outdoor operating temperature range Cooling ˚C -15~46
Heating -15~21
Clean filter   -


PDF Data:







These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
