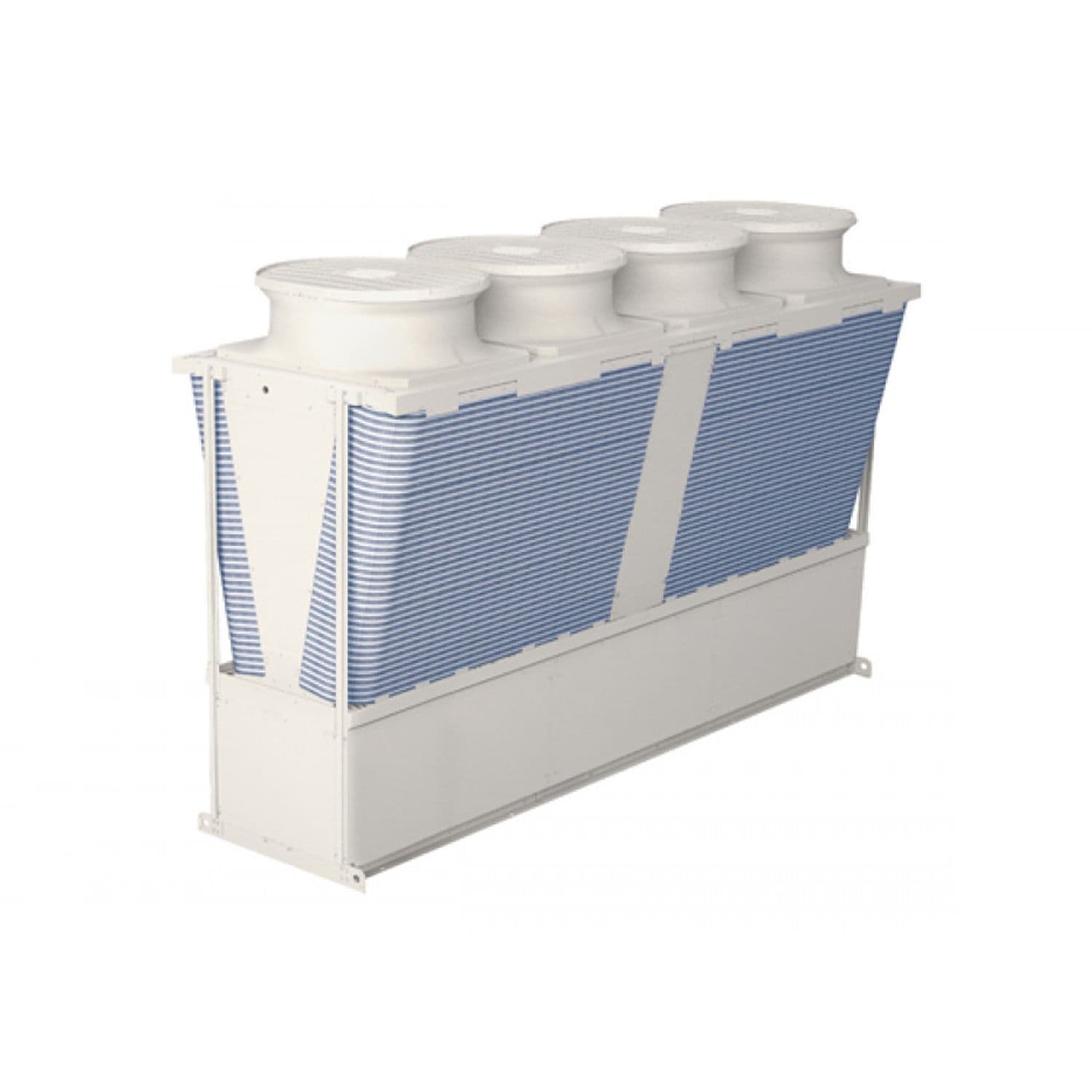

Mitsubishi Electric E-Series Water Chillers Home / Air Conditioning / Mitsubishi Electric Air Conditioning / Mitsubishi Electric E-Series Water Chillers / Mitsubishi Electric EACV-M1800YCL-N 180kW Cooling Only R32 E-Series Chiller 380-400-415V 50/60Hz Mitsubishi Electric EACV-M1800YCL-N 180kW Cooling Only R32 E-Series Chiller 380-400-415V 50/60Hz Mitsubishi Electric EACV-M1800YCL-N 180kW Cooling Only R32 E-Series Chiller 380-400-415V 50/60Hz £68,145.70 £56,788.08 (ex. VAT) Stock Status: In Stock Information Reviews Mitsubishi Electric EACV-M1800YCL-N 180kW Cooling Only R32 E-Series Chiller 380-400-415V 50/60Hz, e-series Modular Chiller Range Cooling Only The R32 e-series chiller range allows for up to 6 individual units to be connected together to provide a system capacity 180kW. Using this modular approach reduces space requirements and simplifies lifting and installation. The e-series chiller is available as a cooling only or a heat pump version. Key Product Feature's: Highly efficient inverter scroll compressors Modular to maximise space saving Micro-channel aluminum heat Exchange coil (cooling only) Technical Specification: MODEL EACV-M1800YCL-N POWER SOURCE 3-phase 4-wire 380-400-415V 50/60Hz COOLING CAPACITY *1 kW 180.00 Power Input kW 57.02 EER 3.16 IPLV *4 6.31 Water Flow Rate m3/h 31.0 COOLING CAPACITY (EN14511) *2 kW 178.80 Power Input kW 58.22 EER 3.07 Eurovent Efficiency Class B SEER 5.36 Performance (ηs,c) % 211.4 SEPR (HT) 6.36 Water Flow Rate m3/h 31.0 CURRENT INPUT Cooling Current 380-400-415V *1 A 96 - 91 - 88 Maximum Current A 120 WATER PRESSURE DROP *1 kPa 78 TEMP RANGE Cooling °C Outlet water 4~30 *5 Outdoor °C -15~52 *5 CIRCULATING WATER VOLUME RANGE m3/h 12.9~43.0 SOUND PRESSURE LEVEL (Measured in anechoic room) at 1m *1 dB (A) 67 SOUND POWER LEVEL (Measured in anechoic room) *1 dB (A) 85 DIAMETER OF WATER PIPE (Standard piping) Inlet mm (in) 65A (2 1/2B) housing type joint Outlet mm (in) 65A (2 1/2B) housing type joint DIAMETER OF WATER PIPE (Inside header piping) Inlet mm (in) 150A (6B) housing type joint Outlet mm (in) 150A (6B) housing type joint EXTERNAL FINISH Polyester powder coating steel plate EXTERNAL DIMENSION H x W x D mm 2350 × 3400 × 1080 NET WEIGHT Standard Piping kg (lbs) 1039 (2291) Inside Header Piping kg (lbs) 1067 (2352) DESIGN PRESSURE R32 MPa 4.15 Water MPa 1.0 HEAT EXCHANGER Water Side Stainless steel plate and copper brazing Air Side Salt-resistant corrugated fin & aluminium micro channel COMPRESSOR Type Inverter scroll hermetic compressor Starting Method Inverter Quantity 4 Motor Output kW 11.5 x 4 Lubricant MEL46EH FAN Air Flow Rate m3/min 270 x 4 L/s 4500 x 4 cfm 9534 x 4 Type, Quantity Propeller fan x 4 Starting Method Inverter Motor Output kW 0.92 x 4 External Static Pressure Pa 20 PROTECTION High Pressure Protection High pres.Sensor & High pres.Switch at 4.15MPa (601psi) Inverter Circuit Over-heat protection, Over current protection Compressor Over-heat protection REFRIGERANT Type x Charge R32 x 4.7 (kg) x 4 *3 Control LEV PDF Data: Not yet reviewed Write an online review and share your thoughts with other shoppers! Be the first to review this product Related Products Mitsubishi Electric Climaveneta i-BX Water Chiller Packaged i-BX 004 MNAN RV 4.3Kw 240V~50Hz £7,466.92 £6,222.43 (ex. VAT) Mitsubishi Electric Climaventa i-BX Water Chiller Packaged monobloc i-BX 006 MNAN RV 6Kw 240V~50Hz £8,036.82 £6,697.35 (ex. VAT) Mitsubishi Electric Climaventa i-BX Water Chiller Packaged monobloc i-BX 008 MNAN RV 8Kw 240V~50Hz £8,612.70 £7,177.25 (ex. VAT) Mitsubishi Electric EACV-M1500YCL-N 150kW Cooling Only R32 E-Series Chiller 380-400-415V 50/60Hz £57,768.49 £48,140.41 (ex. VAT) Olympus JetFlow OLYC30/110 Ventilator And Extractor Fan 300mm 12" 3600m3/hr 110V~50Hz £188.69 £157.24 (ex. VAT) Olympus JetHeat OLY-J3/1 Industrial Electric Fan Heater with Thermostat 3Kw/12000Btu 240V~50Hz £81.29 £67.74 (ex. VAT) (2) Air Conditioning Pipe Kit 1/4" + 1/2" £79.87 £66.56 (ex. VAT) Mitsubishi Electric Air Conditioning MAC-3917F M Series Adapter Advanced Interface £82.58 £68.82 (ex. VAT) Olympus JetHeat OLY-J15/3 Industrial Electric Fan Heater with Thermostat 15kW/50000Btu 415V~50Hz £241.39 £201.16 (ex. VAT) Toshiba Air Conditioning RAS-10PKVPG-E Daiseikai Plasma Wall 2.5kw/9000 BTU) A+++ 240V~50Hz £1,361.58 £1,134.65 (ex. VAT) 15 meter Installation Pipe Kit 1/4" And 1/2" For Air Conditioning And Refrigeration £153.22 £127.68 (ex. VAT) CoolMobile 21 Indust. High Output Duct-able Digital Portable Air Con 6Kw/20000Btu 240V~50Hz £2,351.22 £1,959.35 (ex. VAT) Mitsubishi Electric Air Conditioning MAC-557IF M Series Wi-Fi Advanced Interface £114.34 £95.28 (ex. VAT) Hailea Water Chiller HC300A 300 Litre Water Cooling Capacity 240V~50Hz £301.07 £250.89 (ex. VAT) Olympus JetFlow OLYCEX30/110 Explosion Proof Extractor & Ventilator Fan 12" 300mm 110V~50Hz £399.00 £332.50 (ex. VAT) Mitsubishi Electric Air Conditioning 316805 MAC-567IF-E MELCLOUD WiFi Connection Interface £117.00 £97.50 (ex. VAT)
