Mitsubishi Electric Climaveneta i-BX Chillers

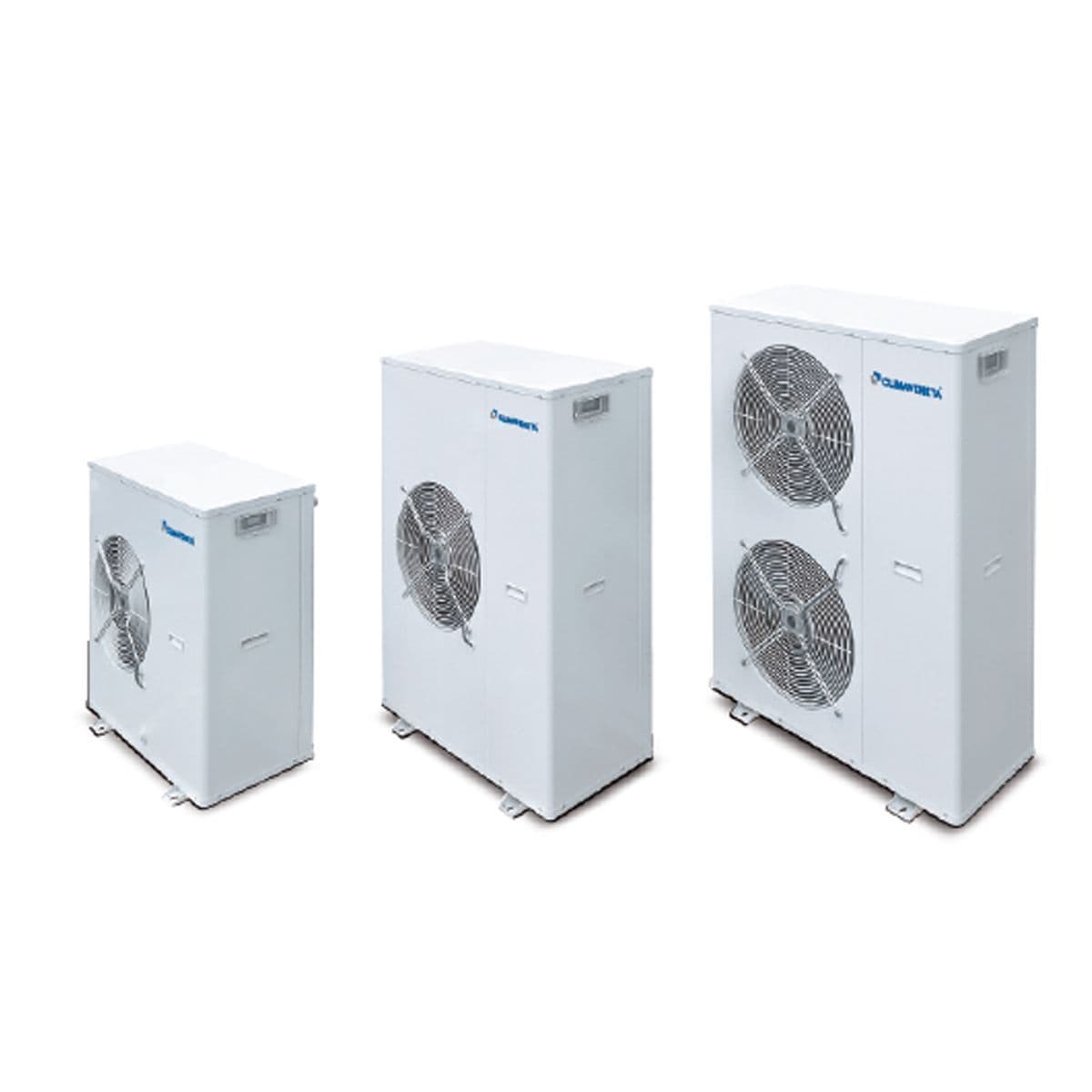

Mitsubishi Electric Climaveneta i-BX Water Chiller Packaged i-BX 013 MNAN RV 12Kw 240V~50Hz

Mitsubishi Electric Climaveneta i-BX Water Chiller Packaged i-BX 013 MNAN RV 12Kw 240V~50Hz

£8,673.00 £7,227.50 (ex. VAT)
Stock Status: In Stock

Climaveneta’s range of small to medium sized, cooling only chillers efficiently and easily adapt to a wide range of cooling capacities. The range all contain inverter driven compressors for enhanced efficiency and control.





Key Product Feature's:




  • Packaged monobloc unit for easy installation
  • Full inverter technology with Mitsubishi Electric BLDC compressors
  • Extended cooling range, water outlet temperature -8 ~ 18°C, at ambient range of -10 ~ 45°C
  • Dynamic water set point, varies outlet temperature depending on ambient temperature
  • EC water pump, relief valve, flow switch, safety valve and expansion vessel
  • Night function incorporated to reduce noise levels during the night
  • ErP 2021 compliant
  • Modbus connectivity option
  • Additional accessories available upon request




Technical Specification:







MODEL

i-BX 013 MNAN RV

230 / 1 / 50

POWER SUPPLY                                                                V / ph / Hz

PERFORMANCE

COOLING CAPACITY *1                                                                                            kW

12.9

TOTAL POWER INPUT *1                                                                                                 kW

4.74

EER *1

2.72

ESEER *1

4.55

COOLING ONLY (EN14511 VALUE)

COOLING CAPACITY *1 *2                                                                                        kW

12.9

EER *1 *2

2.74

ESEER *1 *2

4.69

COOLING ENERGY CLASS

C

SEASONAL EFFICIENCY IN COOLING (REG.EU 2016/2281) - AVERAGE CLIMATE Conditions

SEER

4.78

PERFORMANCE (ƞs) *3                                                                                     %

188

HEAT EXCHANGER (USER SIdE)

WATER FLOW *1                                                                                                                 l/s

0.62

MIN. SYSTEM WATER CONTENT                                 l

31

INLET / OUTLET CONNECTION SIZE                           in

1"1/4

REFRIGERANT CIRCUIT

COMPRESSORS                                                            N°

1

CIRCUITS                                                                       N°

1

REGULATION

STEPLESS

MIN. CAPACITY STEP                                                    %

25

REFRIGERANT CHARGE R410A                                       kg

3.65

CO2 EQUIVALENT                                                          t

7.62

OIL CHARGE                                                                  kg

1.4

ELECTRICAL

FULL LOAd POWER (F.L.I.)                                                kW

6.5

FULL LOAd CURRENT (F.L.A.)                                           A

25.3

INRUSH CURRENT (S.A.)                                                  A

1

FANS

QUANTITY                                                                      N°

2

AIRFLOW                                                                        m³/s

1.58

FANS POWER INPUT                                                         kW

0.12

NOISE LEVEL

SOUNd PRESSURE *4                                                                                               dB(A)

39

SOUNd POWER *5 *6                                                                                                      dB(A)

70

SIZE ANd WEIGHT

WIdTH *7                                                                                                                                 mm

900

dEPTH *7                                                                                                                                mm

420

HEIGHT *7                                                                                                                                    mm

1240

OPERATING WEIGHT *7                                                                                           kg

125






PDF Data:











Not yet reviewed
Write an online review and share your thoughts with other shoppers!
Be the first to review this product
