Mitsubishi Electric Climaveneta i-BX Chillers

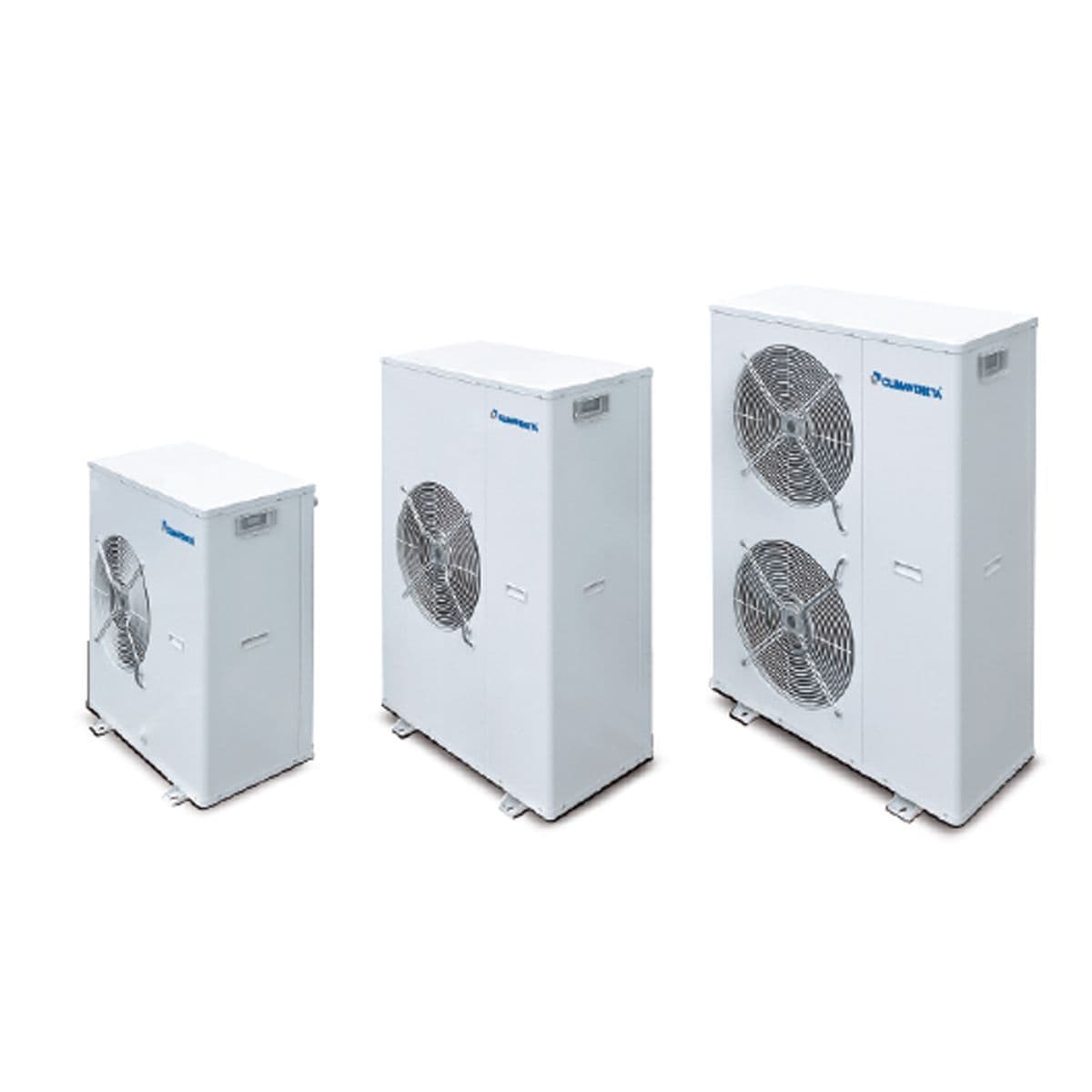

Mitsubishi Electric Climaveneta i-BX Water Chiller Packaged i-BX 035 THAN RV 35Kw 415V~50Hz

Mitsubishi Electric Climaveneta i-BX Water Chiller Packaged i-BX 035 THAN RV 35Kw 415V~50Hz

£18,127.50 £15,106.25 (ex. VAT)
Stock Status: In Stock

Climaveneta’s range of small to medium sized, cooling only chillers efficiently and easily adapt to a wide range of cooling capacities. The range all contain inverter driven compressors for enhanced efficiency and control.





Key Product Feature's:




  • Packaged monobloc unit for easy installation
  • Full inverter technology with Mitsubishi Electric BLDC compressors
  • Extended cooling range, water outlet temperature -8 ~ 18°C, at ambient range of -10 ~ 45°C
  • Dynamic water set point, varies outlet temperature depending on ambient temperature
  • EC water pump, relief valve, flow switch, safety valve and expansion vessel
  • Night function incorporated to reduce noise levels during the night
  • ErP 2021 compliant
  • Modbus connectivity option
  • Additional accessories available upon request




Technical Specification:



MODEL

i-BX 035 THAN RV

415/3/50+N

POWER SUPPLY V / ph / Hz

PERFORMANCE

COOLING CAPACITY *1 kW

35.1

TOTAL POWER INPUT *1 kW

11.8

EER *1

2.97

ESEER *1

4.29

COOLING ONLY (EN14511 VALUE)

COOLING CAPACITY *1 *2 kW

35.2

EER *1 *2

3

ESEER *1 *2

4.39

COOLING ENERGY CLASS

B

SEASONAL EFFICIENCY IN COOLING (REG.EU 2016/2281) - AVERAGE CLIMATE CONdITIONS

SEER

4.57

PERFORMANCE (ƞs) *3 %

180

HEAT EXCHANGER (USER SIdE)

WATER FLOW *1 l/s

1.68

MIN. SYSTEM WATER CONTENT l

84

INLET / OUTLET CONNECTION SIZE in

1"1/2

REFRIGERANT CIRCUIT

COMPRESSORS N°

1

CIRCUITS N°

1

REGULATION

STEPLESS

MIN. CAPACITY STEP %

25

REFRIGERANT CHARGE R410A kg

8.4

CO2 EQUIVALENT t

17.54

OIL CHARGE kg

2.3

ELECTRICAL

  1. LOAd POWER (F.L.I.) kW

16

  1. LOAd CURRENT (F.L.A.) A

39

  1. CURRENT (S.A.) A

1

FANS

QUANTITY N°

2

AIRFLOW m³/s

4.86

FANS POWER INPUT kW

0.52

NOISE LEVEL

SOUNd PRESSURE *4 dB(A)

45

SOUNd POWER *5 *6 dB(A)

77

SIZE ANd WEIGHT

WIdTH *7 mm

1700

dEPTH *7 mm

650

HEIGHT *7 mm

1700

OPERATING WEIGHT *7 kg

305
