Mitsubishi Electric Zubadan Inverter Low Ambient Heat Pump A

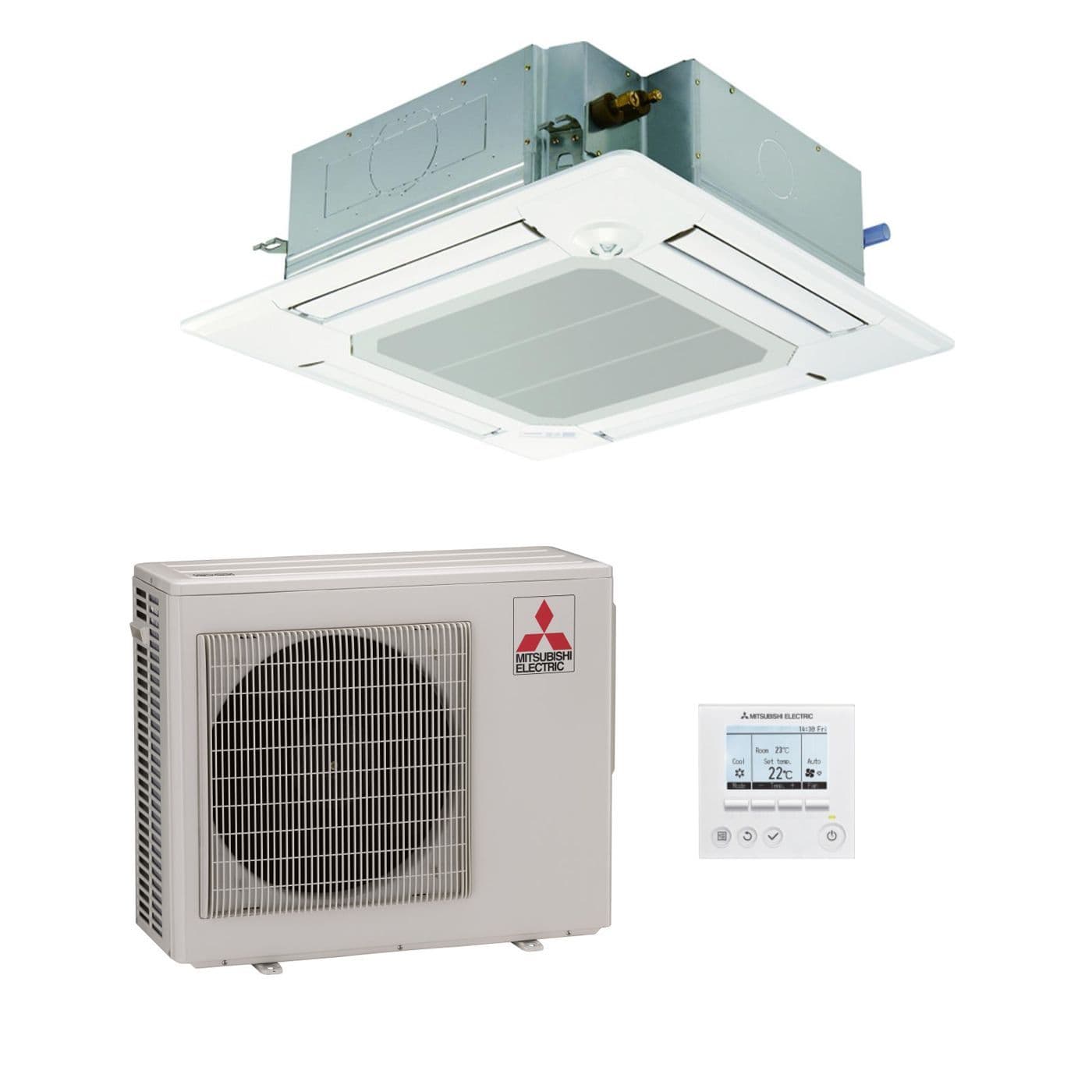

Mitsubishi Electric Air Conditioning Zubadan Inverter Heat Pump PLA-ZRP125BA2-CAS 3ph 12.5Kw/42000Btu Ceiling Cassette A+ 415V~50Hz

Mitsubishi Electric Air Conditioning Zubadan Inverter Heat Pump PLA-ZRP125BA2-CAS 3ph 12.5Kw/42000Btu Ceiling Cassette A+ 415V~50Hz

£4,069.14 £3,390.95 (ex. VAT)
Stock Status: In Stock
A Rated energy product

The new Mr Slim Zubadan Inverter Heat Pump's achieve an excellent heating performance even when the outdoor air temperature is as low as -25DegC. Advanced inverter technology makes the Mr Slim Zubadan Inverter the number one choice for improving temperature regulation. They provide energy savings of up to 70% annually when compared to a previous non-inverter model. Operating noise has also been reduced thanks to improvements in fan design.




Key Product Features:



PLA-ZRP125BA2 Indoor Unit



Capacity (kW):
Heating (Nominal) (Low - High) 14.0 (5.00 - 16.0)
Cooling (Nominal) (Low - High) 12.5 (5.5 - 14.0)
Heating (UK) (Low - High) 13.85 (4.95 - 15.85)
Cooling (UK) (Low - High) 11.5 (5.05 - 12.9)
SHF R410A (Nominal) 0.71
COP / EER (Nominal) 3.92 / 3.30
Energy Label Heating / Cooling A / A
Width - mm (grille) 840 (950)
Depth - mm (grille) 840 (950)
Height - mm (grille) 258 (35)
Weight - kg unit (panel) 27 (6)
Airflow (m3/min) - Lo-Mi l-Mi2-Hi 22-25-28-31
Noise (dBA) - Lo-Mi l-Mi2--Hi 34-36-39-41
Pipe Size Gas mm (in) 15.88 (5/8)
Pipe Size Liquid mm (in) 9.52 (3/8)
Electrical Supply Fed by Outdoor Unit
Phase Single
Fuse Rating (BS88) - HRC (A) 6
Interconnecting Cable No. Cores 4


PUHZ-HRP125YHA2 Outdoor Unit


Charge (kg) - 30m 5.5
Max Height Difference (m) 30
Max Pipe Length (m) 75
Mains Cable No. Cores 5

SystemRunning Current (A) - Heating / Cooling

(MAX)

6.37/ 6.70

(14)

Starting Current (A) 3
SystemPower Input (kW) - Cooling (UK) 3.22
SystemPower Input (kW) - Heating (UK) 5.18
SystemPower Input (kW) - Cooling (Nominal) 3.79
SystemPower Input (kW) - Heating (Nominal) 3.57
Fuse Rating (BS88) - HRC (A) 16
Phase 3
Electrical Supply 380-415v, 50Hz
Noise (dBA) Heating /Cooling - (silent) 52 /51 (48)
Weight - kg 120
Height - mm 1350
Depth - mm 330+30
950 Width - mm



PDF Data:







These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
