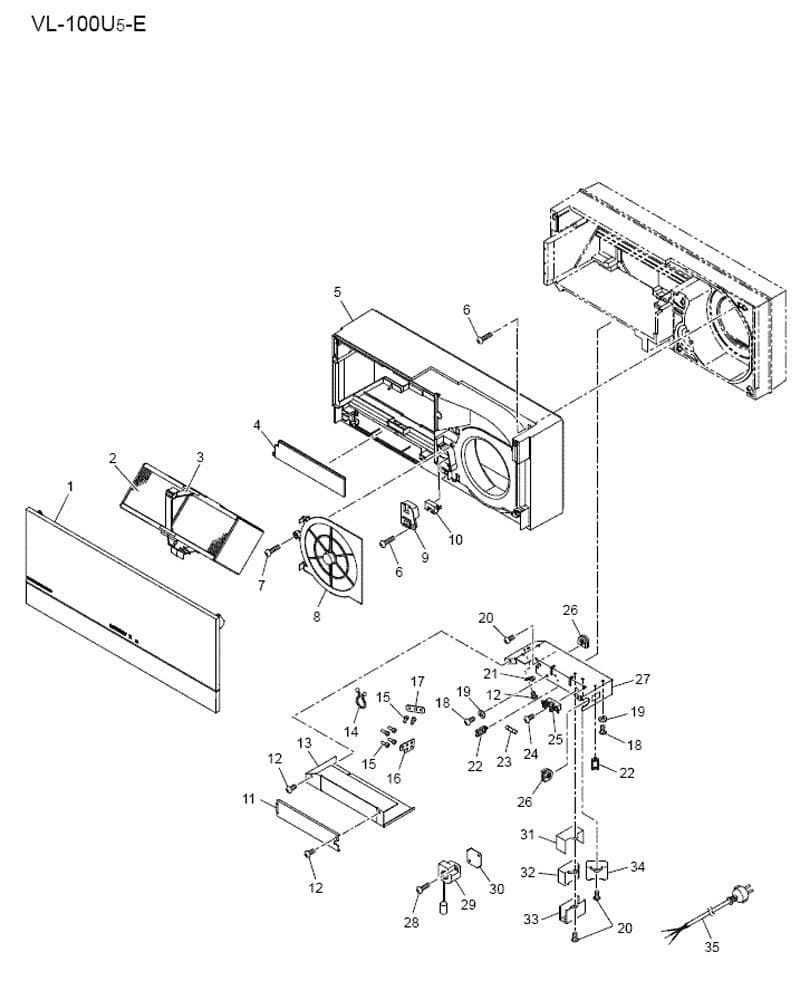

1

Y36004721

287342

Front panel

2

Y36004723

270645

LOSSNAY CORE <G>

3

Y36004722

287341

CORE HANDLE <G>

4

Y36004709

287351

Cover

5

Y36004707

287352

Front casing

6

H00000333

88820

PTT screw 4x14

7

M32013027

287369

PTT screw 4x10

8

Y36004717

270651

FILTER <G>

9

Y36004711

287349

Lamp cover

10

Y36004290

287353

Neon lamp

11

Y36004710

287350

TB case cover

12

H00000349

88821

PT screw 4x8

13

Y36004708

310035

TB case

14

K83170228

88858

Cord band

15

K82181240

287370

Crimp cap

16

M35855223

287363

Cord clamper

17

M35830223

309376

Cord clamper

18

H00011008

88827

PT screw 4x8 (BS)

19

H00056075

88831

Spring washer(4)

20

H00000487

88824

PTT screw 4x8

21

X31981223

310021

Cord clip

22

D40094227

287375

Cord clip

23

Y36004280

287354

Fuse

24

H00000676

287372

P P T screw 3x10

25

Y55001281

287324

Fuse holder

26

M45649226

258692

Cord bush

27

Y36004712

310036

TB fix plate

28

H00000471

309349

PPT screw 4x10

29

Y36004255

295779

- SWITCH

30

M34279201

309368

Insulator sheet

31

M35768653

287364

Capacitor case

32

M34203283

270646

Capacitor

33

M35275652

287365

Capacitor cover

34

Y81016284

270647

Capacitor

35

Y36004220

310034

Power cord
