DESCRIPTION

PART NO.

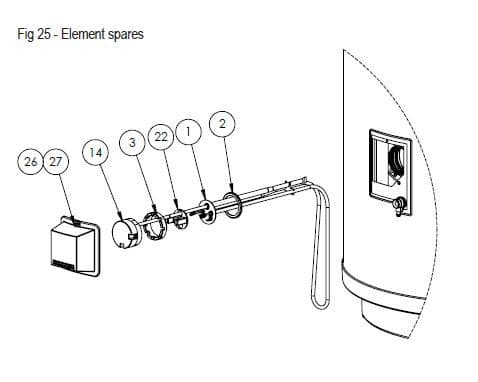

1

Immersion heater (including terminal shroud and gasket)

95602002

2

Immersion heater gasket

95611026

3

Immersion heater backnut

95605204

4

Immersion heater key spanner

95605205

5

Tundish

95607881

6

Expansion Valve (8 bar)

95605206

7

Expansion valve core housing (incorporating check valve)

95605207

8

Temperature / pressure relief valve

95605209

9

DHW Expansion vessel 12 litre ( 150 litre models)

95970022

10

DHW Expansion vessel 18 litre ( 170 and 210 litre models)

95970023

11

DHW Expansion vessel 24 litre (250 and 300 litre models)

95970024

12

Pressure Reducing Valve (3.5 bar)

95605211

13

Nut and olive pack (4 of each)

95970026

14

TSRU immersion heater over-temperature cutout

95602003

15

Differential bypass valve

95605208

16

Primary circulating pump

95970027

17

DHW circulating pump

54HSHDHW

18

Filling loop

95970029

19

Automatic air vent

95970032

20

Primary system pressure gauge

95970033

21

Drain valve

95605210

22

Terminal shroud

95970034

23

Flow sensor assembly

54HSHFS-SEN

24

Plate to plate heat exchanger

54HSHPHEX

25

Plate to plate heat exchanger insulation set

95970037

26

Terminal box cover (Standard and Solar models)

95970038

27

Terminal box cover (Slimline models)

95970039

28

Fernox TF1 magnetic filter

95970061

29

Primary pump isolating valve

95605212

30

DHW pump isolating valve

95605213

31

Scale trap assembly

95970062

32

3 way motorised diverter valve - Actuator head

54HSH3WV-ACT

33

3 way motorised diverter valve - Valve body

54HSH3WV-VLV

34

Flow temperture sensor assembly

PAC-TH011-E

35

Return temperature sensor assembly

PAC-TH011-E

36

DHW tank thermal sensor assembly

PAC-TH011TK-E

37

Solar sensor pocket assembly including gasket (Solar models only)

95970025

38

Solar thermal over-temperature cutout (Solar models only)

95970060
