Mitsubishi Electric Air Conditioning SEZ Slim Ducted Concealed A+

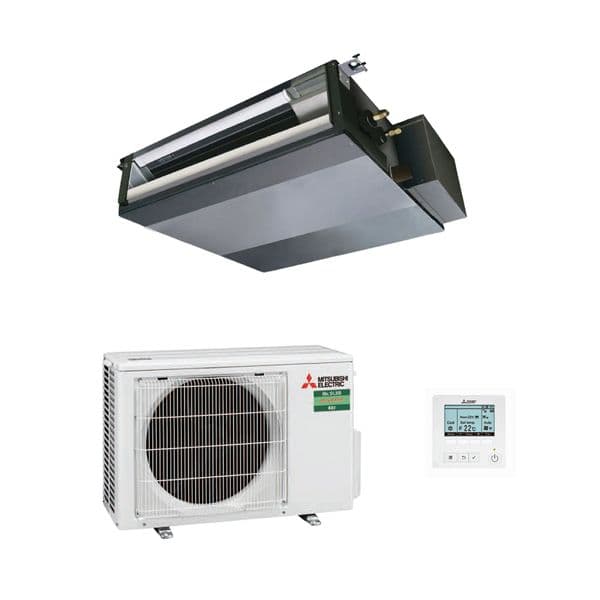

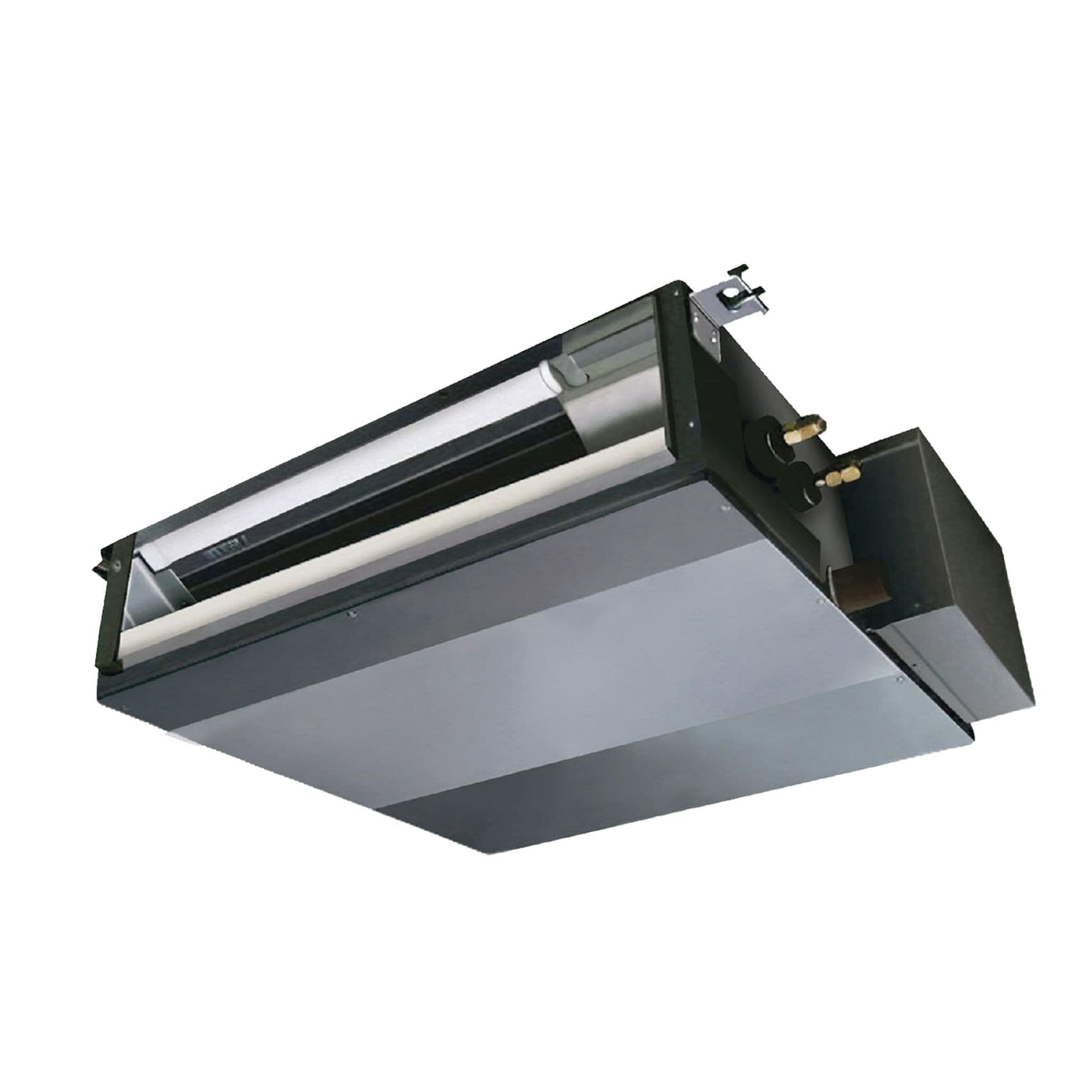

Mitsubishi Electric Air Conditioning SEZ-M25DA Concealed Ducted 2.5Kw/9000Btu R32 A 240V~50Hz

Mitsubishi Electric Air Conditioning SEZ-M25DA Concealed Ducted 2.5Kw/9000Btu R32 A 240V~50Hz

£1,339.09 £1,115.91 (ex. VAT)
Stock Status: In Stock



A Rated energy product


Designed for homes, offices, restaurants or shops, the Mitsubishi Electric air conditioning unit SEZ series operates at low noise levels and is virtually invisible when installed within a suspended ceiling.  Its low unit height and lightweight design also helps to make installation easier and more convenient. It's whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or commercial uses. Available in three sizes, it can be installed in a bulkhead for a different and attractive architectural finish or can be ducted within the space for total integration with the room. Comes complete with PAR-33MAA hard wired remote control.





Key Product Features:



• 7-Day Programmable Timer
• Two on/off settings each day
• External timer/8MS switching for Group (up to 16 units)
• Wall Controller - hard wired
• Integral temperature sensor
• Low ambient control included
• Auto re-start after power interruption
• High CoP, up to 3.8 min
• Advanced technology control
• Slim construction
• Pipe runs up to 20 metres
• Low noise – 29dBA on smaller models
• Fault diagnosis
• PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length
• Pipe runs Up to 20 metres.
• Easy cleaned & serviced.
• Full ECA tax allowance




SEZ Technical Specification:


SEZ-M-DA - INDOOR UNITS

SEZ-M25DA

CAPACITY (kW)                                 Heating (nominal)

2.9 (1.3-4.5)

Cooling (nominal)

2.5 (1.5-3.2)

Heating (UK)

2.44 (1.09-3.79)

Cooling (UK)

2.45 (1.47-3.14)

SHF (nominal)

0.80

COP / EER (nominal)

3.61 / 3.42

SCOP / SEER (BS EN14825)

3.8 / 5.3

ErP ENERGY EFFICIENCY CLASS  Heating/Cooling

A / A

AIRFLOW (l/s)                                     Lo-Mi-Hi

100-117-150

PIPE SIZE mm (in)                              Gas

9.52 (3/8”)

Liquid

6.35 (1/4”)

EXTERNAL STATIC PRESSURE (Pa)

5-15-35-50

SOUND PRESSURE LEvEL (dBA)   Lo-Mi-Hi

22-25-29

SOUND POWER LEvEL (dBA)

50

DIMENSIONS (mm)                             Width x Depth x Height

790 x 700 x 200

WEIGHT (kg)

18

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

6

INTERCONNECTING CABLE No. Cores

4

WIRED REMOTE CONTROLLER REFERENCE

PAR-33MAA

SUZ-M / PUZ-M - OUTDOOR UNITS

SUZ-M25VA

SOUND PRESSURE LEvEL (dBA)    Heating/Cooling

48 / 48

SOUND POWER LEvEL (dBA)       Cooling

59

WEIGHT (kg)

35

DIMENSIONS (mm)                         Width x Depth x Height

800 x 285 x 550

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)    Heating/Cooling (nominal)

0.97 / 0.90

Heating/Cooling (UK)

0.83 / 0.77

STARTING CURRENT (A)

5.0

SYSTEM RUNNING CURRENT (A)     Heating/Cooling [MAX]

5.0 / 4.1 [8.5]

FUSE RATING (BS88) - HRC (A)

10

MAINS CABLE No. Cores

3

MAX PIPE LENGTH (m)

20

MAX HEIGHT DIFFERENCE (m)

12

CHARGE REFRIGERANT (kg) /               R32 (GWP 675)

CO2 EQUIvALENT (t)

0.90 / 0.61

MAX ADDITIONAL REFRIGERANT (kg) /    R32 (GWP 675)

CO2 EQUIvALENT (t)

1.16 / 0.78

Note: No duty/standby operation on SUZ-M35/50/60/71VA.






PDF DATA:







These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
