Includes:
1 x Mitsubishi Electric Air Conditioning PLA-M125EA R32 Indoor unit
1 x Mitsubishi Electric Air Conditioning PAR-40MAA controller
1 x Mitsubishi Electric Air Conditioning PUZ-M125VKA R32 Outdoor unit
A++ Rated energy product
The PLA-M Standard Inverter range is a ceiling cassette system that blends a host of outstanding features with a sophisticated streamlined design. Offering advanced control options and quiet operation, this range provides extreme flexibility and ease of installation whilst being cost effective.
The renowned Mitsubishi Electric air conditioning inverter Cassette range now in R32, has been extended to include new small capacity system starting at 3.5kW / 12000Btu, and a high capacity system 14kW / 48000Btu. The advanced 7-Day Programmable Timer is now included as standard controls specification and 24Hr control. Mitsubishi Electric air conditioning and heat pump high performance power inverter cassette series split systems designed for residential and commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The units have a extended pipe run capability of up to 30-65 meters making them ideal for high-rise buildings.
The Mitsubishi Electric air conditioning R32 inverter air conditioning system's CoP (Coefficient of Performance) is up to 4.2 on some models. This means the system can deliver 4.2 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Mitsubishi Electric air conditioning inverter technology with R32 refrigerant. The cassettes design has improved air flow-pattern through the unit, and the new design of the high performance indoor heat exchanger, have resulted in a pressure loss reduction, allowing the fan design to be optimised for significantly lower sound Db levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets.
Quiet Operation
The indoor unit has a quiet operational noise of 26dB in quiet mode to offer you peace and quiet for the bedroom or office. In addition, the outdoor units have drastically reduced vibration and noise thanks to a super quiet fan and motor and an innovative anti noise mechanism.
Heating / cooling and dehumidification
This unit heats, cools and dehumidifies.
Healthy De humidification
Dehumidification mode reduces uncomfortable humidity from the room without over cooling.
Auto Changeover
The air conditioner will switch automatically from cooling to heating modes depending on the set temperature.
Optimized Cooling & Heating Air Flow
The air vanes will be adjusted according to the mode of operation. In heating mode air will be distributed at a lower angle due to hot air rising.
Swirl Swing
Swirl swing distributes air evenly throughout the room to ensure a more comfortable conditioned environment by adjusting the movement of the louvers.
Space Control:
The vane angle can be set in two positions to give optimum indoor comfort. It can be controlled by wired remote control to eliminate direct drafts which can lead to discomfort and reduced productivity.
Product Key Feature's:
• Anti Corrosion Fin (Outdoor)
• Weekly Program
• High Head Drain Pump
• Auto Changeover
• Low Standby Power
• Auto Restart
• Central Controller
• Easy-to-Clean Air Filter
• Two Thermistor Control
• Optimal Air Distribution with side knock outs
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• 24-Hour ON/OFF Setting Timer
• Optimal air distribution with 4-way directional Air flow system.
• 4-way Auto Swing
Technical Data:
|
PLA-M - INDOOR UNITS
|
PLA-M125eA
|
|
CAPACITY (kW) Heating (nominal)
|
13.5 (4.1-15.0)
|
|
Cooling (nominal)
|
12.1 (5.8-13.0)
|
|
Heating (UK)
|
11.49 (3.49-12.77)
|
|
Cooling (UK)
|
11.01 (5.28-11.83)
|
|
SHF (nominal)
|
0.72
|
|
COP / EER (nominal)
|
3.71 / 3.01
|
|
SCOP (ƞsh) / SEER (ƞsc) (BS EN14825)
|
4.1 (162%) / 5.6 (231.9%)
|
|
ErP ENERGY EFFICIENCY CLASS Heating/Cooling
|
A+ / A+
|
|
AIRFLOW (l/s) Lo-Mi-Mi2-Hi
|
350-417-467-517
|
|
PIPE SIZE mm (in) Gas/Liquid
|
15.88 (5/8”) / 9.52 (3/8”)
|
|
SOUND PRESSURE LEvEL (dBA) Lo-Mi-Mi2-Hi
|
33-37-41-44
|
|
SOUND POWER LEvEL (dBA)
|
65
|
|

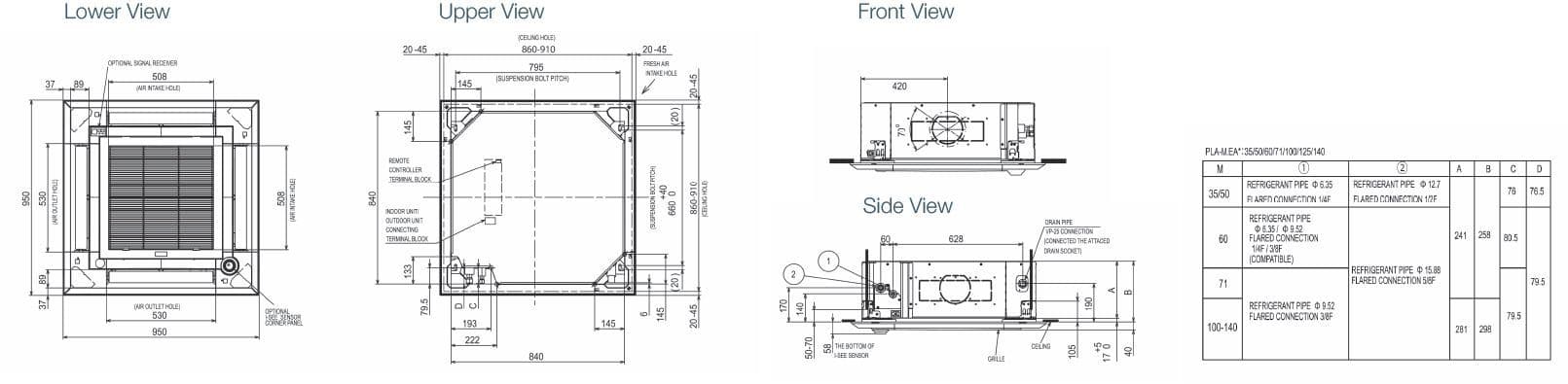

DIMENSIONS (mm) Width x Depth x Height (Grille)
|
840 (950) x 840 (950) x 298 (40)
|
|
WEIGHT (kg) Unit / Panel
|
26 / 5
|
|
ELECTRICAL SUPPLY
|
Fed by Outdoor Unit
|
|
FUSE RATING (BS88) - HRC (A)
|
6
|
|
INTERCONNECTING CABLE No. Cores
|
4
|
|
GRILLE REFERENCE
|
PLP-6EA
|
|
WIRED REMOTE CONTROLLER REFERENCE
|
PAR-40MAA
|
|
WIRELESS REMOTE CONTROLLER REFERENCE
|
PAR-SL100A-E
|
|
SUZ-M / PUZ-M - OUTDOOR UNITS
|
PUZ-M125VKA
|
|
SOUND PRESSURE LEvEL (dBA) Heating/Cooling
|
54 / 56
|
|
SOUND POWER LEvEL (dBA) Cooling
|
72
|
|
WEIGHT (kg)
|
84
|
|
DIMENSIONS (mm) Width x Depth x Height
|
1050 x 330 x 981
|
|
ELECTRICAL SUPPLY
|
220-240v, 50Hz
|
|
PHASE
|
Single
|
|
SYSTEM POWER INPUT (kW) Heating/Cooling (nominal)
|
3.63 / 4.01
|
|
Heating/Cooling (UK)
|
3.27 / 3.33
|
|
STARTING CURRENT (A)
|
17.4
|
|
SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX]
|
15.6 / 17.4 [26.5]
|
|
FUSE RATING (BS88) - HRC (A)
|
32
|
|
MAINS CABLE No. Cores
|
3
|
|
MAX PIPE LENGTH (m)
|
65
|
|
MAX HEIGHT DIFFERENCE (m)
|
30
|
|
CHARGE REFRIGERANT (kg) / R32 (GWP 675)
CO2 EQUIvALENT (t)
|
3.60 / 2.43
|
|
MAX ADDITIONAL REFRIGERANT (kg) / R32 (GWP 675)
CO2 EQUIvALENT (t)
|
5.00 / 3.38
|
PDF Data:
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
