Mitsubishi Electric Air Conditioning Mr Slim PCA Ceiling Suspended Inverter Heat Pump A+, A++

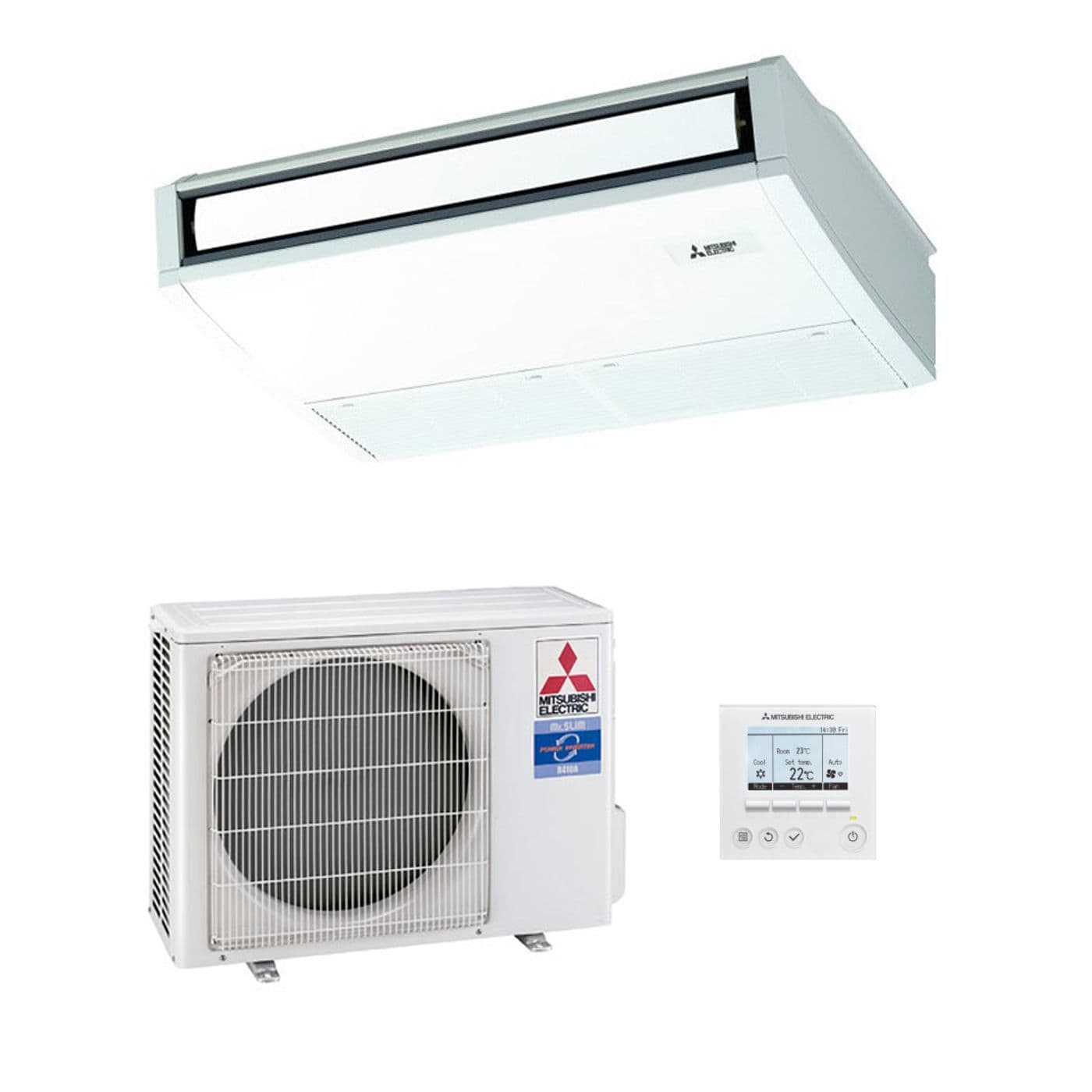

Mitsubishi Electric Air Conditioning PCA-M50KA Ceiling Mounted Inverter Heat Pump 5Kw/17000Btu R32 A++ 240V~50Hz

  • Mitsubishi Electric Air Conditioning PCA-M50KA Ceiling Mounted Inverter Heat Pump 5Kw/17000Btu R32 A++ 240V~50Hz
  • Mitsubishi Electric Air Conditioning PCA-M50KA Ceiling Mounted Inverter Heat Pump 5Kw/17000Btu R32 A++ 240V~50Hz
  • Mitsubishi Electric Air Conditioning PCA-M50KA Ceiling Mounted Inverter Heat Pump 5Kw/17000Btu R32 A++ 240V~50Hz
  • Mitsubishi Electric Air Conditioning PCA-M50KA Ceiling Mounted Inverter Heat Pump 5Kw/17000Btu R32 A++ 240V~50Hz
  • Mitsubishi Electric Air Conditioning PCA-M50KA Ceiling Mounted Inverter Heat Pump 5Kw/17000Btu R32 A++ 240V~50Hz

Mitsubishi Electric Air Conditioning PCA-M50KA Ceiling Mounted Inverter Heat Pump 5Kw/17000Btu R32 A++ 240V~50Hz

£1,930.50 £1,608.75 (ex. VAT)
Stock Status: In Stock
A++ Rated energy product

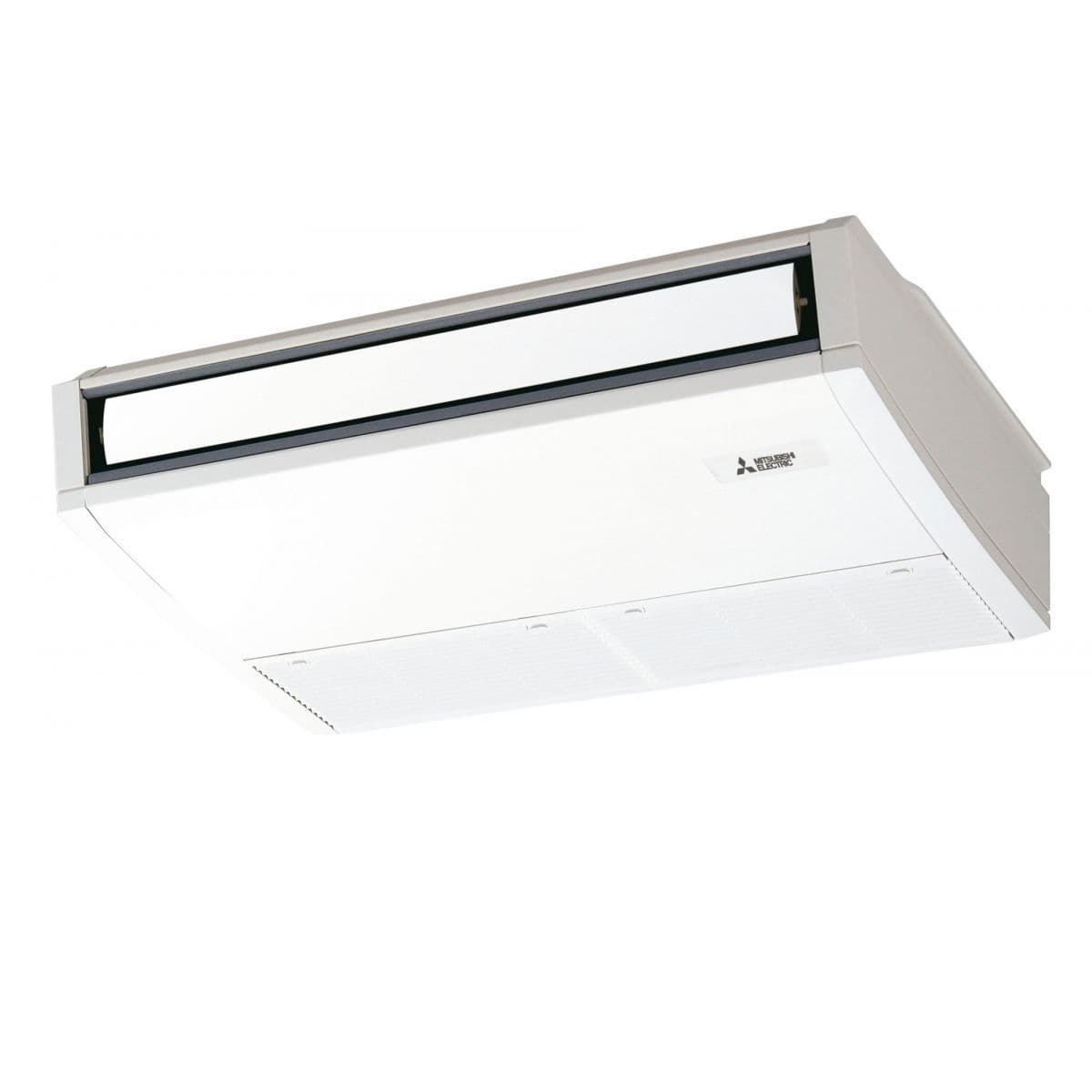

The new R32 PCA Ceiling Suspended indoor units have a stylish rounded side panels, and a slimmer profile only 230mm on smaller models. The Mitsubishi Electric air conditioning PCA units are suitable for areas which do not have suspended ceilings, and can be installed adjacent to a side wall, allowing the pipe connections and electrical wiring are concealed.

The Mitsubishi PCA Series split systems are ideal for commercial application such offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The internal heat exchange uses slit-fins and inner grooved tubing for maximum efficiency in heating and cooling, whilst maintaining lower sound levels.

The Mitsubishi Electric air conditioning inverter PCA range has now been extended to include new small capacity system starting at 5kW / 17000Btu, and a high capacity system 14kW at the top end. (figures stated are for cooling/heating performance). The advanced 7-Day Programmable Timer is now included as standard controls specification and 24Hr control. Mitsubishi Electric air conditioning and heat pump high performance power inverter cassette series split systems designed for residential and commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The units have a extended pipe run capability of up to 50 meters making them ideal for high-rise buildings.

The Mitsubishi Electric air conditioning inverter air conditioning system's sCoP (Seasonal Coefficient of Performance) is up to 4 on some models. This means the system can deliver 4 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Mitsubishi Electric air conditioning inverter technology with R32 refrigerant. The cassette design has improved air flow-pattern through the unit, and the new design of the high performance indoor heat exchanger, have resulted in a pressure loss reduction, allowing the fan design to be optimised for significantly lower sound Db levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets.


Quiet Operation

The indoor unit has a quiet operational noise of 27dB in quiet mode to offer you peace and quiet for the bedroom or office. In addition, the outdoor units have drastically reduced vibration and noise thanks to a super quiet fan and motor and an innovative anti noise mechanism.

Heating / cooling and dehumidification
This unit heats, cools and dehumidifies.

Healthy De humidification
Dehumidification mode reduces uncomfortable humidity from the room without over cooling.

Auto Changeover
The air conditioner will switch automatically from cooling to heating modes depending on the set temperature.

Optimized Cooling & Heating Air Flow
The air vanes will be adjusted according to the mode of operation. In heating mode air will be distributed at a lower angle due to hot air rising.



Product Key Feature's:

• Weekly Program
• Auto Changeover
• Low Standby Power
• Auto Restart
• Central Controller
• Easy-to-Clean Air Filter
• Two Thermistor Control
• Optimal Air Distribution
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• 24-Hour ON/OFF Setting Timer
• 7-Day Programmable Timer - now included in standard controls specification and with the option to use the MELCloud WiFi controller.



Indoor Unit:


PCA-M - INDOOR UNITS

PCA-M50KA

CAPACITY (kW)                                Heating (nominal)

5.5 (2.5-6.6)

Cooling (nominal)

5.0 (2.3-5.6)

Heating (UK)

4.7 (2.15-5.6)

Cooling (UK)

4.6 (2.1-5.15)

SHF (nominal)

0.79

COP / EER (nominal)

4.04 / 4.00

SCOP / SEER (BS EN14825)

4.2 / 6.7

ERP ENERGY EFFICIENCY CLASS    Heating/Cooling

A+ / A++

AIRFLOW (l/s)                                        Lo-Mi1-Mi2-Hi

167-183-217-250

PIPE SIZE MM (in)                                Gas/Liquid

12.7 (1/2”) / 6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA)       Lo-Mi1-Mi2-Hi

32-34-37-40

SOUND POWER LEVEL (dBA)

60

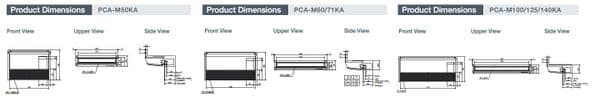

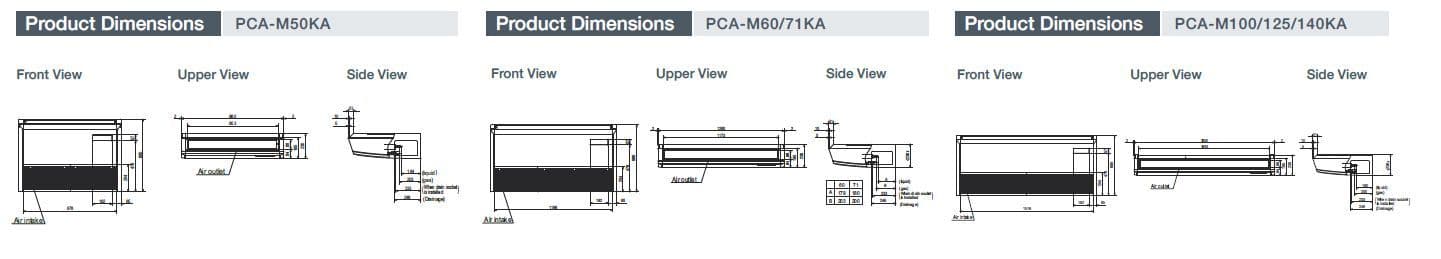

DIMENSIONS (mm)                             Width x Depth x Height

960 x 680 x 230

WEIGHT (kg)

26

ELECTRICAL  SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

6

INTERCONNECTING CABLE            No. Cores

4

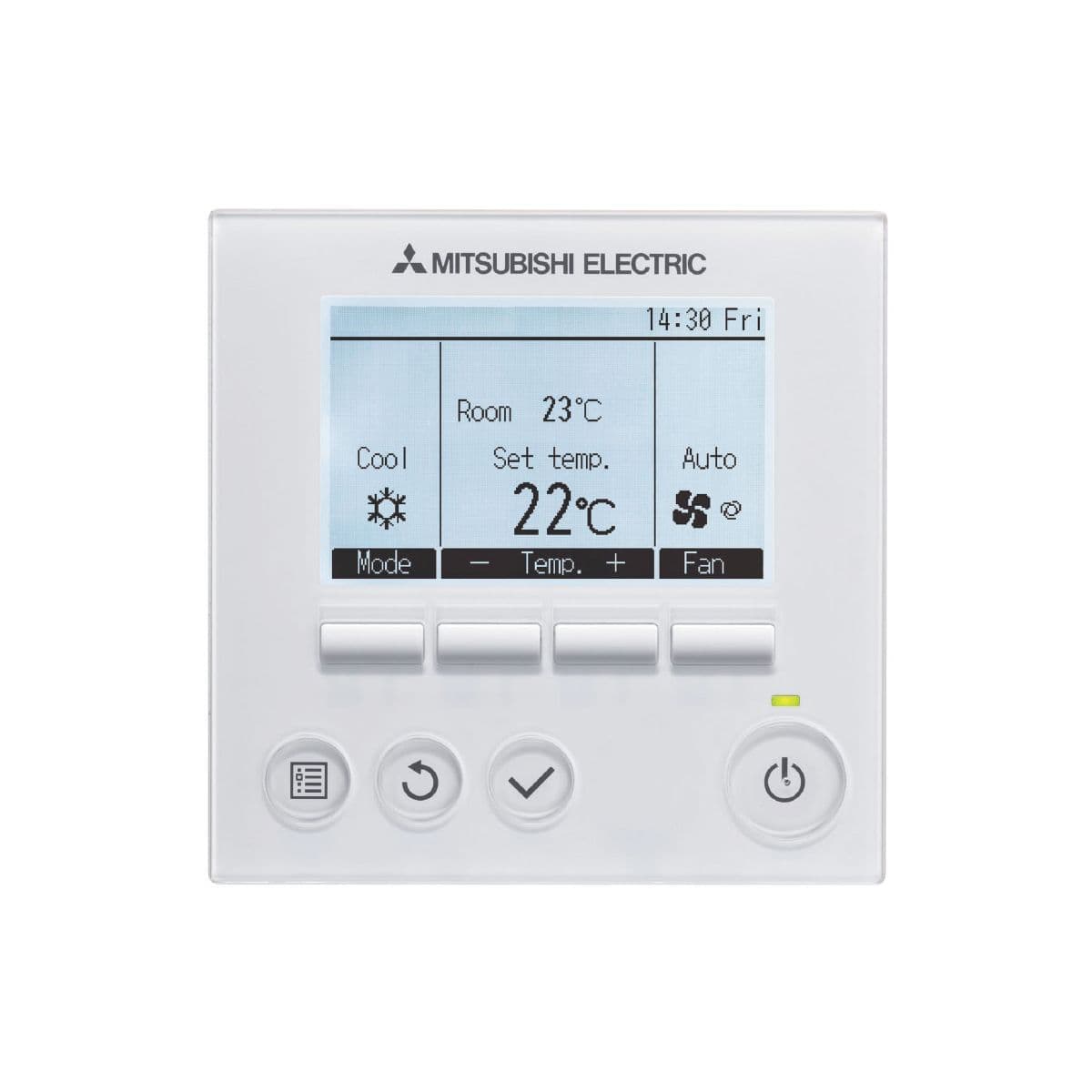

WIRED REMOTE CONTROLLER REFERENCE

PAR-33MAA

WIRELESS REMOTE CONTROLLER REFERENCE

PAR-SL94B



Outdoor Unit:



PUZ-ZM - OUTDOOR UNITS

PUZ-ZM50VKA

SOUND PRESSURE LEVEL (dBA)      Heating/Cooling

46 / 44

SOUND POWER LEVEL (dBA)             Cooling

65

WEIGHT (kg)

46

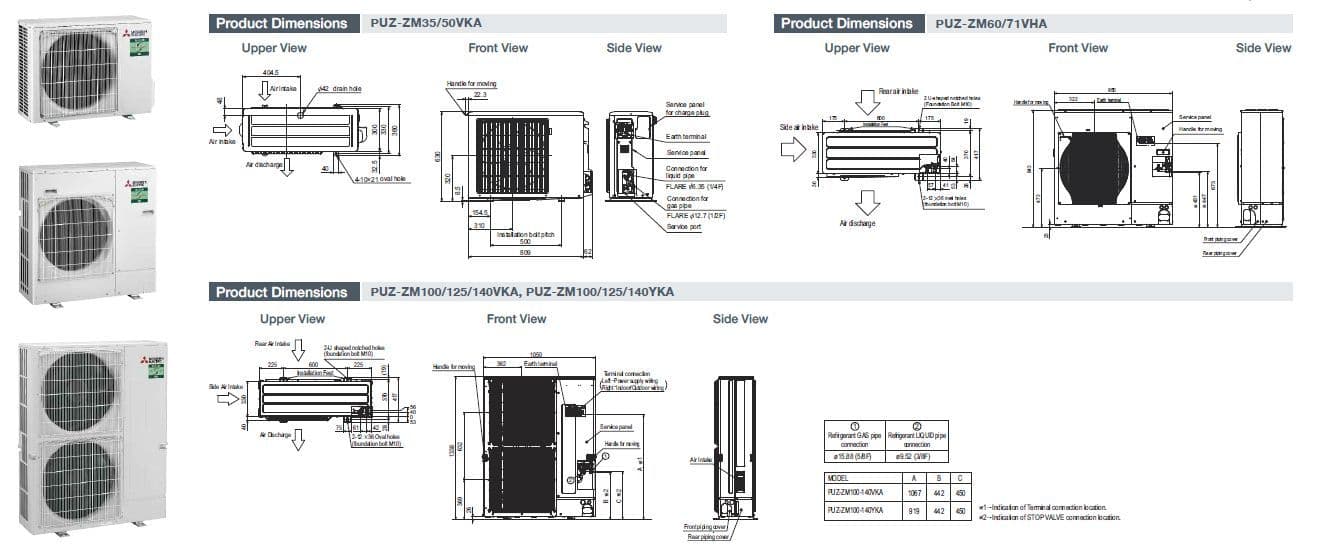

DIMENSIONS (mm)                           Width x Depth x Height

809 x 300 x 630

ELECTRICAL  SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)          Heating/Cooling (nominal)

Heating/Cooling (UK)

1.347 / 1.239

1.12 / 1.12

STARTING CURRENT (A)

5.0

SYSTEM RUNNING CURRENT (A)    Heating/Cooling [MAX]

5.98 / 5.57 [13.4]

FUSE RATING (BS88) - HRC (A)

16

MAINS CABLE NO. CORES

3

MAX PIPE LENGTH (m)

50

MAX HEIGHT DIFFERENCE (m)

30

CHARGE REFRIGERANT (kg) /        R32 (GWP 675) - 30m

CO2 EQUIVALENT (t)

2.00 / 1.35

MAX ADDITIONAL REFRIGERANT (kg) /     R32 (GWP 675)

CO2 EQUIVALENT (t)

0.30 / 0.20





PDF DATA:




These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
