Mitsubishi Electric Air Conditioning MXZ Multi Air Conditioning A+

Mitsubishi Electric Air Conditioning MXZ-5F102VF Multi 5 x MSZ-LN25VG2 2.5kW Wall A++ 240V~50Hz

Mitsubishi Electric Air Conditioning MXZ-5F102VF Multi 5 x MSZ-LN25VG2 2.5kW Wall A++ 240V~50Hz

£5,938.90 £4,949.08 (ex. VAT)
Stock Status: In Stock


Includes:


1 x Mitsubishi
MXZ-5F102VF Multi room 5 port condensing unit
5 x Mitsubishi MSZ-LN25VG2 Wall Mounted Indoor units
5 x Controllers

R32 GAS

"A++" rated energy product




The MXZ Mitsubishi Electric air conditioning R32 refrigerant multi- room split systems allows MULTIPLE Mr Slim or M Series indoor units to be operated from a single outdoor unit.  This makes it an economic answer in multi-room applications, whilst also offering space saving benefits. The indoor units are the M series which are renowned for quiet operation and outstanding reliability. A compact design makes these units ideal for commercial and home applications.

Mitsubishi Electric's classic range of high specification wall mounted models make use of the latest Mitsubishi Electric comfort based technology. Designed specifically for comfort cooling and heating, these units have extremely quiet sound levels, whilst also delivering economical air conditioning, with improved EER figures. Ideal for use in any size room, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room. Designed to heat or cool small to medium sized applications, the M Series range provides a versatile, yet affordable air conditioning solution. Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures and also quiet (as low as 22dBA* 1 ).





Key Product Feature's:

  • Up to multiple indoor units connected to a single outdoor unit
  • Single outdoor unit for minimal noise and space impact
  • Energy saving inverter controlled performance
  • Compact design indoor and outdoor
  • Mixture of different types of indoor unit's if required
  • New design indoor units
  • High COP
  • Infra-red controller with wall mounting bracket
  • Auto re-start after power interruption
  • PRE-CHARGED WITH REFRIGERANT
  • Fault diagnosis
  • New advanced technology control

Technical Data:

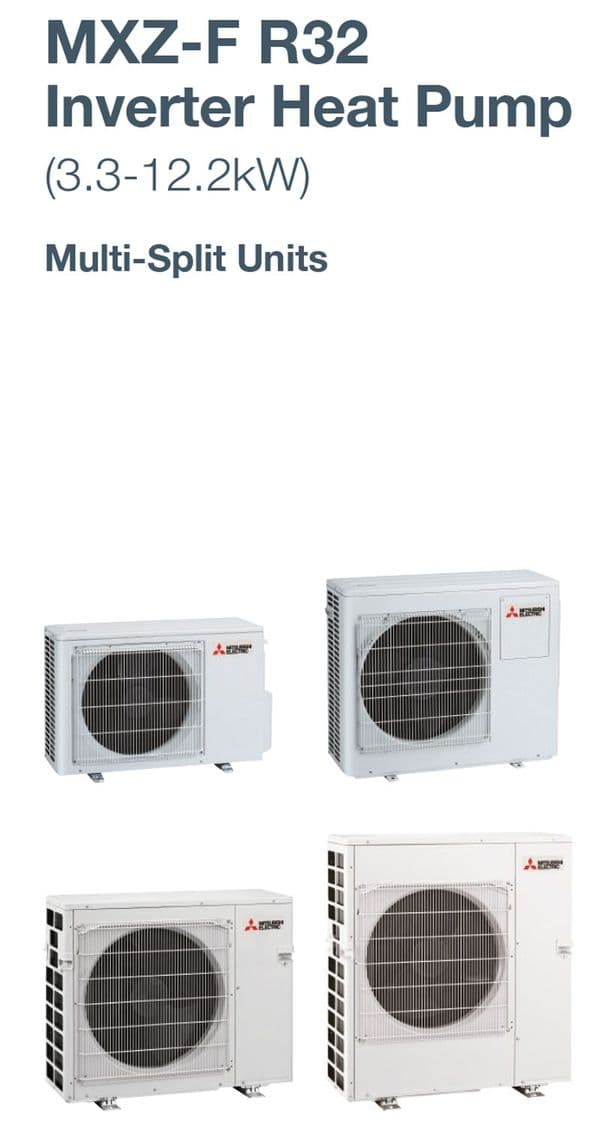

MXZ-F - OUTDOOR UNITS

MXZ-5F102VF

NUMBER OF CONNECTABLE INDOOR UNITS

2 - 5

Capacity (kW)                                Heating (nominal)

10.5 (4.1-14.0)

Cooling (nominal)

10.2 (3.9-11.0)

Heating (UK)

8.7 (3.40-11.63)

Cooling (UK)

10.1 (3.86-10.90)

COp / EER (nominal)*1

4.60 / 3.64

SCOp (ƞsh) / SEER (ƞsc) (BS EN14825)

4.65(183%)/

8.21(325.4%)

Erp Energy Efficiency CLASS    Heating/Cooling

A++ / A++

MAX AIRFLOW (m3/min)                    Heating/Cooling

74 / 62

SOUND pressure LEVEL (dBA)       Heating/Cooling

56 / 52

SOUND power LEVEL (dBA)           Cooling

65

DIMENSIONS (mm)                          Width x Depth x Height

950 x 330 x 796

WEIGHT (kg)

62

ELECTRICAL SUppLy

220-240v, 50Hz

phase

Single

power Input (kW)                            Heating/Cooling (nominal)

2.28 / 2.80

Heating/Cooling (UK)

2.09 / 2.66

STARTING CURRENT (A)

12.3

RUNNING CURRENT (A)                   Heating/Cooling [MAX]

10.0 / 12.3 [21.4]

INTERCONNECTING CABLE No. CORES

4 Core

TOTAL pipe LENGTH (m)

80

MAX pipe LENGTH per

INDOOR UNIT (m)

25

MAX HEIGHT DIFFERENCE (m)

15

CHARGE REFRIGERANT (kg) /CO2 EQUIVALENT (t) - R32 (GWP 675)

2.4 / 1.62 (80m)

FUSE RATING (BS88) – HRC (A)

25

Notes: *1 System COP / EER when connected to MSZ-LN / MSZ-AP x indoor unit connections.

Combined max running current of all indoors on system must not exceed 3A.

MSZ-LN - INDOOR UNITS

MSZ-LN25VG2  R/B/V/W

CAPACITY (kW)                                     Heating (nominal)

3.2 (0.8 - 5.4)

Cooling (nominal)

2.5 (1.0 - 3.5)

Heating (UK)

2.64 (0.66 - 4.45)

Cooling (UK)

2.48 (0.99 - 3.47)

SHF (nominal)

0.97

COP / EER (nominal)

5.52 / 5.15

SCOP / SEER (BS EN14825)

5.2 / 10.5

ErP ENERGY EFFICIENCY CLASS       Heating/Cooling

A+++ / A+++

AIRFLOW (l/s)                                        Heating (SLo-Lo-Mi-Hi-SHi)

67-95-118-142-240

Cooling (SLo-Lo-Mi-Hi-SHi)

71-97-118-147-198

PIPE SIZE mm (in)                                  Gas

9.52 (3/8”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA)        Heating (SLo-Lo-Mi-Hi-SHi)

19-24-29-36-45

Cooling (SLo-Lo-Mi-Hi-SHi)

19-23-29-36-42

SOUND POWER LEVEL (dBA)

58

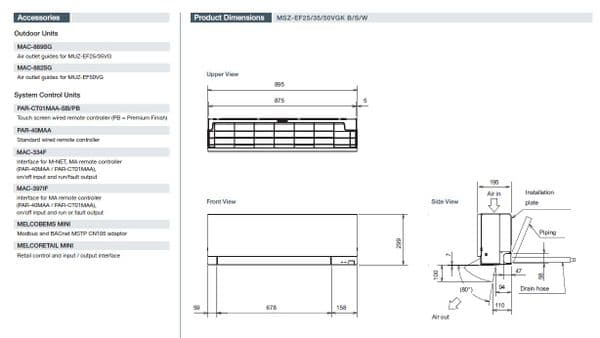

DImENSIONS (mm)                                Width x Depth x Height

890 x 233 x 307

WEIGHT (kg)

15.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

6

INTERCONNECTING CABLE No. CORES

4

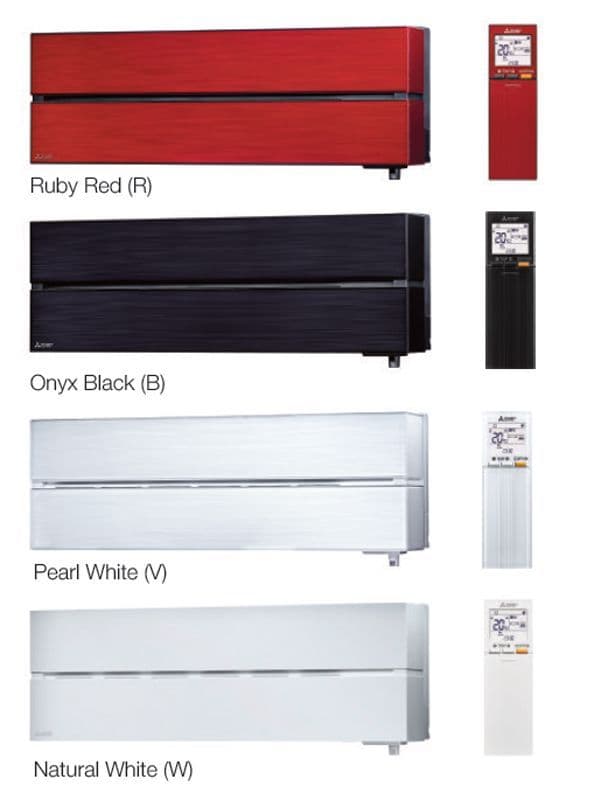

Notes: MSZ-LN18VG only available with R32 MXZ Multi-Split outdoor units. Ruby Red (R), Onyx Black (B), Pearl White (V), Natural White (W).




PDF Data:


Optional System Control Units:


PAR-CT01MAA-SB/PB: Touch screen wired remote controller (PB = Premium Finish)

PAR-40MAA: Standard wired remote controller

MAC-334F: Interface for m-NET, mA remote controller (PAR-40mAA / PAR-CT01mAA),
on/off input and run/fault output

MAC-397IF: Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or fault output

MELCOBEMS MINI modbus and BACnet mSTP CN105 adaptor
MELCORETAIL MINI Retail control and input / output interface


These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
