Mitsubishi Electric Air Conditioning MS Wall Unit A+, A++,A+++

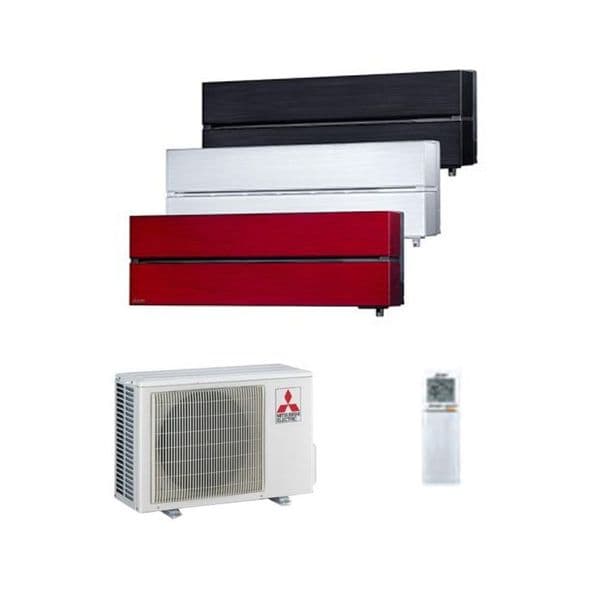

Mitsubishi Electric Air Conditioning MSZ-LN50VG2 5Kw/17000Btu R32 Heat Pump Wall Install Pack

  • Mitsubishi Electric Air Conditioning MSZ-LN50VG2 5Kw/17000Btu R32 Heat Pump Wall Install Pack
  • Mitsubishi Electric Air Conditioning MSZ-LN50VG2 5Kw/17000Btu R32 Heat Pump Wall Install Pack
  • Mitsubishi Electric Air Conditioning MSZ-LN50VG2 5Kw/17000Btu R32 Heat Pump Wall Install Pack
  • Mitsubishi Electric Air Conditioning MSZ-LN50VG2 5Kw/17000Btu R32 Heat Pump Wall Install Pack
  • Mitsubishi Electric Air Conditioning MSZ-LN50VG2 5Kw/17000Btu R32 Heat Pump Wall Install Pack

Mitsubishi Electric Air Conditioning MSZ-LN50VG2 5Kw/17000Btu R32 Heat Pump Wall Install Pack

£1,986.31 £1,655.26 (ex. VAT)
Stock Status: In Stock

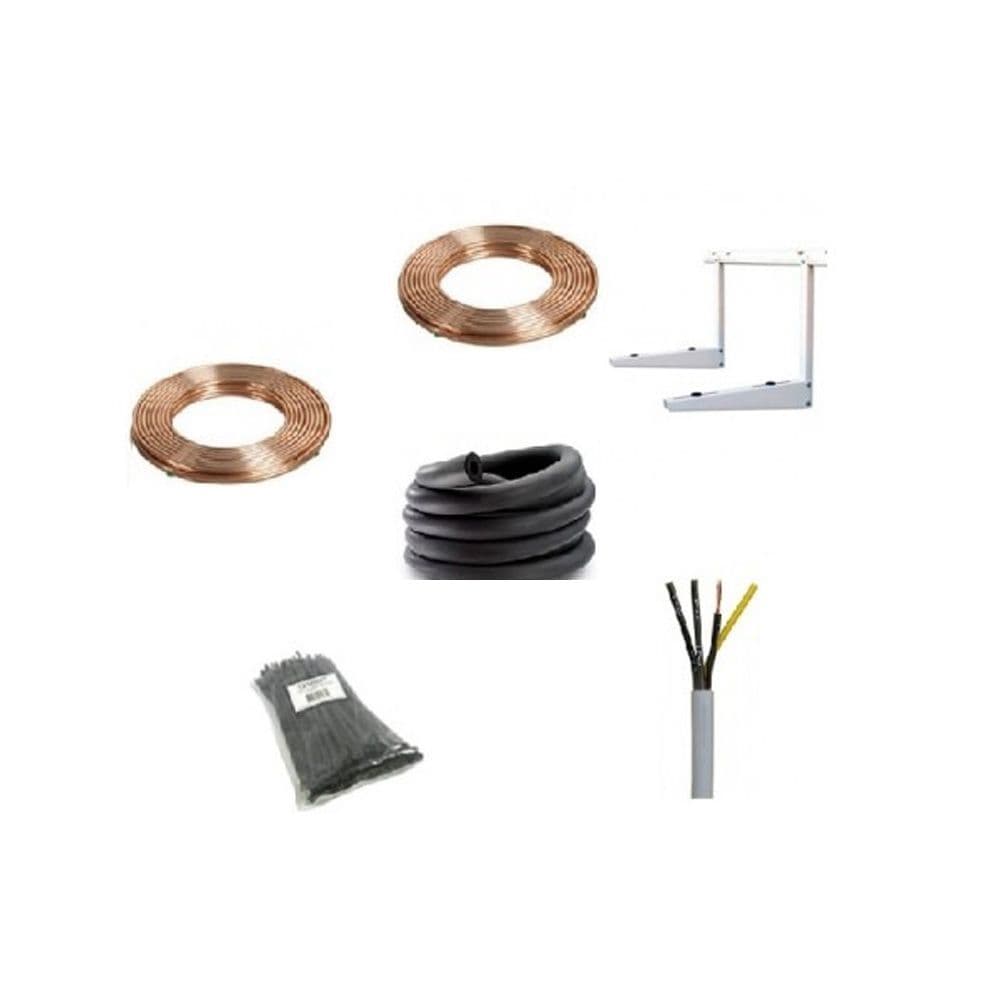

Package Includes:

1 x MSZ-LN50VG2  R/B/V/W indoor wall mounted unit

1 x MUZ-LN50VG2 Outdoor R32 Heat pump Inverter unit

1 x Remote controller (New backlit controller)

15 Meters of 1/4" & 1/2" Pipes

15 Meters of cable for interconnecting cable

15 Meters of installation for pipes

1 X Pack of cable ties

1 x Premium Wall bracket for condensing unit

The MSZ-LN range is a R32 refrigerant wall mounted system that blends energy efficiency with a sophisticated streamlined design. Finished with a range of deep, rich colours and a premium quality feel, this range utilises low GWP R32 refrigerant.




The new Mitsubishi Electric air conditioning MSZ-LN series is a new stylish, high end wall mounted system.  Featuring the new Plasma Quad Plus filter uses powerful plasma technology to filter out even microscopic particles and Dual-Barrier Coating to the heat exchanger, fan and air duct prevents dust and grease accumulation filter system. The MSZ-LN models also offer industry leading noise levels (as low as 19dBA* 1 ).and have a distinctively styled front panel that not only looks appealing but also helps to make cleaning of the unit easier. The Mitsubishi Electric MSZ-LN models come in four colours  pearl white, natural white, red and black and use high COP inverter technology delivering economical air conditioning and heating with improved COP figures (5.52) on smaller models.

Ideal for use in any size room, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room.

Designed to heat or cool small to medium sized applications, the MSZ-LN Series range provides a artistic and modern air conditioning solution. Unlike conventional models with a grilled air intake, wall mounted models feature a smoothly contoured, flat panel finish with a top air intake that not only improves aesthetics, but also helps to reduce noise as the heat exchanger area is fully covered. Alongside this, the wide diameter of the fan produces greater airflow at lower fan speeds and the uneven pitch between each fan blade helps to eliminate unwanted noise.


Built in Wi-Fi interface enabling control and monitoring via the MELCloud app


Key Product Feature's:


• High CoP, up to record 4.59 Highly energy efficient operation, utilising low GWP R32 refrigerant

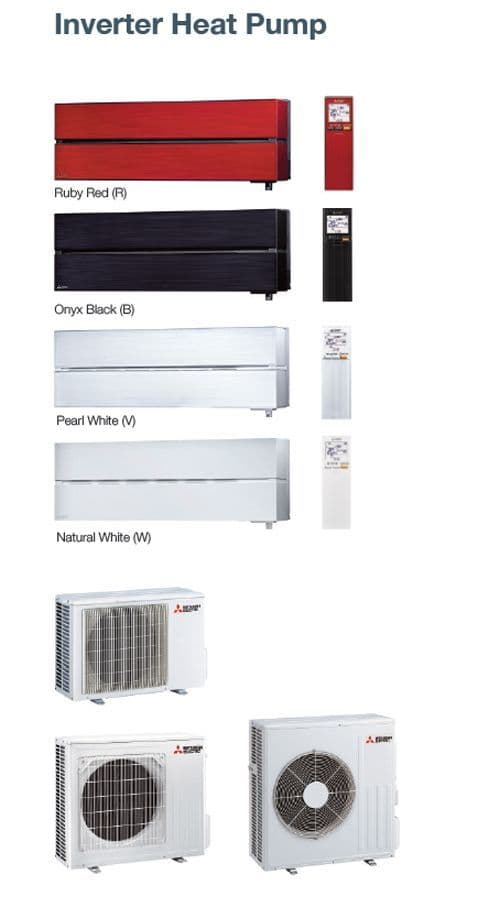

• New stylish design, available in Ruby Red, Onyx Black, Pearl White and Natural White colours
• Advanced technology control
• Infra-red controller now backlit
• Slim artistic construction
• Pipe runs up to 20 metres
• Low noise – 19dBA on smaller models
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length
• Easy cleaned & serviced.
• 3D i-see Sensor provides customised comfort by automatically monitoring room occupancy, position and body temperatures
• Built in Wi-Fi interface enabling control and monitoring via the MELCloud app
• Double vanes operate independently to distribute airflow evenly throughout the room
• Plasma Quad Plus filter uses powerful plasma technology to filter out even microscopic particles
• Dual-Barrier Coating to the heat exchanger, fan and air duct prevents dust and grease accumulation
• Quiet operation with industry leading low noise levels Weekly timer Replace Technology available



Technical Data:


MSZ-LN - INDOOR UNITS

MSZ-LN50VG2  R/B/V/W

CAPACITY (kW)                                 Heating (nominal)

6.0 (1.0 - 8.2)

Cooling (nominal)

5.0 (1.0 - 6.0)

Heating (UK)

4.94 (0.82 - 6.75)

Cooling (UK)

4.95 (0.99 - 5.94)

SHF (nominal)

0.77

COP / EER (nominal)

4.05 / 3.62

SCOP / SEER (BS EN14825)

4.6 / 8.5

ErP ENERGY EFFICIENCY CLASS       Heating/Cooling

A++ / A+++

AIRFLOW (l/s)                                   Heating (SLo-Lo-Mi-Hi-SHi)

90-107-142-178-262

Cooling (SLo-Lo-Mi-Hi-SHi)

95-127-148-177-232

PIPE SIZE mm (in)                               Gas

9.52 (3/8”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA)          Heating (SLo-Lo-Mi-Hi-SHi)

25-29-34-39-47

Cooling (SLo-Lo-Mi-Hi-SHi)

27-31-35-39-46

SOUND POWER LEVEL (dBA)

60

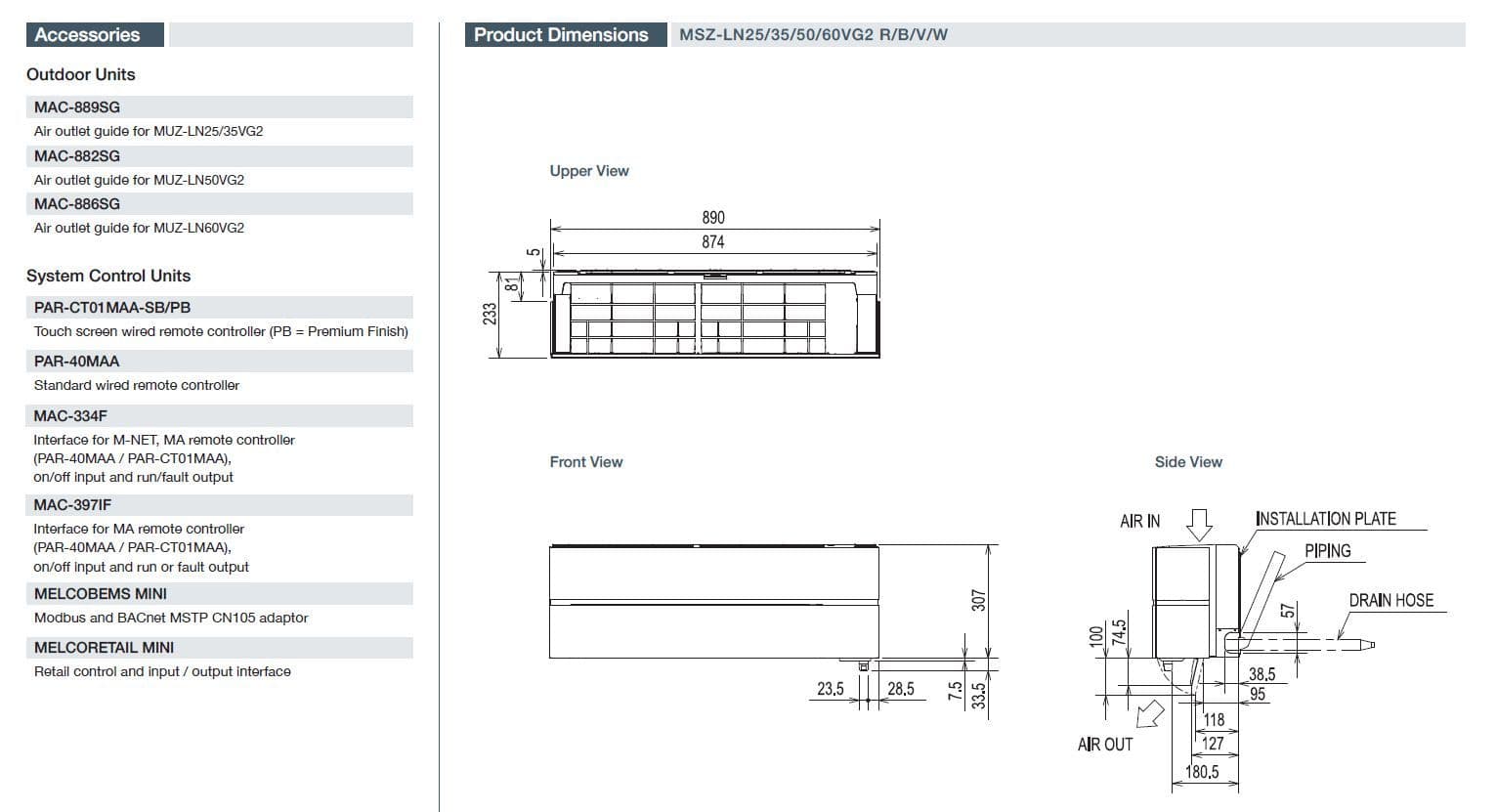

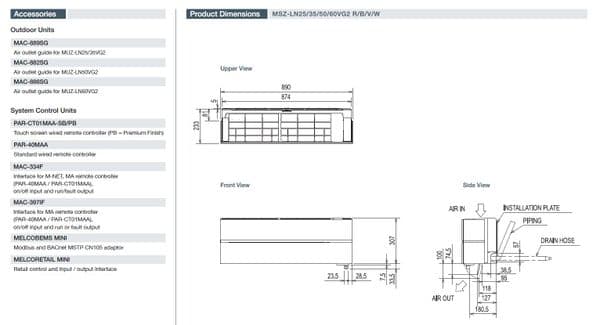

DImENSIONS (mm)                            Width x Depth x Height

890 x 233 x 307

WEIGHT (kg)

15.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

6

INTERCONNECTING CABLE No. CORES

4






MUZ-LN - OUTDOOR UNITS

MUZ-LN50VG2

SOUND PRESSURE LEVEL (dBA)           Heating/Cooling

54 / 51

SOUND POWER LEVEL (dBA)               Cooling

64

WEIGHT (kg)

40

DImENSIONS (mm)                            Width x Depth x Height

800 x 285 x 714

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEm POWER INPUT (kW)              Heating/Cooling (nominal)

1.480 / 1.380

Heating/Cooling (UK)

1.335 / 1.151

STARTING CURRENT (A)

6.8

SYSTEm RUNNING CURRENT (A)        Heating/Cooling [MAX]

6.8 / 6.3 [13.9]

FUSE RATING (BS88) – HRC (A)

16

mAINS CABLE No. CORES

3

mAX PIPE LENGTH (m)

30

mAX HEIGHT DIFFERENCE (m)

12

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) - 7m

1.25 / 0.85

mAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.26 / 0.18

Controller Set point Range:



Mode Cooling Min-Max: 19ºC to 30ºC
Mode Heating Min-Max: 17ºC to 28ºC
Mode Auto Min-Max: 19ºC to 28ºC


Operational Range:

Cooling MUZ-LN/EF/AP operation range: -10°C to +46°C

Heating MUZ-LN/EF/AP operation range: -15°C to +24°C

Links To Data Sheets:



Data sheet


MSZ-LN Brochure

MSZ-LN Service Manual

Optional Outdoor Units Accessories:


MAC-889SG Air outlet guide for mUZ-LN25/35VG2
MAC-882SG Air outlet guide for mUZ-LN50VG2
MAC-886SG Air outlet guide for mUZ-LN60VG2



Optional System Control Units:


PAR-CT01MAA-SB/PB: Touch screen wired remote controller (PB = Premium Finish)

PAR-40MAA: Standard wired remote controller

MAC-334F: Interface for m-NET, mA remote controller (PAR-40mAA / PAR-CT01mAA),
on/off input and run/fault output

MAC-397IF: Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or fault output

MELCOBEMS MINI modbus and BACnet mSTP CN105 adaptor
MELCORETAIL MINI Retail control and input / output interface





These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
