Mitsubishi Electric Air Conditioning MS Wall Unit A+, A++,A+++

Mitsubishi Electric Air Conditioning MSZ-HR35VF Classic Wall Mounted 3.5Kw/12000Btu R32 A+ 240V~50Hz

Mitsubishi Electric Air Conditioning MSZ-HR35VF Classic Wall Mounted 3.5Kw/12000Btu R32 A+ 240V~50Hz

£722.52 £602.10 (ex. VAT)
Stock Status: In Stock


This kit includes:

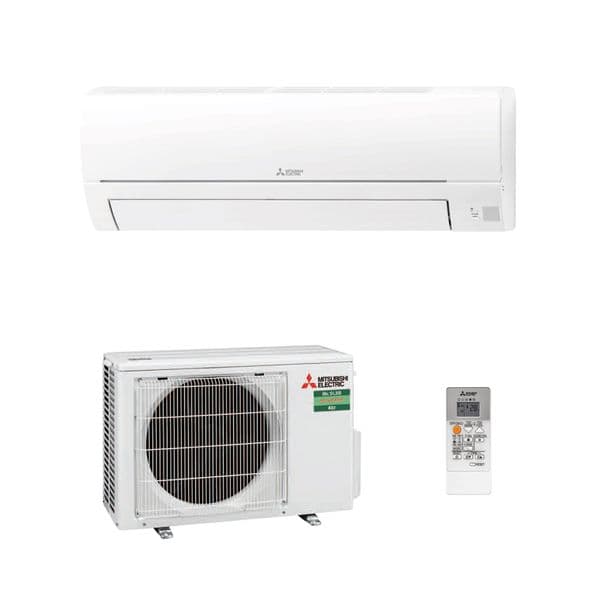

1 x MSZ-HR35VF Classic Wall Mount Indoor unit
1 x MUZ-HR35VF Outdoor unit
1 x Standard IR remote control




A++ Energy rated product


Mitsubishi Electric’s range of classic, R32, flat panel wall mounted models make use of inverter technology, whilst providing extremely good value for money, costing approximately 20% less than equivalent models.


Mitsubishi Electric’s classic MSZ-HR R32 range of high specification "Classic" flat panel wall mounted models make use of the latest Mitsubishi Electric inverter compressor technology. Designed specifically for comfort cooling and heating, these units have extremely quiet sound levels, whilst also delivering economical air conditioning, with improved EER figures. Ideal for use in any size room, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room. Designed to heat or cool small to medium sized applications, the M Series range provides a versatile, yet affordable air conditioning solution. Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures and also quiet (as low as 21dBA* On smaller models).

Unlike conventional models with a grilled air intake, wall mounted models feature a smoothly contoured, flat panel finish with a top air intake that not only improves aesthetics, but also helps to reduce noise as the heat exchanger area is fully covered.  This is as a result of the multi-angled heat exchanger having a modified fin shape that reduces air resistance, producing a smoother, quieter flow of air. Alongside this, the wide diameter of the fan produces greater airflow at lower fan speeds and the uneven pitch between each fan blade helps to eliminate unwanted noise.





Key Product Feature's:




  • High SCoP, up to record 5.7 R32
  • Advanced technology control
  • Infra-red controller
  • Slim construction
  • Pipe runs up to 20 metres
  • Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures
  • Auto re-start after power interruption
  • PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length
  • Easy cleaned & serviced.
  • Full ECA tax allowance
  • Optional Wi-Fi interface now available with this model
  • Silver-ionised air purifying filter as standard
  • Fault diagnosis


Technical Specification:



MSZ-HR - INDOOR UNITS

MSZ-HR35VF

CAPACITY (kW)                                          Heating (nominal)

3.60 (0.9-3.7)

Cooling (nominal)

3.40 (0.9-3.4)

Heating (UK)

2.99 (0.75-3.1)

Cooling (UK)

3.37 (0.89-3.4)

SHF (nominal)

0.78

COP / EER (nominal)

3.69 / 2.81

SCOP / SEER (BS EN14825)

4.30 / 6.20

ErP ENERGY EFFICIENCY CLASS        Heating/Cooling

A+ / A++

AIRFLOW (l/s)                                          Heating/Cooling - Lo-Mi-Hi-SHi

55-90-123-175 / 60-93-130-195

PIPE SIZE mm (in)                                  Gas

9.52 (3/8”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA)         Heating/Cooling - Lo-Mi-Hi-SHi

21-30-37-44 / 22-31-38-46

SOUND POWER LEVEL (dBA)

60

DIMENSIONS (mm)                                Width x Depth x Height

838 x 228 x 280

WEIGHT (kg)

8.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

6

INTERCONNECTING CABLE No. CORES

4

MUZ-HR - OUTDOOR UNITS

MUZ-HR35VF

SOUND PRESSURE LEVEL (dBA)         Heating/Cooling

51 / 51

SOUND POWER LEVEL (dBA)               Cooling

64

WEIGHT (kg)

24

DIMENSIONS (mm)                                 Width x Depth x Height

699 x 249 x 538

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)              Heating/Cooling (nominal)

Heating/Cooling  (UK)

0.98 / 1.21

0.89 / 0.96

STARTING CURRENT (A)

5.9

SYSTEM RUNNING CURRENT (A)        Heating/Cooling [MAX]

4.6 / 5.9 [6.4]

FUSE RATING (BS88) - HRC (A)

10

MAINS CABLE No. CORES

3

MAX PIPE LENGTH (m)

20

MAX HEIGHT DIFFERENCE (m)

12

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.45 / 0.30

MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.26 / 0.18







PDF Data:



PDF Data service manual




Wi-fi module: Mitsubishi Electric Air Conditioning MAC-557IF MELCLOUD WiFi Connection Interface

Optional System Control Units:


PAR-CT01MAA-SB/PB: Touch screen wired remote controller (PB = Premium Finish)

PAR-40MAA: Standard wired remote controller

MAC-334F: Interface for m-NET, mA remote controller (PAR-40mAA / PAR-CT01mAA),
on/off input and run/fault output

MAC-397IF: Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or fault output

MELCOBEMS MINI modbus and BACnet mSTP CN105 adaptor
MELCORETAIL MINI Retail control and input / output interface





These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
