Mitsubishi Electric Air Conditioning MS Wall Unit A+, A++,A+++

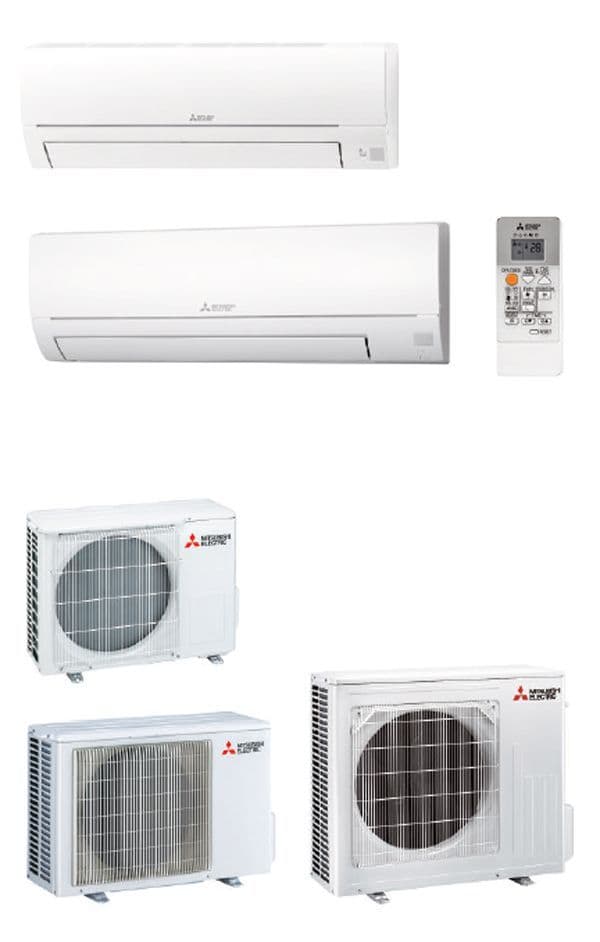

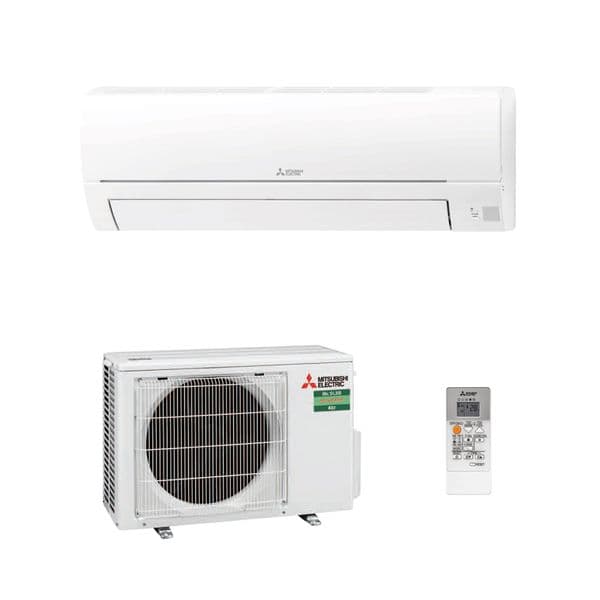

Mitsubishi Electric Air Conditioning MSZ-HR25VF Classic Wall Mounted 2.5Kw/9000Btu R32 A+ 240V~50Hz

Mitsubishi Electric Air Conditioning MSZ-HR25VF Classic Wall Mounted 2.5Kw/9000Btu R32 A+ 240V~50Hz

£589.26 £491.05 (ex. VAT)
Stock Status: Sold Out




A++ Energy rated product



Mitsubishi Electric’s range of classic, R32, flat panel wall mounted models make use of inverter technology, whilst providing extremely good value for money, costing approximately 20% less than equivalent models.


Mitsubishi Electric’s classic MSZ-HR R32 range of high specification "Classic" flat panel wall mounted models make use of the latest Mitsubishi Electric inverter compressor technology. Designed specifically for comfort cooling and heating, these units have extremely quiet sound levels, whilst also delivering economical air conditioning, with improved EER figures. Ideal for use in any size room, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room. Designed to heat or cool small to medium sized applications, the M Series range provides a versatile, yet affordable air conditioning solution. Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures and also quiet (as low as 21dBA* On smaller models).



Unlike conventional models with a grilled air intake, wall mounted models feature a smoothly contoured, flat panel finish with a top air intake that not only improves aesthetics, but also helps to reduce noise as the heat exchanger area is fully covered.  This is as a result of the multi-angled heat exchanger having a modified fin shape that reduces air resistance, producing a smoother, quieter flow of air. Alongside this, the wide diameter of the fan produces greater airflow at lower fan speeds and the uneven pitch between each fan blade helps to eliminate unwanted noise.





Key Product Feature's:




  • High SCoP, up to record 5.7 R32
  • Advanced technology control
  • Infra-red controller
  • Slim construction
  • Pipe runs up to 20 metres
  • Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures
  • Auto re-start after power interruption
  • PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length
  • Easy cleaned & serviced.
  • Full ECA tax allowance
  • Optional Wi-Fi interface now available with this model
  • Silver-ionised air purifying filter as standard
  • Fault diagnosis


Technical Specification:



MSZ-HR - INDOOR UNITS

MSZ-HR25VF

CAPACITY (kW)                                          Heating (nominal)

3.15 (0.7-3.5)

Cooling (nominal)

2.50 (0.5-2.9)

Heating (UK)

2.61 (0.6-2.9)

Cooling (UK)

2.48 (0.5-2.8)

SHF (nominal)

0.78

COP / EER (nominal)

3.71 / 3.13

SCOP / SEER (BS EN14825)

4.30 / 6.20

ErP ENERGY EFFICIENCY CLASS        Heating/Cooling

A+ / A++

AIRFLOW (l/s)                                          Heating/Cooling - Lo-Mi-Hi-SHi

55-90-123-168 / 60-90-120-162

PIPE SIZE mm (in)                                  Gas

9.52 (3/8”)

Liquid

6.35 (1/4”)

SOUND PRESSURE LEVEL (dBA)         Heating/Cooling - Lo-Mi-Hi-SHi

21-30-37-43 / 21-30-37-43

SOUND POWER LEVEL (dBA)

57

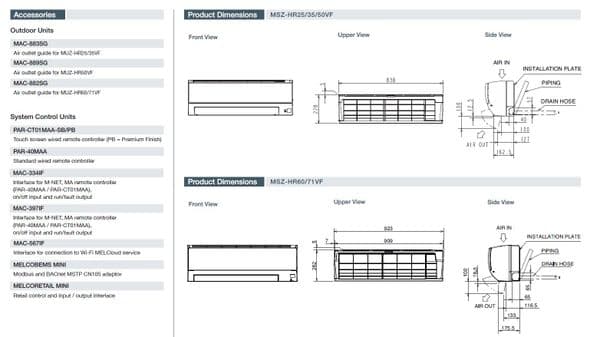

DIMENSIONS (mm)                                Width x Depth x Height

838 x 228 x 280

WEIGHT (kg)

8.5

ELECTRICAL SUPPLY

Fed by Outdoor Unit

FUSE RATING (BS88) - HRC (A)

6

INTERCONNECTING CABLE No. CORES

4

MUZ-HR - OUTDOOR UNITS

MUZ-HR25VF

SOUND PRESSURE LEVEL (dBA)         Heating/Cooling

50 / 50

SOUND POWER LEVEL (dBA)               Cooling

63

WEIGHT (kg)

23

DIMENSIONS (mm)                                 Width x Depth x Height

699 x 249 x 538

ELECTRICAL SUPPLY

220-240v, 50Hz

PHASE

Single

SYSTEM POWER INPUT (kW)              Heating/Cooling (nominal)

Heating/Cooling  (UK)

0.85 / 0.80

0.77 / 0.63

STARTING CURRENT (A)

4.1

SYSTEM RUNNING CURRENT (A)        Heating/Cooling [MAX]

4.1 / 3.8 [4.8]

FUSE RATING (BS88) - HRC (A)

10

MAINS CABLE No. CORES

3

MAX PIPE LENGTH (m)

20

MAX HEIGHT DIFFERENCE (m)

12

CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.40 / 0.27

MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675)

0.26 / 0.18







PDF Data:








Wi-fi module: Mitsubishi Electric Air Conditioning MAC-557IF MELCLOUD WiFi Connection Interface
