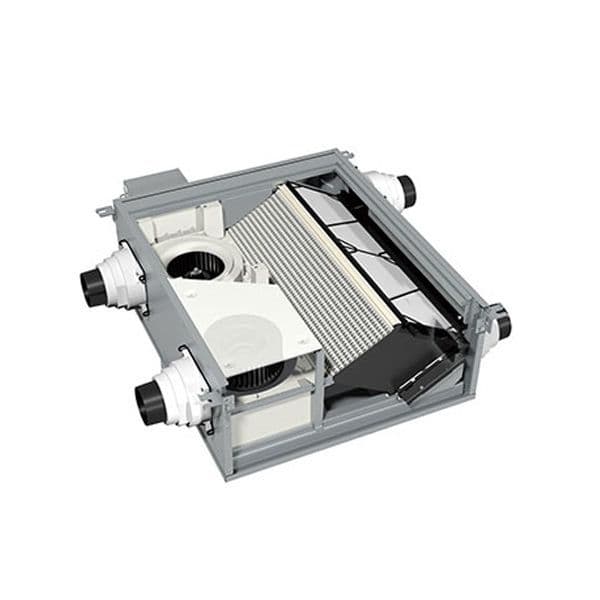

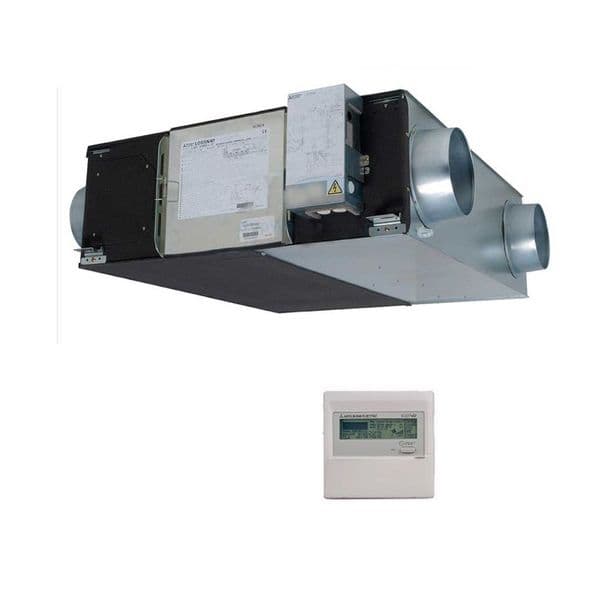

Mitsubishi Electric Air Conditioning Lossnay LGH And VL Air Exchange System Home / Air Conditioning / Mitsubishi Electric Air Conditioning / Mitsubishi Electric Air Conditioning Lossnay LGH And VL Air Exchange System / Mitsubishi Electric Air Conditioning LGH-50RX5-E Lossnay Ducted Heat Exchange 500M3/hr 240V~50Hz Mitsubishi Electric Air Conditioning LGH-50RX5-E Lossnay Ducted Heat Exchange 500M3/hr 240V~50Hz (1) Mitsubishi Electric Air Conditioning LGH-50RX5-E Lossnay Ducted Heat Exchange 500M3/hr 240V~50Hz (1) £1,975.88 £1,646.57 (ex. VAT) Stock Status: In Stock Information Reviews This system can be utilised virtually anywhere to extract stale air and then recover the heating or cooling energy to either warm or cool incoming fresh air. It simultaneously extracts stale air from the internal environment whilst recovering valuable heat energy to maximise efficiency and minimise energy use. The new "Hyper Lossnay Core" at only 25um (approx 1/5 the thickness of LGH-RX5) uses the thinnest paper in the world to achieve high enthalpy exchange efficiency. The Lossnay core is made from a water resistant paper core and sits at the heart of the system. Constructed in a corrugated form and layered in alternate directions, the core allows a cross airflow to maximise heat recovery without the supply and exhaust air mixing, ensuring only fresh air is introduced into the home. Includes free cooling option is the outside ambient air is cooler than the internal air. Product Key Feature's: Effective Fresh Air Ventilation Free Cooling Function Good Sound Attenuation Temperature Exchange Efficiency (up to 82%) No Outdoor Unit Full ECA Tax Allowance Includes new design controller Unit Specifications: Airflow (m3/h) - Lossnay Ventilation - Lo-Hi-ExHi 350-500-500 Noise (dBA) - Lossnay Ventilation - Lo-Hi-ExHi 24.5-31.5-34 Noise (dBA) - Bypass Ventilation - Lo-Hi-ExHi 25.5-33-35.5 Width - mm 1016 Depth - mm 888 Height - mm 317 Weight - kg 33 Electrical Supply 220-240v,50Hz Fuse Rating (BS88) - HRC (A) 6 Duct Size (mm) 200 Power Input (W) - Extra high 228 Starting Current (A) 1.9 Running Current - Low 0.60 Running Current - High 0.93 Running Current - Extra High 0.96 Mains Cable No. Cores 3 Temperature Exchange Efficiency (%) - Low 82 Temperature Exchange Efficiency (%) - High 77 Temperature Exchange Efficiency (%) - Extra High 77 PDF Data: Based on 1 review(s) Write an online review and share your thoughts with other shoppers! John Finch - N/A thank you, my questions are answered! Related Products Olympus JetHeat OLY-J3/1 Industrial Electric Fan Heater with Thermostat 3Kw/12000Btu 240V~50Hz £90.00 £75.00 (ex. VAT) (2) 10 Meter Un-insulated Boxed Flexible Ducting 80mm to 500mm Diameter £187.19 £155.99 (ex. VAT) Mitsubishi Electric Air Conditioning LGH-25RX5-E Lossnay Ducted Heat Recovery System 250M3/hr 240V~50Hz £1,322.34 £1,101.95 (ex. VAT) Mitsubishi Electric Air Conditioning LGH-35RX5-E Lossnay Ducted Heat Exchange 350M3/hr 240V~50Hz £1,519.82 £1,266.52 (ex. VAT) (1) Mitsubishi Electric Air Conditioning PZ-61DR-E Lossnay Wired Remote Controller £133.02 £110.85 (ex. VAT) 10 Meter Lindab Tecsonic 400S Insulated Boxed Flexible Acoustic Ducting 100mm to 500mm Diameter £185.24 £154.37 (ex. VAT) Mitsubishi Electric Air Conditioning PAC-SF83MA MNET Converter £199.73 £166.44 (ex. VAT) Mitsubishi Electric Air Conditioning LGH-150RX5-E Lossnay Ducted Heat Exchange 1500M3/hr 240V~50Hz £5,200.09 £4,333.41 (ex. VAT) Mitsubishi Electric Air Conditioning LGH-200RX5-E Lossnay Ducted Heat Exchange 2000M3/hr 240V~50Hz £5,903.84 £4,919.87 (ex. VAT) Mitsubishi Electric Air Conditioning LOSSNAY-5-FSC Advanced Lossnay Fan Speed Controller £386.80 £322.33 (ex. VAT) Mitsubishi Electric Air Conditioning PAC-YG63MCA Advanced Temperature Interface £516.94 £430.78 (ex. VAT) Mitsubishi Electric Air Conditioning AT-50B MNET Network Centralized Controller £1,325.18 £1,104.32 (ex. VAT) 10 meters x 300mm Tectherm 400 Boxed Insulated Flexible Silver Ducting £147.77 £123.14 (ex. VAT) 30 meters x 200mm Flexible Insulated Ducting With 4 x 200mm Supply Air Diffusers And Collars Set £787.75 £656.46 (ex. VAT) Lg Air Conditioning Eco V Heat Recovery Ventilator LZ-H050GBA5 Air Exchange Unit 500M3/hr 240V~50Hz £1,946.29 £1,621.91 (ex. VAT) Mitsubishi Electric Air Conditioning 316805 MAC-587IF-E MELCLOUD WiFi Connection Interface £144.22 £120.18 (ex. VAT)
