Home > Air Conditioning > Mitsubishi Electric Air Conditioning > Mitsubishi Electric Air Conditioning Lossnay LGH And VL Air Exchange System

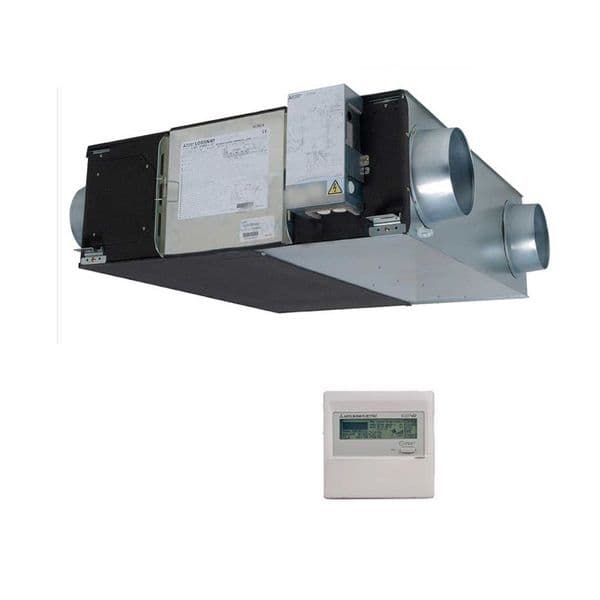

Mitsubishi Electric Air Conditioning LGH-25RX5-E Lossnay Ducted Heat Recovery System 250M3/hr 240V~50Hz

Our Price: £1,037.01
Description

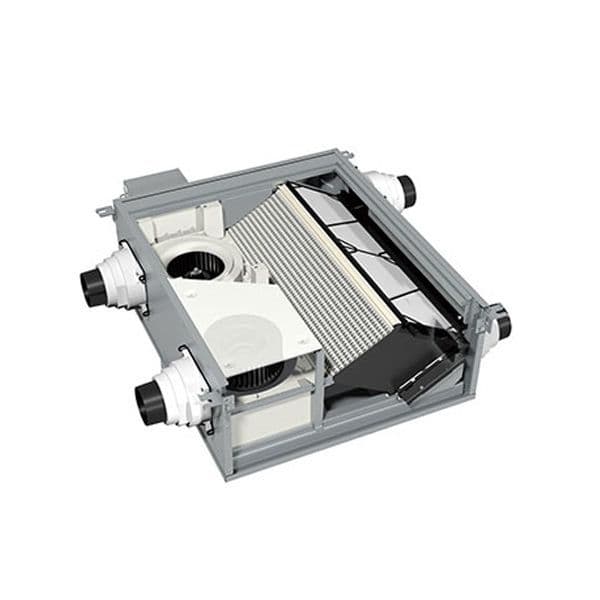

This system can be utilised virtually anywhere to extract stale air and then recover the heating or cooling energy to either warm or cool incoming fresh air.  It simultaneously extracts stale air from the internal environment whilst recovering valuable heat energy to maximise efficiency and minimise energy use. The new "Hyper Lossnay Core" at only 25um (approx 1/5 the thickness of LGH-RX5)  uses the thinnest paper in the world to achieve high enthalpy exchange efficiency. The Lossnay core is made from a water resistant paper core and sits at the heart of the system. Constructed in a corrugated form and layered in alternate directions, the core allows a cross airflow to maximise heat recovery without the supply and exhaust air mixing, ensuring only fresh air is introduced into the home. Includes free cooling option is the outside ambient air is cooler than the internal air.




New "Hyper Lossnay Core". At only 25um (approx 1/5 the thickness of LGH-RX3) the Lossnay core uses the thinnest paper in the world to achieve high enthalpy exchange efficiency.



Product Key Feature's:



  • Effective Fresh Air Ventilation
  • Free Cooling Function
  • Good Sound Attenuation
  • Temperature Exchange Efficiency (up to 83.5%)
  • No Outdoor Unit
  • Full ECA Tax Allowance
  • Includes new design controller


Unit Specifications:



Airflow (m3/h) - Lossnay Ventilation - Lo-Hi-ExHi 165-250-250
Noise (dBA) - Lossnay Ventilation - Lo-Hi-ExHi 23-26-27.5
Noise (dBA) - Bypass Ventilation - Lo-Hi-ExHi 23-26.5-28
Width - mm 735
Depth - mm 780
Height - mm 275
Weight - kg 21
Electrical Supply 220-240v, 50Hz
Fuse Rating (BS88) - HRC (A) 6
Duct Size (mm) 150
Power Input (W) - Extra high 117
Starting Current (A) 0.8
Running Current - Low 0.25
Running Current - High 0.40
Running Current - Extra High 0.49
Mains Cable No. Cores 3
Temperature Exchange Efficiency (%) - Low 83.5
Temperature Exchange Efficiency (%) - High 78
Temperature Exchange Efficiency (%) - Extra High 78



PDF Data:
