Mitsubishi Electric Air Conditioning Heat Pump Inverter MFZ-KT25VG Floor 2.5Kw/9000Btu A++ 240V~50Hz
A++ Rated energy product

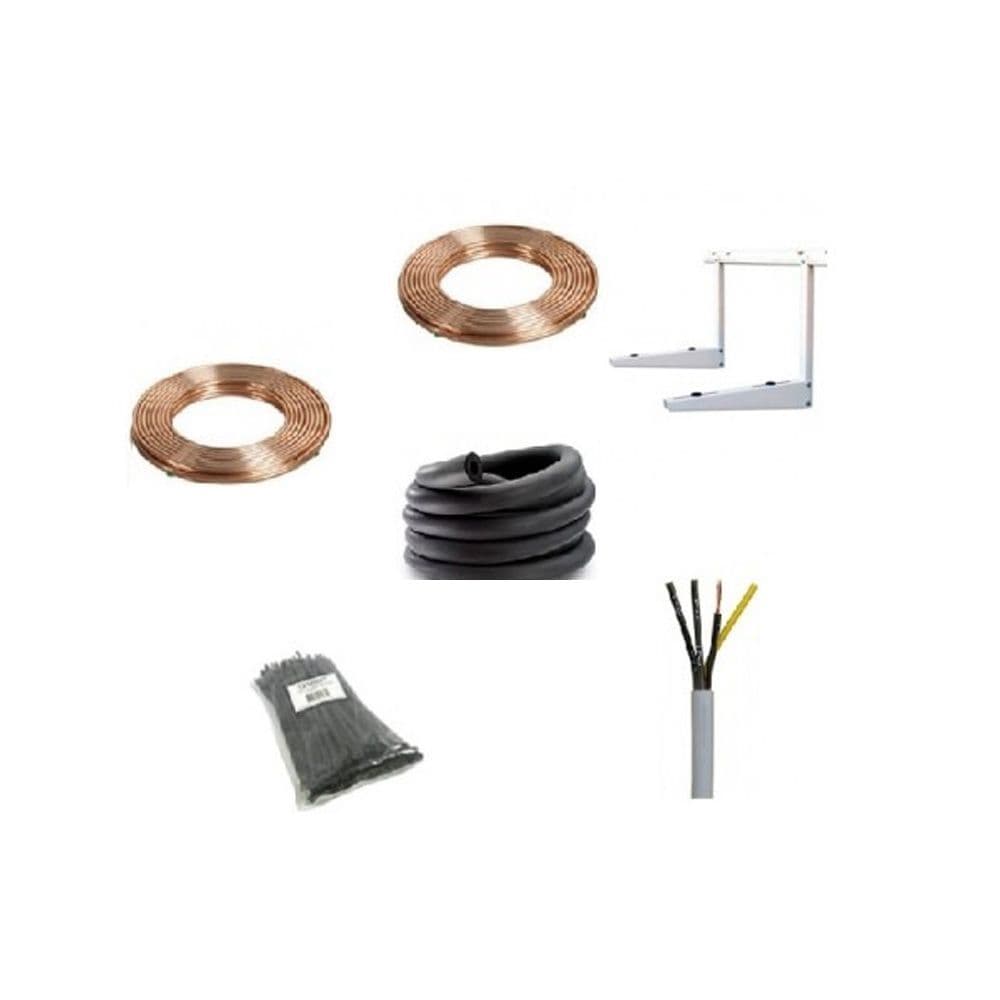

This kit includes:

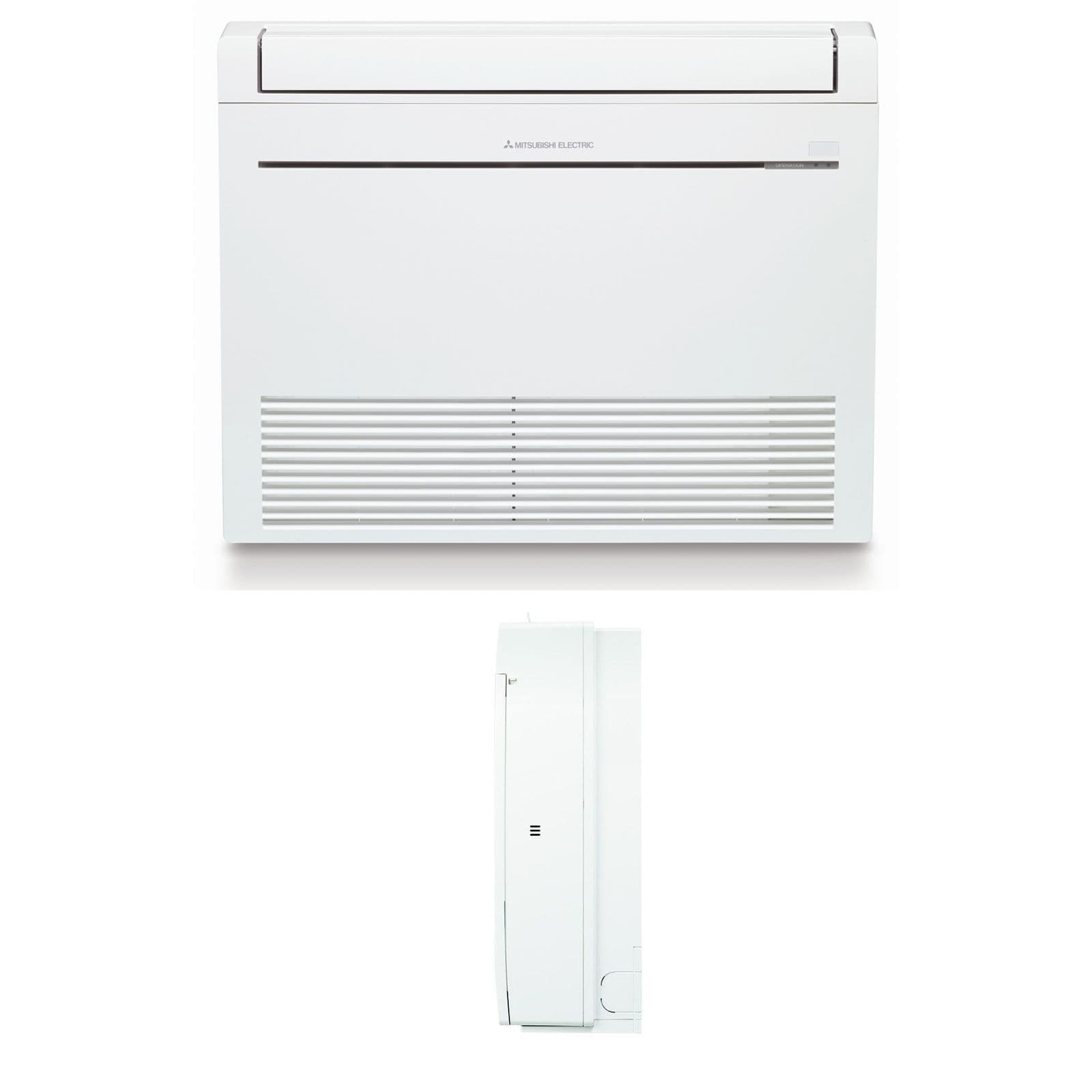

1 x MFZ-KT25VG indoor floor console unit
1 x SUZ-M25VAR2 outdoor R32 unit
1 x Remote controller
15 Meters of 1/4" & 3/8" Pipes
15 Meters of cable for interconnecting cable
15 Meters of installation for pipes
1 X Pack of cable ties
1 x Premium Wall bracket for condensing unit
The Mitsubishi Electric Air Conditioning heat pump Inverter MFZ floor mounted console unit is extremely versatile and is designed for wall attached installation at floor level. The auto swing vane provides a more natural and comfortable airflow throughout the room and the lightweight, compact design makes installation easy. High C.O.P of 4.03. The Mitsubishi Electric MFZ floor mounted console gives high performance from a compact unit. At only 600mm high, it will fit under most windows making it ideal for residential and light commercial applications. The indoor unit design provides easier cleaning. The unit is a slim-line construction 750 x 215 x 600. To aid control and energy saving, the controller has an inbuilt 7 day time-clock.
Product Key Feature's:
• Advanced technology control
• Infra-red controller with wall mounting bracket
• Super compact construction mm - 750 x 215 x 600
• Pipe runs up to 20 metres
• Low noise – 19dBA on low
• Back-up switch for loss of controller
• Cold draft prevention on heat pump start up
• Fault diagnosis
• Auto re-start after power interruption
• PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length
|
MFZ-KT - INDOOR UNITS
|
MFZ-KT25VG
|
|
CAPACITY (kW) Heating (nominal)
|
3.4 (1.3-4.2)
|
|
Cooling (nominal)
|
2.5 (1.6-3.2)
|
|
Heating (UK)
|
2.79 (1.07-3.44)
|
|
Cooling (UK)
|
2.45 (1.57-3.14)
|
|
SHF (nominal)
|
0.79
|
|
COP / EER (nominal)
|
3.74 / 4.03
|
|
SCOP / SEER (BS EN14825)
|
4.2 / 6.5
|
|
ErP ENERGY EFFICIENCY CLASS Heating/Cooling
|
A+ / A++
|
|
AIRFLOW (l/s) Heating - Silent-Lo-Mi-Hi-SHi
|
58-67-93-122-162
|
|
Cooling - Silent-Lo-Mi-Hi-SHi
|
65-80-108-130-148
|
|
PIPE SIZE mm (in) Gas
|
9.52 (3/8”)
|
|
Liquid
|
6.35 (1/4”)
|
|
SOUND PRESSURE LEVEL (dBA) Heating/Cooling - Silent-Lo-Mi-Hi-SHi
|
19-23-30-37-44 / 19-24-31-37-41
|
|
SOUND POWER LEVEL (dBA)
|
54
|
|

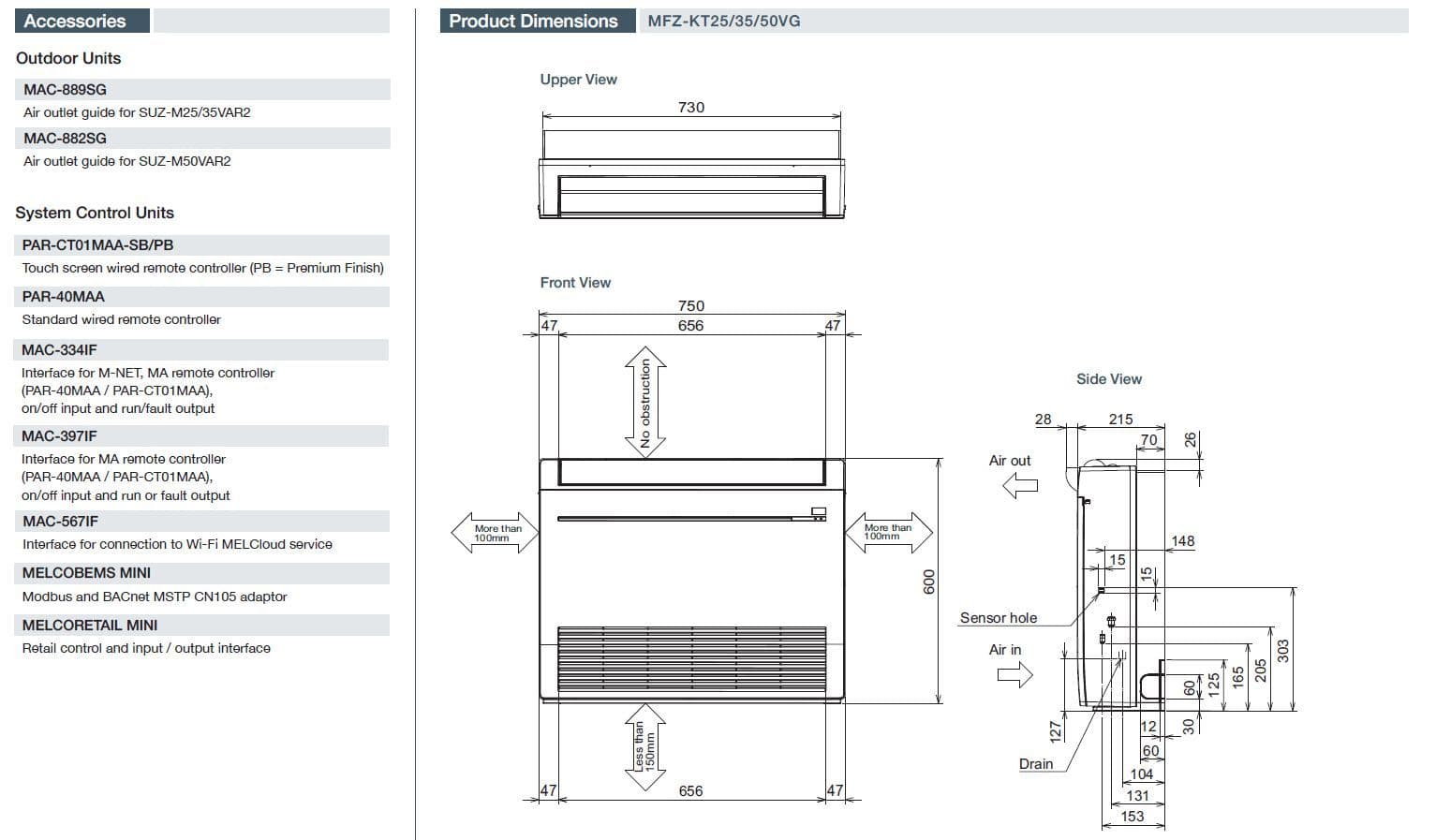

DImENSIONS (mm) Width x Depth x Height
|
750 x 215 x 600
|
|
WEIGHT (kg)
|
14.5
|
|
ELECTRICAL SUPPLY
|
Fed by Outdoor Unit
|
|
FUSE RATING (BS88) – HRC (A)
|
6
|
|
INTERCONNECTING CABLE No. CORES
|
4
|
|
SUZ-M - OUTDOOR UNITS
|
SUZ-M25VAR2
|
|
SOUND PRESSURE LEVEL (dBA) Heating/Cooling
|
46 / 45
|
|
SOUND POWER LEVEL (dBA) Cooling
|
59
|
|
WEIGHT (kg)
|
30
|
|

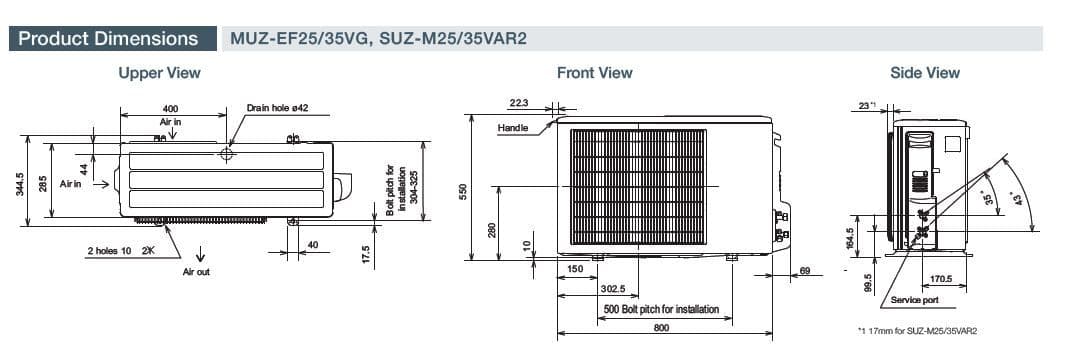

DImENSIONS (mm) Width x Depth x Height
|
800 x 285 x 550
|
|
ELECTRICAL SUPPLY
|
220-240V, 50Hz
|
|
PHASE
|
Single
|
|
SYSTEm POWER INPUT (kW) Heating/Cooling (nominal)
Heating/Cooling (UK)
|
0.80 / 0.71
0.68 / 0.61
|
|
STARTING CURRENT (A)
|
3.7
|
|
SYSTEm RUNNING CURRENT (A) Heating/Cooling [MAX]
|
3.7 / 3.0 [6.8]
|
|
FUSE RATING (BS88) – HRC (A)
|
10
|
|
mAINS CABLE No. CORES
|
3
|
|
mAX PIPE LENGTH (m)
|
20
|
|
mAX HEIGHT DIFFERENCE (m)
|
12
|
|
CHARGE REFRIGERANT (kG) / CO2 EQUIVALENT (T) - R32 (GWP 675) - 7M
|
0.65 / 0.44
|
|
mAX ADDITIONAL REFRIGERANT (kG) / CO2 EQUIVALENT (T) - R32 (GWP 675)
|
0.26 / 0.18
|
PDF Data:
Accessories:
Outdoor Units:
MAC-889SG Air outlet guide for SUZ-m25/35VAR2
MAC-882SG Air outlet guide for SUZ-m50VAR2
System Control Units:
PAR-CT01MAA-SB/PB: Touch screen wired remote controller (PB = Premium Finish)
PAR-40MAA: Standard wired remote controller
MAC-334IF: Interface for m-NET, mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run/fault output
MAC-397IF: Interface for mA remote controller (PAR-40mAA / PAR-CT01mAA), on/off input and run or fault output
MAC-567IF: Interface for connection to Wi-Fi mELCloud service
MELCOBEMS MINI: modbus and BACnet mSTP CN105 adaptor
MELCORETAIL MINI: Retail control and input / output interface
Installation Manual
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
