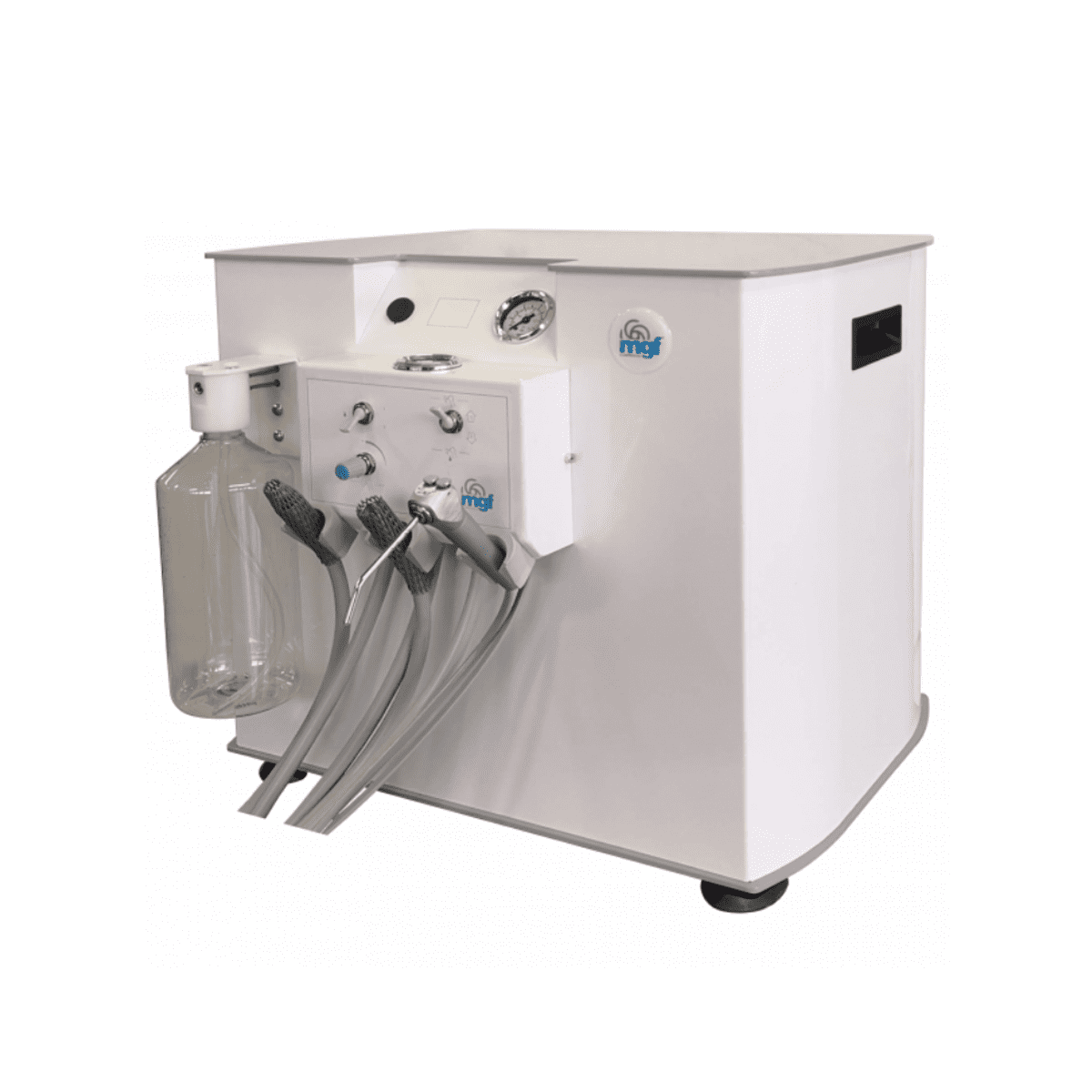

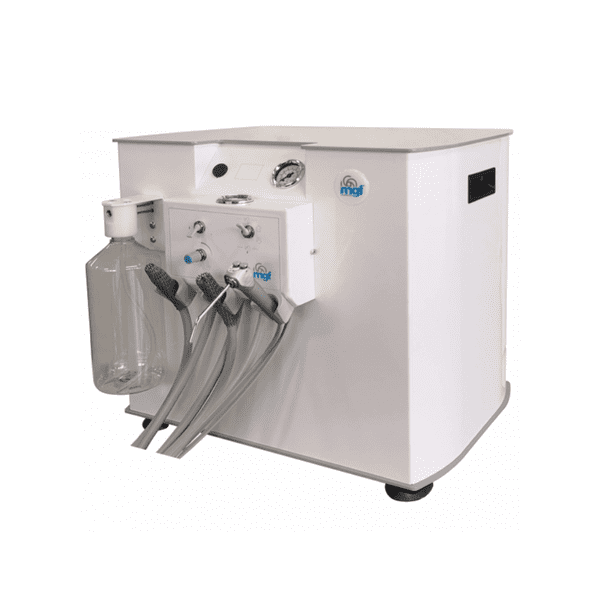

MINI HELPADENT STATICM-S-OF100-003-SXH Veterinary Air Compressor Oil Free 3L Receiver 1.9CFM 240V~50Hz
This range of MGF air compressors are designed for veterinary applications offering a super light portable compressor, oil-free compressor technology with 50 lt/min air delivery at 5 bar and a tank capacity of 3 litres. This range come complete with double turbine midwest connection and air/water syringe plus a 1 litre water bottle. This dedication to quality and innovation allows MGF air compressors to deliver the value, reliability, convenience and efficiency.
Super light portable compressor: - oil-free compressor with 50 lt/min air delivery at 5 bar - tank capacity 3 lt., material: stainless steel - light and portable: 16 Kg - complete with double turbine midwest connection and air/water syringe - provided with 1 lt. water bottle
Key Features:
- Compact Design
- Highly Portable
- Super light compressor
- Double turbine midwest connection
- air/water syringe

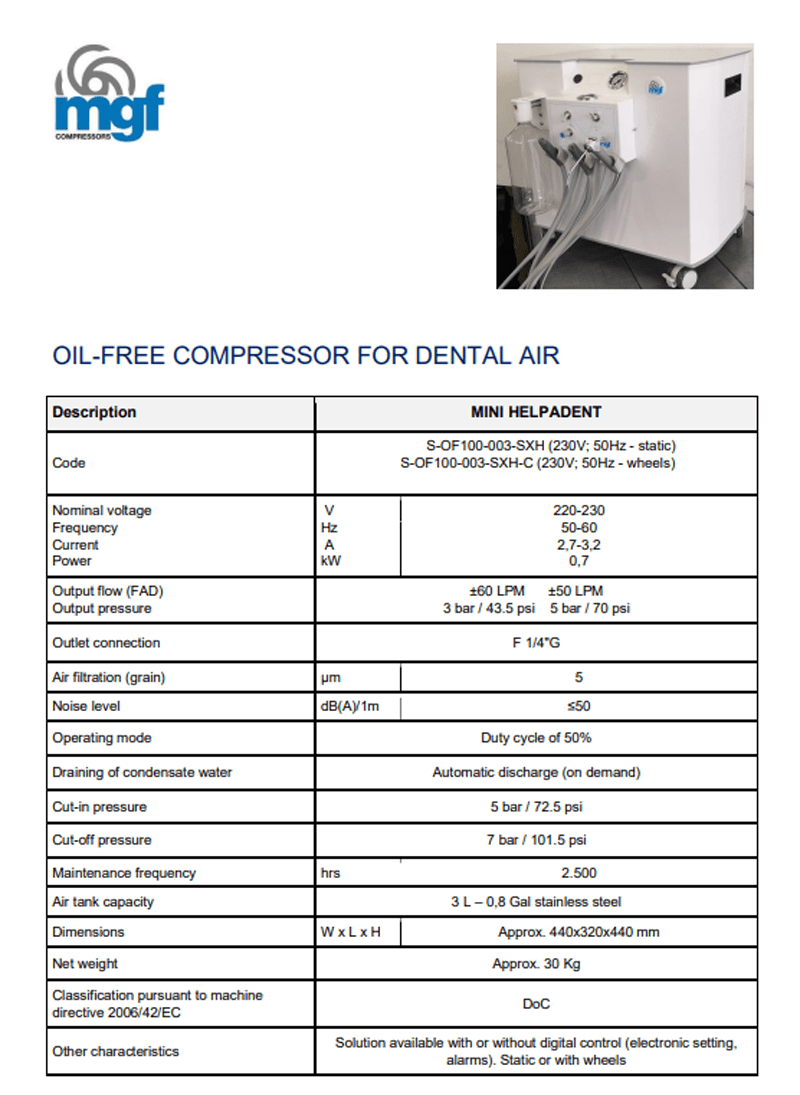

Specification:
|
Description
|
MINI HELPADENT
|
|
Code
|
S-OF100-003-SXH-C (230V; 50Hz - Static)
|
|
Nominal voltage
|
V 220-230
|
|
Frequency
|
Hz 50-60
|
|
Current
|
A 2,7-3,2
|
|
Power
|
kW 0,7
|
|
Output flow (FAD) Output pressure
|
±60 LPM ±50 LPM
3 bar / 43.5 psi 5 bar / 70 psi
|
|
Outlet connection
|
F 1/4"G
|
|
Air filtration (grain)
|
µm 5
|
|
Noise level
|
dB(A)/1m ≤50
|
|
Operating mode
|
Duty cycle of 50%
|
|
Draining of condensate water
|
Automatic discharge (on demand)
|
|
Cut-in pressure
|
5 bar / 72.5 psi
|
|
Cut-off pressure
|
7 bar / 101.5 psi
|
|
Maintenance frequency
|
hrs 2.500
|
|
Air tank capacity
|
3 L – 0,8 Gal stainless steel
|
|
Dimensions
|
W x L x H Approx. 440x320x440 mm
|
|
Net weight
|
Approx. 30 Kg
|
|
Classification pursuant to machine directive 2006/42/EC
|
DoC
|
|
Other characteristics
|
Solution available with or without digital control (electronic setting, alarms). Static or with wheels
|
