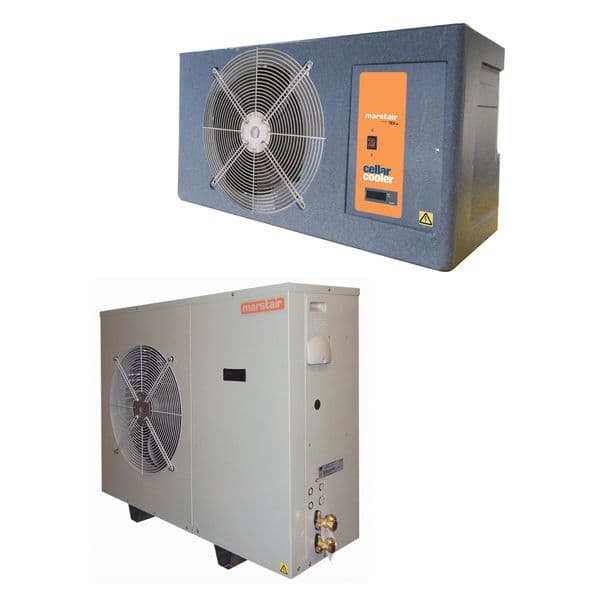

A complete cellar cooling system for beer chilling and other beverage chilling applications. Suitable for extending the life of perishable goods, such as chocolates, flowers, wine cellars and beer chilling. 1 year manufactures warranty. Robust construction. The innovative CX(E) Cellarator split system is designed to help the licensed trade maintain a cooled environment more effectively than ever before. With its revolutionary one piece molded body, impregnated with an anti-bacterial additive, the CX(E) is ideal for cellar cooling, food preparation areas and any areas requiring controlled temperatures down to 4°C. The Cellarator provides consistent temperature control with economy, ease of maintenance, flexible positioning, hygiene, safety and reliability.

Includes:

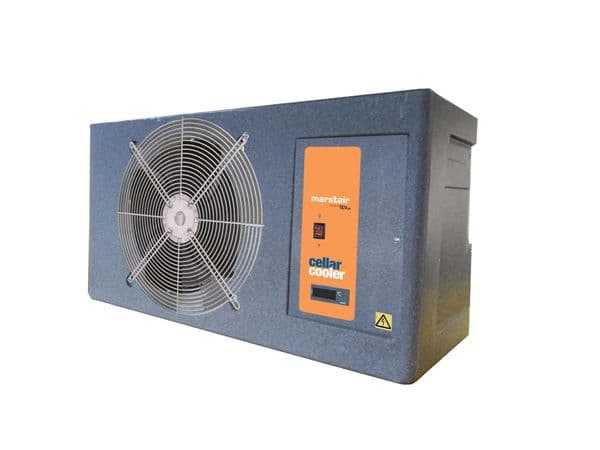

1 x CXE70 INDOOR UNIT

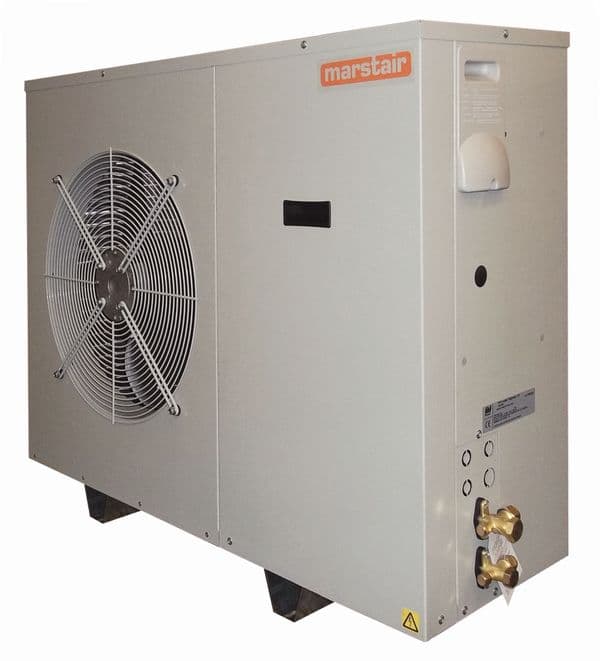

1 x CKC60 OUTDOOR UNIT

Key Product Features:


• 6 fins per inch, as per brewery specification.
• Moulded LMDPE plastic casing.
• The unit controls temperatures down to 4 degrees C.
• Casing incorporates an anti-bacterial additive.
• Optional heater kit available.
• Light weight unit (23kg indoor unit)
• Outdoor unit charged with dry nitrogen.
• Mounting brackets are provided for quick and simple wall or ceiling mounting indoor unit.
• Maximum 80mtr pipe run.
• Single phase power supply (20amp).
• Pipe sizes 5/8" and 1/2".

Technical spec:

CKC60 - 700mm x 870mm x 360mm - 62kg
CX(E)70 -  467mm x 845mm x 320mm
Guide to Cooling Duty at 8°C and 12.7°C @ Ambient 27°C

CX(E)70 / CKC60

TD (kW)    SD (kW)    SHR    TD (kW)    SD (kW)    SHR    Suction    Liquid
     4.58        3.05         0.67      5.70          3.80         0.67      5/8”        1/2”
