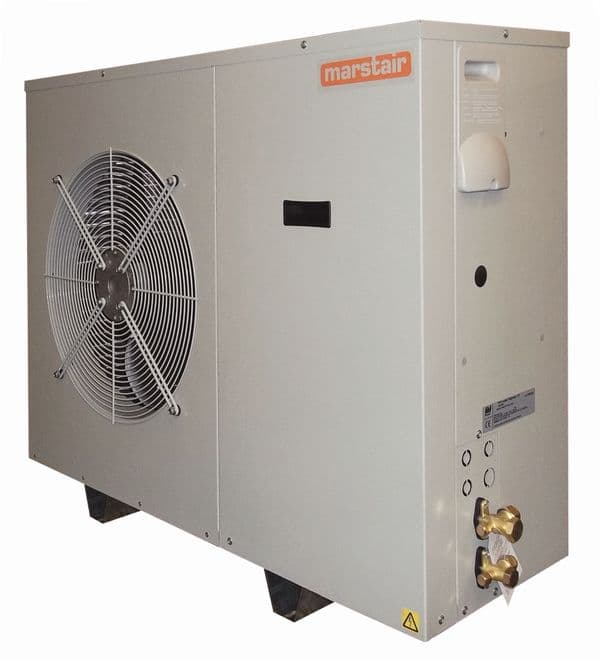

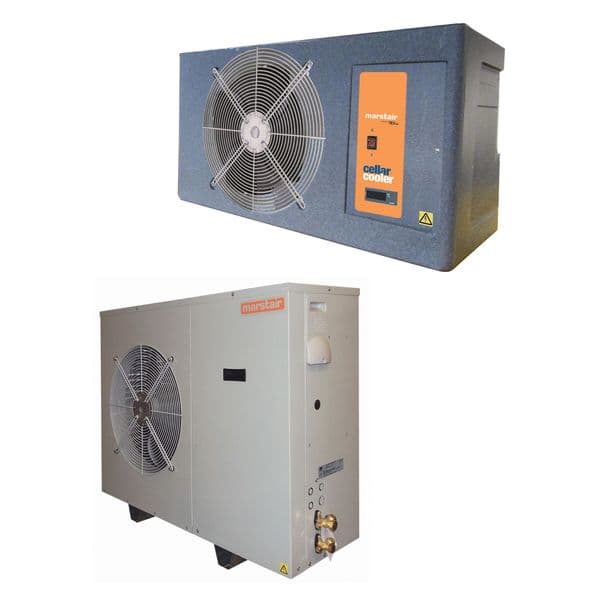

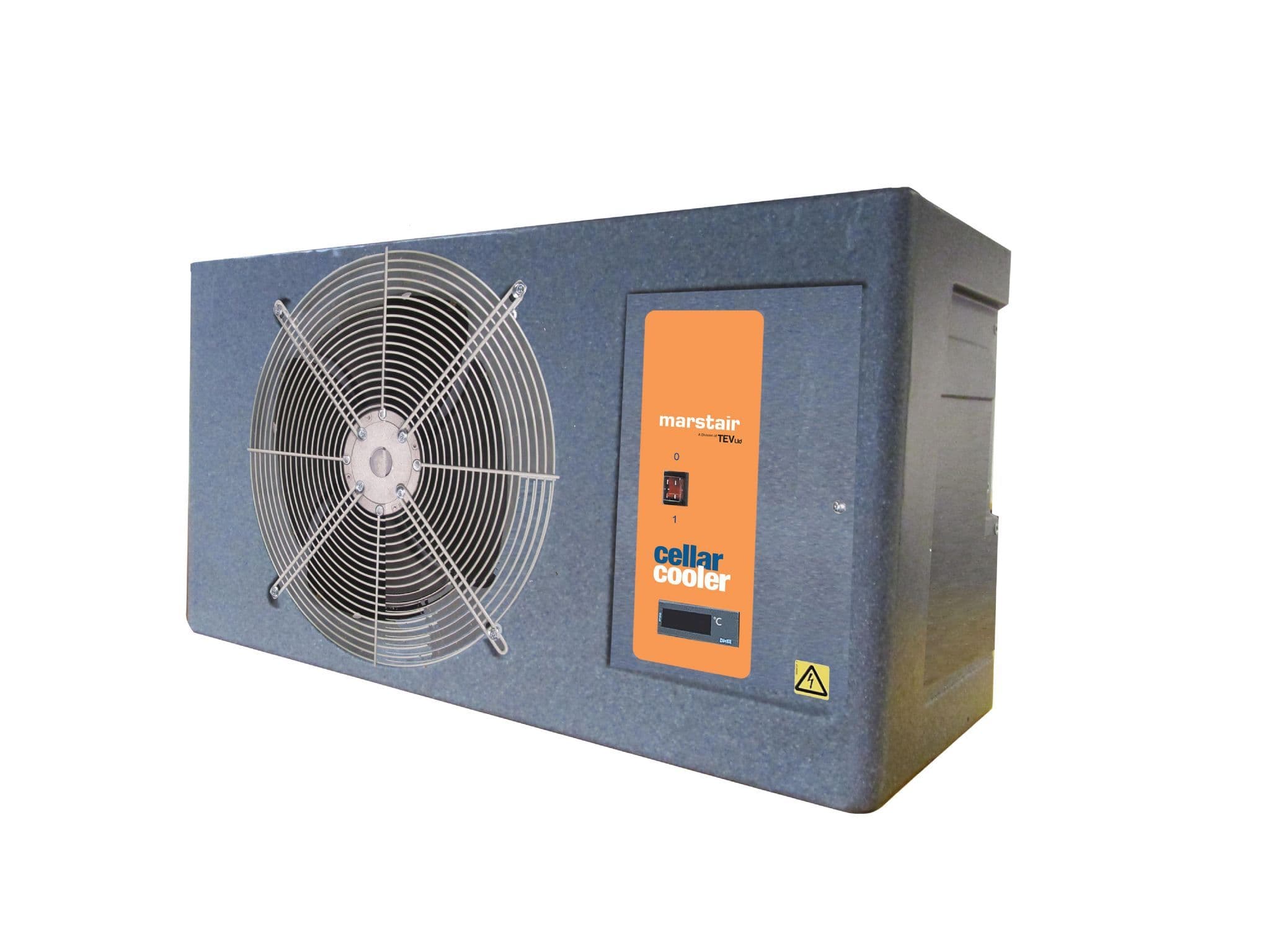

Beer Cellar Coldroom Refrigeration Home / Commercial Refrigeration / Beer Cellar Coldroom Refrigeration / Marstair Cellarator CXA50/CKA35 Cellar Cooling Complete System 3.25Kw/11000Btu 240V~50Hz Marstair Cellarator CXA50/CKA35 Cellar Cooling Complete System 3.25Kw/11000Btu 240V~50Hz Marstair Cellarator CXA50/CKA35 Cellar Cooling Complete System 3.25Kw/11000Btu 240V~50Hz £2,588.65 £2,157.21 (ex. VAT) Stock Status: In Stock Information Reviews Marstair low cost R410a cellar cooling, the Marstair CXA indoor units matched with CKA outdoor units using R410a refrigerant offers an effective low cost alternative for your cellar cooling requirements. These units are based on the same high specification indoor units as the successful CX/CKC range. Key Product Features: lp Switch 3 minute timer Random start Thermal Expansion valve Electromechanical control Designed with a high impact resistant molded polymer cabinet impregnated with an anti-bacterial additive to help prevent mold growth 6 fins-per-inch brewery specification heat exchanger Rounded corners, mounting brackets suitable for both wall and ceiling mounting and a waterproof power switch Direct access to the electrics at the front of the unit ABS drain tray incorporating standard 22mm OD fitting drain stub Up to 15m pipe runs Easy to install field fit electric heater kit with factory fit option Air throws to suit all application Outdoor unit pre charged with R410a refrigerant Technical Specification: SYSTEM DUTY @ 12.7°C 27°C AMBIENT DUTY @ 12.7°C 35°C AMBIENT DUTY @ 8°C 27°C AMBIENT SYSTEM CONNECTIONS CXA30/CKA35 TD: 2.28KW TD: 2.20KW TD: 1.79KW 1/2" SUCTION SD: 1.98KW SD: 1.77KW SD: 1.69KW 3/8” EXPANSION INPUT: 1.17KW INPUT: 1.30KW INPUT: 1.15KW CXA50/CKA35 TD: 3.25KW TD: 2.83KW TD: 3.06KW 1/2" SUCTION SD: 2.48KW SD: 2.15KW SD: 2.36KW 3/8” EXPANSION INPUT: 1.19KW INPUT: 1.25KW INPUT: 1.15KW CXA50/CKA50 TD: 4.25KW TD: 3.50KW TD: 3.44KW 1/2" SUCTION SD: 2.90KW SD: 2.45KW SD: 2.40KW 3/8” EXPANSION INPUT: 1.62KW INPUT: 1.60KW INPUT: 1.51KW Approximate Guide to Cellar Sizing in m3 at 27°C Ambient: SYSTEM ABOVE GROUND CELLAR IN CUBIC METRES BELOW GROUND CELLAR IN CUBIC METRES CXA30/CKA35 @8°C 20 25 CXA30/CKA35 @12.7°C 26 31 CXA30/CKA50 @8°C 25 31 CXA0/CKA50 @12.7°C 30 39 CXA50/CKA50 @8°C 30 46 CXA50/CKA50 @12.7°C 42 57 PDF Data Sheet: Not yet reviewed Write an online review and share your thoughts with other shoppers! Be the first to review this product Related Products 15 Meter Refrigeration / Air Conditioning 21G Copper Coil 3/8" £43.33 £36.11 (ex. VAT) 15 Meter Refrigeration / Air Conditioning 21G Copper Coil 1/2" £75.21 £62.68 (ex. VAT) 15 Meter Refrigeration / Air Conditioning 20G Copper Coil 5/8" £92.53 £77.11 (ex. VAT) Marstair Cellarator CXA50 Cellar Cooling Complete System 4.25Kw/8000Btu 240V~50Hz £3,365.20 £2,804.33 (ex. VAT) Marstair Cellarator CXA70 + CKA70 Cellar Cooling Complete System 6.8Kw/23200Btu 240V~50Hz £3,885.36 £3,237.80 (ex. VAT) 100 Meter Roll Flex Cable 4 Core 1.5mm £257.37 £214.48 (ex. VAT) 2 meter length Insulation "Refrigeration and Air Conditioning Grade £5.99 £4.99 (ex. VAT) Copper Pipe Insulation Tape 15Mx50mmx3mm £41.77 £34.81 (ex. VAT)
