Characteristic
|
Value
|
| Type |
MT |
| Weight |
|

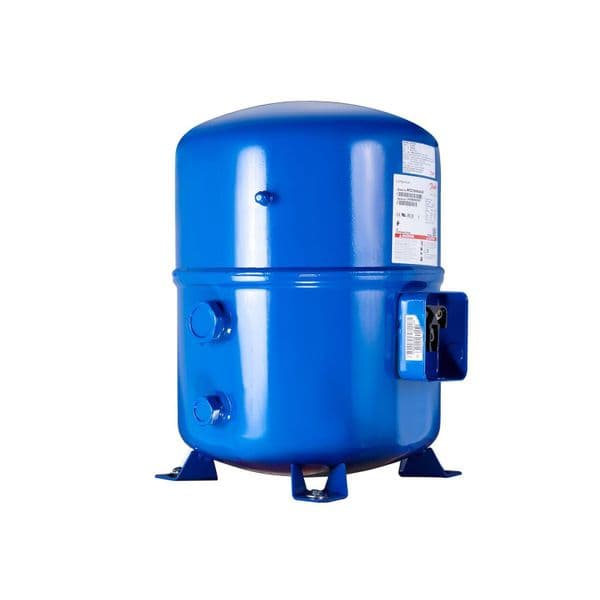

| 01. Model number (on compressor nameplate) |
MT22JC1T |
| 02. Suction connection |
1-1/4" Rotolock |
| 03. Discharge connection |
1" Rotolock |
| 04. Suction connection with supplied sleeve |
5/8" ODF |
| 05. Discharge connection with supplied sleeve |
1/2" ODF |
| 06. Oil sight glass |
None |
| 07. Oil equalisation connection |
None |
| 08. Oil drain connection |
None |
| 09. LP gauge port |
Schrader |
| 10. Internal pressure relief valve |
30 bar / 8 bar |
| 11. Cylinders |
- |
| 12. Swept volume |
38.1 cm3/rev |
| 13. Displacement at 50 Hz |
- |
| 14. Displacement at 60 Hz |
8.0 m3/h |
| 15. Nominal speed at 50 Hz |
- |
| 16. Nominal speed at 60 Hz |
3600 rpm |
| 17. Nominal voltage at 50 Hz |
- |
| 18. Nominal voltage at 60 Hz |
208-230V/1/50Hz |
| 19. Voltage range at 50 Hz |
- |
| 20. Voltage range at 60 Hz |
187-253 V |
| 21. Winding resistance (between phases) |
- |
| 22. Winding resistance (between phases 1-2) |
- |
| 23. Winding resistance (between phases 1-3) |
- |
| 24. Winding resistance (between phases 2-3) |
- |
| 25. Main winding resistance |
1.25 Ohm |
| 26. Start winding resistance |
2.49 Ohm |
| 27. Maximum Continuous Current (MCC) |
17 A |
| 28. Maximum Must Trip current (MMT) |
- |
| 29. Locked Rotor Current (LRA) |
49.3 A |
| 30. Motor protection |
Internal overload protector |
| 31. Net weight |
21 kg |
| 32. Oil charge |
1 litre |
| 33. Oil type |
Mineral - 160P |
| 34. Approved refrigerants |
R22, R417A-160PZ |
| 35. Refrigerant charge limit |
3 kg |
| 36. Approvals (CE) |
CE certified |
| 37. Approvals (UL) |
UL certified (file SA6873) |
| 38. Approvals (CCC) |
- |
| 39. Maximum system test pressure LP side |
25 bar(g) |
| 40. Maximum system test pressure HP side |
30 bar(g) |
| 41. Maximum differential test pressure |
30 bar |
| 42. Maximum number of starts per hour |
12 |
| 43. Packaging |
Industrial pack |
| 44. Pack quantity |
12 |
| 45. Parts shipped with compressor |
- |
| 46. Parts shipped with compressor |
Mounting kit with grommets, bolts, nuts, sleeves and washers |
| 47. Parts shipped with compressor |
- |
