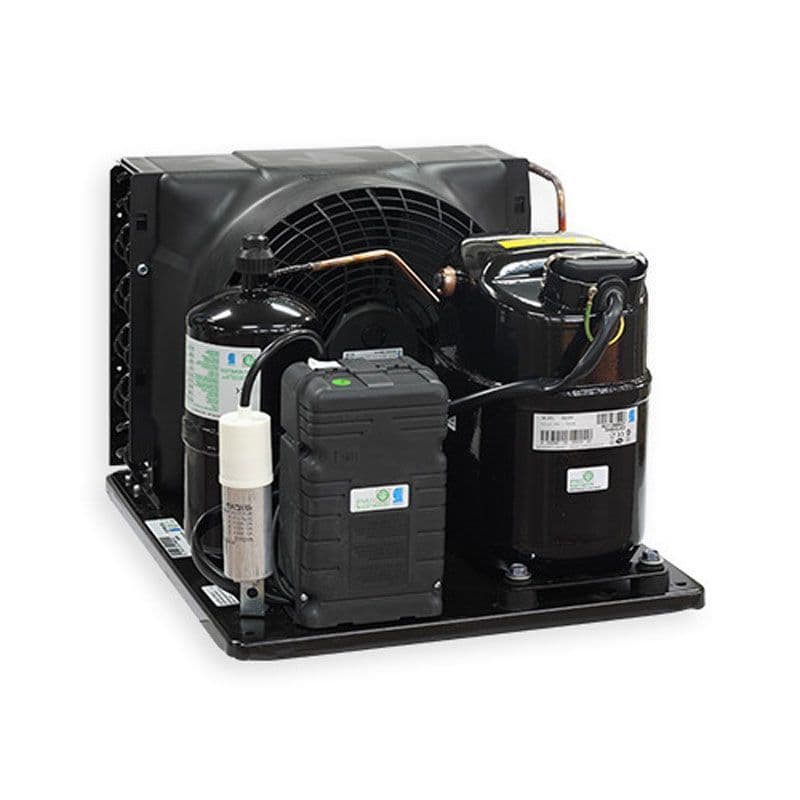

L'Unite Hermetique/Techumseh Condensing Unit R404a High Back Pressure High Start Torque - TFH4531ZHR
L'Unite Hermetique manufacture a complete range of air cooled condensing units for use on R404a, R134a and R22. The range extends from 1/2hp up to 6.1/2hp. Condensing units are available in single or three phase depending on the model.
The range is broken down into seven families relating to the "body" size of the compressor. Each one of these families offers compressors that may be used on low back pressure, medium back pressure and high back pressure applications.
There are many options available within the different family groups extending their ranges further.
Some of these options are:
Single and Twin fan units
HP/LP and crankcase heaters as standard on (T)FH and TAG units
Compressors for Parallel mounting
Valve and tube connections
HTA range of units designed for ambient temperatures up to 46 deg c
L'Unite Hermetique condensing units are supplied charged with oil and a holding charge of nitrogen.
Technical Specification:
|
Compressor
|
Details
|
Cooling capacity (W) at To
|
P abs
|
Max Betriebsstr.
|
Pipe Connections mm
|
|
0 ° C
|
-5 ° C
|
-10 ° C
|
-15 ° C
|
-20 ° C
|
-25 ° C
|
W
|
A
|
SL
|
DL
|
|
220-240V/1/50Hz expansion valve operation
|
|
AEZ 4425ZHR
|
AEZ4425ZHR
|
431
|
359
|
290
|
226
|
-
|
-
|
350
|
2.6
|
9.5
|
6.35
|
|
AEZ 4430ZHR
|
AEZ4430Z HR
|
592
|
497
|
409
|
329
|
-
|
-
|
435
|
3.3
|
9.5
|
6.35
|
|
AEZ 9440ZMHR
|
AEZ9440ZMHR
|
783
|
663
|
552
|
448
|
-
|
-
|
545
|
3.6
|
9.5
|
6.35
|
|
CAE 9450ZMHR
|
CAE9450ZMHR
|
974
|
819
|
679
|
552
|
437
|
333
|
635
|
4.5
|
9.5
|
6.35
|
|
CAE 9460ZMHR
|
CAE9460ZMHR
|
1117
|
956
|
803
|
659
|
523
|
394
|
798
|
4.7
|
9.5
|
6.35
|
|
CAE 9470ZMHR
|
CAE9470ZMHR
|
1441
|
1228
|
1030
|
847
|
677
|
520
|
947
|
4.6
|
9.5
|
6.35
|
|
CAJ 9480ZHMR
|
CAJ9480ZHMR
|
1624
|
1392
|
1176
|
975
|
791
|
619
|
1026
|
7.23
|
12.7
|
9.5
|
|
CAJ 9510ZHMR
|
CAJ9510ZHMR
|
1973
|
1691
|
1427
|
1183
|
965
|
773
|
1275
|
7.73
|
15.9
|
9.5
|
|
CAJ 9513ZMHR
|
CAJ9513ZMHR
|
2365
|
2034
|
1718
|
1417
|
1131
|
861
|
1571
|
10.7
|
15.9
|
9.5
|
|
CAJ 4517ZHR
|
CAJ4517Z HR
|
3029
|
2565
|
2134
|
1757
|
-
|
-
|
1683
|
11.5
|
15.9
|
9.5
|
|
CAJ 4519ZHR
|
CAJ4519Z HR
|
3803
|
3243
|
2731
|
2282
|
-
|
-
|
2310
|
16.4
|
15.9
|
9.5
|
|
400-440V/3/50Hz expansion valve operation, fan motor 230V/1/50Hz
|
|
TAJ 9480ZMHR
|
TAJ9480ZMHR
|
1624
|
1392
|
1176
|
975
|
791
|
619
|
1045
|
2.53
|
12.7
|
9.5
|
|
TAJ 9510ZMHR
|
TAJ9510ZMHR
|
1973
|
1691
|
1427
|
1183
|
965
|
773
|
1310
|
3.36
|
15.9
|
9.5
|
|
TAJ 9513ZMHR
|
TAJ9513ZMHR
|
2365
|
2034
|
1718
|
1417
|
1131
|
861
|
1577
|
4.31
|
15.9
|
9.5
|
|
TAJ 4517ZHR
|
TAJ4517Z HR
|
3029
|
2565
|
2134
|
1757
|
-
|
-
|
1515
|
4.38
|
15.9
|
9.5
|
|
TAJ 4519ZHR
|
TAJ4519Z HR
|
3803
|
3243
|
2731
|
2282
|
-
|
-
|
2347
|
5.23
|
15.9
|
9.5
|
|
TFH 4522ZHR
|
TFH4522Z HR
|
3787
|
3212
|
2664
|
2142
|
-
|
-
|
2313
|
5.81
|
15.9
|
9.5
|
|
TFH 4524ZHR
|
TFH4524Z HR
|
4160
|
3538
|
2951
|
2397
|
-
|
-
|
2614
|
6.72
|
15.9
|
9.5
|
|
TFH 4531ZHR
|
TFH4531Z HR
|
5990
|
5090
|
4233
|
3416
|
-
|
-
|
3334
|
9.04
|
22.2
|
12.7
|
|
TFH 4540ZHR
|
TFH4540Z HR
|
7010
|
5980
|
5016
|
4108
|
-
|
-
|
4192
|
10.1
|
22.2
|
12.7
|
