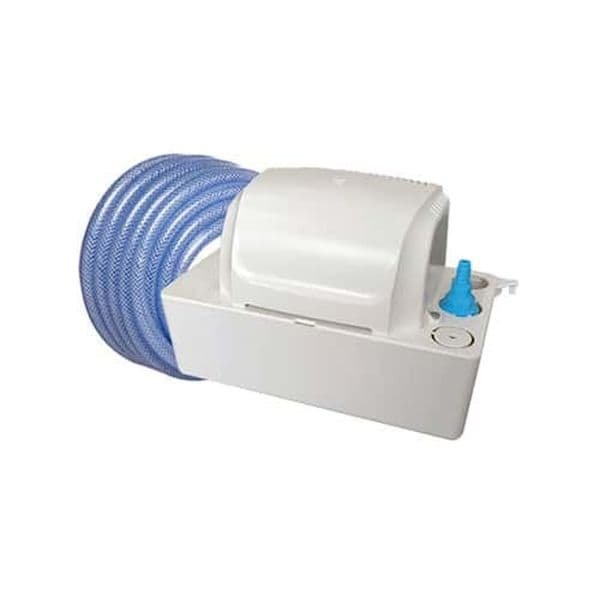

This pump is a fully automatic condensate removal system in flame retardant ABS plastic and stainless steel. It incorporates a thermal overload protection and a high level safety switch. Suitable for 2.8pH high efficiency boiler condensate, this pump is supplied with 6 metres of 3/8″ ID flexible hose and comes with an adaptor for a 22mm diameter waste pipe.
Suitable for boilers up to 200Kw.
Key Product Features:
• Typically 30 seconds run time 4-5 times per day.
• Suitable for 2.8pH boiler condensate.
• 6 metres of 3/8″ ID flexible drain hose.
• 750ml pump cycle at 7.4psi.
• High level safety switch.
• Max flow rate 294 LPH.
• Max head 5.5 metres.
Technical Data:
|
Max Flow
|
294 LPH
|
|
Max Shut Off
|
4.3 m
|
|
Discharge Size
|
3/8"
|
|
PSI
|
8.5
|
|
Watts
|
117 W
|
|
IP
|
20
|
|
Amps
|
1.6 A
|
|
Volts
|
240 V
|
|
Hz
|
50 Hz
|
|
High Level Alarm
|
Volt Free
|
|
Height
|
166 mm
|
|
Inlet Height
|
62.5 mm
|
|
Length
|
286 mm
|
|
Width
|
127 mm
|
|
Weight
|
2.4 kg
|
|
Cable Length
|
1.8 m
|
|
Model
|
Tank Capacity
|
Drink Cycle
|
On Level
|
Off level
|
Reserve Before Overflow
|
Alarm Level
|
|
PH-20STA
|
1.9 Litre
|
750 ml
|
61 mm
|
32 mm
|
640 ml
|
71 mm
|
