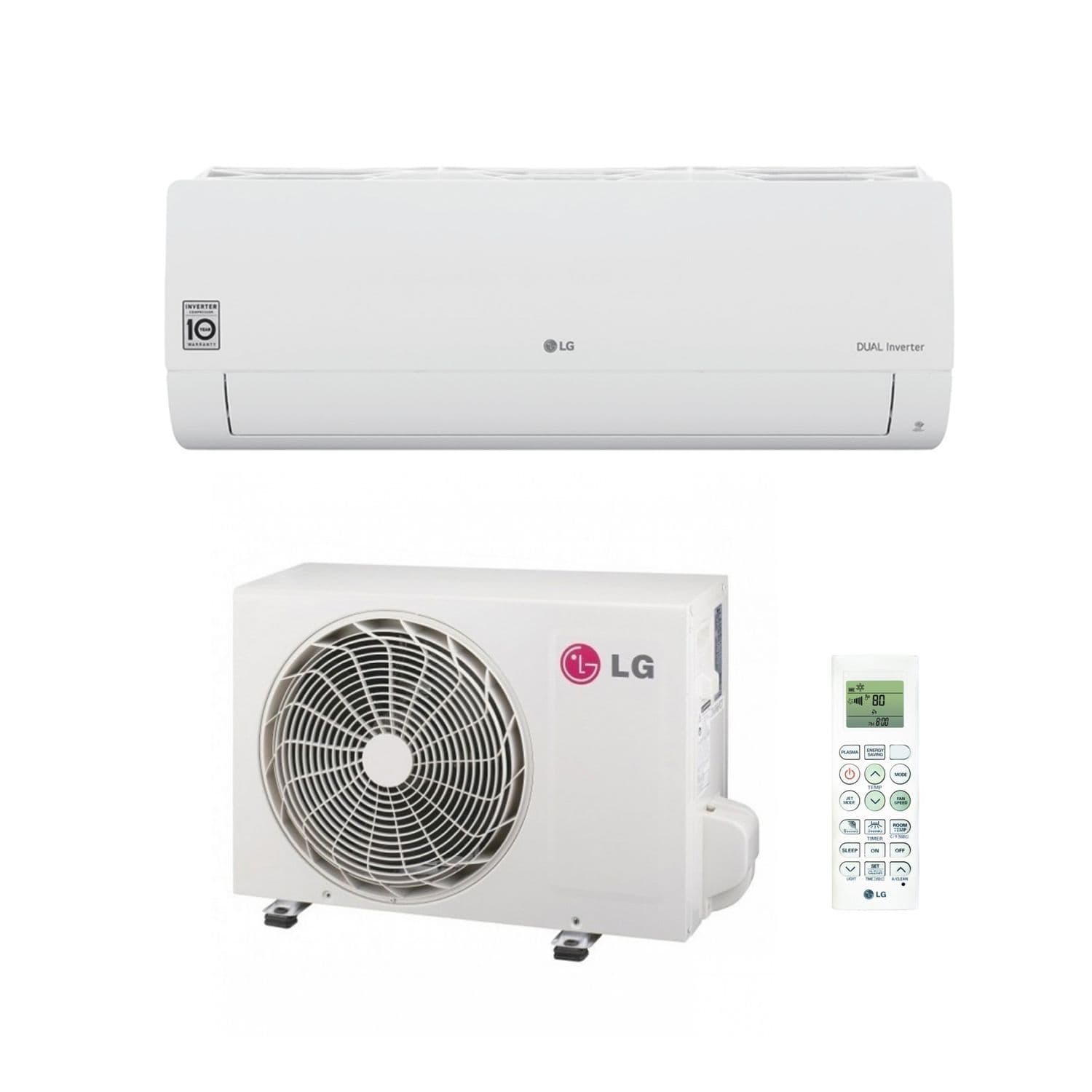

Lg Air Conditioning Standard Plus PC18SK-NSK + PC18SK-UL2 Wall Mounted Heat Pump 5Kw/18000Btu 240V~50Hz A++ Energy rated product, R32 Refrigerant
Includes:
1 of Lg Air Conditioning Standard Plus PC18SK-NSK Wall Mounted Heat Pump 5Kw/18000Btu 240V~50Hz
1 of Lg Air Conditioning PC18SK-UL2 Outdoor Unit R32
1 of Ir controller
Auto Cleaning, Active Energy Control, Wi-Fi ThinQ®

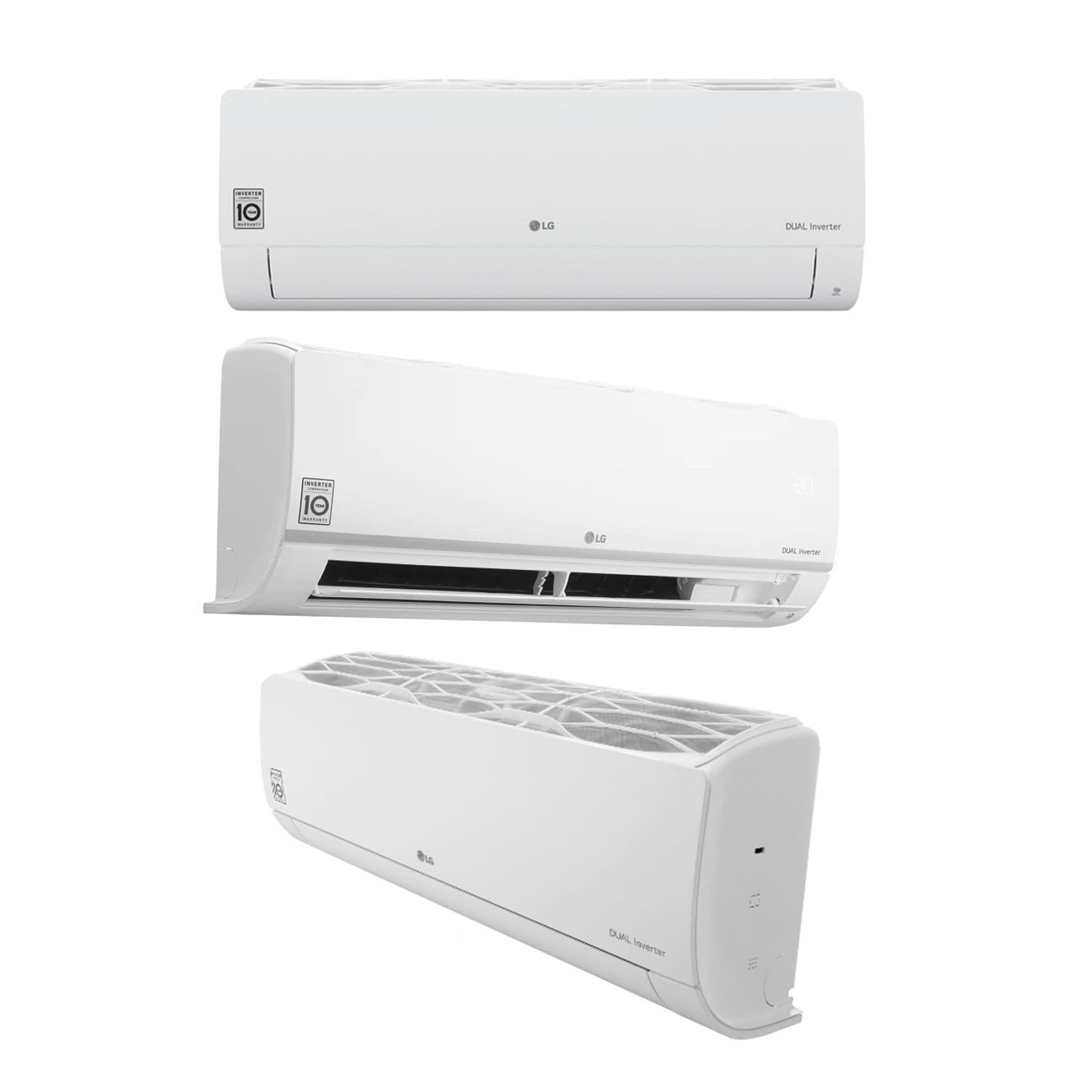

LG Standard Plus split air conditioning systems offers efficient heating and cooling, maintain the environment with LG's smart inverter heat pump technology. The indoor unit has an Auto Cleaning function, cleaning the filter with regular airflow and removing airborne particles particles, preventing bacteria, mould and odours that can otherwise accumulate in an indoor unit. The large indoor fan system enables the cool air flow to reach all areas of a room, the Standard Plus 4-way swing louvres keep the space cool and comfortable. The Fast Cooling feature provides an optimised high-speed airflow which can cool rooms faster while still delivering air evenly in every direction. The LG wall mounted units operate at 19dB low noise level – quieter than a library - yet still providing healthy soft air flow in the property. Now includes Wi-Fi as standard.
Heating / cooling and dehumidification:
Heats, cools and dehumidifies.
Quiet Operation:
The LG inverter air conditioner uses a DC Inverter compressor due to its optimized refrigeration effect, low noise and high efficiency. DC compressor are much more efficient especially at low loads compared with conventional constant speed AC comps.
Easy Quick Clean System:
With 3M micro protection filter the LG Split Systems are designed with simple cleaning in mind. The grille is completely detachable and access is made simple with the upward opening cover panel.
Healthy De humidification:
Dehumidification mode reduces uncomfortable humidity from the room without over cooling.
Jet CoolTM:
The Jet cool function allows quick cooling. In this mode, cool air is blown at high speed for 30 minutes, until the room temperature reaches 18°C.
Optimized Cooling & Heating Air Flow:
The air vanes will be adjusted according to the mode of operation. In heating mode air will be distributed at a lower angle due to hot air rising.
Even & Fast Air flow:
LG Electronics’ air conditioner improves the difference between high and low indoor temperatures. It allows you to reach your desired temperatures even faster
Chaos Swing:
The most comfortable airflow for the human body can be found in nature. After analysis, LG has applied the scientific Chaos theory to its air conditioners to effectively reproduce a natural breeze. The Chaos technology recreates the flow of natural air by controlling the angle speed and movement of the air vane. It also minimizes the temperature difference in the room, creating a more comfortably conditioned environment.
4 Way Auto Swing:
Most LG air conditioners automatically distribute the air 4-ways to eliminate hot and cold patches to keep the room at a more constant temperature.
Product Key Feature's:
• R32 Inverter DC compressor
• Wi-Fi as standard
• 3M Air Purifying System
• Anti Corrosion Gold Fin
• Auto Cleaning
• Auto Changeover
• Jet Cool/Jet Heat
• Natural Wind By CHAOS Swing
• Auto Restart
• Wireless Remote Controller (Luminous)
• Sleep Mode Auto Operation
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• One-Touch Air Filter (Anti-Bacteria)
• 24-Hour ON/OFF Setting Timer

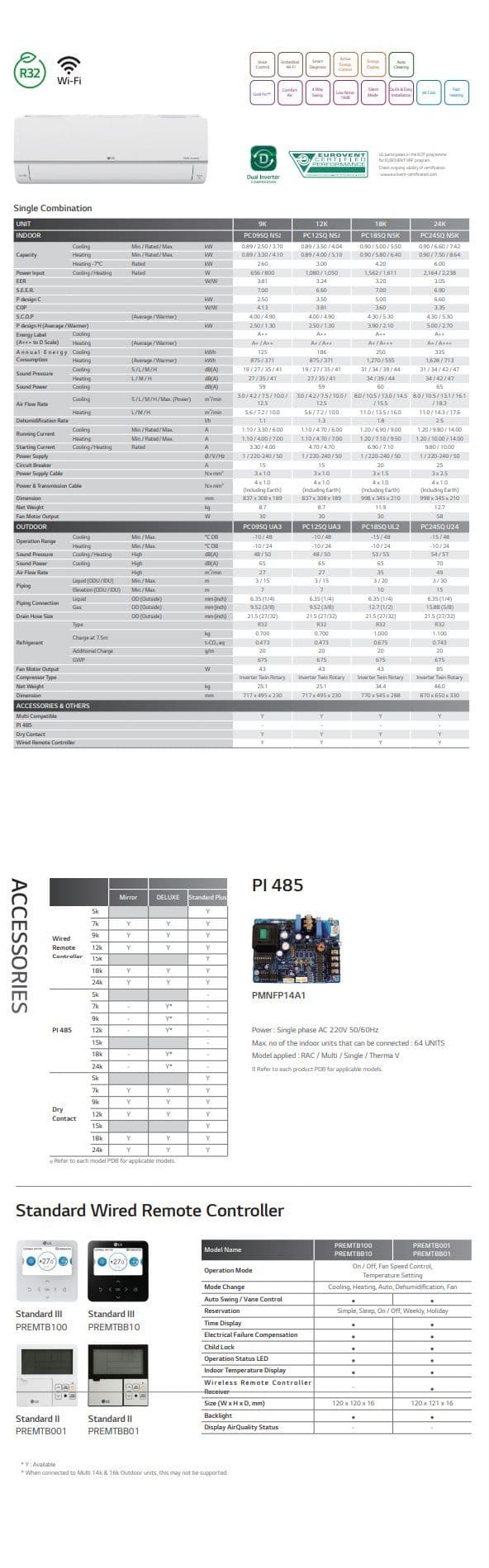

Technical Information:
Lg Air Conditioning Standard Plus PC18SK-NSK
|
UNIT INDOOR
|
18K
|
|
0.90 / 5.00 / 5.50
|
|
Capacity
|
Cooling Min. / Rated / Max. kW
|
|
Heating Min. / Rated / Max. kW
|
0.90 / 5.80 / 6.40
|
|
Heating -7°C Rated kW
|
4.20
|
|
Power Input Cooling / Heating Rated W
|
1,562 / 1,611
|
|
EER W/W
|
3.20
|
|
S.E.E.R.
|
7.00
|
|
P design C kW
|
5.00
|
|
COP W/W
|
3.60
|
|
S.C.O.P (Average / Warmer)
|
4.30 / 5.30
|
|
P design H (Average / Warmer) kW
|
3.90 / 2.10
|
|
Energy Label (A+++ to D Scale)
|
Cooling
|
A++
|
|
Heating (Average / Warmer)
|
A+ / A+++
|
|
A n n u a l E n e r g y Consumption
|
Cooling kWh
|
250
|
|
Heating (Average / Warmer) kWh
|
1,270 / 555
|
|
Sound Pressure
|
Cooling S / L / M / H dB(A)
|
31 / 34 / 39 / 44
|
|
Heating L / M / H dB(A)
|
34 / 39 / 44
|
|
Sound Power Cooling dB(A)
|
60
|
|
Air Flow Rate
|
Cooling S / L / M / H / Max. (Power) m3/min
|
8.0 / 10.5 / 13.0 / 14.5
/ 15.5
|
|
Heating L / M / H m3/min
|
11.0 / 13.5 / 16.0
|
|
Dehumidification Rate l/h
|
1.8
|
|
Running Current
|
Cooling Min. / Rated / Max. A
|
1.20 / 6.90 / 9.00
|
|
Heating Min. / Rated / Max. A
|
1.20 / 7.10 / 9.50
|
|
Starting Current Cooling / Heating Rated A
|
6.90 / 7.10
|
|
Power Supply Ø/ V/ Hz
|
1 / 220-240 / 50
|
|
Circuit Breaker A
|
20
|
|
Power Supply Cable N xmm2
|
3 x 1.5
|
|
Power & Transmission Cable N xmm2
|
4 x 1.0
(Including Earth)
|
|
Dimension mm
|
998 x 345 x 210
|
|
Net Weight kg
|
11.9
|
|
Fan Motor Output W
|
30
|
|
OUTDOOR
|
PC18SQ UL2
|
|
Operation Range
|
Cooling
|
Min. / Max.
|
°C DB
|
-15 / 48
|
|
Heating
|
Min. / Max.
|
°C DB
|
-10 / 24
|
|
Sound Pressure
|
Cooling / Heating
|
High
|
dB(A)
|
53 / 55
|
|
Sound Power
|
Cooling
|
High
|
dB(A)
|
65
|
|
Air Flow Rate
|
|
High
|
m3/min
|
35
|
|
Piping
|
Liquid (ODU / IDU)
|
Min. / Max.
|
m
|
3 / 20
|
|
Elevation (ODU / IDU)
|
Min. / Max.
|
m
|
10
|
|
Piping Connection
|
Liquid
|
OD (Outside)
|
mm (inch)
|
6.35 (1/4)
|
|
Gas
|
OD (Outside)
|
mm (inch)
|
12.7 (1/2)
|
|
Drain Hose Size
|
|
OD (Outside)
|
mm (inch)
|
21.5 (27/32)
|
|
Refrigerant
|
Type
|
|
|
R32
|
|
Charge at 7.5m
|
kg
|
1.000
|
|
t-CO2 eq
|
0.675
|
|
Additional Charge
|
|
g/m
|
20
|
|
GWP
|
|
|
675
|
|
Fan Motor Output
|
|
|
W
|
43
|
|
Compressor Type
|
|
|
|
Inverter Twin Rotary
|
|
Net Weight
|
|
|
kg
|
34.4
|
|
Dimension
|
|
|
mm
|
770 x 545 x 288
|
![]()
|
Multi Compatible
|
Y
|
Y
|
|
PI 485
|
-
|
-
|
|

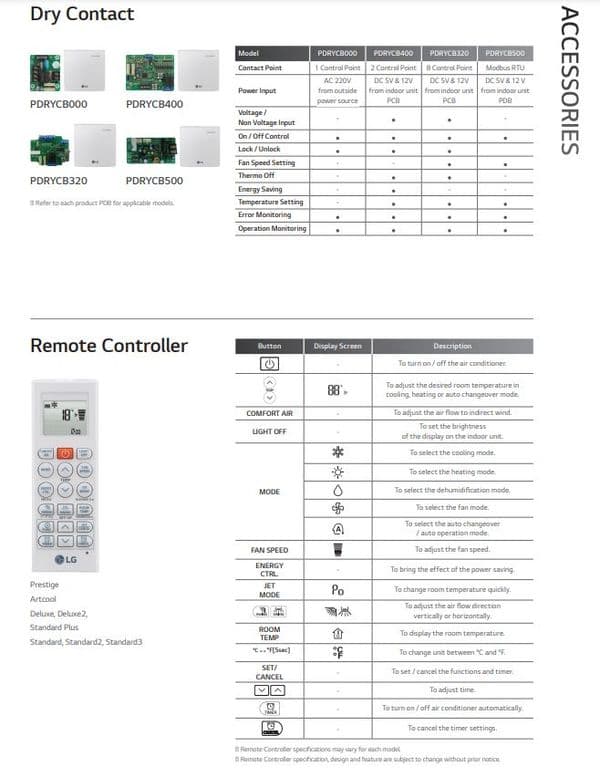

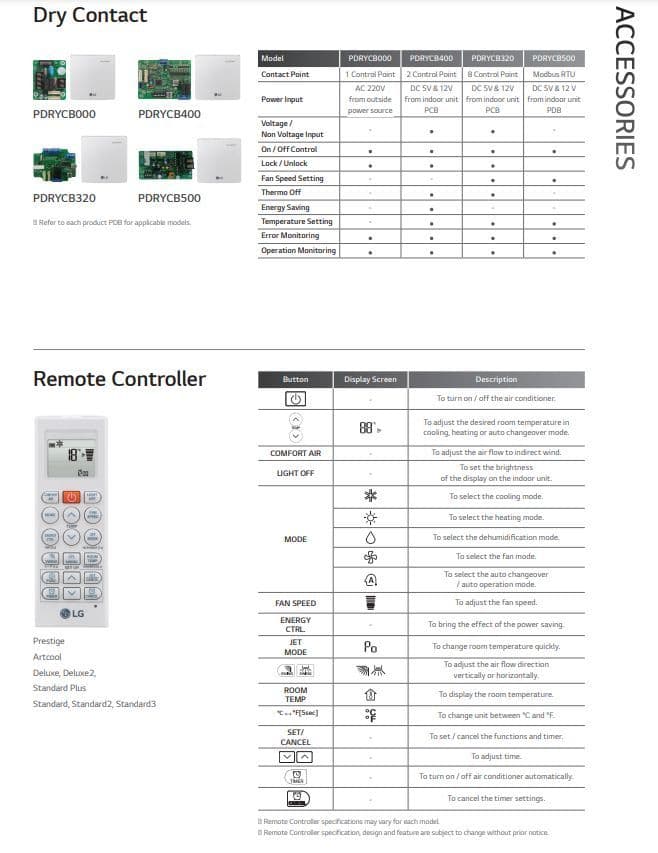

Dry Contact
|
Y
|
Y
|
|
Wired Remote Controller
|
Y
|
Y
|
Accessory parts:
PDRYCB000
PDRYCB400
PDRYCB320
PDRYCB500
