LG Air Conditioning UT60F.NA0+UUD3.U30 Standard Commercial Cassette 950X950 4-Way 15Kw/60000Btu 3Ph A+ With Fascia And Controller 415V~50Hz
Cassette Heat Pumps for Commercial And Residential Applications. Ideal for large open plan areas, or irregular shaped rooms.

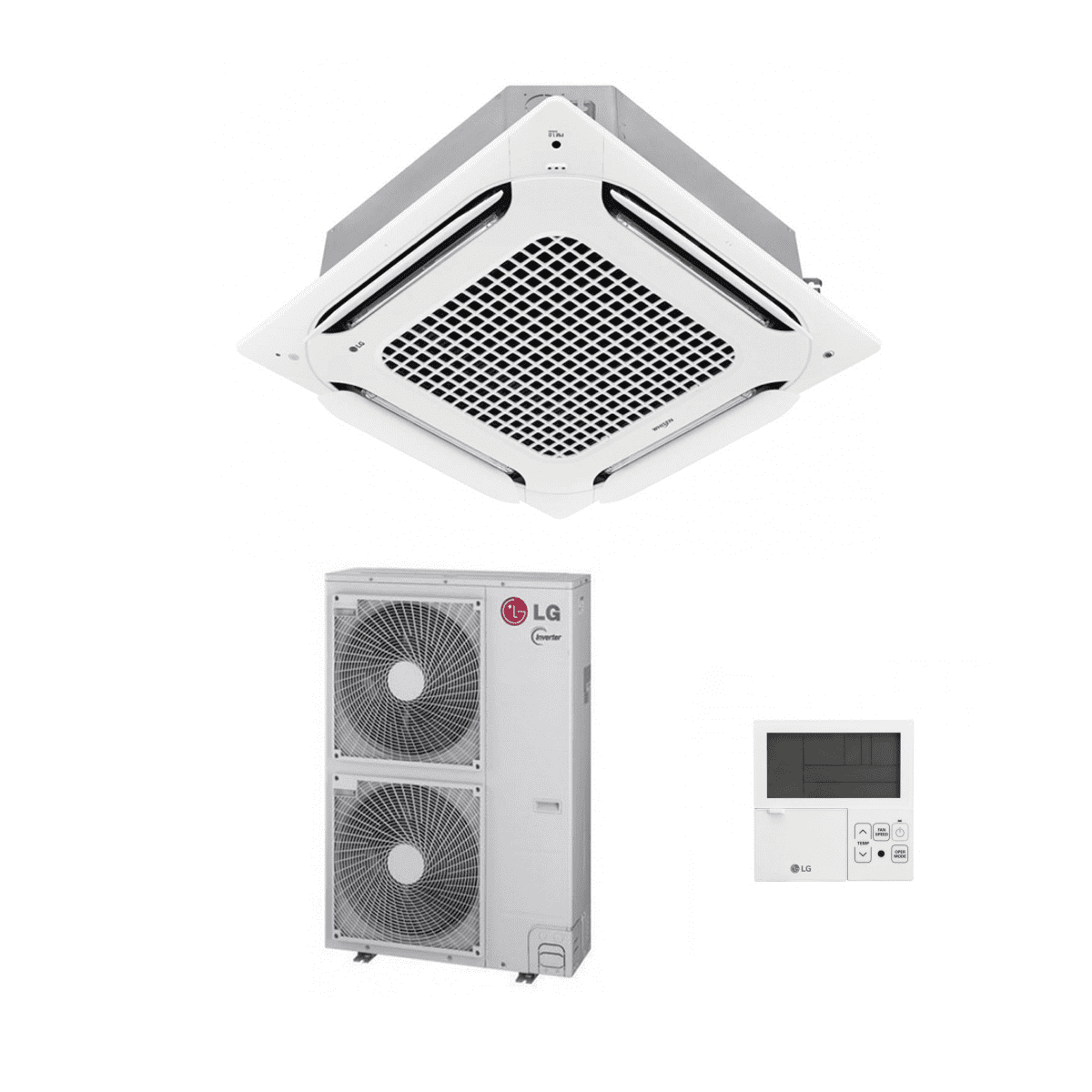

Includes:
LG Air Conditioning UT60F-NA0+UUD3.U30 Standard Commercial Cassette 950X950 4-Way 15Kw/60000Btu 3Ph
1 x PREMTA000 Premium Hard Wired Controller
1 x PT-AAGW0 Decoration Panel 950X950 4-Way
1 x LG Air Conditioning UT60F.NA0 Standard Commercial Compact Cassette 4-Way A+ 15Kw/60000Btu 220-240V~50Hz
1 x LG Air Conditioning UUD3.U30 Outdoor Condensing Unit Inverter Heat Pump 15Kw/60000Btu 415V~50Hz 3 PHASE
The Advanced Lg Cassette range has now been extended to include new small capacity systems starting at 7kW / 24000Btu. The 7-Day Programmable Timer now included in standard controls specification and 24Hr control. Lg air conditioning and heat pump high performance heat pump inverter mini cassette series split systems designed for residential and commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas.

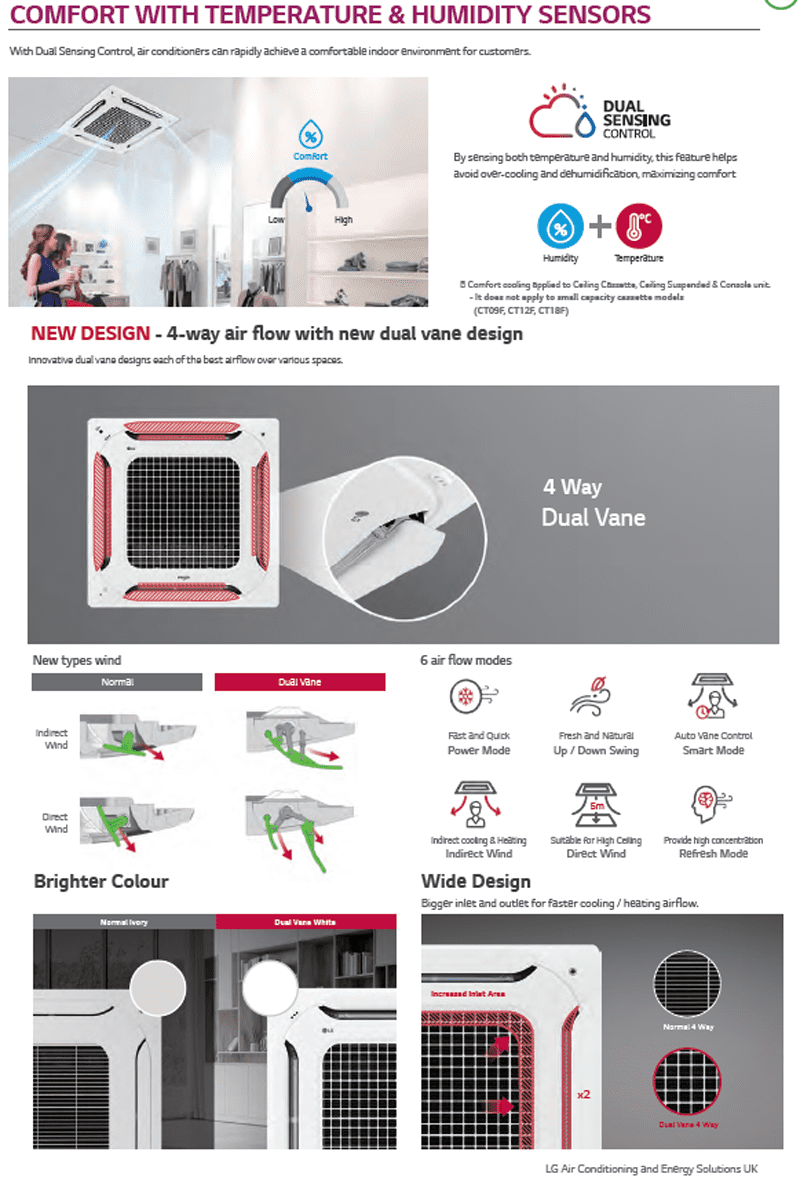

The New Cassette Design has improved air flow-pattern through the unit, and the new design of the high performance indoor heat exchanger, have resulted in a pressure loss reduction, allowing the fan design to be optimised for significantly lower sound Db levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets. In order to be able to adapt to the shape of the room to be conditioned, the Lg air conditioning compact cassette units are able to configure the air impulsion in two, three or four different directions and thus achieve uniform air conditioning. The unit can make a sweep using its deflector slats to air-condition the premises more quickly. The direction of the sweep as well as the auto swing function can be selected by using the remote control. Models with a movable rosette incorporate weekly programming control that allows on and off programming up to twice a day.
Quiet Operation: The indoor unit has quiet operational modes to offer you peaceful air treatment for your home or office. In addition, the outdoor units have drastically reduced in size, vibration and noise levels thanks to a super quiet fan motor and an innovative anti noise mechanism.
Auto Changeover: The air conditioner will switch automatically from cooling to heating modes depending on the set temperature. The air vanes adjusted according to the mode of operation. In heating mode air will be distributed at a lower angle due to hot air rising.
Product Key Feature's:
• Display Air status and Fine Dust Concentration PM2.5
• Anti Corrosion Gold Fin (Outdoor)
• Weekly Program
• Turbo Fan
• High Head Drain Pump
• Low Standby Power
• Shows quality of Indoor air in real time
• Child Lock Function
• Easy-to-Clean Air Filter
• Two Thermistor Control
• Optimal Air Distribution
• Wi-Fi
• Auto Changeover
• Auto Restart
• Auto Operation
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• 24-Hour ON/OFF Setting Timer
• Optimal air distribution with 4-way directional Air flow system.
• 4-way Auto Swing
Technical Information:
| Capacity |
Cooling |
Min ~ Rated ~ Max |
kW |
5.8 / 14.6 / 15.8 |
| Heating |
Min ~ Rated ~ Max |
kW |
6.8 / 16.9 / 18.3 |
| Power Input (Set) |
Cooling |
Min ~ Rated ~ Max |
kW |
1.00 / 5.21 / 5.84 |
| Heating |
Min ~ Rated ~ Max |
kW |
1.00 / 5.12 / 5.89 |
| Running Current |
Cooling |
Rated |
A |
8.1 |
| Heating |
Rated |
A |
7.9 |
| EER / COP |
|
|
kWh/kWh |
2.80 / 3.30 |
| SEER / SCOP |
|
|
kWh/kWh |
6.2 / 4.2 |
| Pdesign |
Cooling @ 35※ |
|
kW |
14.6 |
| Heating @ -10※ |
|
kW |
9.5 |
| Seasonal Energy Label |
Cooling / Heating |
|
- |
- / - |
| Annual Energy Consumption |
Cooling / Heating |
|
kWh |
1,413 / 3,167 |
| Dehumidification Rate |
|
|
l/h |
6.6 |
| ODU Sound Pressure Level |
Cooling / Heating |
Rated |
dB(A) |
54 / 54 |
| ODU Sound Power Level |
Cooling |
Rated |
dB(A) |
71 |
| Piping Connections |
Liquid |
|
mm (inch) |
Ø9.52 (3/8) |
| Gas |
|
mm (inch) |
Ø15.88 (5/8) |
| Connections Method |
- |
Flared |
| Operation Range (Outdoor) |
Cooling |
Min ~ Max |
※ |
-20 ~ 52 |
| Heating |
Min ~ Max |
※ |
-25 ~ 18 |
| INDOOR |
UT60F NA0 |
| Power Supply |
|
|
Ø, V, Hz |
1, 220-240, 50 |
| Power Input (IDU) |
|
H / M / L |
W |
80 / 60 / 50 |
| Air Flow Rate |
|
H / M / L |
m3/min |
30 / 27.5 / 25 |
| Dimensions |
Body |
W x H x D |
mm |
840 x 288 x 840 |
| Weight |
Body |
|
kg |
25.3 |
| Sound Pressure Level |
Cooling |
H / M / L |
dB(A) |
46 / 44 / 42 |
| Sound Power Level |
Cooling |
Max |
dB(A) |
62 Ø32.0 / 25.0 |
| Piping Connections |
Drain |
O.D. / I.D. |
mm |
|
| OUTDOOR |
UUD3 U30 |
| Power Supply |
|
|
Ø, V, Hz |
3, 380-415, 50 |
| Circuit Breaker |
|
Min |
A |
20 |
| Power Supply Cable (Included Earth) |
No x mm3 |
5C x 2.5 |
| Dimensions |
Net |
W x H x D |
mm |
950 x 1,380 x 330 |
| Weight |
Net |
|
kg |
85.0 |
| Compressor |
Type |
|
- |
Inverter Scroll |
| Refrigerant |
Type |
|
- |
R32 |
| GWP (Global Warming Potential) |
- |
675 |
| Pre-charged Amount |
kg |
3.0 |
| t-CO※eq |
|
- |
2.025 |
| Additional Charging Volume |
g/m |
40 |
| Fan |
Air Flow Rate |
Rated |
m³/min x No. |
55 x 2 |
| Total Piping Length |
|
Min / Max |
m |
5 / 85 |
| Piping Elevation |
IDU - ODU |
Max |
m |
30 |
|
CONTROLLER OPTIONS
|
MODEL REFERENCE
|
|
Premium
|
PREMTA000*
|
|
Standard
|
PREMTB001 / BB01
|
|
Standard
|
PREMTB100 / BB10
|
|
Simple
|
PQRCVCL0QW / PQRCVCL0Q
|
|
Simple - Hotel
|
PQRCHCA0QW / PQRCHCA0Q
|
|
Wireless Controller
|
PWLSSB21H
|
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
