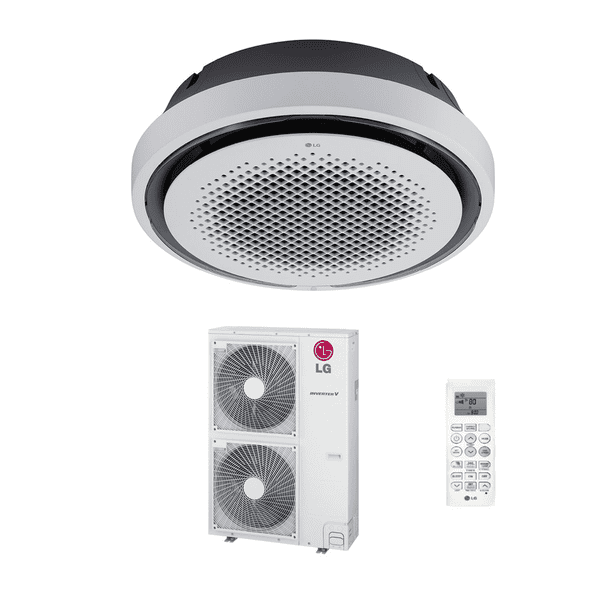

LG Air Conditioning UT36F.NY0+UUD3.U30 Standard Commercial Round Cassette 10Kw/36000Btu A+ 3Ph With Fascia And Controller 415V~50Hz

Cassette heat pumps for commercial and residential applications. Ideal for large open plan areas, or irregular shaped rooms.

Includes:

LG Air Conditioning UT36F.NY0+UUD3.U30 Standard Commercial Round Cassette 10Kw/36000Btu A+ 3Ph

1 x Ir Controller

1 x LG Air Conditioning UT36F.NY0 Standard Commercial Round Cassette 10Kw/36000Btu A+ 220-240V~50Hz

1 x LG Air Conditioning UUD3-U30 Outdoor Condensing Unit Inverter Heat Pump 10Kw/36000Btu 415V~50Hz

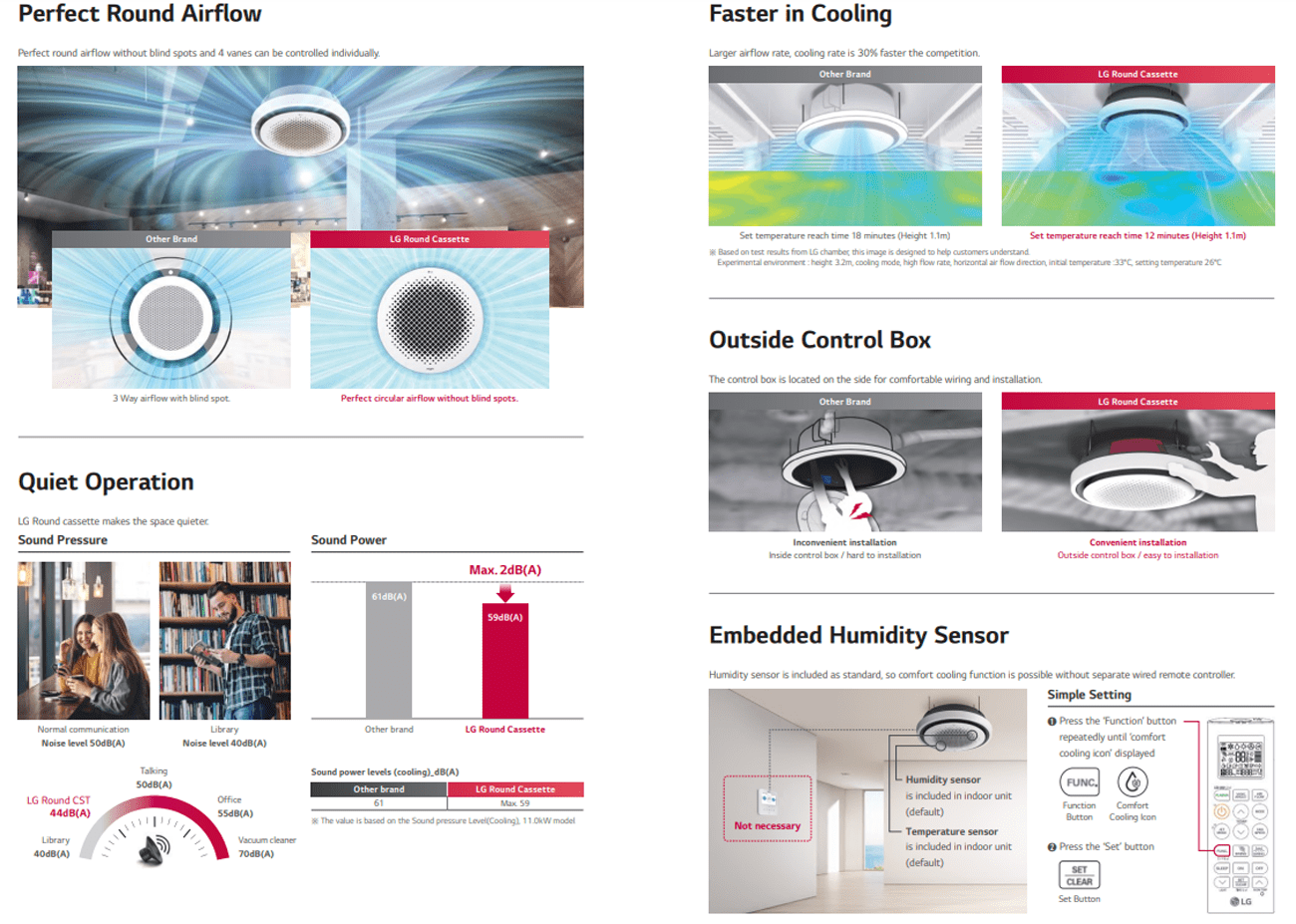

The Lg air conditioning 360 degree cassette air conditioning heat pump inverter system is an innovative circular cassette which brings a new style and performance to air conditioning. The blade construction reduces interference to give improved airflow while the circular design directs air more evenly to every corner of the room. The cassette features a stylish panel and intuitive LED display that allow users to change the air flow direction depending on preference. Users can choose from three settings including horizontal, vertical, and control individual zone air flow direction to enjoy comfortable cooling. Crystal vane allows for 6-step precision control for cool and warm airflow in every direction The circular-shaped cassette is the industries latest innovation in design for air conditioning. Humidity sensor is included as standard, so comfort cooling function is possible without separate wired remote controller

Unlike traditional 4-way cassette units, the cutting-edge design of the 360 degree cassette delivers a zero angle airflow with our patented booster fan technology. It guides the air to generate different air flow patterns and evenly distributes cool air to ensure every corner of the room is maintained at the same temperature. The air volume is maintained at 100% to deliver an optimal even cooling performance without creating cold draft. The cassette combines revolutionary performance with an elegant design which blend in and enhance any setting, offering ultimate flexibility to suit the style of any room.

Key Product Features:

• Circular design blends harmoniously into any interior design
• 360 deg airflow from circular heat exchanger distributes air evenly
• No interference from blade
• Booster fan uses pressure fan uses pressure to direct airflow
• LED display of operating modes
• Built-in condensation drain pump
• High ceiling mode for heights up to 4.6 m (12.8/14.0 kW),
• 3.9 m (11.2 kW), 3.5 m (4.5~9.0 kW).

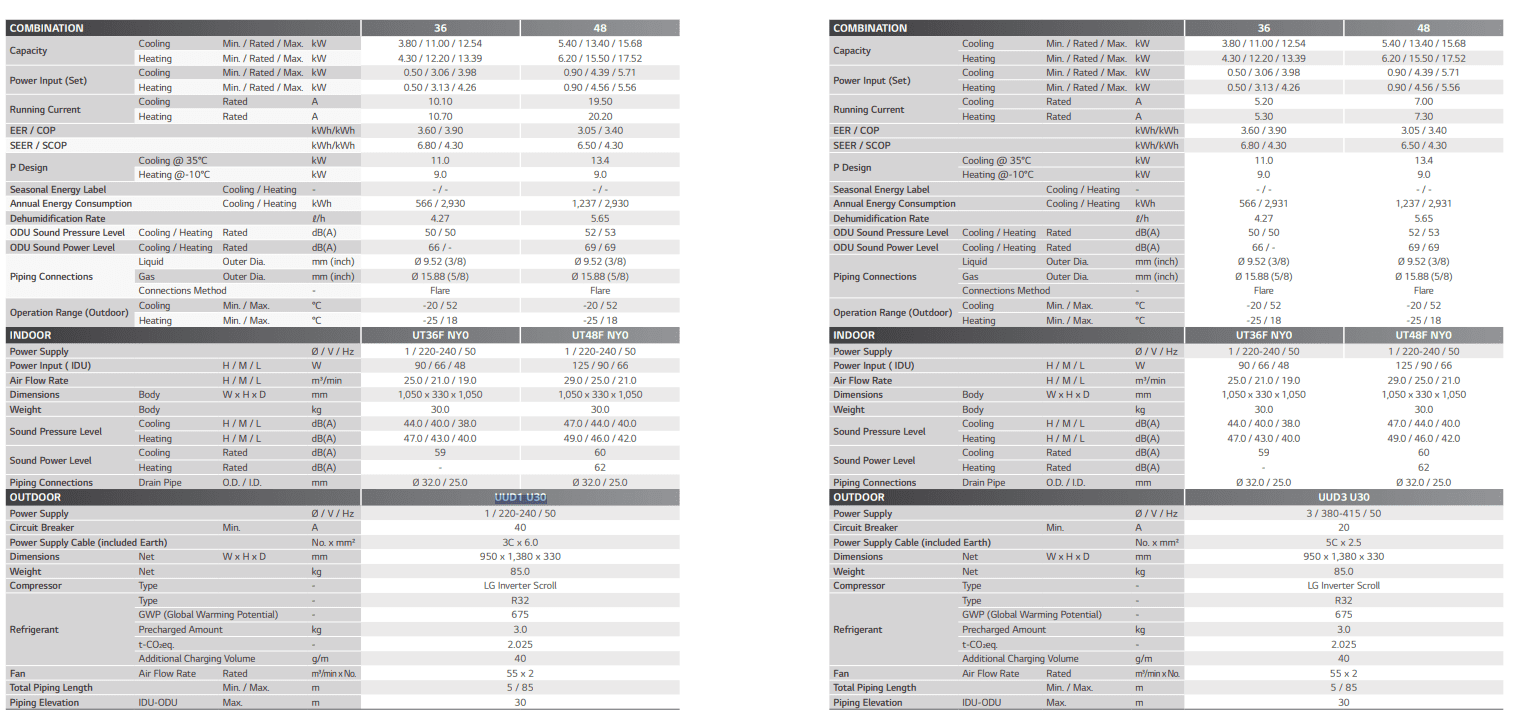

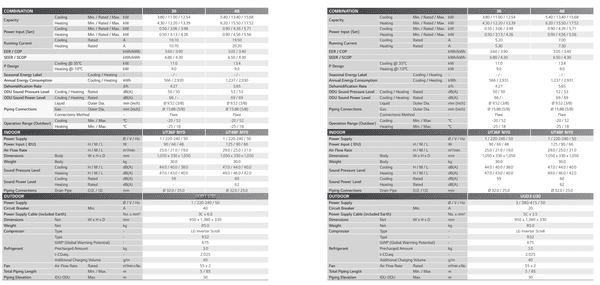

Technical Information:

INDOOR UT36F NY0
Power Supply Ø / V / Hz 1 / 220-240 / 50
Power Input ( IDU) H / M / L W 90 / 66 / 48
Air Flow Rate H / M / L m³/min 25.0 / 21.0 / 19.0
Dimensions Body W x H x D mm 1,050 x 330 x 1,050
Weight Body kg 30.0
Sound Pressure Level
Cooling H / M / L dB(A) 44.0 / 40.0 / 38.0
Heating H / M / L dB(A) 47.0 / 43.0 / 40.0
Sound Power Level
Cooling Rated dB(A) 59 60
Heating Rated dB(A) - 62
Piping Connections Drain Pipe O.D. / I.D. mm Ø 32.0 / 25.0

OUTDOOR UUD3 U30
Power Supply Ø / V / Hz 1 / 415 / 50
Circuit Breaker Min. A 20
Power Supply Cable (included Earth) No. x mm² 5C x 6.0
Dimensions Net W x H x D mm 950 x 1,380 x 330
Weight Net kg 85.0
Compressor Type - LG Inverter Scroll
Refrigerant Type - R32
GWP (Global Warming Potential) - 675
Precharged Amount kg 3.0
t-CO₂eq. - 2.025
Additional Charging Volume g/m 40
Fan Air Flow Rate Rated m³/min x No. 55 x 2
Total Piping Length Min. / Max. m 5 / 85
Piping Elevation IDU-ODU Max. m 30

These air conditioning units must be installed by an F-Gas qualified engineer.  We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service  we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
