"A" Rated Energy Product

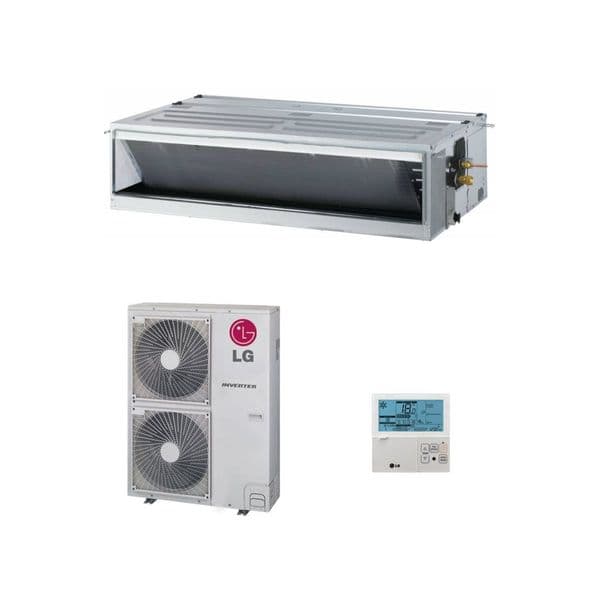

Perfect for areas where you want concealed air conditioning, the Lg air conditioning units are for applications mounted above a ceiling. The Lg ducted air conditioning system is designed for homes, offices, restaurants or shops, the unit operates at low noise levels and is virtually invisible when installed within a suspended ceiling. Its low unit height (270mm) and lightweight design also helps to make installation easier and more convenient. It's whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or commercial uses. Available in three sizes, it can be installed in a bulkhead for a different and attractive architectural finish or can be ducted within the space for total integration with the room.
Gold FinTM Anti Corrosion:
LG’s Outdoor Heat Exchanger is coated with a golden anti-corrosive epoxy treatment on the aluminum coil to minimised corrosion. This maintains heat transfer properties of the coil for an extended time where as non-Gold Fin coils progressively lose efficiency due to surface corrosion. Standard on every LG air conditioner, this assists in areas suffering from pollution or near the ocean where the unit may subjected to higher levels of salt.
Max. energy saving with MPS Inverter control:
LG MPS (Multi Power System) inverter is an energy saving air-conditioning system which uses either one or two highly efficient constant speed compressors and a DC inverter compressor.
Dehumidification mode reduces uncomfortable humidity from the room without over cooling.
The air conditioner will switch automatically from cooling to heating modes depending on the set temperature.
Super Low Power Consumption Use in Standby Mode by Adopting SMPS (Switching Mode Power Supply):
Power waste due to standby power - Power is wasted if a plug is connected to an outlet even though the appliance is turned off. Development of super power-saving SMPS (Switching Mode Power Supply) - Low standby power function reducing standby power by 90%.
Product Key Feature's:
• Anti Corrosion Gold Fin (Outdoor)
• Weekly Program
• Low Standby Power
• Central Controller (Accessory)
• Child Lock Function
• Two Thermistor Control
• Optimal Air Distribution
• Auto Restart
• Auto Operation
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• 24-Hour ON/OFF Setting Timer
Nominal Capacity Cooling kW - 10
Capacity (UK) Cooling kW - 10
Nominal Capacity (T1) Heating kW - 11.2
Power Supply to Unit V/Phase/Hz - 240/1/50
Power supply to - outdoor
Inter connecting Cables - 4*15
cores and rating No. Amps 5/20
Running Current Cooling Amps - 11.5
Running Current Heating Amps - 11.3
Power Input Cooling kW - 2.69
Power Input Heating kW - 4.2
Start Current Cooling Amps - <11.5
Start Current Heating Amps - <11.5
Circuit Breaker Amps - 40
T1 EER Cool (W/W) - 3.02
T1 COP Heat (W/W) - 3.41
ECA compliant - yes
Air Circulation Indoor - (m3/min) - 39
(High Speed) Outdoor - (m3/min) - 58
Sound Levels Indoor - dB(A)+/-3 (at 1.0m) - 39
(High Speed) Outdoor - dB(A)+/-3 (at 1.0m) - 52
Indoor Units WxHxD (mm) - 1250 x 270 x 700
Outdoor Units WxHxD (mm) - 950 x 1170 x 330
Indoor Units (Kg) - 35
Outdoor Units (Kg) - 81
Liquid (Inch) - 3/8
Suction (Inch) - 5/8
Drain (ID) (mm) - 16
Maximum Elevation (m) - 30
Max. Distance between In & Out (m) - 75
Factory charge (Kg) - 3.6
Charged for — m (m) - 7.5
Additional g/m (g/m) - 40
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
