A+ Energy rated product

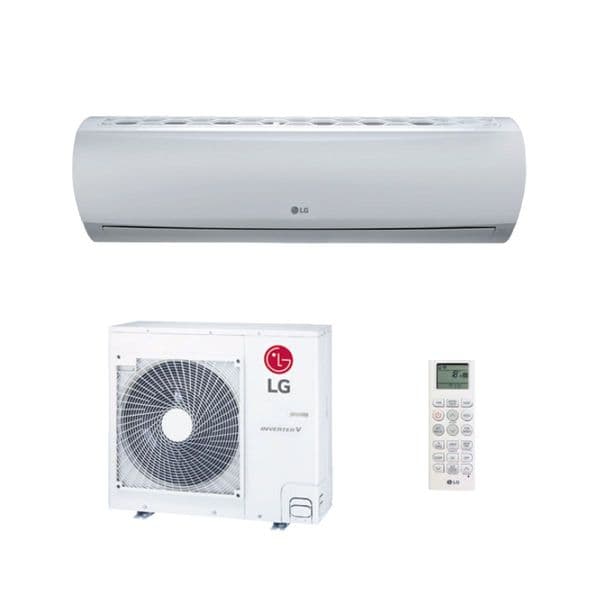

Includes:
1 x UJ36R.NR0 10Kw Wall Mounted R32 Indoor unit
1 x UJ36R.NR0 10Kw R32 Outdoor unit 415V~50Hz
1 x IR remote control
The commercial wall mount unit is an ideal solution for server rooms and kitchens alike. Available in 8kW and 10kW capacity the wall mounted unit has a seasonal energy efficiency of 6.1 (A++) and 5.4 respectively (A) and a seasonal coefficient of performance of 3.9 (A) and 3.8 (A). Powerful cooling and heating with a 20m airflow, the wall mount unit has a 6 step vertical vane adjustment for optimised airflow.
UU36WR and UU37WR outdoor models utilises the LG designed and manufactured R1 Compressor the world’s first “shaft-through” hybrid scroll-shaped compressor. Taking the best elements of scroll- and rotary-type compressors, the R1-scroll offers unrivalled performance and efficiency and allows for a marked improvement in operational range. LG’s innovative technology eliminates the tilting motion of the scroll, minimising energy waste and increasing overall reliability.
The Jet cool feature disperses air evenly at high speed to secure an optimally cooled or heated room in just 3 minutes.
Product Key Feature's:
• R32 Refrigerant
• Inverter DC compressor
• 3M Air Purifying System
• Anti Corrosion Fins
• Jet Cool/Jet Heat
• Auto Restart
• Wireless Remote Controller (Luminous)
• Sleep Mode Auto Operation
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• One-Touch Air Filter (Anti-Bacteria)
• 24-Hour ON/OFF Setting Timer
Technical Information:
|
INDOOR
|
UJ36R.NR0
|
|
Capacity
|
Cooling
|
Min / Nom / Max
|
kW
|
3.8 / 9.5 / 10.6
|
|
Heating
|
Min / Nom / Max
|
kW
|
4.0 / 10.8 / 11.4
|
|
Power Input (Indoor)
|
Cooling/Heating
|
Nom
|
W
|
3.06 / 3.00
|
|
Running Current
|
Cooling/Heating
|
Nom
|
A
|
13.60 / 13.30
|
|
Power Supply
|
|
|
Ø / V / Hz
|
1 / 220-240 / 50
|
|
EER
|
|
|
|
3.1
|
|
COP
|
|
|
|
3.6
|
|
SEER
|
|
|
|
6.40
|
|
SCOP
|
|
|
|
4.10
|
|
Seasonal Energy Label
|
Cooling / Heating
|
A++ / A
|
|
Annual Energy Consumption
|
Cooling / Heating
|
kWh
|
520 / 1,980
|
|
Piping Connection
|
Liquid
|
mm (inch)
|
Ø9.52 (3/8)
|
|
Gas
|
mm (inch)
|
Ø15.88 (5/8)
|
|
Drain
|
O.D. / I.D.
|
mm
|
21.5 / 16.0
|
|
Air Flow Rate
|
|
High / Medium / Low
|
m³/min
|
27.0 / 24.0 / 20.0
|
|
Sound Pressure
|
Cooling
|
High / Medium / Low
|
dBA
|
51 / 46 / 42
|
|
Sound Power
|
Cooling
|
Max
|
dBA
|
66
|
|
Dehumidification Rate
|
|
|
l/h
|
|
|
Dimensions
|
Body
|
W x H x D
|
mm
|
1,200 x 360 x 265
|
|
Net Weight
|
Body
|
kg
|
18
|
|
Model Outdoor
|
UU37WR.U30
|
|
Power Supply V , Ø , Hz
|
380-415 , 3 , 50
|
|
Power Factor Rated -
|
0.98
|
|
Power Supply Cable (included Earth) No. x mm²
|
5C x 2.5
|
|
Casing Color -
|
Warm Gray
|
|
Dimensions Net W x H x D mm
|
950 x 1,380 x 330
|
|
Weight Net kg
|
87.5
|
|
Compressor Type -
|
LG Inverter Scroll
|
|
Refrigerant
|
Type -
|
R32
|
|
GWP (Global Warming Potential) g
|
675
|
|
Precharged Amount -
|
3,000
|
|
t-CO2 eq -
|
2.025
|
|
Control m
|
Electronic Expansion Valve
|
|
Chargeless-Pipe Length g/m
|
7.5
|
|
Additional Charging Volume -
|
40
|
|
Heat Exchanger (Row x Column x FPI) x No. -
|
(2 x 32 x 14) x 2
|
|
Fan
|
Type -
|
Propeller
|
|
Air Flow Rate Rated m³/min x No.
|
55 x 2
|
|
Fan Motor
|
Type -
|
BLDC
|
|
Output W x No.
|
124 x 2
|
|
Sound Pressure Level
|
Cooling Rated dB(A)
|
52
|
|
Heating Rated dB(A)
|
54
|
|
Sound Power Level
|
Cooling Rated dB(A)
|
66
|
|
Heating Rated dB(A)
|
70
|
|
Piping Connections
|
Liquid Outer Dia. mm (inch)
|
Ø 9.52(3/8)
|
|
Gas Outer Dia. mm (inch)
|
Ø 15.88 (5/8)
|
|
Piping Length Min~Max m
|
5-85
|
|
Maximum Height Difference (ODU ~ IDU)
|
Max. m
|
30
|
