Lg Air Conditioning Wall Mounted Heat Pump Inverter

Lg Air Conditioning UJ30NV2 Wall Mounted Heat Pump Inverter 8Kw/30000Btu A++ R32 240V~50Hz

Lg Air Conditioning UJ30NV2 Wall Mounted Heat Pump Inverter 8Kw/30000Btu A++ R32 240V~50Hz

£1,615.98 £1,346.65 (ex. VAT)
Stock Status: In Stock







A++ Energy rated product

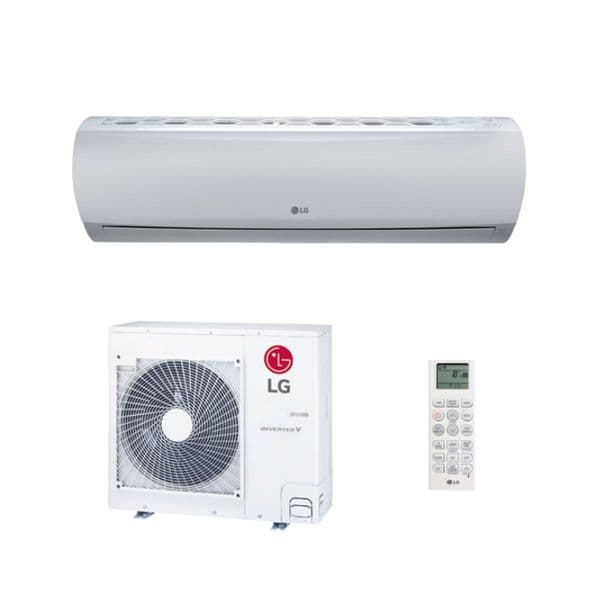

Includes:

1 x UJ30R.NR0 8Kw Wall Mounted R32 Indoor unit
1 x UU30WR.U30 8Kw R32 Outdoor unit
1 x IR remote control

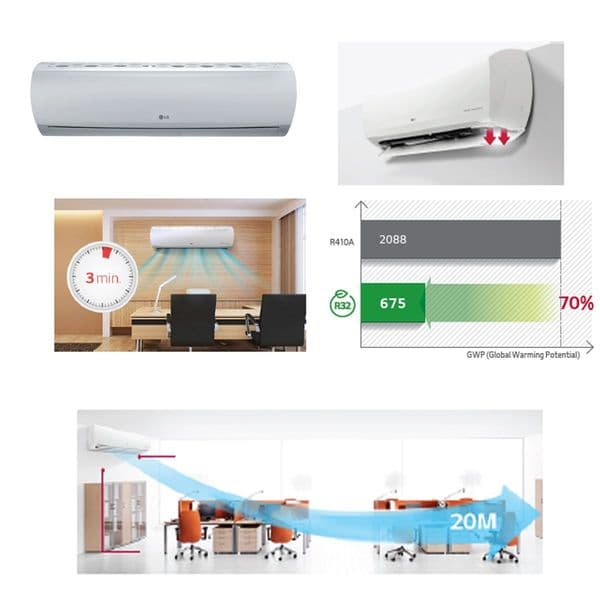

The commercial wall mount unit is an ideal solution for server rooms and kitchens alike. Available in 8kW and 10kW capacity the wall mounted unit has a seasonal energy efficiency of 6.1 (A++) and 5.4 respectively (A) and a seasonal coefficient of performance of 3.9 (A) and 3.8 (A). Powerful cooling and heating with a 20m airflow, the wall mount unit has a 6 step vertical vane adjustment for optimised airflow.

UU36WR and UU37WR outdoor models utilises the LG designed and manufactured R1 Compressor the world’s first “shaft-through” hybrid scroll-shaped compressor. Taking the best elements of scroll- and rotary-type compressors, the R1-scroll offers unrivalled performance and efficiency and allows for a marked improvement in operational range. LG’s innovative technology eliminates the tilting motion of the scroll, minimising energy waste and increasing overall reliability.

The Jet cool feature disperses air evenly at high speed to secure an optimally cooled or heated room in just 3 minutes.

Product Key Feature's:



• R32 Refrigerant
• Inverter DC compressor
• 3M Air Purifying System
• Anti Corrosion Fins
• Jet Cool/Jet Heat
• Auto Restart
• Wireless Remote Controller (Luminous)
• Sleep Mode Auto Operation
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• One-Touch Air Filter (Anti-Bacteria)
• 24-Hour ON/OFF Setting Timer



Technical Information:

INDOOR

UJ30R.NR0

Capacity

Cooling

Min / Nom / Max

kW

3.2 / 8.0 / 9.9

Heating

Min / Nom / Max

kW

3.6 / 9.0 / 10.0

Power Input (Indoor)

Cooling/Heating

Nom

W

2.28 / 2.50

Running Current

Cooling/Heating

Nom

A

10.10 / 11.10

Power Supply

Ø / V / Hz

1 / 220-240 / 50

EER

3.51

COP

3.6

SEER

7.00

SCOP

4.30

Seasonal Energy Label

Cooling / Heating

A++ / A

Annual Energy Consumption

Cooling / Heating

kWh

400 / 1,758

Piping Connection

Liquid

mm (inch)

Ø9.52 (3/8)

Gas

mm (inch)

Ø15.88 (5/8)

Drain

O.D. / I.D.

mm

21.5 / 16.0

Air Flow Rate

High / Medium / Low

m³/min

22.0 / 19.0 / 16.0

Sound Pressure

Cooling

High / Medium / Low

dBA

46 / 42 / 38

Sound Power

Cooling

Max

dBA

62

Dehumidification Rate

l/h

Dimensions

Body

W x H x D

mm

1,200 x 360 x 265

Net Weight

Body

kg

18

Model Outdoor

UU30WR.U30

Power Supply                                                                                                 V , Ø , Hz

220-240 , 1 , 50

Power Factor                                                            Rated                           -

0.98

Power Supply Cable (included Earth)                                                         No. x mm²

3C x 6.0

Casing Color                                                                                                   -

Warm Gray

Dimensions                               Net                         W x H x D                    mm

950 x 834 x 330

Weight                                       Net                                                               kg

58

Compressor                              Type                                                             -

LG Inverter Scroll

Refrigerant

Type                                                         -

R32

GWP (Global Warming Potential)           g

675

Precharged Amount                                  -

2,000

t-CO2 eq                                                   -

2.025

Control                                                       m

Electronic Expansion Valve

Chargeless-Pipe Length                            g/m

7.5

Additional Charging Volume                    -

40

Heat Exchanger                        (Row x Column x FPI) x No.                       -

(2 x 32 x 14) x 2

Fan

Type                                                          -

Propeller

Air Flow Rate         Rated                         m³/min x No.

55 x 2

Fan Motor

Type                                                          -

BLDC

Output                                                         W x No.

124 x 2

Sound Pressure Level

Cooling                   Rated                           dB(A)

52

Heating                  Rated                           dB(A)

54

Sound Power Level

Cooling                   Rated                           dB(A)

66

Heating                  Rated                           dB(A)

70

Piping Connections

Liquid                     Outer Dia.                   mm (inch)

Ø 9.52(3/8)

Gas                         Outer Dia.                    mm (inch)

Ø 15.88 (5/8)

Piping Length                                                          Min~Max                     m

5-85

Maximum Height Difference (ODU ~ IDU)

Max.                            m

30
