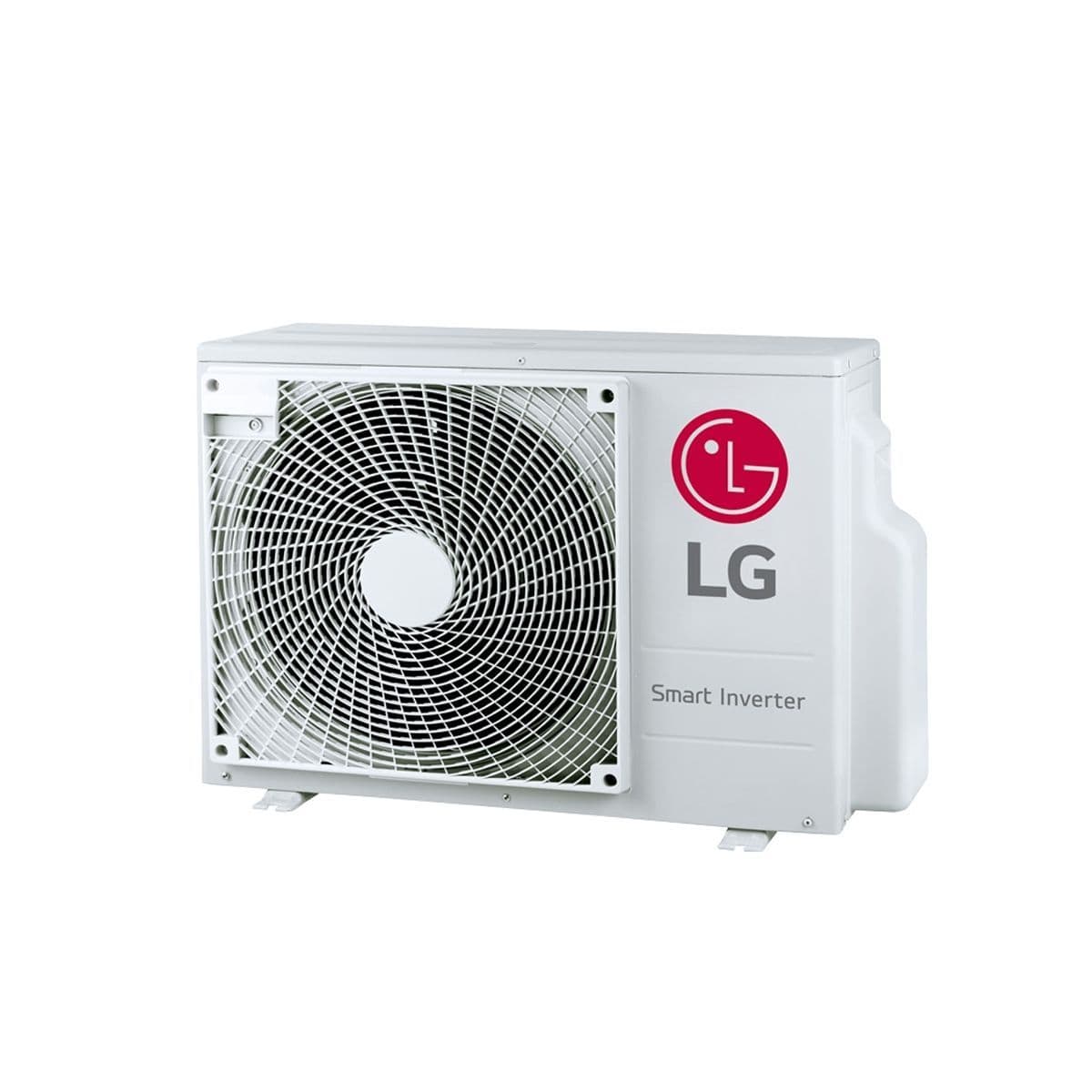

Lg Air Conditioning MU2R15-UL0 Multi Room Heat Pump Inverter 2 Port 4Kw/14000Btu A+++ R32 220-240V~50Hz
Includes:
1 x Lg Air Conditioning Multi Room Heat Pump Inverter 2 Port 4Kw/14000Btu A+++ R32 220-240V~50Hz
About Lg's Multi Inverter Air Conditioning Unit:
The Lg multi split air conditioning inverter heat pump units make it possible to have multiple combinations of different indoor units with different capacities with the advantage of a space saving outdoor condensing unit. The latest Lg Inverter heat pump technology allows greater performance, lower sound levels, lower energy consumption and operates at optimum performance in a rapid and uniform manner until the temperature reaches its optimum set point. The DC Inverter multi split heat pump outdoor units are more efficient than their predecessor and Lg air conditioning's renowned inverter technology is an innovative, energy-efficient feature that automatically adjusts the unit’s power to maintain room temperature across all the indoor units connected, rather than repeatedly starting and stopping the compressor. The patented Gold Fin™ process on the outdoor condensing unit is standard on the LG multi outdoor units and is an anti-corrosion coating that forms a protective shield against the elements to increase the product lifetime. As there is no need to install a large number of outdoor units, the outside aesthetics of the building are virtually unaffected, furthermore, the outdoor units offer great location flexibility to ease the installation.
Technical Specifications Outdoor Multi:
Top of Form
|
OUTDOOR UNIT MU2R15 UL0
|
|
Compressor Type
|
Twin Rotary
|
|
Capacity *
|
Cooling
|
Min / Nom / Max kW
|
0.9 / 4.1 / 4.7
|
|
Heating
|
Min / Nom / Max kW
|
1.0 / 4.7 / 5.4
|
|
Low Temperature Capacity Heating -7°C
|
Max kW
|
3.3
|
|
Power Input *
|
Cooling
|
Min / Nom / Max kW
|
0.2 / 1.0 / 1.4
|
|
Heating
|
Min / Nom / Max kW
|
0.2 / 1.1 / 1.4
|
|
Running Current
|
Cooling
|
Min / Nom / Max A
|
1.1 / 4.6 / 6.4
|
|
Heating
|
Min / Nom / Max A
|
1.1 / 4.9 / 6.6
|
|
EER
|
|
4.14
|
|
COP
|
|
4.38
|
|
SEER
|
|
8.50
|
|
SCOP
|
|
4.20
|
|
Pdesign (@-10°C)
|
kW
|
4.10
|
|
Seasonal Energy Label Cooling / Heating
|
A+++ / A+
|
|
Annual Energy Consumption Cooling / Heating
|
169 / 1,367
|
|
Airflow Rate Nom
|
m3/min
|
28.2
|
|
Sound Pressure
|
Cooling
|
Nom dBA
|
48
|
|
Heating
|
Nom dBA
|
51
|
|
Sound Power Cooling
|
Max dBA
|
61
|
|

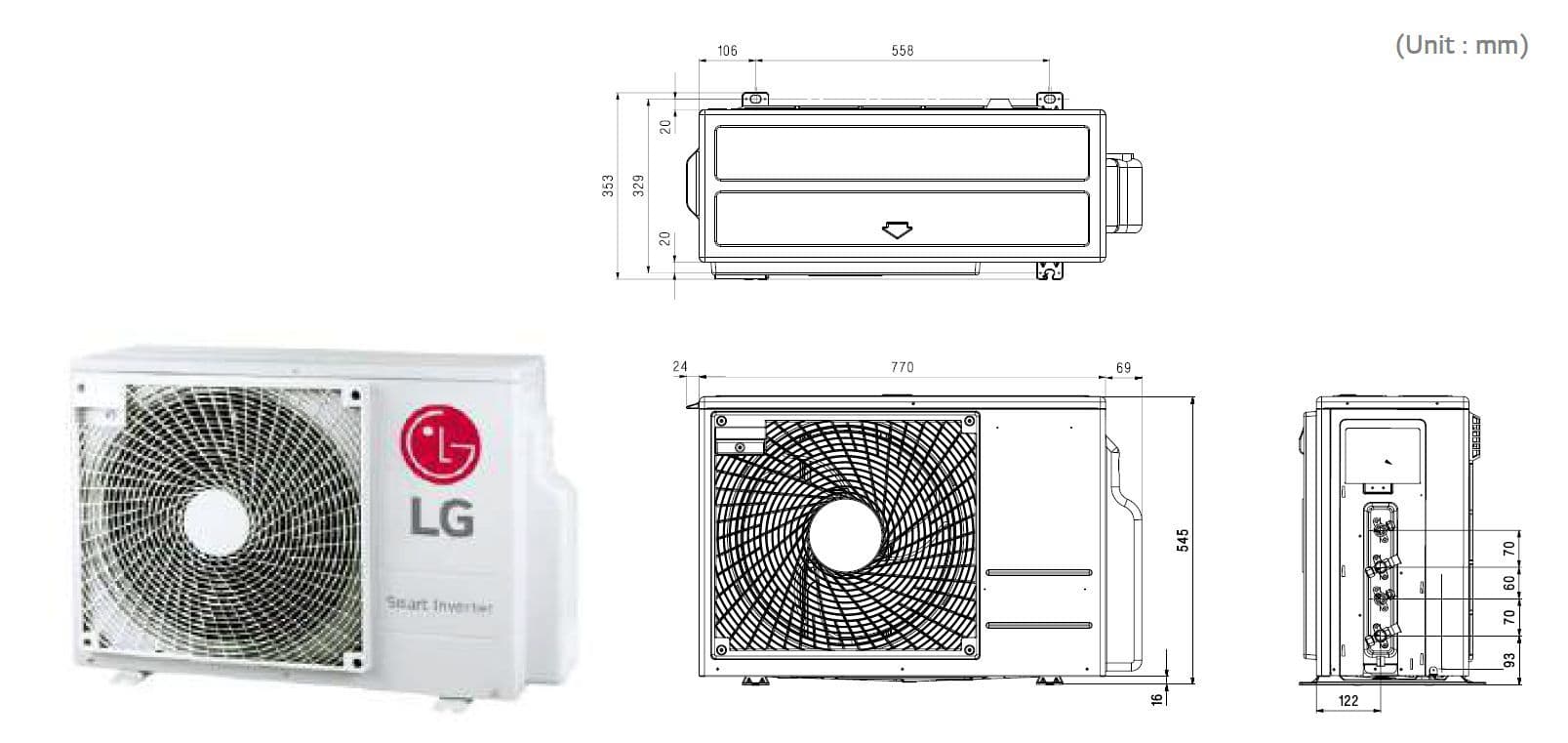

Dimensions W x H x D mm
|
770 x 545 x 288
|
|
Net Weight
|
Kg
|
36
|
|
Refrigerant
|
Type
|
R32
|
|
Charge Kg
|
1.1
|
|
Additional Charge g/m
|
20
|
|
GWP
|
675
|
|
t-CO2 eq
|
0.74
|
|
Operation Range (Outdoor)
|
Cooling
|
Min ~ Max °C DB
|
-10 ~ 48
|
|
Heating
|
Min ~ Max °C WB
|
-18 ~ 18
|
|
Power Supply
|
Ø / V / Hz
|
1 / 220-240 / 50
|
|
Power Supply Cable
|
No. x mm2
|
3C x 2.5
|
|
Transmission Cable
|
No. x mm2
|
4C x 0.75
|
|
Circuit Breaker
|
A
|
15
|
|
Piping Length Total
|
m
|
30
|
|
Piping Length per Branch
|
Max m
|
20
|
|
Piping Elevation Difference
|
IDU - ODU
|
Max m
|
15
|
|
IDU - IDU
|
Max m
|
7.5
|
|
Piping Connection
|
Liquid mm (inch) x No.
|
Ø6.35 (1/4) x 2
|
|
Gas mm (inch) x No.
|
Ø9.52 (3/8) x 2
|
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
