Deluxe With UVnano™, IonizerPLUS, Wi-Fi ThinQ
Lg Air Conditioning Deluxe DC12RK-NSJ+DC12RK-UL2 Wall Mounted Heat Pump 3.5Kw/12000Btu A++ Energy rated 220-240V~50Hz R32 Refrigerant

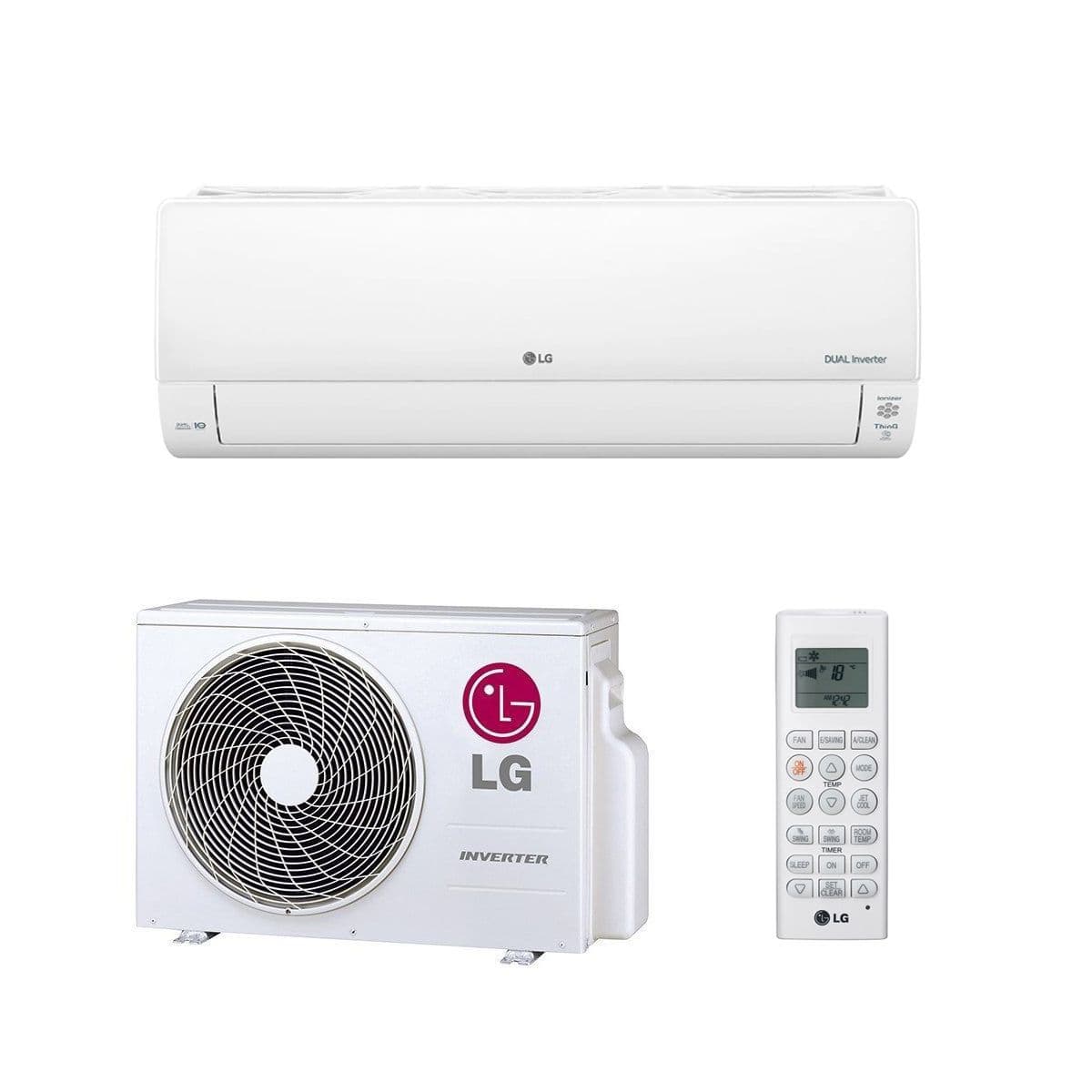

Includes:
1 x Deluxe DC12RK-NSJ Wall Mounted Heat Pump
1 x DC12RK.UL2 Outdoor R32 inverter heat pump
1 x Ir remote controller
Now Wi-Fi Standard

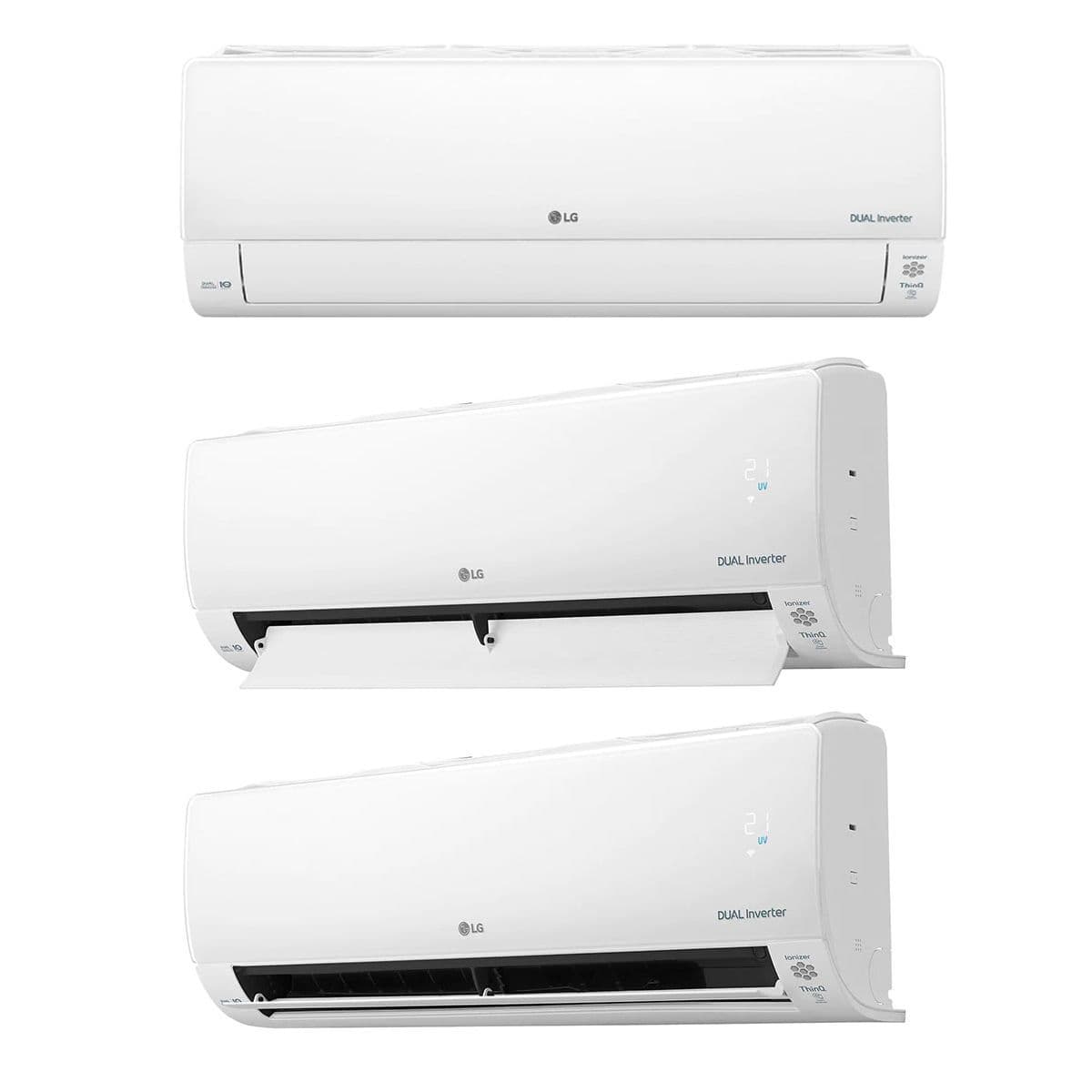

The outstanding quality of LG air conditioners is recognised by people all over the world. With sales of 10 million units a year, it has become the top seller of air conditioners in the world. LG Air Conditioning units use R32 refrigerant and unlike ordinary conventional air conditioners, the Lg inverter air conditioners can control the speed of compressors to adjust cooling and heating to keep a linear temperature and outdoor noise levels low. When indoor temperatures reach your desired levels, inverter air conditioners can operate their compressors at low speeds and maintain desired temperatures, thus saving you electricity cost by about 44% compared to conventional units. The NEW Lg air conditioning Deluxe range of Wall Mounted Indoor Units have a new smooth edge design of the fascia, which has a lower profile flatter appearance, and is easy to keep clean. The Deluxe range now includes embedded Wi-Fi control as standard and operates at a very low noise rating of 19Db. The main Photocatalytic Washable Deodorizing Filter, provides healthy filtered clean air for the occupants by removing particles as small. Lg air conditioning has used its long standing innovative technology in inverter compressor design, and the ozone friendly R32 refrigerant and combined this with their low noise air movement fan arrangement. The result is a quiet, high performance cooling and heating system, with advanced electronic controls for maximum comfort, controllable and energy efficient. LG's Energy Display panel monitors the amount of energy levels used. Save on energy consumption while enjoying the cooling by checking your energy level on the air conditioning internal units front panel.
The new slim profile indoor unit has a reduced height of 189mm, allowing installation above door openings and windows. The new multiple stage heat exchanger is folded to form a surround to the upper section of the fan enclosure. This ensures low air velocity, and reduced sound levels, whilst delivering high performance and efficiency. The powerful plasma Ionizer protects you from odors and harmful substances in the air with over 3 million ions to sterilize not only the air passing through the air conditioner, but also surrounding surfaces
Heating / cooling and dehumidification
Heats, cools and dehumidifies.
Quiet Operation
The indoor unit has a quiet operational noise of 19dB in the sleep mode to offer you peace and quiet for the bedroom or office. In addition, the outdoor units have drastically reduced vibration and noise thanks to a super quiet fan and motor and an innovative anti noise mechanism.
Easy Quick Clean System

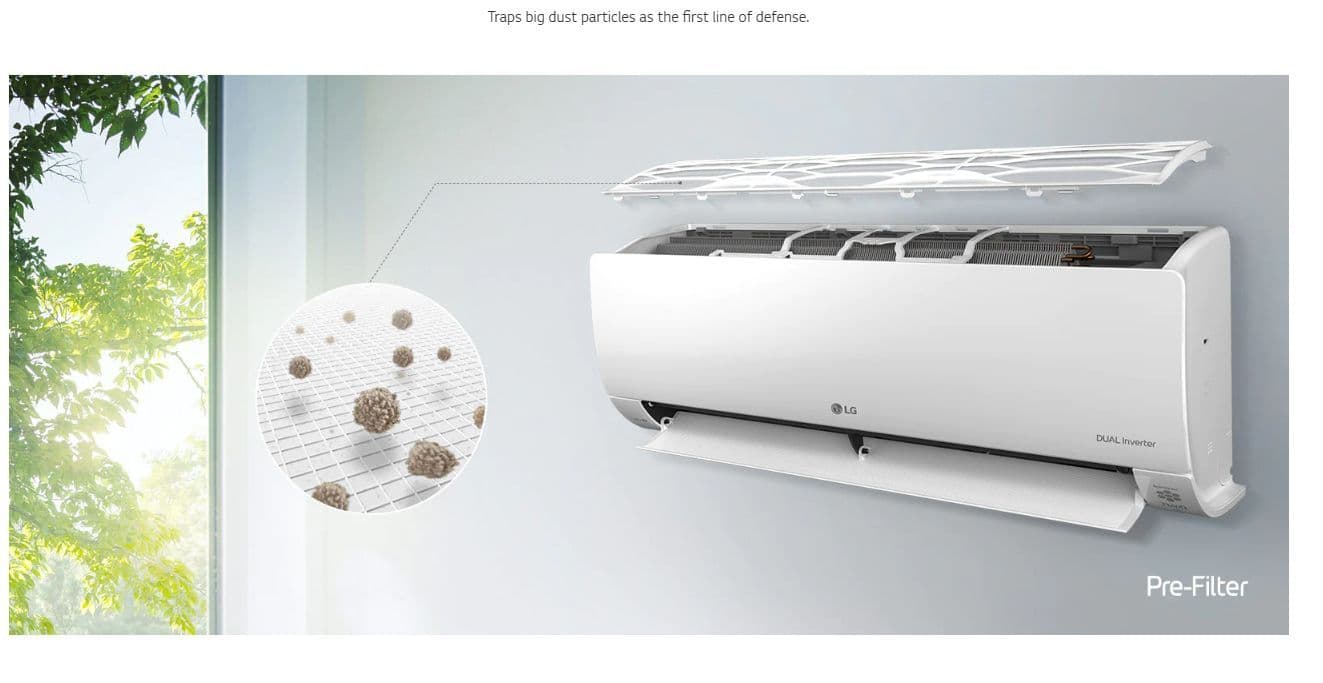

With 3M micro protection filter the LG Split Systems are designed with simple cleaning in mind. The grille is completely detachable and access is made simple with the upward opening cover panel.
Healthy De humidification
Dehumidification mode reduces uncomfortable humidity from the room without over cooling.
Jet CoolTM
The Jet cool function allows quick cooling. In this mode, cool air is blown at high speed for 30 minutes, until the room temperature reaches 18°C.
Optimized Cooling & Heating Air Flow
The air vanes will be adjusted according to the mode of operation. In heating mode air will be distributed at a lower angle due to hot air rising.
Even & Fast Air flow
LG Electronics’ air conditioner improves the difference between high and low indoor temperatures. It allows you to reach your desired temperatures even faster
Delicate dedicated supply
Gentle airflow ensures a healthy cooling and space heating. With the new feature 1 Touch Soft Air air is distributed in a gentle and comfortable.
Product Key Feature's:
- R32 Inverter DC compressor
- 3M Air Purifying System UVnano™
- IonizerPLUS
- Wi-Fi ThinQ
- Auto Cleaning
- Auto Changeover
- Jet Cool/Jet Heat
- Auto Restart
- Wireless Remote Controller
- Sleep Mode Auto Operation
- Quiet Operation
- Healthy Dehumidification
- Hot Start
- One-Touch Air Filter (Anti-Bacteria)
- 24-Hour ON/OFF Setting Timer
Technical Information:
|
UNIT INDOOR
|
12K
|
|
0.89 / 3.50 / 4.04
|
|
Capacity
|
Cooling
|
Min. / Rated / Max. kW
|
|
Heating
|
Min. / Rated / Max. kW
|
0.89 / 4.00 / 6.00
|
|
Heating -7°C
|
Rated kW
|
3.50
|
|
Power Input Cooling / Heating
|
Rated W
|
933 / 976
|
|
EER
|
W/W
|
3.75
|
|
S.E.E.R.
|
|
7.60
|
|
P design C
|
kW
|
3.50
|
|
COP
|
W/W
|
4.10
|
|
S.C.O.P
|
(Average / Warmer)
|
4.60 / 5.40
|
|
P design H (Average / Warmer) kW
|
2.90 / 1.50
|
|
Energy Label (A+++ to D Scale)
|
Cooling
|
|
A++
|
|
Heating
|
(Average / Warmer)
|
A++ / A++
|
|
A n n u a l E n e r g y Consumption
|
Cooling
|
kWh
|
161
|
|
Heating
|
(Average / Warmer) kWh
|
883 / 389
|
|
Sound Pressure
|
Cooling
|
S / L / M / H dB(A)
|
19 / 27 / 37 / 42
|
|
Heating
|
L / M / H dB(A)
|
27 / 37 / 42
|
|
Sound Power Cooling
|
dB(A)
|
60
|
|
Air Flow Rate
|
Cooling
|
S / L / M / H / Max. (Power) m3/min
|
3.5 / 5.5 / 9.0 /
11.0 /13.0
|
|
Heating
|
L / M / H m3/min
|
6.5 / 9.0 / 11.0
|
|
Dehumidification Rate l/h
|
1.3
|
|
Running Current
|
Cooling
|
Min. / Rated / Max. A
|
1.00 / 4.00 / 6.00
|
|
Heating
|
Min. / Rated / Max. A
|
1.00 / 4.30 / 7.00
|
|
Starting Current Cooling / Heating
|
Rated A
|
4.00 / 4.30
|
|
Power Supply Ø/ V/ Hz
|
1 / 220-240 / 50
|
|
Circuit Breaker A
|
15
|
|
Power Supply Cable N xmm2
|
3 x 1.0
|
|
Power & Transmission Cable N xmm2
|
4 x 1.0
(Including Earth)
|
|
Dimension mm
|
837 x 308 x 189
|
|
Net Weight kg
|
9.1
|
|
Fan Motor Output W
|
30
|
|
OUTDOOR
|
|
|
Operation Range
|
Cooling
|
Min. / Max. °C DB
|
-15 / 48
|
|
Heating
|
Min. / Max. °C DB
|
-15 / 24
|
|
Sound Pressure Cooling / Heating
|
High dB(A)
|
49 / 51
|
|
Sound Power Cooling
|
High dB(A)
|
65
|
|
Air Flow Rate
|
High m3/min
|
35
|
|
Piping
|
Liquid (ODU / IDU)
|
Min. / Max. m
|
3 / 20
|
|
Elevation (ODU / IDU)
|
Min. / Max. m
|
10
|
|
Piping Connection
|
Liquid
|
OD (Outside) mm (inch)
|
6.35 (1/4)
|
|
Gas
|
OD (Outside) mm (inch)
|
9.52 (3/8)
|
|
Drain Hose Size
|
OD (Outside) mm (inch)
|
21.5 (27/32)
|
|
Refrigerant
|
Type
|
|
R32
|
|
Charge at 7.5m
|
kg
|
0.800
|
|
t-CO2 eq
|
0.540
|
|
Additional Charge
|
g/m
|
20
|
|
GWP
|
|
675
|
|
Fan Motor Output
|
W
|
43
|
|
Compressor Type
|
|
Inverter Twin Rotary
|
|
Net Weight
|
kg
|
34.1
|
|
Dimension
|
mm
|
770 x 545 x 288
|
These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
